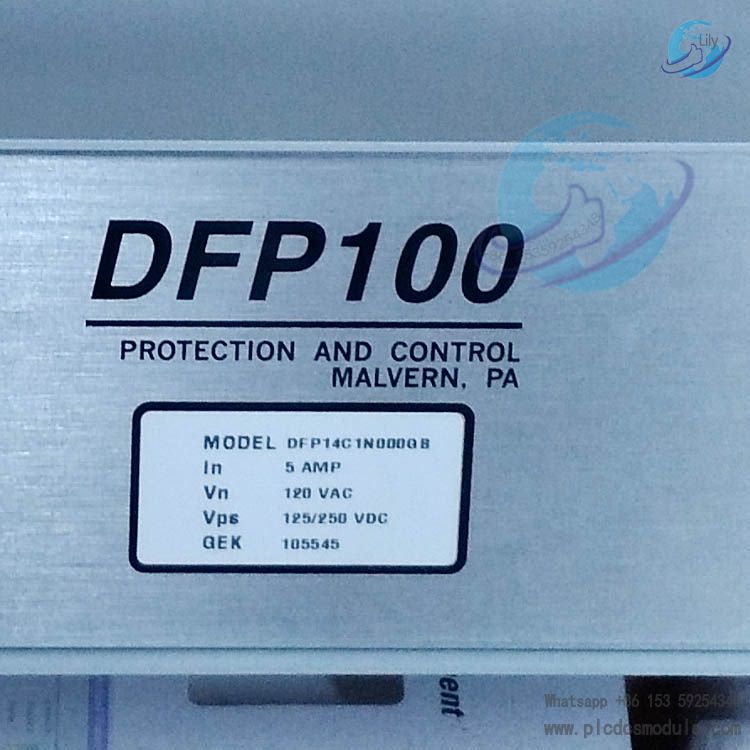

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The DFP100 DFP14C1N000GB Digital Feeder Protection Relay is an integrated system launched by GE, integrating protection, control, metering, and monitoring functions. It realizes distribution feeder protection through waveform sampling of current and voltage inputs and dedicated algorithms, while integrating local and remote human-machine interfaces (HMIs) without the need for additional discrete components. Suitable for primary feeder protection as well as backup protection for buses, transformers, and lines, it provides stable and reliable protection and control support for industrial power systems.
Core Protection and Control Functions
- Equipped with multiple protection functions, enabling rapid response to abnormal conditions such as overcurrent, undervoltage, overvoltage, underfrequency, and overfrequency.
- Supports fault location and circuit breaker health monitoring, allowing timely identification of power system fault points and evaluation of equipment status.
- Built-in 200-event recording function that captures current and voltage waveforms, providing data support for fault analysis and system optimization.
Metering and Interface Configuration
- Metering parameters cover key power indicators including current, voltage, active power, reactive power, and frequency, with an integrated demand ammeter function.
- Equipped with 10 target alarm indicators, offering intuitive prompts for equipment operating status.
- Supports optional display screen and keyboard configurations to meet local operation needs, while being compatible with remote human-machine interaction.

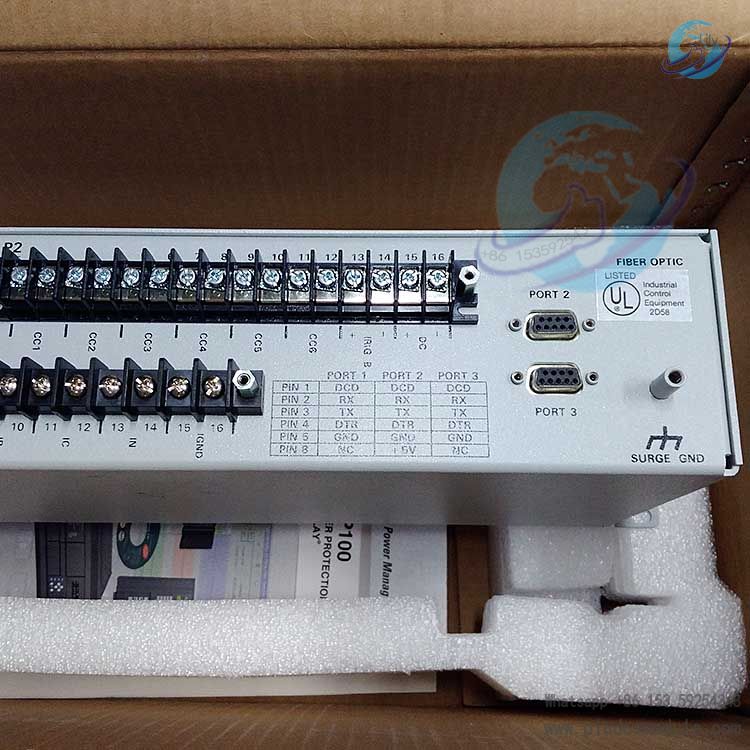

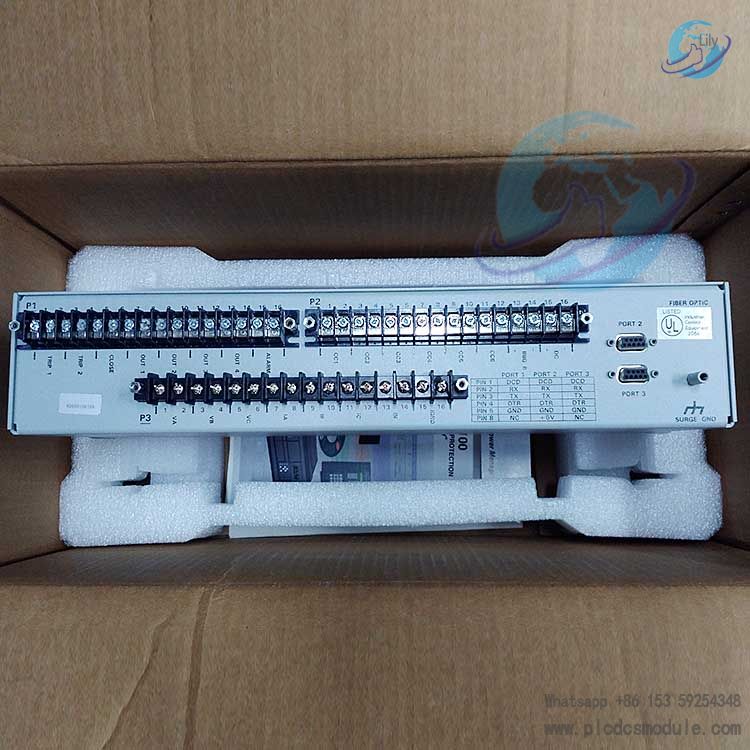

Communication Interface Specifications
- Provides RS232 and RS485 communication interfaces to ensure stable data transmission and compatibility.
- Supports optical fiber communication, expanding application scenarios in complex industrial environments.
- Compatible with mainstream industrial communication protocols, enabling seamless integration into existing industrial control systems.
Operating Parameters
- Input voltage range: 100-240V AC, with a maximum output current of 10A.
- Operating temperature range: -40℃ to 85℃, adaptable to harsh industrial environments.
- Dimensions: 20 cm × 15 cm × 5 cm; Weight: 1.2 kg. The compact design facilitates easy installation and maintenance.
