General Electric

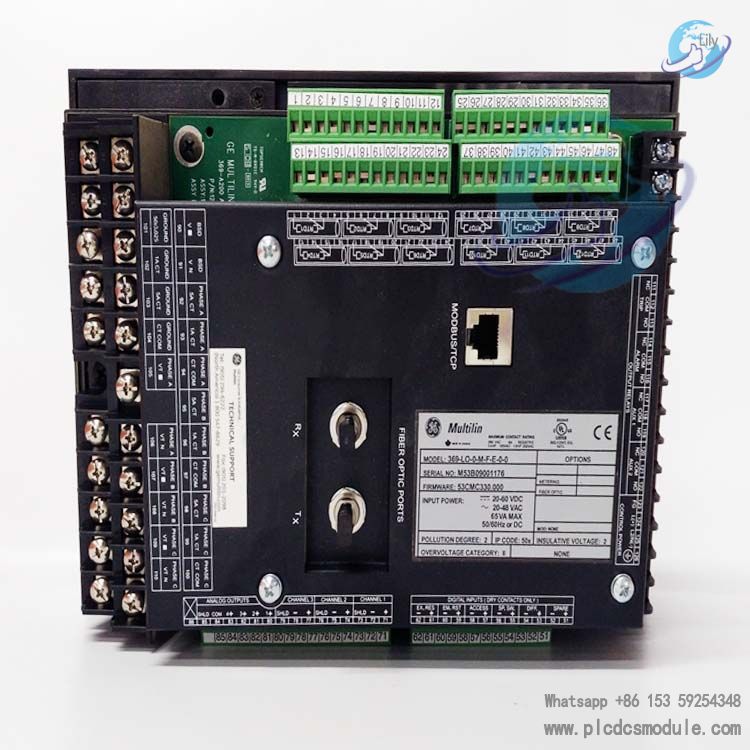

GE Multilin 369-LO-0-M-F-E-0-0 Motor Management Relay

Manufacturer:GE

Product Number: 369-LO-0-M-F-E-0-0

Product Type: Motor Management Relay

Place of Origin: USA

Price Range: $3500

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ In Stock

✓ On-site Inspection Supported

Mail： plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

GE Multilin 369-LO-0-M-F-E-0-0 is a high-performance motor management relay designed by General Electric (GE) specifically for low-voltage three-phase AC motors. It is a core model of the Multilin 369 series, with its core positioning as a "motor full-lifecycle protection + intelligent monitoring center".

This relay adopts an industrial-grade durable design, featuring a wide temperature tolerance range of -40℃ to +60℃, optional anti-corrosion conformal coating, and adaptability to hazardous areas. It can operate stably in industrial environments with high dust, high humidity, and strong electromagnetic interference, such as underground mine pumps and chemical industry fans. Although the Multilin 369 series has been discontinued (the official recommended replacement model is 859), the 369-LO-0-M-F-E-0-0 remains a core maintenance spare part for existing low-voltage motor systems. This is attributed to its mature thermal model algorithm (for accurate motor temperature prediction), flexible communication expansion (fiber optics + Ethernet), and simplified Enervista™ automatic configuration tool. Its Mean Time Between Failures (MTBF) exceeds 100,000 hours.

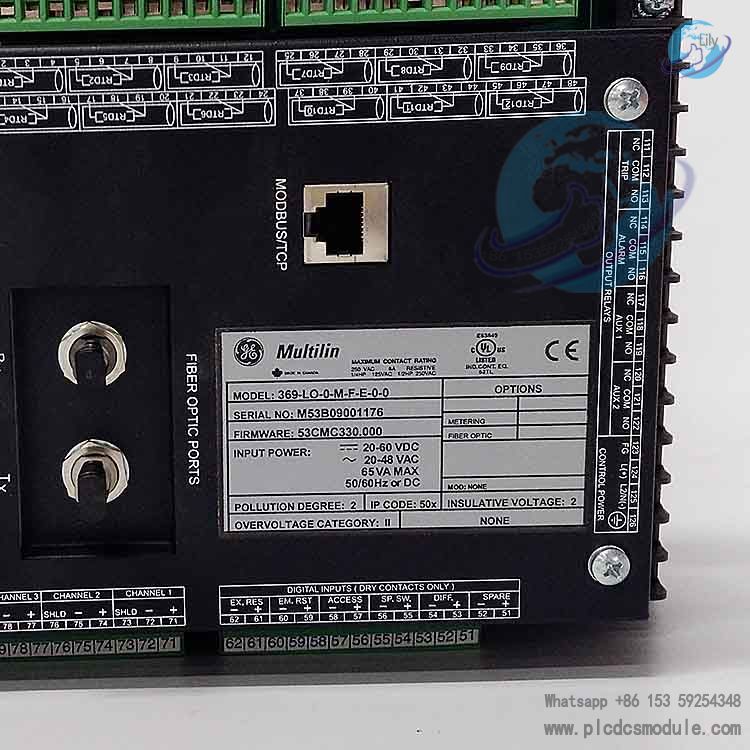

GE Multilin 369-LO-0-M-F-E-0-0 Motor Management Relay....jpg

Communication and Expansion Parameters

Parameter Category	Specific Specifications
Communication Interfaces	- Standard interfaces: 1 x Modbus-TCP Ethernet (RJ45), 1 x fiber optic port (820 nm LED transmitter, supporting 50/125~200 μm multimode fiber, compatible with harsh environments/RRTD connections)- Optional protocols: Profinet DPV1 (cyclic data parameter customization), DeviceNet (polling data size adjustable)- Remote display: Supports 15-foot (approximately 4.6 m) remote display module, no additional power supply required (connected via shielded network cable, placed away from high-current cables for anti-interference)
I/O Expansion	- Analog inputs: RTD inputs (supports Pt100/Cu types), BSD inputs (load >200 kΩ)- Digital inputs: Dry contact inputs (impedance <800 Ω), supporting motor start-stop control and external interlock signals- Analog outputs: 1 basic analog output (0~20 mA/4~20 mA), expandable to 4 outputs with optional metering package (for monitoring parameters such as voltage and power)
Configuration and Upgrade	- Configuration tool: Enervista™ 369 Motor Settings Auto-Configurator (automatically identifies motor parameters, simplifying programming)- Firmware upgrade: Field-upgradable (via communication port, no need to open the cover)- Parameter customization: Over 50 user-adjustable parameters including motor cooling rate, acceleration time, and Profinet DPV1 cyclic data size

Environmental and Mechanical Parameters

Parameter Category	Specific Specifications
Environmental Adaptability	- Operating temperature: -40℃~+60℃ (wide-temperature design, suitable for frigid zones/high-temperature workshops)- Storage temperature: -55℃~+85℃- Humidity: 5%~95% (non-condensing, IEC 68-2-3)- Protection options: Optional conformal coating (anti-corrosion, suitable for chemical/coastal high-salt-fog environments)- Anti-interference: EN 61000-4-2 ESD protection (8 kV air discharge), high-frequency interference filtering
Mechanical & Installation	- Dimensions: 140 mm × 110 mm × 75 mm (compact design, suitable for 19-inch cabinet/wall-mounted installation)- Weight: Approximately 2.5 kg (excluding accessories)- Terminals: Screw terminals (compatible with 10 AWG wires; ground terminals must be independently connected to the cabinet ground bus, Daisy-chain grounding is prohibited)
Reliability & Warranty	- MTBF (Mean Time Between Failures): >100,000 hours

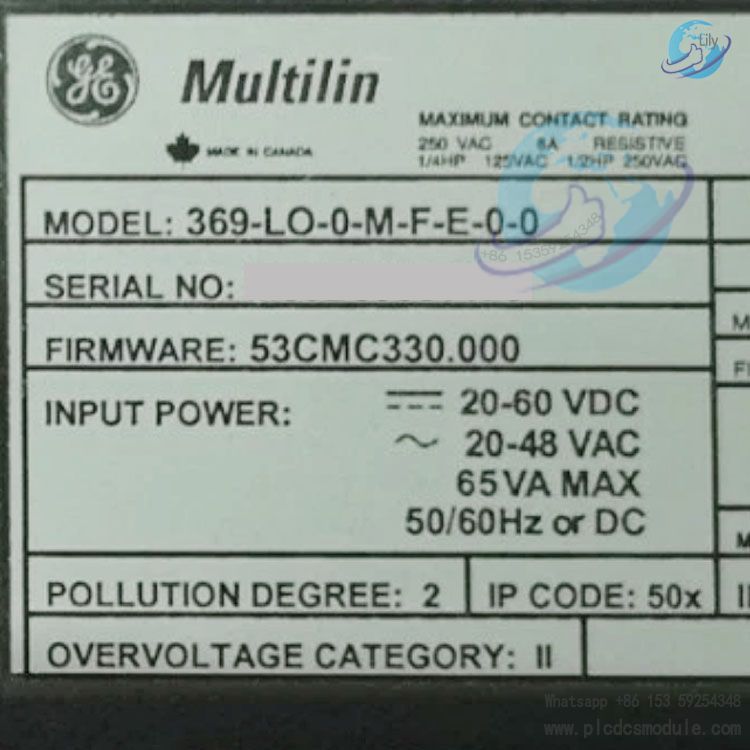

GE Multilin 369-LO-0-M-F-E-0-0 Motor Management Relay.jpg
