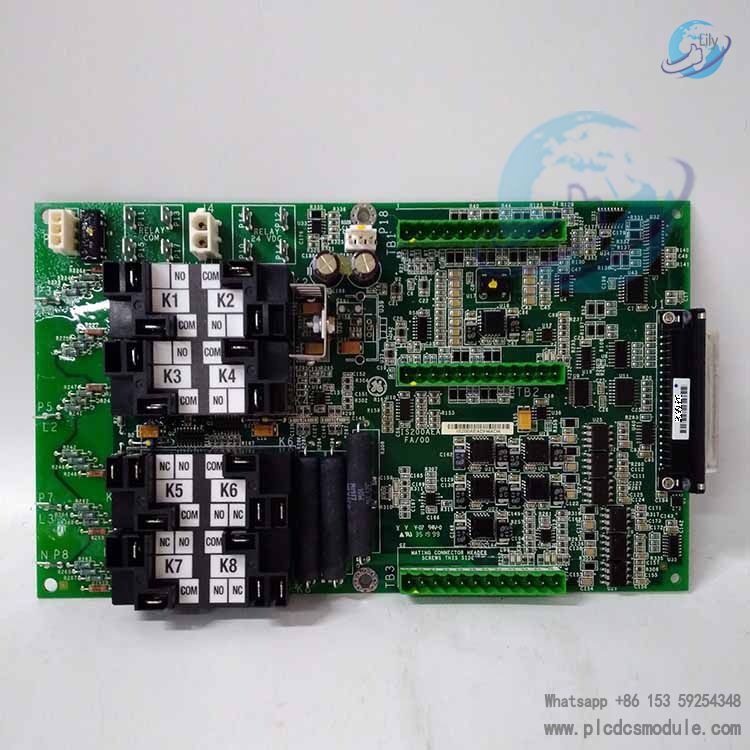

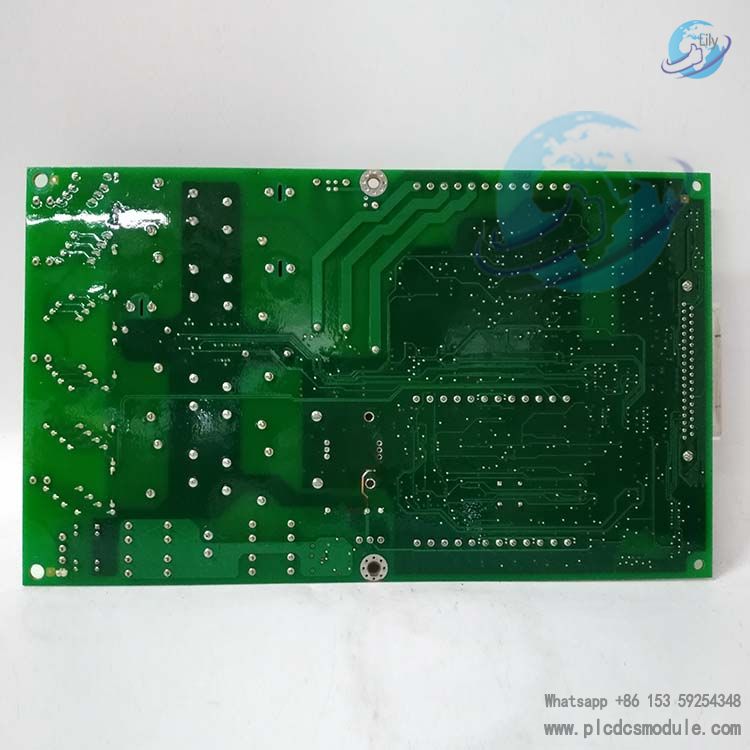

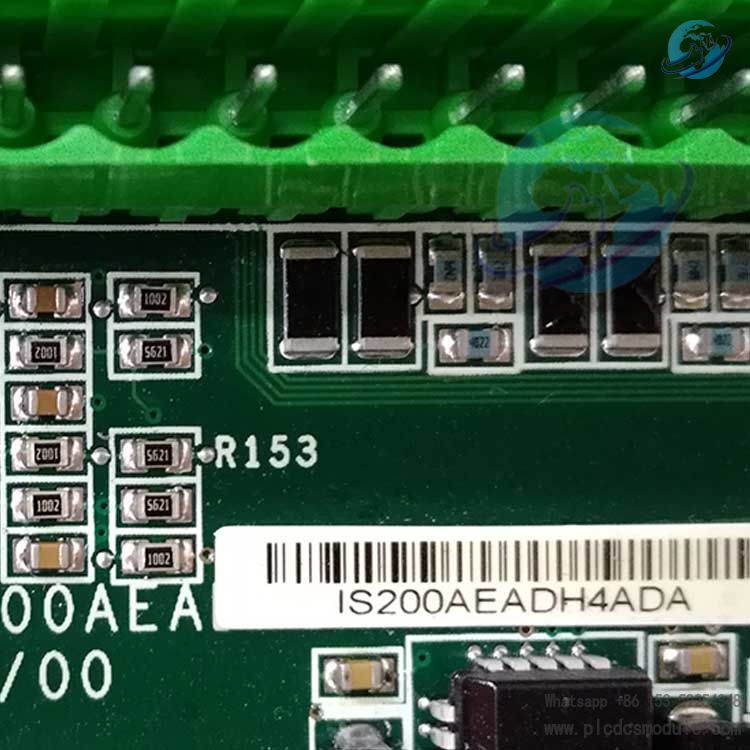

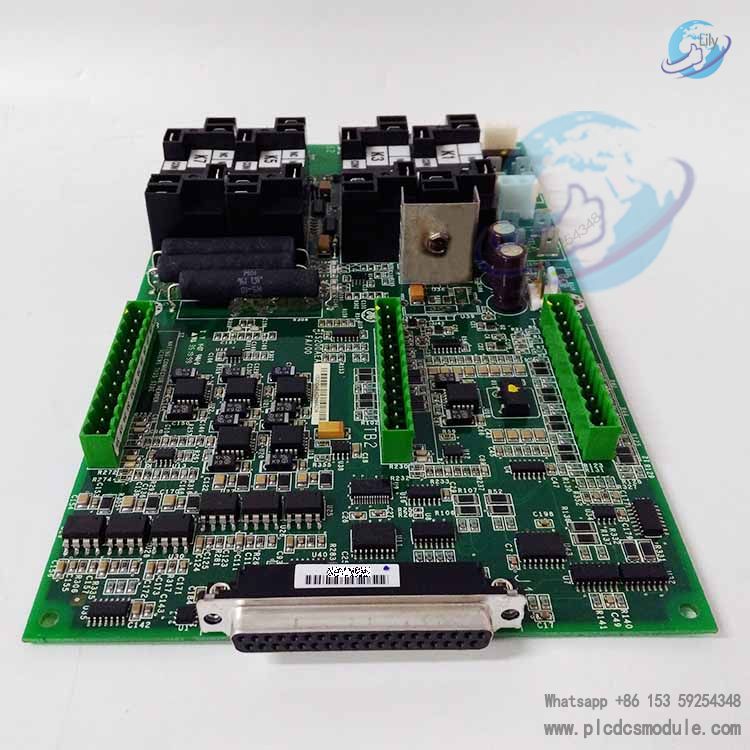

GE IS200AEADH4ADA Mark VI / Mark VIe Turbine Input Terminal Board
Product Overview
GE IS200AEADH4ADA belongs to the GE Vernova Speedtronic Mark VI / Mark VIe gas turbine and steam turbine control platform. It is an I/O grid feedback terminal board, also known as Grid Fork / Alternative Energy Application D Input Terminal Board within the IS200 series I/O terminal boards. This board is deployed for grid connection, excitation and field sensor signal wiring in power plants, delivering front-end signal interfaces for turbine protection and closed-loop control.
The IS200AEADH4ADA is a field signal transition terminal board for Mark VI / Mark VIe turbine control systems. It acts as the front signal interface between field primary components and I/O modules. It collects grid synchronization feedback, excitation feedback, analog and discrete field signals, consolidates wiring terminals and performs signal filtering & noise suppression. All field cables are routed to the backplane I/O pack inside the turbine control cabinet to preserve signal integrity for grid synchronization, unit monitoring and BOP auxiliary equipment. It serves as a critical I/O terminal assembly for combined-cycle power plants, peaking power stations and cogeneration projects running Mark VI / Mark VIe systems.
This terminal board cannot operate as a standalone controller. It must work with Mark VI / Mark VIe racks, controllers and matched I/O modules. It solves signal termination, anti-interference and ground loop suppression for high-power generator grid connection circuits, preventing measurement distortion, false alarms and control loop instability during synchronization and load variation.
Core Functions
- Grid synchronization feedback signal termination: Captures grid voltage and current sync signals to support generator synchronizing logic, forming a vital signal interface for unit paralleling and excitation regulation.
- Mixed signal terminal aggregation: Accepts analog (voltage/current) and discrete digital inputs from field transmitters including pressure, temperature, speed and valve position sensors.
- Hardware noise filtering and signal conditioning: Onboard filtering circuits suppress heavy electromagnetic interference in power plant environments, improving signal fidelity and minimizing measurement errors caused by ground loops.
- Signal isolation and fault diagnostics: Built-in signal isolation supports wire break detection and over-range alarm. Channel fault status can be reported to the Mark VIe controller for troubleshooting via ToolboxST software.
Backplane signal routing: Transmits terminal-side signals to Mark VI / Mark VIe I/O Packs through on-board connectors, then communicates with the main system controller over IONet bus.
Key Technical Specifications
- Model: IS200AEADH4ADA
- System Platform: GE Speedtronic Mark VI / Mark VIe Turbine Control System
- Board Type: I/O Grid Fork Input Terminal Board (Alternative Energy Application D)
- Wiring: Screw-type terminal blocks compatible with shielded field cables for easy field installation and maintenance
- Supported Signals: ±10V DC analog, 4–20mA analog, 24V/125VDC discrete input signals
- Mounting: Standard Mark VI control cabinet rack mount, compatible with 13-slot / 21-slot VME rack structures
- Operating Environment: Power plant control cabinet; operating temperature 0~60℃, non-condensing humid conditions. Conformal three-proof coating applied to resist vibration and dust.
- Certifications: Utility-grade industrial standard, UL and CE compliant
- Communication: Passive terminal transition, connects to I/O packs via edge connectors. Interacts with main controller through IONet (Mark VIe) / VME backplane (Mark VI)
Typical Use Cases: Gas turbine, steam turbine, combined-cycle power plant and cogeneration unit & BOP auxiliary control
Typical Applications
- Spare part replacement for Mark VI / Mark VIe control systems on gas turbine and steam turbine generator sets
- Generator synchronization and excitation feedback loop signal termination
- I/O signal wiring for power plant BOP (Balance of Plant) auxiliary equipment
- Retrofit, system overhaul and faulty board replacement for legacy power units
Important Notes
IS200AEADH4ADA is a terminal board, not a controller or standalone AI acquisition board. Its core functions are field cable termination, signal preprocessing and signal routing. Actual signal acquisition is completed by matched I/O Pack modules.
GE has discontinued new production of this legacy hardware. It is only available as spare parts for maintenance of existing power plant control systems and will not be specified for new power plant projects.
Commissioning and replacement require GE ToolboxST software for system configuration, channel verification and fault diagnosis. Installation and wiring must strictly follow Mark VI/VIe system wiring specifications. Improper grounding may damage modules or trigger false turbine protection actions.
Frequently Asked Questions
Q1: What is GE IS200AEADH4ADA?
A1: GE IS200AEADH4ADA is a Grid Fork Input Terminal Board for GE Speedtronic Mark VI / Mark VIe gas and steam turbine control systems. It serves as the field wiring termination interface for grid synchronizing, exciter feedback, analog and discrete input signals.
Q2: Which system does IS200AEADH4ADA fit?
A2: It is designed for GE Speedtronic Mark VI and Mark VIe turbine control racks, widely used in combined-cycle power plants, cogeneration and peaking power units.
Q3: Can IS200AEADH4ADA work independently?
A3: No. It is only a terminal board. It must work with Mark VI/VIe rack, I/O packs and main controller, cannot run as standalone control hardware.
Q4: What signals does IS200AEADH4ADA support?
A4: It supports ±10V DC analog, 4–20mA analog, 24VDC and 125VDC discrete input signals from field transmitters and grid feedback circuits.
Q5: Is GE IS200AEADH4ADA still in production?
A5: No. GE has ended new production of this legacy board. It is only available as spare parts replacement for existing power plant control systems.
Q6: What software is used to diagnose IS200AEADH4ADA?
A6: GE ToolboxST software is used for configuration, channel check, fault diagnosis and commissioning for this terminal board.
Q7: What environment can IS200AEADH4ADA operate in?
A7: Operating temperature 0℃~60℃, non-condensing humid cabinet environment. It has three-proof coating for power plant industrial conditions.
Q8: What are the main applications of IS200AEADH4ADA?
A8: Generator synchronization & excitation feedback signal termination, BOP auxiliary system signal wiring, maintenance and retrofit of existing Mark VI/VIe turbine control cabinets.
