IS200VTURH1BAA is a VME bus main turbine protection board matching General Electric Speedtronic Mark VI turbine control system. The IS200VTURH1BAA board delivers a complete set of primary safety protection logic for gas turbines and steam turbines. It integrates multiple safety functions including speed signal acquisition, overspeed trip, shaft current and voltage monitoring, flame detection, and trip relay drive. Serving as the core safety barrier within power station turbine unit control systems, this board is compatible with both simplex and triple modular redundant (TMR) rack configurations of Mark VI. It exchanges data with system controllers and various I/O boards via the VME backplane, and fault status can be directly indicated through panel LEDs. It is designed to adapt to the continuous non-stop industrial operating environment of power plants.
Part Number Breakdown
Full segment-by-segment decoding of IS200VTURH1BAA, where each character block corresponds to fixed hardware and functional definitions.
- IS200: Product category code, representing VME-standard industrial control boards of Mark VI series.
- VTUR: Functional acronym. V = voltage monitoring; T = Turbine; UR = undervoltage & overcurrent monitoring. It defines this board as a dedicated turbine protection logic card.
- H1: Hardware revision number, standing for the 1st generation hardware circuit design.
- B: Sub-version identifier, used to distinguish minor adjustments to PCB layout and component BOM.
- AA: Suffix at the end, differentiating packaging types, compatible rack specifications and matching terminal board versions.
Technical Features
- Triple Modular Redundancy (TMR) compatible. It supports triple signal comparison within TMR triple-redundant control systems and adopts median speed calculation logic to avoid false trips caused by single-channel sensor faults.
- Multiple independent signal acquisition channels. It accepts inputs from 4 passive magnetic pulse speed probes, with a frequency sampling range of 2 Hz to 20,000 Hz and speed measurement accuracy up to 0.05% of readingFujian Zho....
- 8 built-in Geiger-Müller flame detector signal interfaces, specially designed for flame status monitoring of gas turbine combustion chambersWorld of C....
- Integrated real-time acquisition channels for induced shaft voltage and induced shaft current; audible and visual system alarms will be triggered automatically once threshold values are exceeded.
- 3 independent onboard overspeed trip relay drive circuits, which connect to TRPx terminal boards to control unit trip solenoid valves.

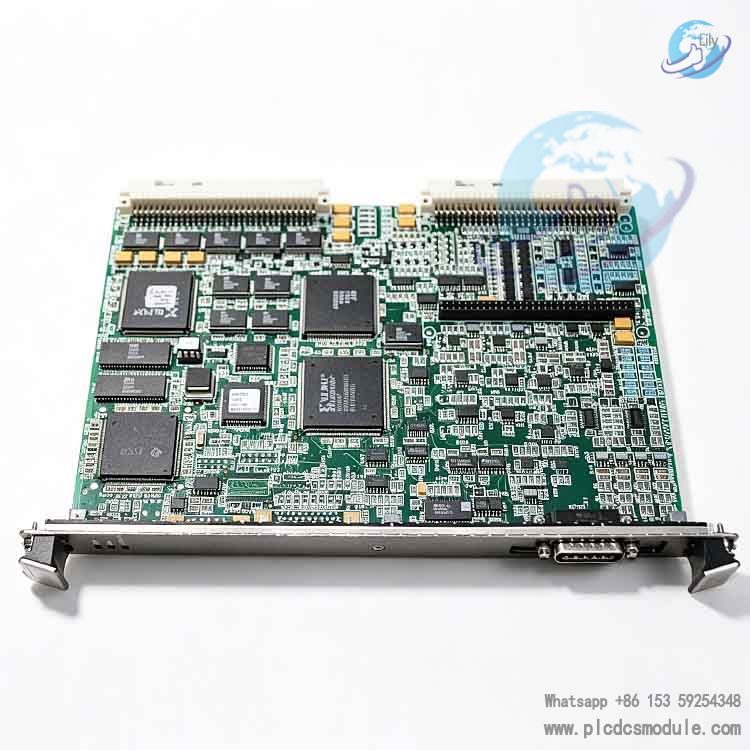

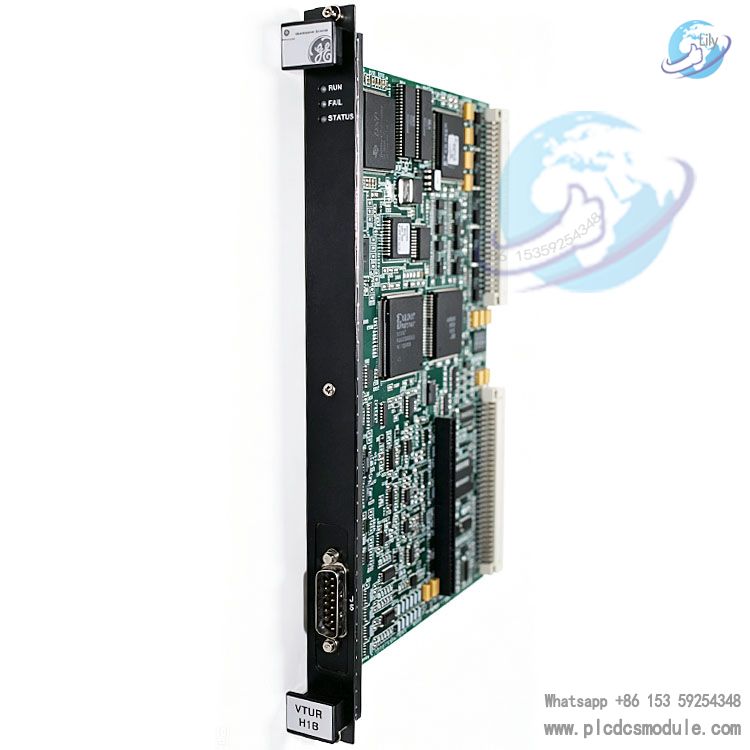

- Single-slot VME-standard faceplate fitted with three status LEDs indicating power supply, operation and fault status respectively.

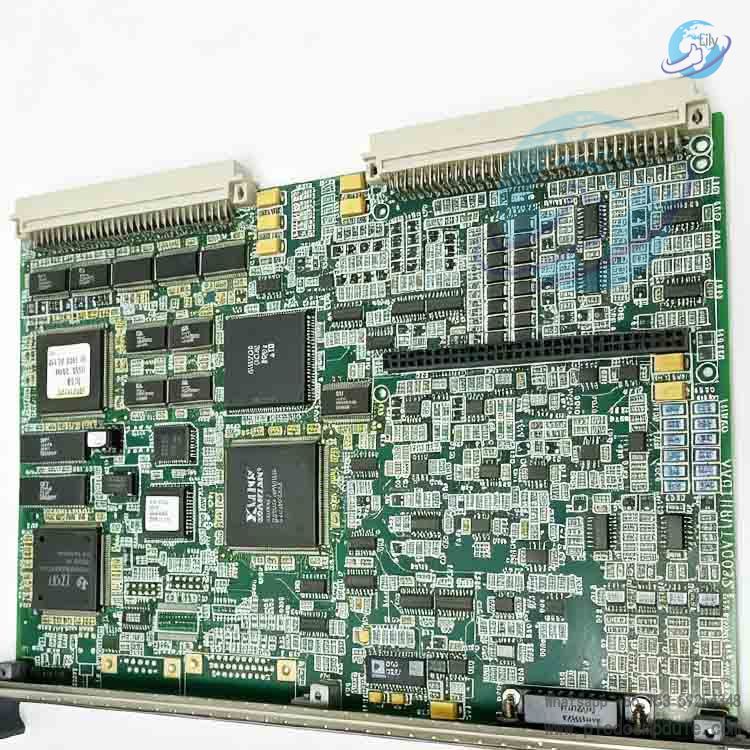

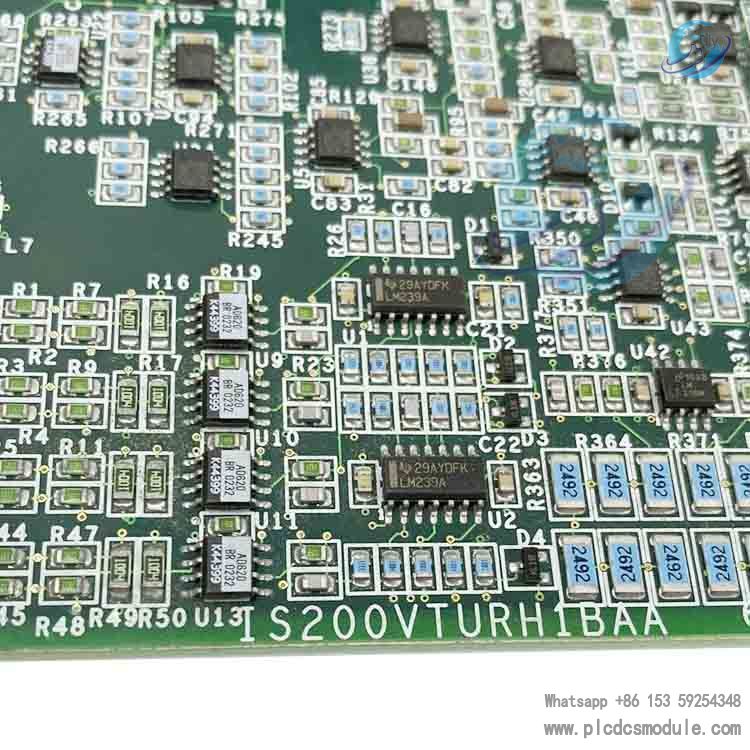

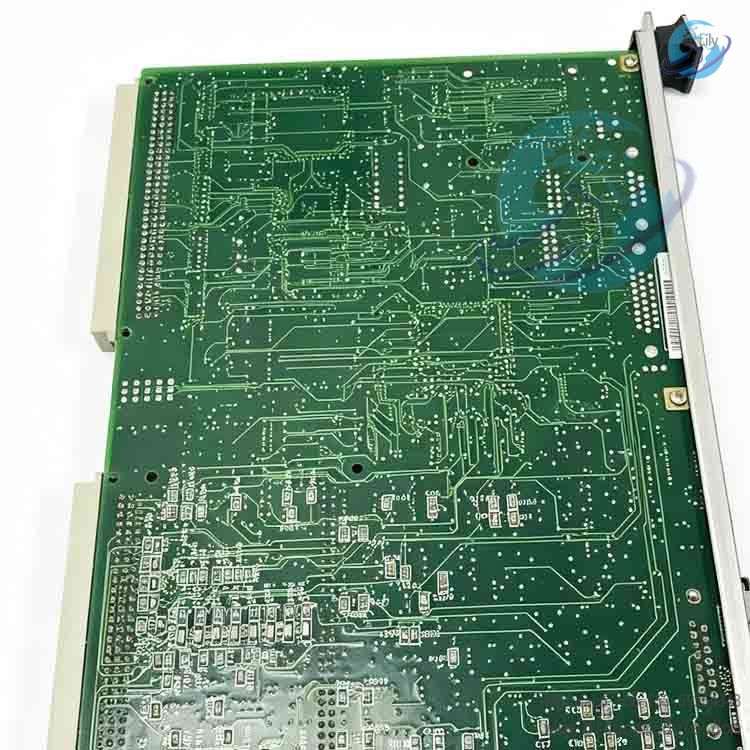

- The PCB is equipped with over 60 integrated circuits, multiple protective fuses and Metal Oxide Varistors (MOVs), providing protection against overvoltage, overcurrent and electrostatic discharge.
Standardized interfaces with an onboard dedicated J5 cable connector; matching terminal boards and sensor wiring harnesses can be directly connected without additional signal conversion modules.
Product Characteristics
- High-response safety logic. Upon detecting faults such as overspeed, flame loss and excessive shaft current, it outputs trip signals within milliseconds to rapidly cut off fuel/steam circuits and prevent unit damage.
- Full-condition built-in fault self-diagnosis. It automatically completes channel self-test and circuit continuity check after power-up; wire breakage, short circuit and sensor failure can be accurately identified with fault codes stored.
- Industrial-grade durable hardware. The PCB surface is coated with conformal coating, offering strong resistance to plant dust, temperature fluctuations and electromagnetic interference, supporting 7×24-hour continuous operation.
- Wide compatibility. It fits both gas turbine and steam turbine units, and is fully compatible with all matching terminal boards, power supply boards and controllers within the complete Mark VI system.
- Visual operation and maintenance. No external test equipment is required; three basic issues including abnormal board power supply, operation errors and channel faults can be quickly judged via front-panel LEDs.
- Standard rack mounting. Single-slot VME rack installation allows spare part replacement within short downtime without modifying backplane wiring of the system.
Operating Principle
IS200VTURH1BAA receives parameter threshold values issued by the system controller via the VME backplane. It continuously collects analog signals of rotational speed, flame condition, shaft current and shaft voltage transmitted by external sensors. After analog-to-digital conversion by internal circuits, digital signals are sent to dedicated protection logic chips for calculation and processing.
Real-time comparison is performed on four channels of speed signals to extract the median value, which is then compared with the preset overspeed threshold of the system. Once the measured value exceeds the limit, three trip relays are immediately driven to output level signals, activating the unit trip solenoid valves connected to TRPx terminal boards to cut off fuel or steam supply and shut down the unit.
Eight flame detector channels continuously monitor flame conditions inside combustion chambers. When flame signals are lost, the board synchronously uploads fault codes to the HMI human-machine interface and activates unit flameout protection logic simultaneously.
Shaft current and shaft voltage acquisition channels monitor induced electric charges on rotating shafts in real time. When readings go beyond safe ranges, the board outputs graded alarm signals: early warning notifications are first sent to prompt maintenance staff for inspection. If readings remain out of limits, the unit is interlocked to reduce load or shut down for protection.
Throughout operation, the board conducts real-time self-checks on circuit continuity of all acquisition channels. In the event of open or short circuits in any channel, the corresponding channel will be locked and fault codes recorded for later maintenance and circuit troubleshooting. The entire set of protection logic operates independently, immune to single-channel failures of the system controller, delivering ultimate safety protection for the turbine unit.
Product Comparison
Comparison Objects: IS200VTURH1BAA, IS200VSPAH1A, IS200VSVOH1B, IS200TRPGH1A
- IS200VTURH1BAACore primary protection board integrating overspeed trip, flame monitoring and shaft electrical monitoring. It executes the highest-priority safety shutdown logic of the unit and serves as the core safety component of the entire control system.
- IS200VSPAH1AAuxiliary speed acquisition board solely responsible for collecting and transmitting multi-channel speed signals. It features no trip drive or flame monitoring functions, acting as a spare part for expanding speed channels of the VTUR board.
- IS200VSVOH1BServo valve control board mainly outputting analog control signals to adjust opening of fuel valves and steam valves. It contains no safety trip protection logic and functions as a unit regulating control module.
- IS200TRPGH1ASecondary trip terminal board only used as an intermediate terminal for trip signals from the VTUR board. It lacks independent signal acquisition and logic calculation capabilities and works cooperatively with the VTUR board.
Summary of Core Differences
IS200VTURH1BAA is the only core safety board integrating multiple functions: signal acquisition, safety logic computation and trip drive. The other three boards are merely single-function expansion modules or matching intermediate terminal boards, unable to independently execute full-range safety protection including overspeed protection, flameout protection and shaft current protection for turbine units.
Matching Supporting Products
- TRPx Series Trip Terminal BoardsReceive trip signals from the VTUR board and drive unit solenoid valves to perform shutdown operations.
- IS200 Series Mark VI System Controller BoardsIssue protection threshold parameters, receive fault data from the board and conduct data interaction with the human-machine interface.
- Passive Magnetic Pulse Speed ProbesTransmit turbine rotor speed pulse signals to the VTUR board.
- Geiger-Müller Flame DetectorsSensors for collecting flame status signals inside gas turbine combustion chambers.
- VME System Power Distribution BoardsSupply stable DC operating power to the VTUR board.
- Mark VI Matching HMI Human-Machine InterfaceRead real-time operating data and fault codes of the board, and modify protection threshold parameters.
- Anti-Static Backplane RacksStandard VME racks accommodating the VTUR board and all types of I/O modules of the complete system.
- J5 Special Multi-Core Shielded CablesConnect the board to external terminal boards and various acquisition sensors.
FAQ
Q1: Can IS200VTURH1B and IS200VTURH1BAA be directly interchanged during procurement?
A1: The core internal circuits of the two variants are identical. The trailing suffix "AA" denotes minor tweaks to compatible terminal boards and wiring harness specifications. Temporary interchange for emergency troubleshooting is permissible under standard unit operating conditions. For long-term stable operation, it is recommended to procure the fully matching original model IS200VTURH1BAA.
Q2: Is this board compatible with Mark VIe control system racks?
A2: Direct compatibility is not available. Mark VIe adopts the new-generation IONet bus architecture, while this board is a VME bus card exclusively designed for Mark VI. For Mark VIe systems, equivalent protection boards from the IS400 series must be selected instead.
Q3: The fault LED stays solid illuminated after the board is powered on. What are the most common root causes?
A3:
- Open circuits or short circuits on external sensor wiring;
- Loose J5 signal cable connectors or oxidized contact pins;
- Blown protective fuses inside the board;
- Poor contact caused by oxidized gold fingers on the VME rack backplane slot.
Q4: What ESD anti-static storage requirements apply to newly delivered boards?
A4:
- Keep the board sealed inside the original factory anti-static vacuum bag at all times during storage;
- Maintain ambient storage humidity between 40% and 70%;
- Wear an anti-static wrist strap for all unpacking, inspection and handling procedures;
- Do not directly touch the board’s gold fingers or integrated circuit chips with bare hands.
Q5: Is hot-swapping of this board allowed while the turbine unit is running normally?
A5: Hot-swapping is strictly prohibited. Plugging or removing the board while the VME backplane is energized generates surge voltage, which will break down the precision integrated circuits inside the board. To replace spare boards, the entire control system must be fully powered off and allowed to fully discharge prior to disassembly and installation.
Q6: How to verify whether the speed measurement accuracy of the board meets specifications?
A6: With the unit shut down, connect a standard pulse signal generator externally. Output multiple sets of standard frequency signals ranging from 2 Hz to 20,000 Hz. Compare the speed readings displayed on the HMI. If the measurement error exceeds 0.05%, the corresponding board channel is deemed faulty.
Q7: Will a fault on one of the three VTUR boards in a TMR triple-modular redundant system trigger an immediate unit shutdown?
A7: If only one board malfunctions, the other two fully functional boards will complete median-value signal comparison, allowing the unit to continue running with only a fault alarm notification sent by the system. If two or all three boards fail simultaneously, the system cannot perform valid signal comparison and will automatically initiate a safety shutdown of the turbine unit.
Recommended Product Models of the Same Series
- IS200VTURH1BAA Main Turbine Protection Board
- IS200TRPGH1A Trip Terminal Interface Board
- IS200VSVOH1B Servo Valve Control Board
- IS200VSPAH1A Speed Acquisition Expansion Board
- IS200JPDDG1AAA DC Power Distribution Board
- IS200JPDAG1ABB AC Power Distribution Board
- IS200HSLAH1ADE High-Speed Serial Link Interface Board
- IS200BCAAH1ABA Current Signal Acquisition Board
- IS200EPMCH1A IONet Communication Daughter Card
- IS200TBAIH1C Thermocouple Analog Input Board
- IS200PCTAH1A Pressure Transmitter Acquisition Board
- IS200VCRCH1B Vibration Monitoring Input Board
- IS200DOAAH1A Digital Output Relay Board
