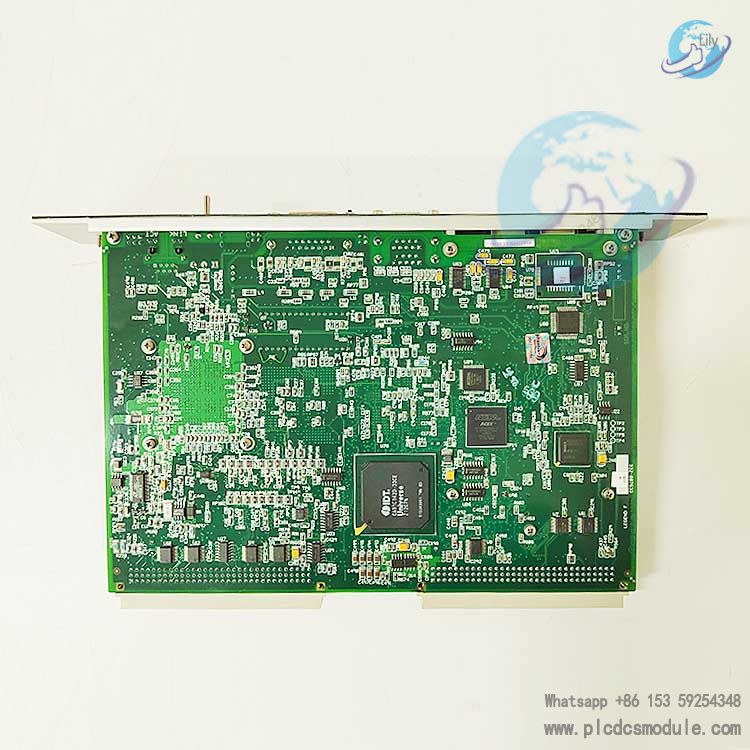

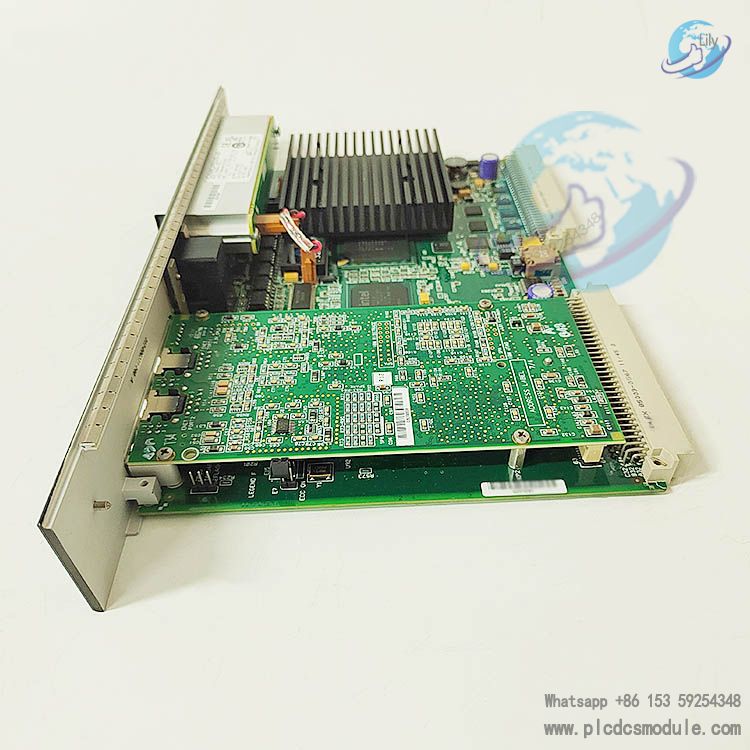

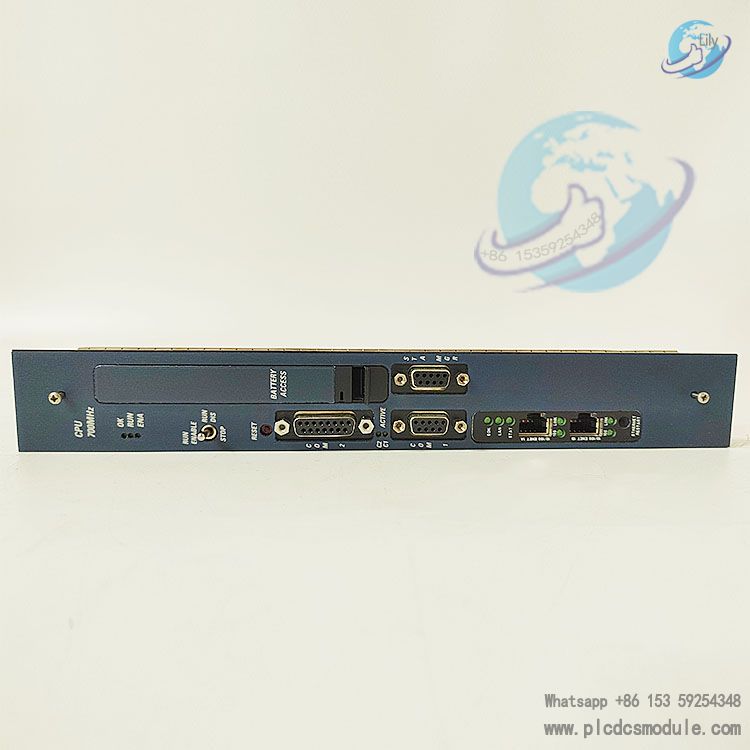

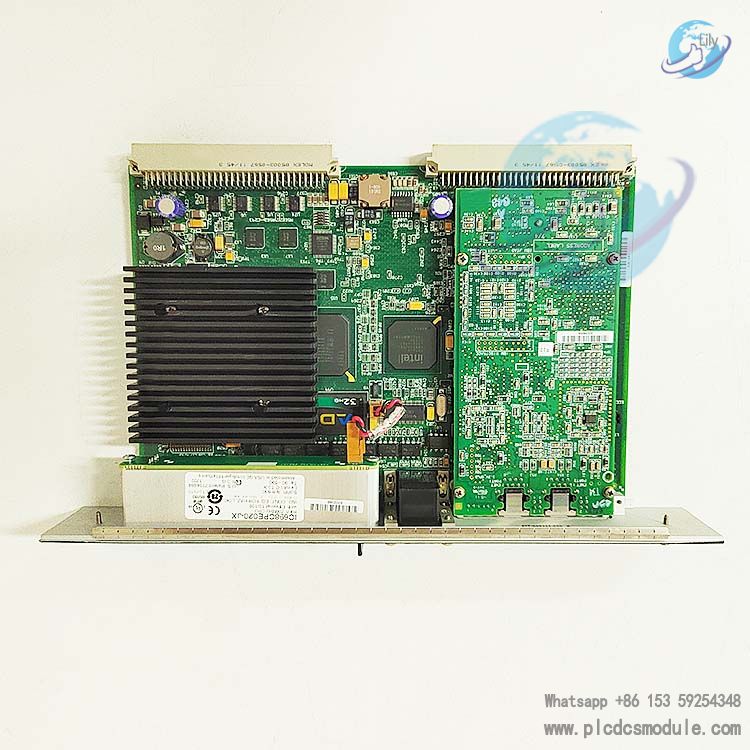

The PACSystems RX7i IC698CPE020-JX is a high-performance industrial CPU by GE Intelligent Platforms, serving as the core of industrial automation systems to enable real-time control of machines, production processes, and material handling via dedicated software.

Key design foundations:

Backplane Communication: VME64 Standard (ANSI/VITA 1) rack-mounted backplane for stable I/O/smart module data transmission.

Multi-Interface Connectivity: 2 embedded Ethernet ports (10BaseT/100BaseT/TX) + 3 isolated serial ports (RS-485/RS-232), supporting SNP Slave, Modbus/TCP, EGD.

Performance Specifications

2.1 Core Hardware Parameters

2.2 Power Requirements

2.3 Operating Environment

2.4 Communication Interfaces

Application Fields

• Industrial Automation: Machine control (auto lines) & process control (chem/petro/pharma) for precision/stability.
• Material Handling: Controls AGVs/conveyors/robots in warehouses/ports; boosts logistics efficiency via multi-interface.
• Heavy Industry/Infra: Steel/mining (harsh env resistance); power plants/water treatment (reliable MTBF for safety).

Advantages & Features

• High Performance/Reliability: Fast processors (0.14ms for CPE020); battery RAM (power-out protection); MTBF ≥1M hrs.
• Flexible Programming: Supports Ladder Diagram/C/ST/FBD; test-edit without production stop; 10MB configurable memory.
• Wide Compatibility: Works with Series 90-70 modules & Proficy Machine Edition (v5.0+/v7.0 SIM5+).
• Easy Maintenance: In-system firmware upgrade; 16 web/FTP connections; built-in fault diagnostics.

Ordering Information
