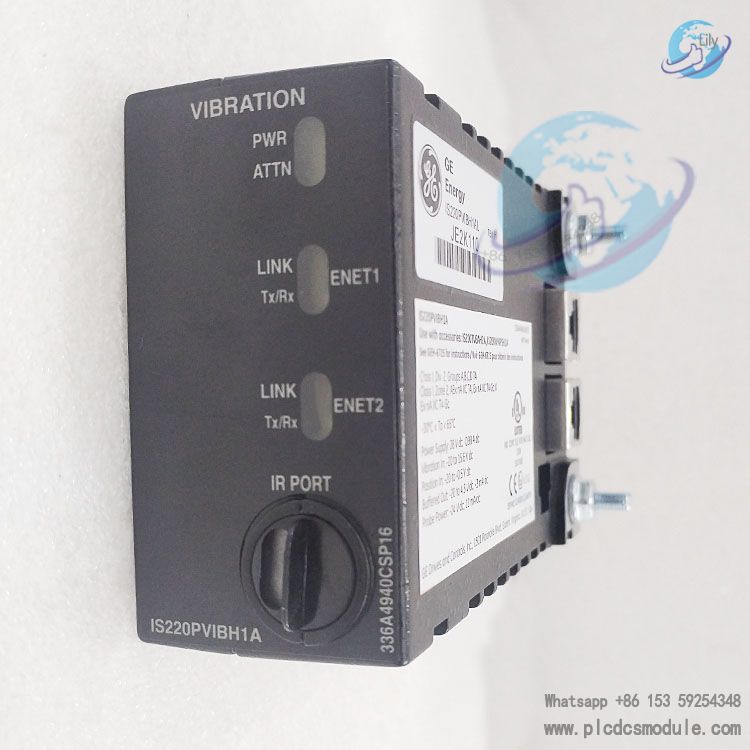

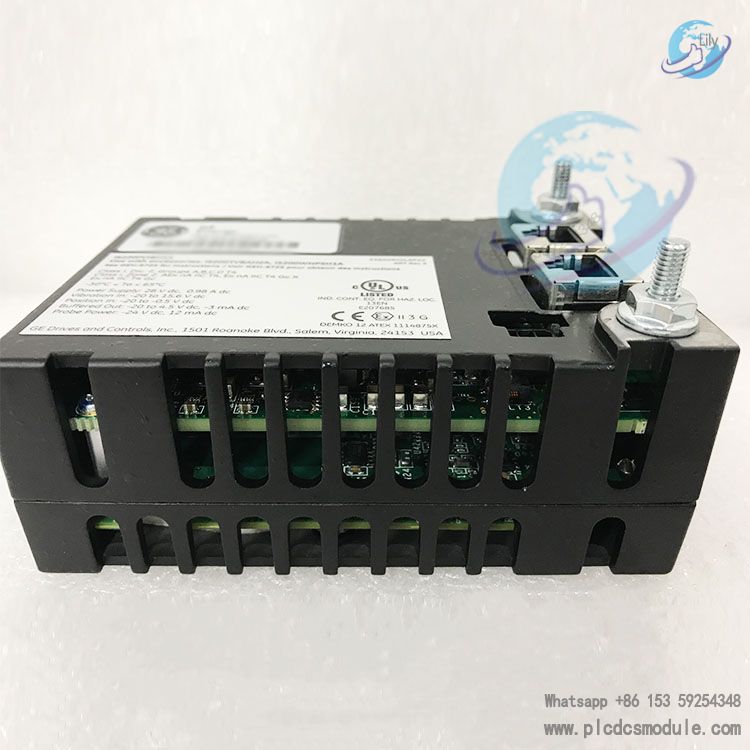

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. GE IS220PVIBH1A 336A4940CSP16 is a Vibration I/O Pack BPPB belonging to the MARK VIE series. It plays a key role in industrial monitoring and control systems, and is widely used especially in vibration monitoring scenarios for equipment such as turbines. IS220PVIBH1A 336A4940CSP16 is mainly used to connect vibration sensors with control systems, enabling accurate collection and transmission of equipment vibration data, thus providing strong support for the stable operation of equipment and fault early warning.
Mark VIe and Mark VIeS Control Systems.pdf
Core Functions
Multi-type sensor connection: The IS220PVIBH1A 336A4940CSP16 module features strong compatibility, supporting up to 13 channels for connecting various types of sensors. Specifically, channels 1–3 only support integrated output accelerometers; channels 1–8 can read vibration or proximity information from multiple sensors such as proximity sensors, velocity sensors, or seismic sensors; channels 9–12 are exclusively for proximity sensors; and channel 13 can input either a keyphasor signal type or a proximity type signal. This multi-channel and multi-type sensor connection method enables comprehensive and accurate collection of vibration data from different parts and with different characteristics of the equipment.

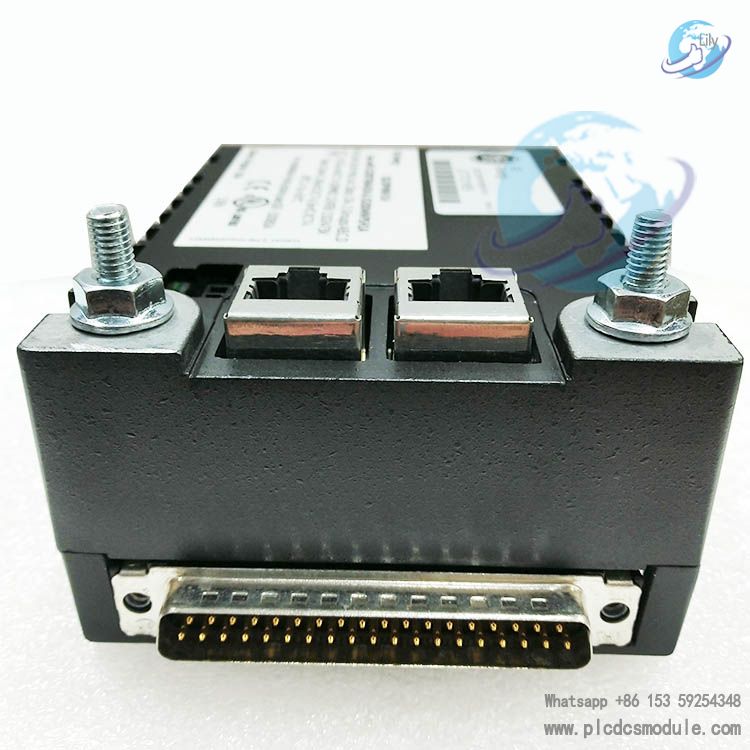

High-speed data transmission: The IS220PVIBH1A 336A4940CSP16 is equipped with dual RJ45 Ethernet ports, enabling high-speed data interaction with the control system. When operating with dual Ethernet inputs, the network paths remain active at all times, ensuring stable and real-time data transmission. Even if one of the networks fails, it will not interfere with the normal operation of the I/O module, and fault information will be indicated through the normally operating network connection. Supported Ethernet network frame rates include 3.125Hz, 6.25Hz, 12.5Hz, 25Hz, 50Hz, and 100Hz, which can be flexibly selected according to actual application scenarios and data volume requirements to meet data transmission speed needs under different working conditions.
Electrical interface adaptation: One of the main functions of the IS220PVIBH1A 336A4940CSP16 is to provide an electrical interface between up to two I/O Ethernet networks and the vibration terminal board (TV BA). It includes key components such as a main processor board, a sub-board, and an acquisition board, which work together to convert analog signals collected by sensors into digital signals and transmit them to the control system via the Ethernet network for subsequent analysis and processing, ensuring the accuracy and stability of signals during transmission.
Signal processing and adjustment: Each of the 13 differential inputs on the IS220PVIBH1A 336A4940CSP16 module is equipped with a digital-to-analog converter (DAC) for bias adjustment. This eliminates DC components in the signals, better centers the analog-to-digital (A/D) input range, and improves the accuracy and reliability of signal processing, providing a high-quality data foundation for subsequent data analysis and fault diagnosis.
Technical Parameters
Dimensions: The overall external dimensions are 3.25 inches in height (approximately 82.55mm), 1.65 inches in width (approximately 41.91mm), and 4.78 inches in depth (approximately 121.41mm). Its compact size design allows for easy installation in various control cabinets or equipment with limited space, adapting to diverse industrial installation environments.
Environmental Parameters: The operating ambient temperature range is -30°C to 65°C, enabling stable operation under relatively harsh industrial ambient temperature conditions. It can work normally whether in high-temperature industrial production workshops or low-temperature outdoor equipment monitoring scenarios.
Power Parameters: The probe power supply is -24V DC, with each sensor load being 12mA. This provides appropriate power supply for the stable operation of the sensors, ensuring that they can accurately collect vibration data.
Channel Characteristics: It is equipped with 13 channels for collecting and reading proximity and vibration information. The abundant number of channels can meet the needs of simultaneous vibration monitoring of multiple parts of complex equipment, allowing comprehensive grasp of the equipment's operating status.
Common-Mode Voltage: The minimum common-mode voltage is 5V DC, which ensures the stability and accuracy of signal transmission in different electrical environments and reduces the impact of electrical interference on data collection.
Application Fields
Power and Energy Industry: Widely used in the operation monitoring of gas turbines and steam turbines. By collecting vibration data in real-time, it helps operation and maintenance personnel keep abreast of the turbine's operating status and predict potential faults, such as blade wear and bearing failures. This allows for advance scheduling of maintenance plans, avoiding shutdowns caused by equipment failures, and ensuring the continuity and stability of power production.
Industrial Manufacturing Field: Suitable for vibration monitoring of large rotating machinery and equipment, such as motors, compressors, and pumps. It timely detects abnormal vibrations during equipment operation, prevents equipment damage, improves production efficiency, reduces maintenance costs, and ensures the smooth progress of industrial production processes.
Aerospace Field: Used for condition monitoring of key equipment such as aircraft engines. Real-time analysis of vibration data during engine operation ensures flight safety. It plays an important role in formulating equipment maintenance cycles and troubleshooting, ensuring the reliability and safety of aerospace equipment.
