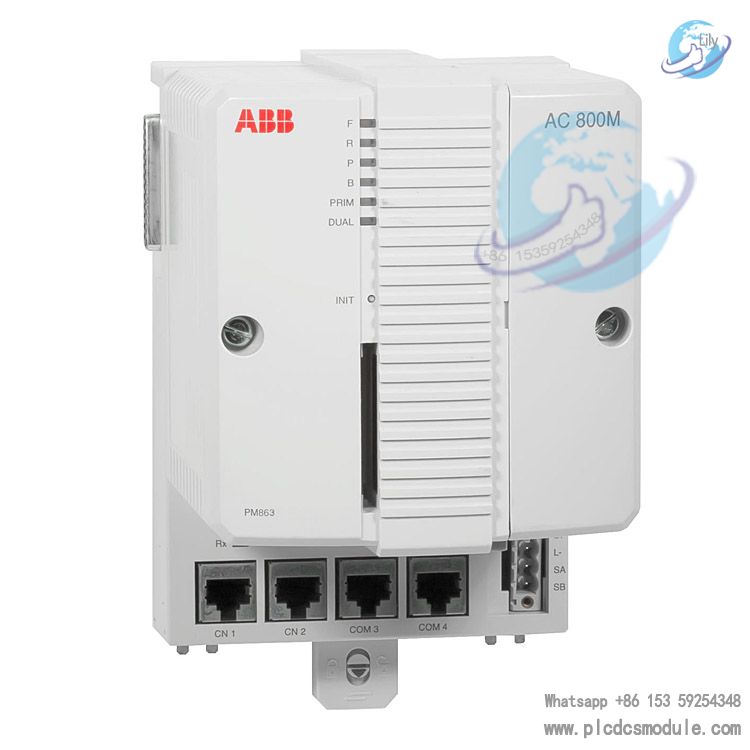

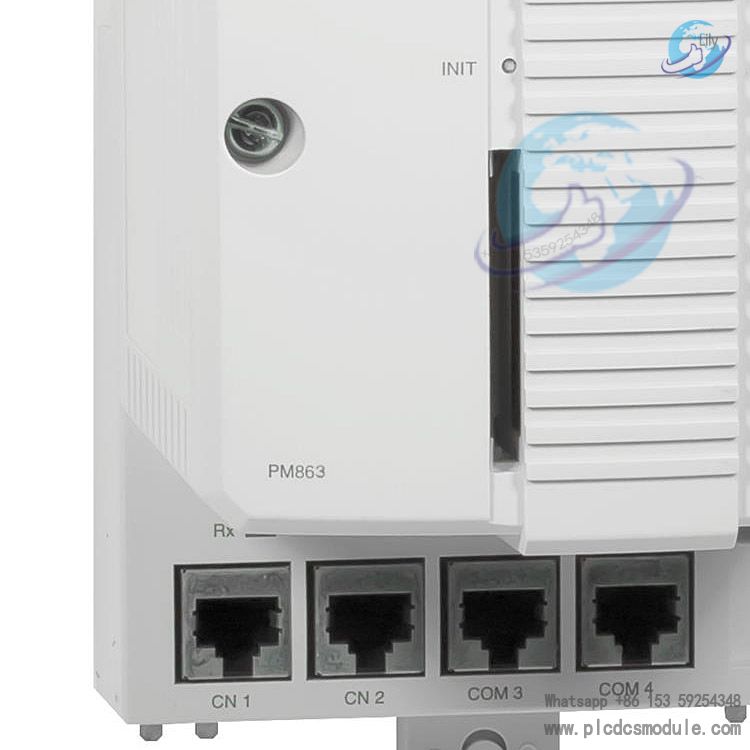

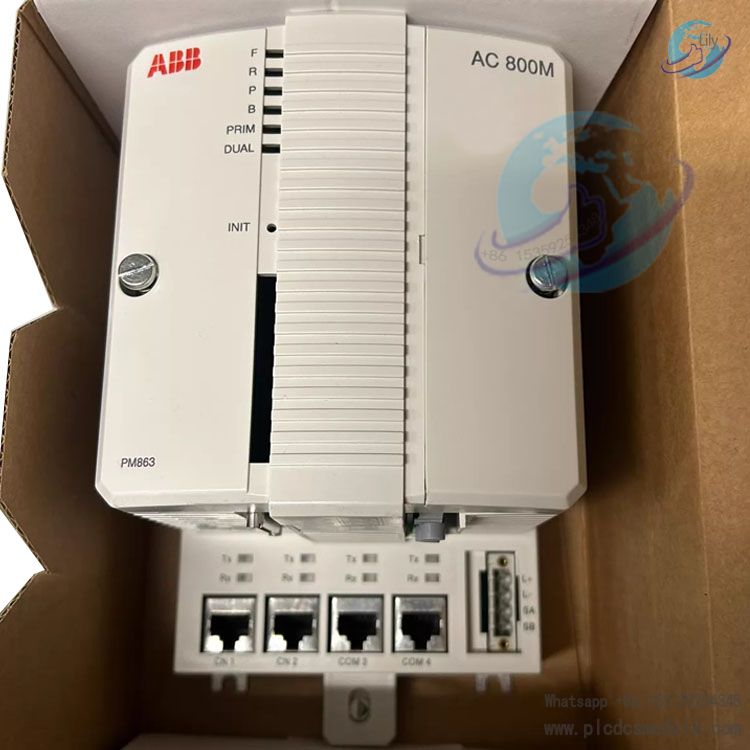

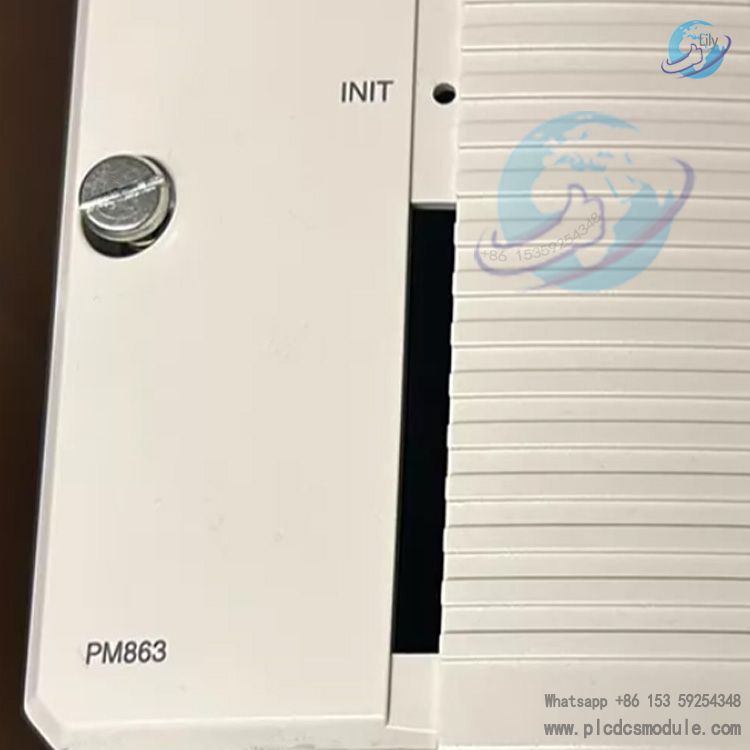

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. ABB PM863K01 3BSE088381R1 AC 800M CONTROLLERS.The CPU board of the PM863 controller includes a microprocessor, RAM memory, a real-time clock, LED indicators, an INIT button, and a CompactFlash interface. Its base plate is equipped with two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, as well as two RJ45 serial ports (COM3, COM4). Among them, COM3 is an RS-232C port with modem control signals, and COM4 is an isolated port used for connecting a configuration tool.
The controller supports CPU redundancy functionality to enhance availability, covering components such as the CPU, CEX bus, communication interfaces, and S800 I/O. High-integrity functionality can be enabled by adding the SM812 module and SIL-certified software. By means of plug-in SM81x modules and the selection of corresponding software, non-critical control schemes can be upgraded to SIL-certified ones. In addition, the AC 800M High-Integrity provides a control environment compliant with IEC 61508 and TÜV certification, which allows the integration of safety control and business-critical process control in the same controller unit without compromising safety integrity.
DATA SHEET
PM863K01.pdf
General info
| Article number | 3BSE088381R1 (PM863K01) |
| Redundancy | No |
| High Integrity | Yes |
| Clock Frequency | 96 Mhz |
| Performance, 1000 boolean operations | 0.17 ms |
| Performance | 0.17 ms |
| Memory | 32 MB |
| RAM available for application | 22.184 MB |
| Flash memory for storage | No |
- Detailed data
| Processor type | MPC866 |
| Switch over time in red. conf. | Max 10 ms |
| No. of applications per controller | 32 |
| No. of programs per application | 64 |
| No. of diagrams per application | 128 |
| No. of tasks per controller | 32 |
| Number of different cycle times | 32 |
| Cycle time per application programs | 10 ms |
| Flash PROM for firmware storage | 18 MB |
| Power supply | 24 V DC (19.2-30 V DC) |
| Power consumption +24 V typ/max | 210 / 360 mA |
| Power dissipation | 5.1 W (8.6 W max) |
| Redundant power supply status input | Yes |
| Built-in back-up battery | Lithium, 3.6 V |
| Clock synchronization | 1 ms between AC 800M controllers by CNCP protocol |
| Event queue in controller per OPC client | Up to 3000 events |
| AC 800M transm. speed to OPC server | 36-86 events/sec ,113-143 data messages/sec |
| Comm. modules on CEX bus | 12 |
| Supply current on CEX bus | Max 2.4 A |
| I/O clusters on Modulebus with non-red. CPU | 1 electrical, 7 optical |
| I/O clusters on Modulebus with red. CPU | 0 eletrical + 7 optical |
| I/O capacity on Modulebus | Max 96 (single PM863) or 84 (red. PM863) I/O modules |
| Modulebus scan rate | 0 - 100 ms (actual time depending on number of I/O modules) |
| Supply current on Electrical Modulebus | 24 V : max 1.0 A
5 V : max 1.5 A |
| Ethernet channels | 2 |
| Ethernet interface | Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole) |
| Control Network protocol | MMS (Manufacturing Message Service) and IAC (Inter Application Communication) |
| Recommended Control Network backbone | 100 Mbit/s switched Ethernet |
| Real-time clock stability | 100 ppm (approx. 1 h/year) |
| RS-232C interface | 2 (one general, 1 for service tool) |
| RS-232C interface (COM3) (non red. only) | RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support |
| RS-232C interface (COM4) (non red. only) | RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support |
- Environment and certification
| Temperature, Operating | +5 to +55 °C (+41 to +131 °F) |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Temperature changes | 3 °C/minutes according to IEC/EN 61131-2 |
| Pollution degree | Degree 2 according to IEC/EN 61131-2 |
| Corrosion protection | G3 compliant to ISA 71.04 |
| Relative humidity | 5 to 95 %, non-condensing |
| Emitted noise | < 55 dB (A) |
| Vibration | 10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f < 500 Hz: 0.2 g acceleration |
| Rated Isolation Voltage | 500 V a.c. |
| Dielectric test voltage | 50 V |
| Protection class | IP20 according to EN 60529, IEC 529 |
| Altitude | 2000 m according to IEC/EN 61131-2 |
| Emission & Immunity | EN 61000-6-4, EN 61000-6-2 |
| Environmental conditions | Industrial |
| CE Mark | Yes |
| Electrical Safety | EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| Hazardous location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| ISA Secure certified | Yes |
| Marine certificates | ABS, BV, DNV-GL (LR, Lloyd (Pending) |
| TUV Approval | Yes |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
- Dimensions
| Width | 119 mm (4.7 in.) |
| Height | 186 mm (7.3 in.) |
| Depth | 135 mm (5.3 in.) |
| Weight (including base) | 1200 g (2.6 lbs) |
Features and benefits
AC 800M High up to SIL 3 certified using PM857/SM812, PM863/SM812, PM865/SM811 or PM867/SM812
Supports S800 I/O High Integrity (PM857, PM863, PM865, PM66A and PM891)
The controller can be configured with 800xA control builder
The controller has full EMC certification
TÜV Certified SIL 2 and SIL 3
Built-in redundant Ethernet Communication ports
