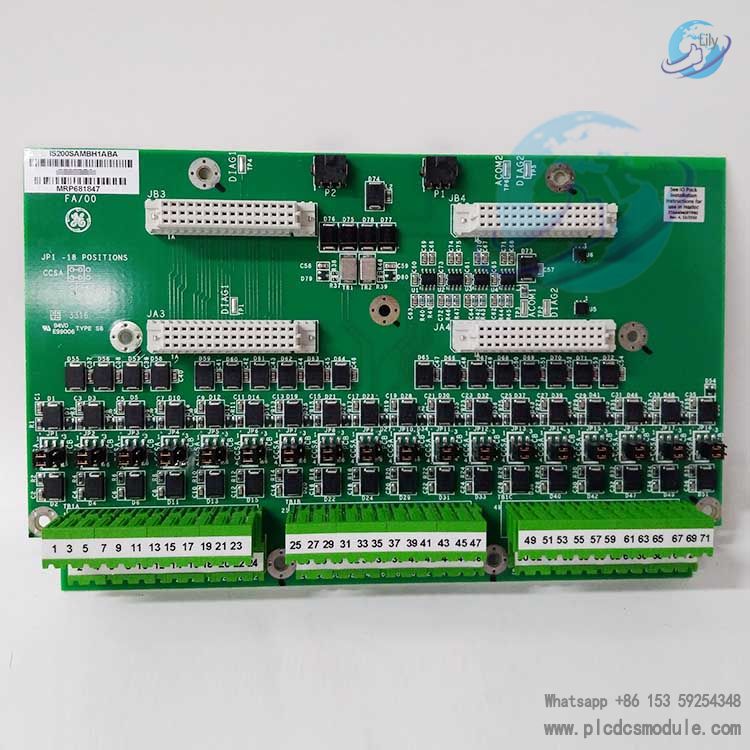

GE IS200SAMBH1ABA (Part No. MRP681847) is an acoustic monitoring I/O terminal board designed by General Electric (GE) specifically for the Mark VI / VIe Speedtronic turbine control system.As a core component of the IS200 series, it is mainly used for acoustic signal acquisition, filtering and signal conversion of gas and steam turbines. It enables real-time condition monitoring and fault diagnosis of equipment abnormalities such as vibration, friction and leakage. It serves as a critical signal interface unit connecting field sensors to the main control system.
Basic Information

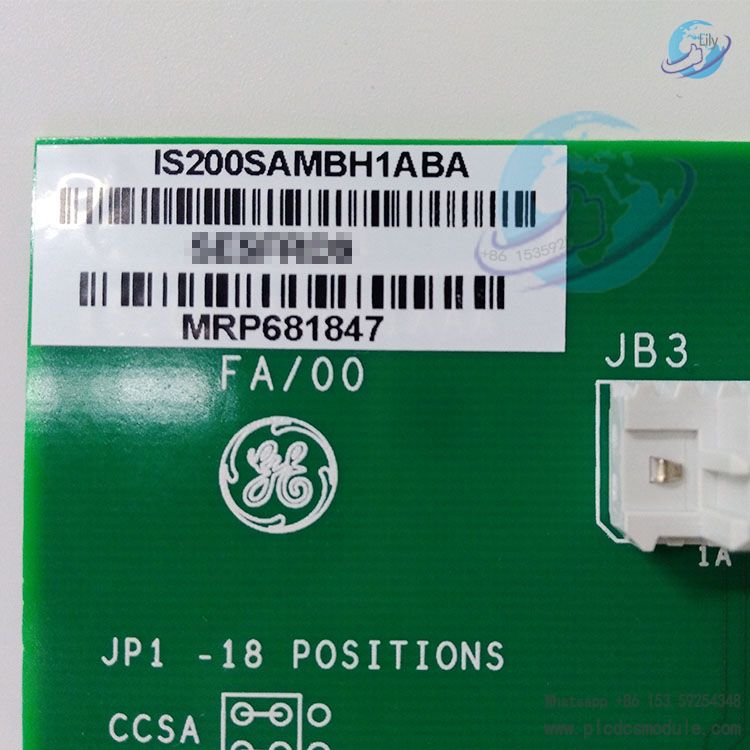

Model: IS200SAMBH1ABAMaterial Part No.: MRP681847Manufacturer: General Electric (GE)Product Series: Mark VI IS200 SeriesFunctional Orientation: Acoustic Monitoring Terminal BoardCompatible Systems: GE Mark VI, Mark VIe Turbine Control Systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Configuration | 18 inputs + 18 outputs (36 terminals in total) |
| Signal Type | Acoustic / vibration voltage signal (10Hz–20kHz) |
| Supply Voltage | 24VDC ±10% |
| Operating Temperature | -40°C ~ +85°C (industrial wide temperature range) |
| Dimensions | 140mm × 94mm × 30mm |
| Connector | DIN 41612 standard interface, double-row screw terminal block |
| Protection Design | Passive EMI filter, metal frame reinforcement, industrial-grade PCB coating |
| Sampling Rate | 48kHz per channel |
Structural and Functional Features

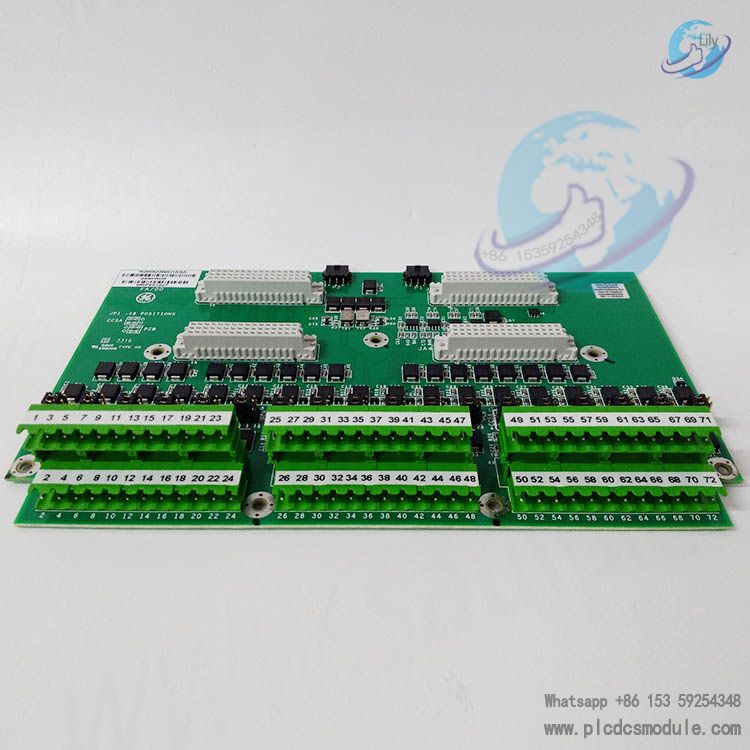

Dual Terminal Block DesignDouble-row 36-point screw terminals support two-wire sensor connection. Clear terminal silk screening facilitates on-site wiring and maintenance.
Passive EMI FilteringIntegrated high-frequency filter circuit suppresses electromagnetic interference in industrial environments, ensuring stable and accurate transmission of acoustic signals.
Metal Frame ProtectionReinforced metal bezel around the PCB with top mounting flange enhances shock resistance (10–55Hz, 0.5mm amplitude), suitable for harsh industrial conditions.
Signal PreprocessingCollects, filters and amplifies acoustic signals such as vibration, friction and leakage, extracts equipment condition characteristics, and supports early fault warning for bearing wear, blade abnormality, combustion instability and other anomalies.
Modular & Easy MaintenanceStandard interface and mechanical structure support hot swapping. The module is fixed by brackets and screws for easy disassembly and replacement, reducing downtime for maintenance.
Application Scenarios
Power Generation IndustryAcoustic monitoring and fault diagnosis for gas turbines, steam turbines and hydro turbines.
Industrial Drive ApplicationsCondition monitoring of rotating machinery such as large compressors, pump stations and fans.
Factory AutomationIntegrated into DCS/PLC systems to realize predictive maintenance and safety monitoring of critical equipment.
FAQ
Q1：What is the relationship between IS200SAMBH1ABA and IS200VAMB?A1：IS200SAMBH1ABA is an acoustic monitoring terminal board, responsible for the conversion and filtering of on-site sensor signals; IS200VAMB is an acoustic monitoring input board. The two are used in combination. Signals collected by SAMBH1ABA are transmitted to VAMB for analog-to-digital conversion and processing, forming a complete acoustic monitoring link.
Q2：Is this terminal board hot-swappable?A2：Yes, it supports hot swapping. Its modular design complies with the hot-swap specifications of Mark VI/VIe system. It can be replaced without system shutdown, reducing maintenance risks and downtime.
Q3：What are the requirements for operating ambient humidity?A3：Relative humidity: 5%–95% (non-condensing). Condensation shall be avoided to prevent circuit short circuit or corrosion. Cabinet moisture protection is required in long-term high-humidity environments.
Q4：What types of sensors can be directly connected?A4：It is compatible with 2-wire acoustic sensors, vibration sensors, microphones and other devices. The output voltage signal range shall match the board input specification (10Hz–20kHz), and direct connection of IEPE-type sensors is supported.
Q5：How to troubleshoot quickly in case of failure?
A5：
1. Check whether the 24VDC power supply is normal;
2. Verify terminal wiring and sensor status;3. Use the built-in system diagnosis function to check channel status;4. Detect whether the EMI filter is damaged;5. Conduct replacement test with a spare part of the same model to locate faults on the board card or external link.
