| Parameter Category | Details |
|---|---|
| Operating Voltage | 24 VDC nominal, with a tolerance range of 20-28 VDC |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Communication Interface | Ovation I/O bus, supporting high-speed data transfer rates |
| Physical Form Factor | Standard Ovation rack-mount module, compatible with Ovation I/O cabinets |
| Power Consumption | Max 5 watts under full operational load |
| Environmental Protection Rating | IP20 for indoor cabinet installation |
| Vibration Resistance | Compliant with IEC 60068-2-6, 5-150 Hz, 2g peak |
| MTBF (Mean Time Between Failures) | Over 200,000 hours at 40°C operating temperature |
| Compatibility | Full compatibility with Ovation v3.0 and later control system versions |
Key Features
- Provides secure and real-time data exchange between Ovation controllers and field I/O devices to ensure accurate process control
- Industrial-grade design ensures reliable operation in harsh industrial environments with high temperature, humidity and vibration
- Supports hot-swappable installation to reduce system downtime during maintenance and replacement
- Integrated diagnostic functions enable real-time monitoring of module status and quick troubleshooting of faults
- Complies with international industrial standards and certifications to meet the safety requirements of critical process industries
- Optimized power consumption design reduces the overall energy consumption of the control system
- Easy integration with existing Ovation system infrastructure, requiring no major modifications to the original system
- Long service life and low failure rate reduce the total cost of ownership for industrial users
Application Scenarios

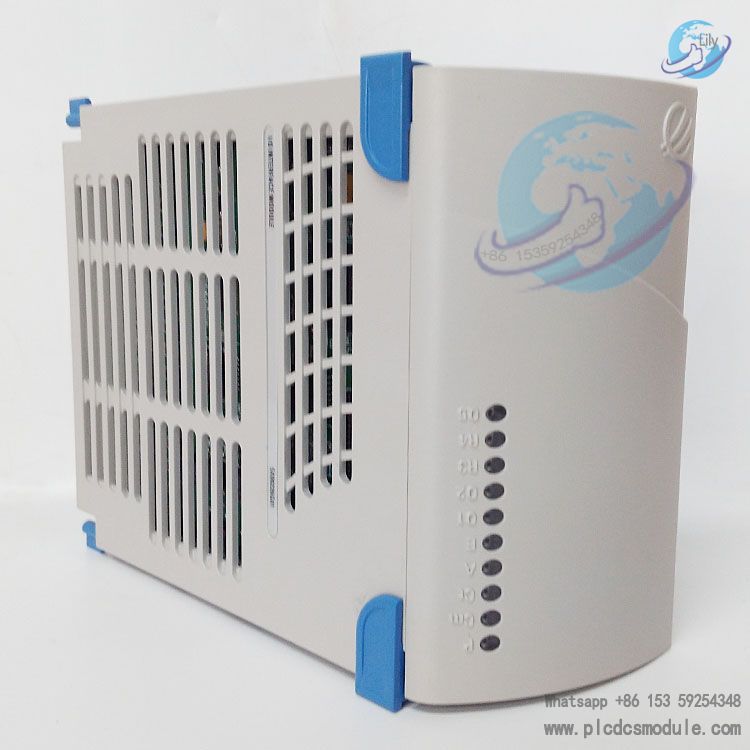

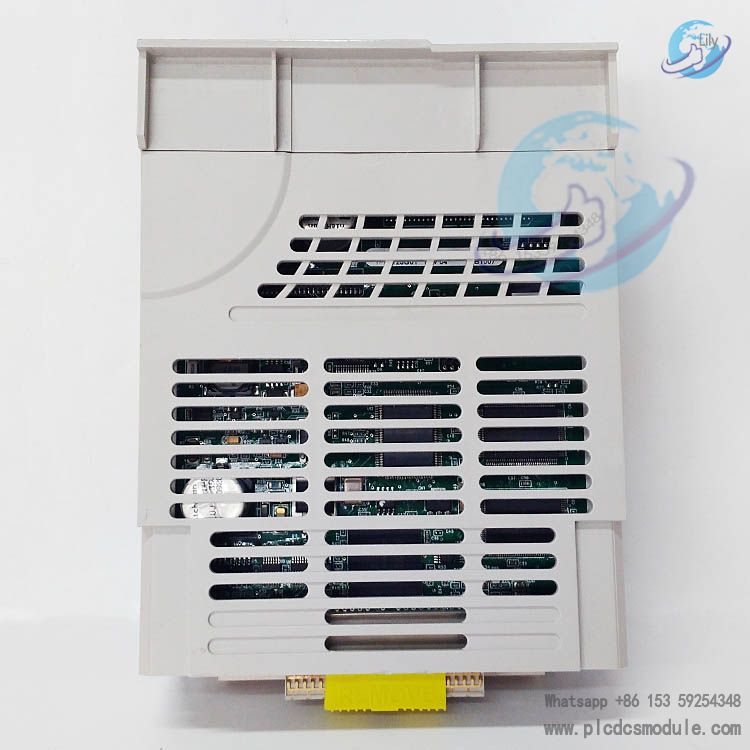

The Emerson 5X00226G01 Ovation I/O Interface Module is widely used in key industrial sectors that require high-reliability control systems. It is the preferred choice for coal-fired, gas-fired and renewable energy power generation plants, supporting the precise control of boiler, turbine and auxiliary systems. In the oil and gas industry, this module is applied to upstream exploration, midstream transportation and downstream refining process control systems to ensure safe and efficient operation of production facilities. Additionally, it is used in chemical processing plants, water and wastewater treatment facilities, and other industrial automation systems that demand stable and continuous I/O communication. The module's adaptability and reliability make it suitable for both new system installations and retrofitting of existing Ovation control systems to upgrade performance and extend system service life.
