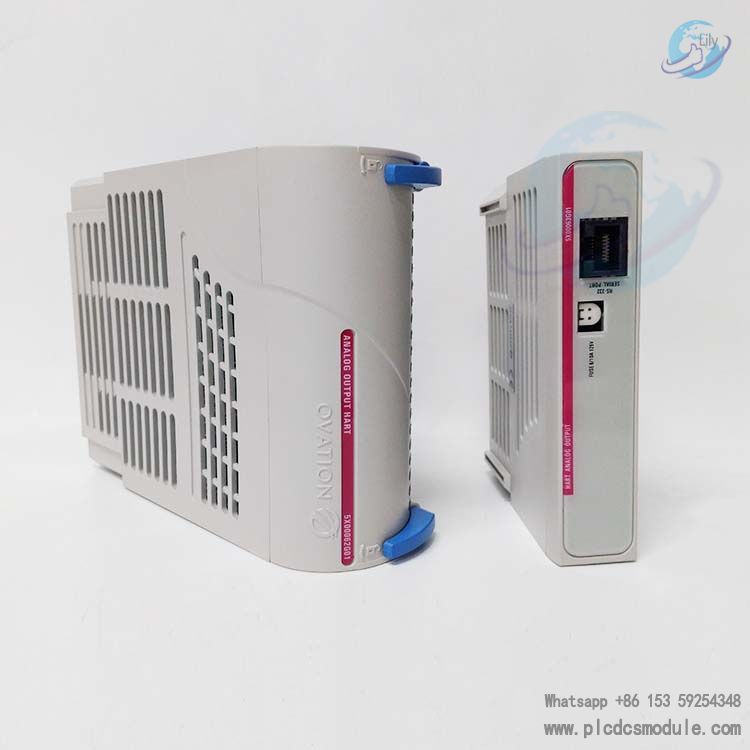

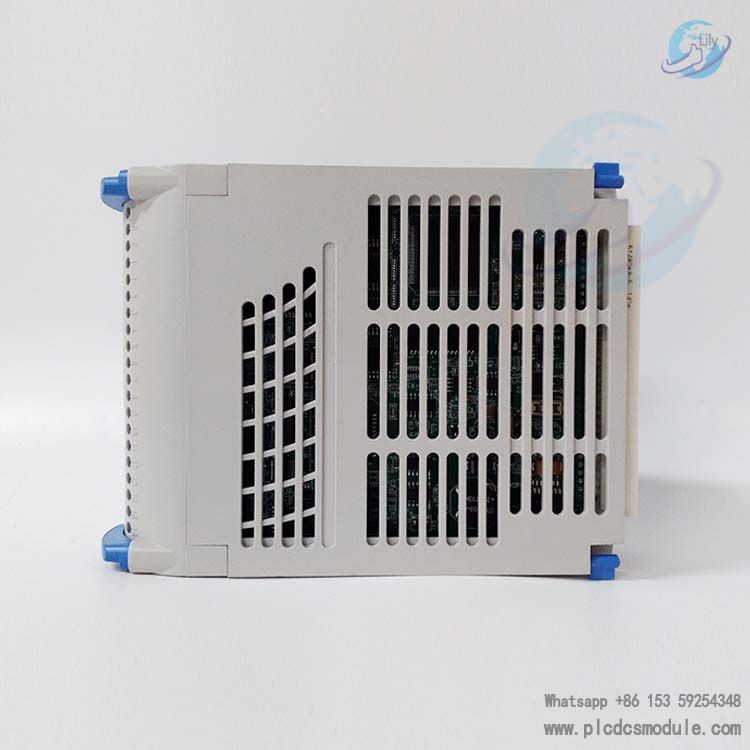

Emerson OVATION 5X00062G01 HART 8-Channel Analog Output Module.The 5X00062G01 is a key module for implementing HART communication in the Ovation system. By integrating analog signals with digital protocols, it meets the control and diagnostic needs of intelligent devices in industrial scenarios. It features high integration, anti-interference capability, and flexible maintenance, making it suitable for process control scenarios with high requirements for reliability and data richness.
Data Sheet：
Emerson OVATION 5X00062G01 HART 8-Channel Analog Output Module.pdf
Hardware Architecture

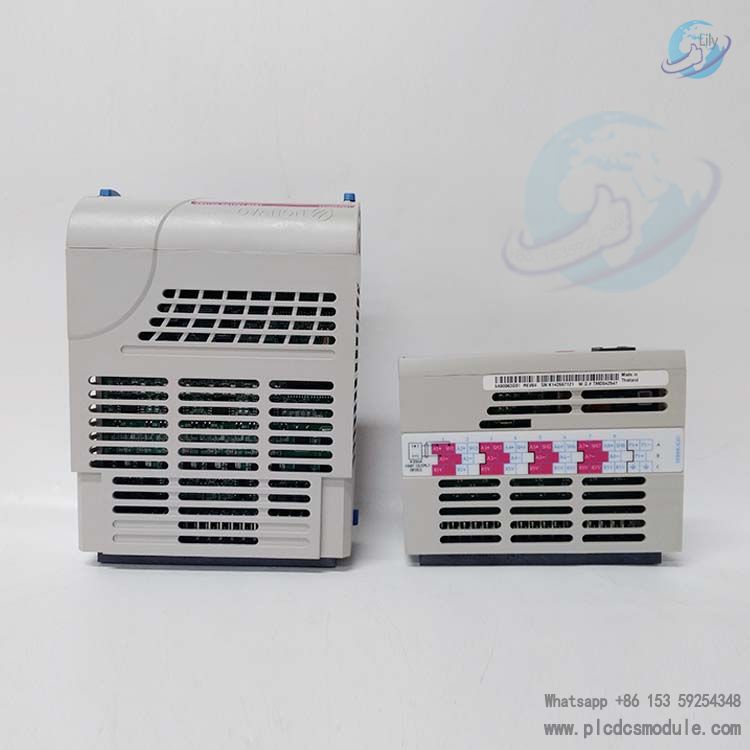

Module Composition
Electronic Module (5X00062)
Contains 8 multiplexed 4-20mA output channels, integrated with a 16MHz microcontroller and a 14-bit A/D converter, responsible for signal processing and HART communication control.
Personality Module (5X00063G01)
Provides passive circuitry for each channel, equipped with user-serviceable fuses to protect the auxiliary power supply for field-side circuits.
Electrical Characteristics
Power Supply
Main Power: 24VDC, typical power consumption 1.2W, maximum 2.5W.
Auxiliary Power: 24VDC (±5%~+6.25%), typical power consumption 6W, maximum 7.2W.
Isolation Protection
Electrical isolation of 1000VDC/RMS between field and logic circuits, with strong anti-interference capability.
Output Specifications
Range: 4-20mA, 14-bit D/A resolution, accuracy ±0.25% of full scale.
Load Capacity: Maximum 700Ω (recommended range: 230Ω~600Ω).
Communication and Protocols
Protocol Support
HART protocol (low-frequency shift-keyed sine wave signal superimposed on the 4-20mA analog signal without affecting current loop accuracy).
Data Transmission
Digital Information Update Cycle: 2 seconds (transmittable to the controller).
Supports device information collection and maintenance via Emerson AMS Suite Device Manager.
Channel Characteristics
8 multiplexed channels, non-isolated design, sharing a common 24VDC auxiliary power supply and ground.
Per-channel Update Rate: 24ms (driven by the on-board microcontroller).
Environmental and Mechanical Specifications
Operating Temperature: 0°C ~ 60°C.
Humidity: 0% ~ 95% (non-condensing).
Installation Method: Compatible with the Ovation system architecture; specific wiring should refer to terminal diagrams (non-CE and CE marked versions differ, with attention to grounding and shielding requirements).
Physical Dimensions: Not directly mentioned, but designed as a standard module suitable for industrial control cabinet installation.
Diagnostics and Maintenance
Status Indicators
Power OK, Communication OK, External Error, and Internal Error LED indicators.
Fault Detection
Open-loop feedback detection; 8-channel statuses are stored as Pass/Fail bits in the data register (0xC, hexadecimal).
Module-level maintenance is supported, but hot-swappable functionality is not explicitly mentioned (confirm with the official manual).
Application Scenarios
Industries
Power generation, water treatment, and process control (e.g., petrochemical, chemical industries).
Typical Uses
Connecting intelligent devices (e.g., smart valves, transmitters) to integrate analog control with digital communication.
Acquiring multi-parameters (e.g., mass flow, temperature, density) via the HART protocol to enhance system monitoring dimensions.
Notes
Compliance: CE-marked versions must follow specific wiring specifications (e.g., shielding and grounding requirements).
Limitations: No electrical isolation between channels, potentially posing common-mode interference risks; suitable for non-strong interference environments.
