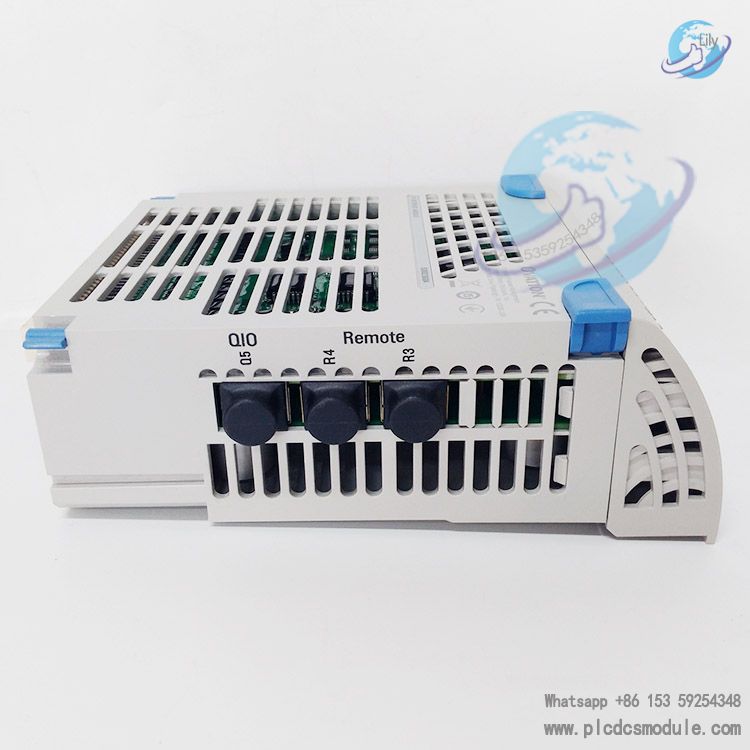

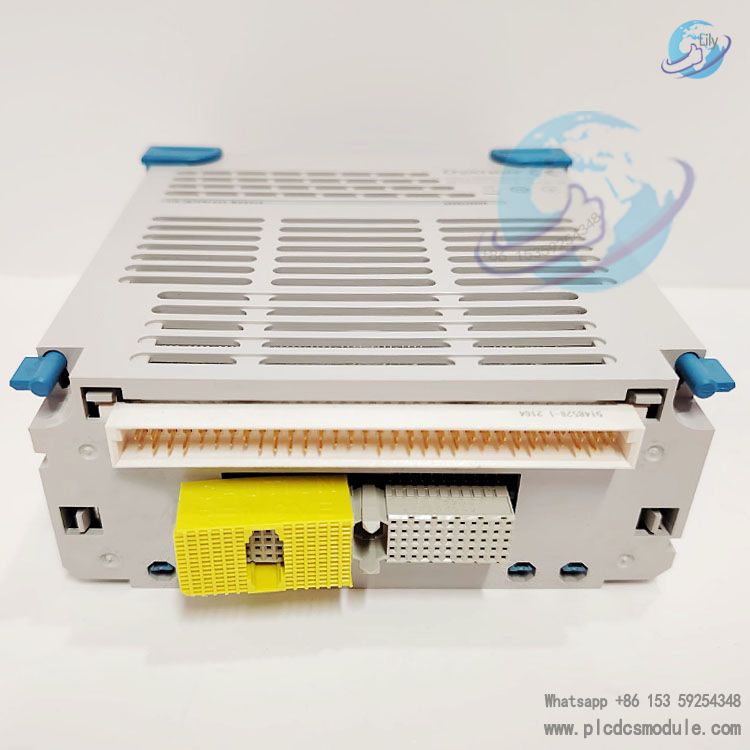

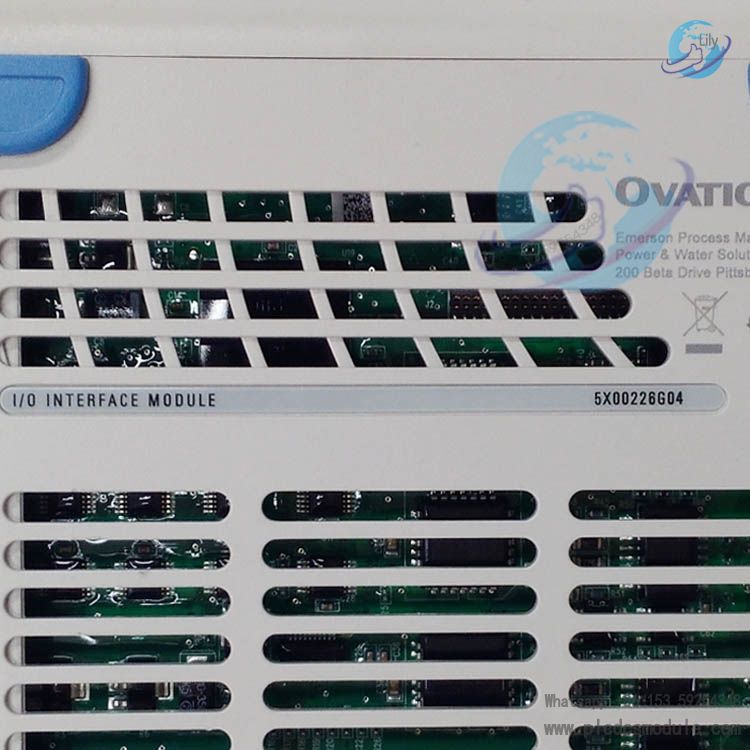

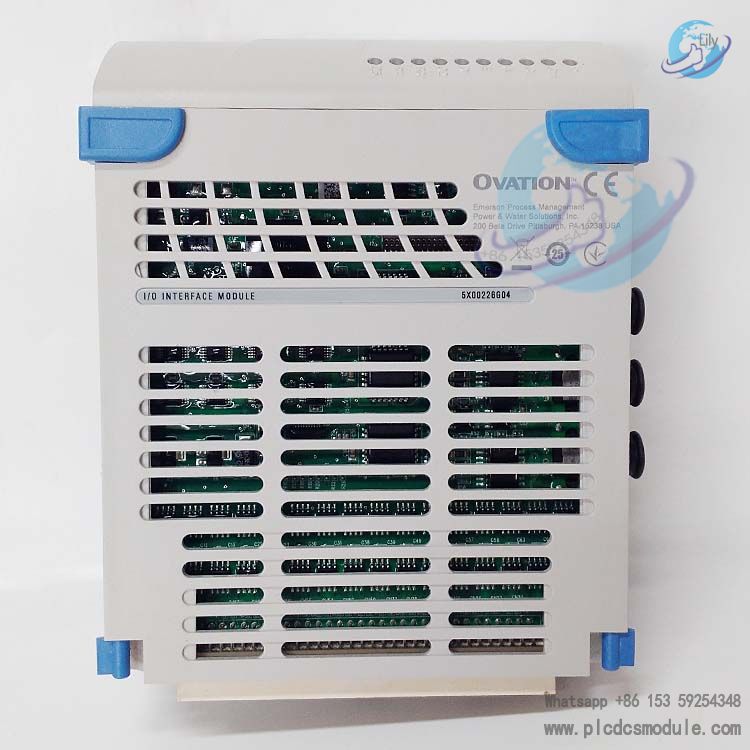

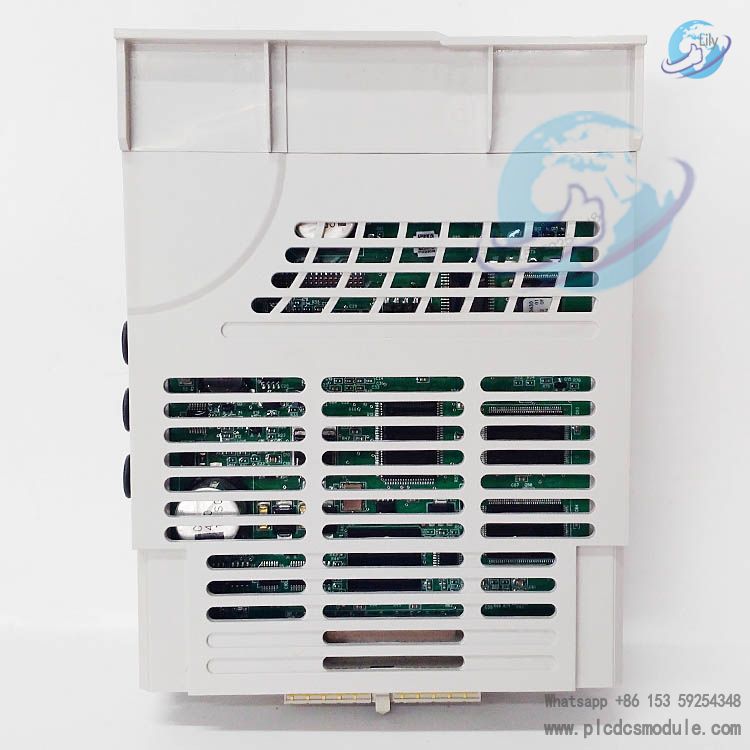

Emerson 5X00226G04 is a high-performance I/O interface module specifically designed for the Ovation Distributed Control System (DCS). It aims to establish a reliable communication bridge between the control system and on-site devices. Equipped with powerful signal processing capabilities and wide compatibility, this module can efficiently collect various signals from on-site equipment such as sensors and actuators, and accurately transmit control system commands to terminal devices. It is widely applied in critical fields including power, oil and gas, water treatment, and industrial automation.
related documents
Technical Specifications
Model & Specifications: Emerson 5X00226G04, categorized as an Ovation series I/O interface module. Originated in the United States, it holds multiple international certifications including CE, UL, and RoHS.
Signal Support: Processes both analog and digital signals. Analog input supports 4-20mA and 0-10V ranges; analog output covers 4-20mA and 0-10V specifications. Equipped with 8 configurable analog input channels, 8 discrete digital input channels, 4 analog output channels, and 4 digital output channels, with a signal conversion resolution of 16 bits.
Communication Performance: Supports industrial communication protocols such as Modbus TCP, Ethernet/IP, and OPC UA. Features dual Gigabit Ethernet ports for redundant communication protection, with a maximum data transmission rate of 1Gbps. Incorporates encrypted transmission and access control functions, and is certified to Achilles Level 1 security standard.
Environmental Adaptability: Operating temperature range: -40℃ to 85℃; storage temperature range: -40℃ to 85℃; relative humidity tolerance: 5% to 95% (non-condensing). Housing protection class reaches IP54, effectively resisting dust and splashing water.
Physical & Power Supply Parameters: Installation methods: DIN rail or panel mounting. Dimensions: 48mm × 24mm × 114mm; weight: approximately 120g; housing material: aluminum alloy. Power supply voltage: 24V DC or 48V DC. Provides 1500V electrical isolation between channels; maximum output load: 600 ohms.
Functional Features
Precise Signal Processing: Boasts high-precision signal conversion capability with a conversion accuracy of ±0.1% span and a response time of only 100ms. It ensures the accuracy and real-time performance of on-site data acquisition, providing reliable data support for control decisions.
Redundancy Protection Design: Dual Gigabit Ethernet ports enable redundant communication. Combined with redundant control capability, it achieves bumpless fault switching, ensuring the system can continue operating in the event of a single component failure and meeting the requirements of critical mission scenarios.
Easy Integration & Maintenance: Adopts a modular design with a compact structure, facilitating convenient installation and removal for system upgrades and later maintenance. Built-in real-time diagnostic functions monitor communication status, power supply stability, temperature conditions, etc., in real time, promptly feeding back device operating status.
Wide Compatibility: Seamlessly integrable with the Emerson Ovation DCS, while supporting interconnection with third-party OEM systems. It is compatible with Ovation and WDPF I/O devices, supports local and remote I/O connections, and adapts to various industrial control scenarios.
Application Fields
Power Industry: Suitable for process control systems in thermal power plants, hydropower plants, nuclear power plants and other power stations. It undertakes tasks such as unit operation parameter collection and actuator control signal transmission, ensuring stable and efficient operation of power stations.
Oil and Gas Industry: Applied in oil and gas exploration, extraction, refining and transportation links. It realizes real-time monitoring of key parameters such as pressure, temperature and flow rate as well as equipment control, adapting to the harsh on-site environment of the oil and gas industry.
Water Treatment and Environmental Protection: Used in scenarios such as water quality monitoring, water pump control and valve regulation in water supply plants and sewage treatment plants, helping to improve the automation level and treatment efficiency of the water treatment process.
General Industrial Automation: Adaptable to automatic production lines in fields such as manufacturing, cement and mining, papermaking, and marine industry. It realizes equipment linkage control, process parameter optimization and operation status monitoring, promoting the intelligent upgrading of the production process.
