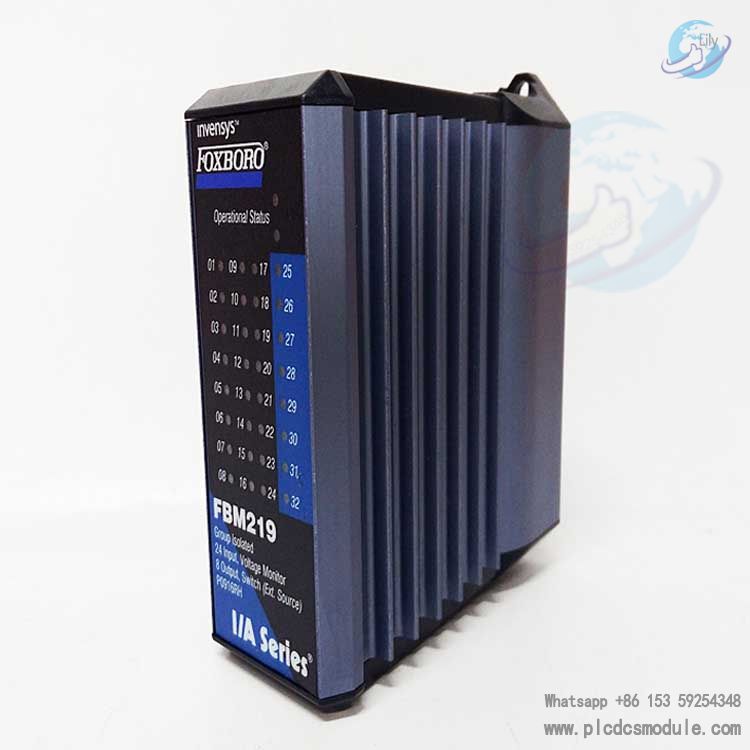

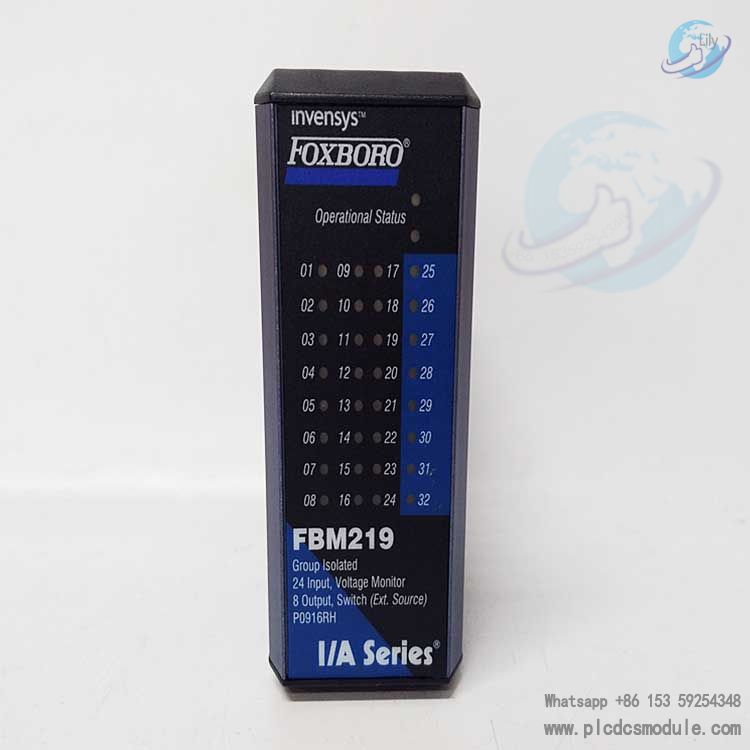

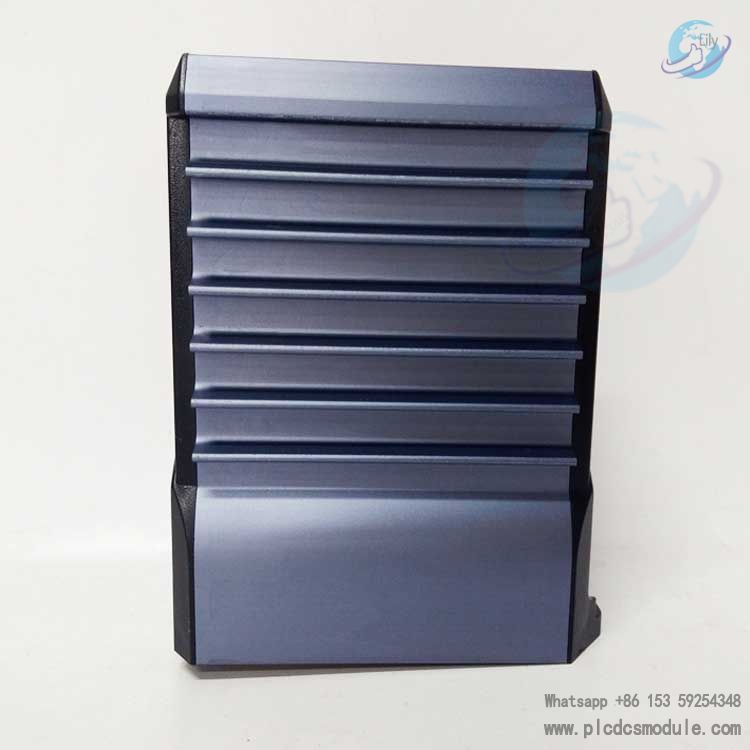

Foxboro FBM219 P0916RH is a discrete I/O interface module within the Foxboro I/A Series system. It features 24 discrete input and 8 discrete output channels, compatible with various signals like 15 to 60V DC, 120V AC/125V DC, and 240V AC. The module works in conjunction with control processors and application processors in the I/A Series system, and connects to field sensors and actuators, widely applied in industrial automation scenarios. In control systems of chemical, power, and other industries, it accurately realizes signal input/output and processing, supporting stable system operation.
Technical Specifications
I/O Channels: 24 discrete input channels and 8 discrete output channels, each group-isolated.
Signal Voltage Support
Discrete I/O signals: 15–60V DC, 120V AC/125V DC, 240V AC.
Filter & Configuration Functions: Configurable filter/debounce time (no filter, 4, 8, 16, or 32 ms).
Supports discrete I/O or ladder logic programs, with configurable options for input filter time, fail-safe configuration, fail-safe fallback, and continuous/momentary outputs.
Voltage Monitoring Parameters
On-state voltage: 15–30V DC.
Off-state voltage: 0–5V DC.
Current: 2.2mA (typical) at 30V DC.
On-State resistance: 1kΩ (max) at 15V DC.
Redundant input voltage range: 24V DC (+5%, –10%).
Power & Heat Dissipation
Power consumption: 6W (max) at 24V DC.
Heat dissipation: 5W (max) at 24V DC.
Physical Characteristics
Weight: ~185g (module).

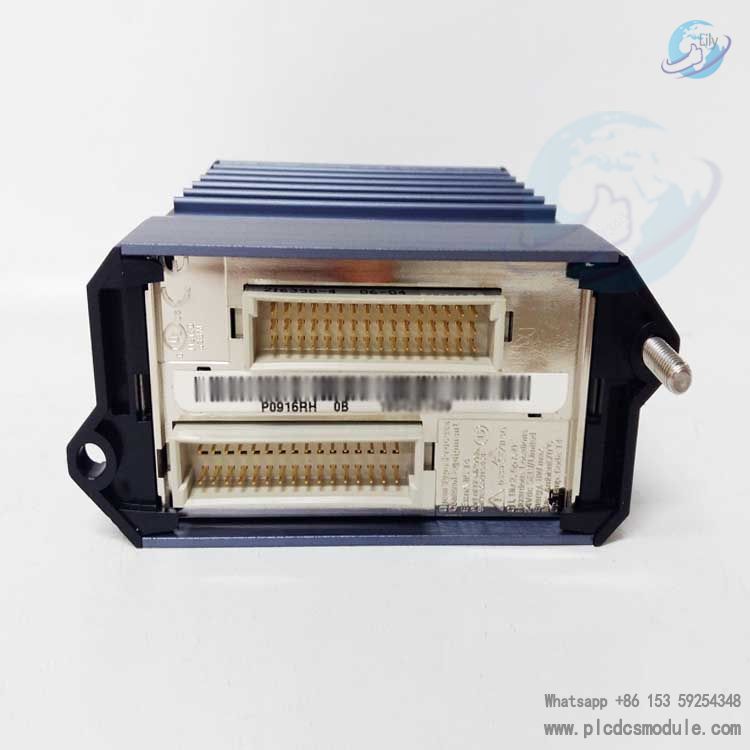

Mounting: Installed on a compact 200-series backplane, compatible with DIN rail or rack mounting. The module is fixed to the backplane with two screws. The backplane includes signal connectors for redundant fieldbus, redundant independent DC power, and terminal cable connections.
Regulatory Approvals
UL/UL-C certified for Class I, Groups A–D, Division 2, T4 temperature code enclosures; communication circuits meet Class 2 requirements.
Compliant with EU Low Voltage Directive 2014/35/EU and ATEX Directive 2014/34/EU, with ATEX (DEMKO) Ex nA IIC T4 Gc certification for use in ATEX Zone 2 classified areas.
Environmental Adaptability
Operating temperature:
Compact FBM219: –4 to +140°F (–20 to +60°C).
Terminal Assembly – PA: –4 to +158°F (–20 to +70°C).
Relative humidity: 5–95% (non-condensing).
Vibration tolerance: 7.5m/s² (5–500Hz).
Complementary Terminal Assemblies (TA)
TAs support discrete input/output signals of different voltages, including current limiting devices, fuses, relays, or relay outputs with internal/external power and fuses. They also feature high-voltage attenuation and optical isolation for inputs, tailored to I/O signal types.
The applications are as follows:
Power System
It is used for monitoring and measuring the voltage in the power system to ensure the system operates within a safe and reliable voltage range. It can also monitor and control the power supply voltage in power equipment to guarantee the normal operation of the equipment.
Industrial Automation
It is connected to various industrial equipment to monitor voltage and provide feedback for the control of industrial processes. For example, in industries such as chemical engineering and manufacturing, it can monitor voltage changes in the production process to ensure system stability.
Building Automation System
It is applied to the monitoring and control of electrical equipment in buildings, such as lighting, air conditioning, and power systems, which helps realize intelligent management and energy-saving operation of buildings.
Data Acquisition System
It can be integrated into the data acquisition system to monitor voltage signals and provide real-time data, providing a basis for subsequent analysis and decision-making.
