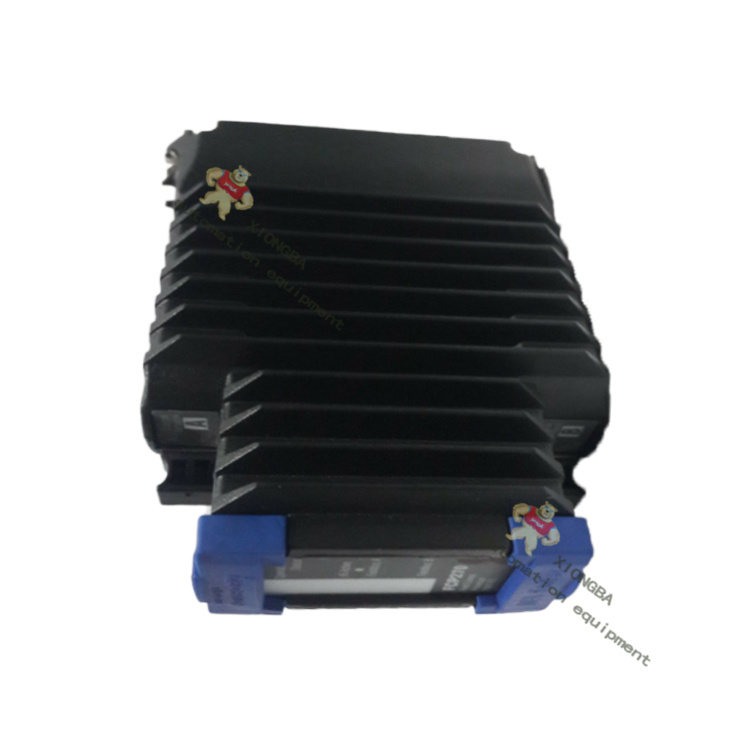

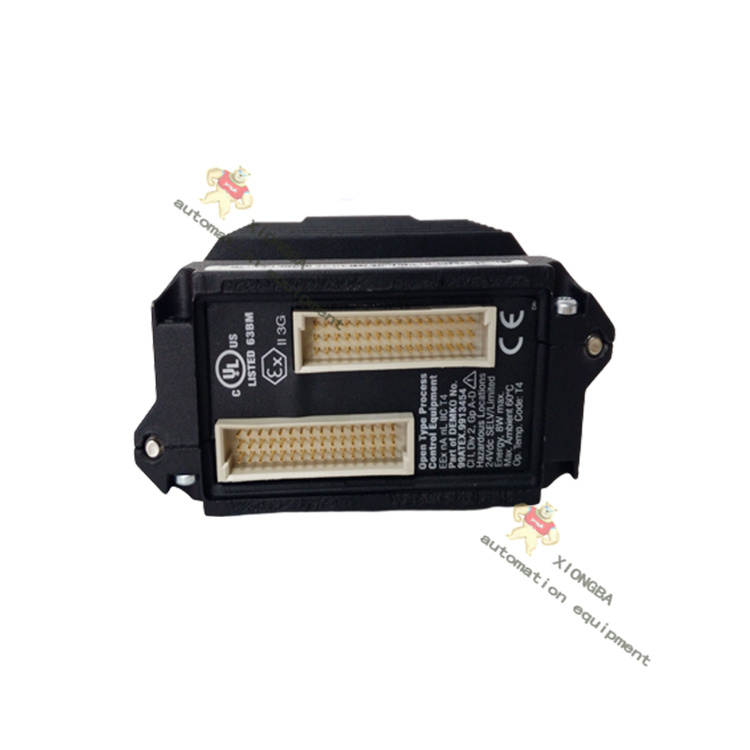

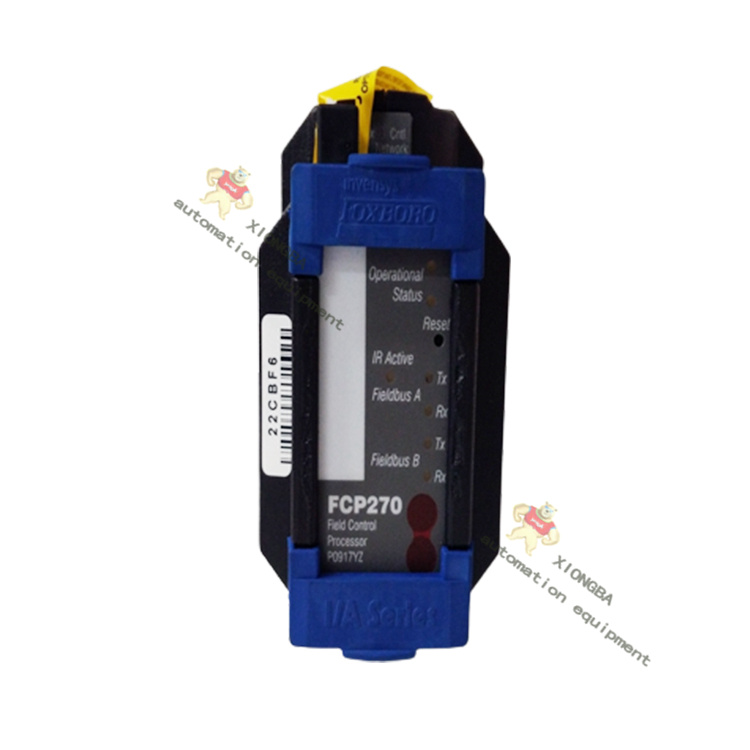

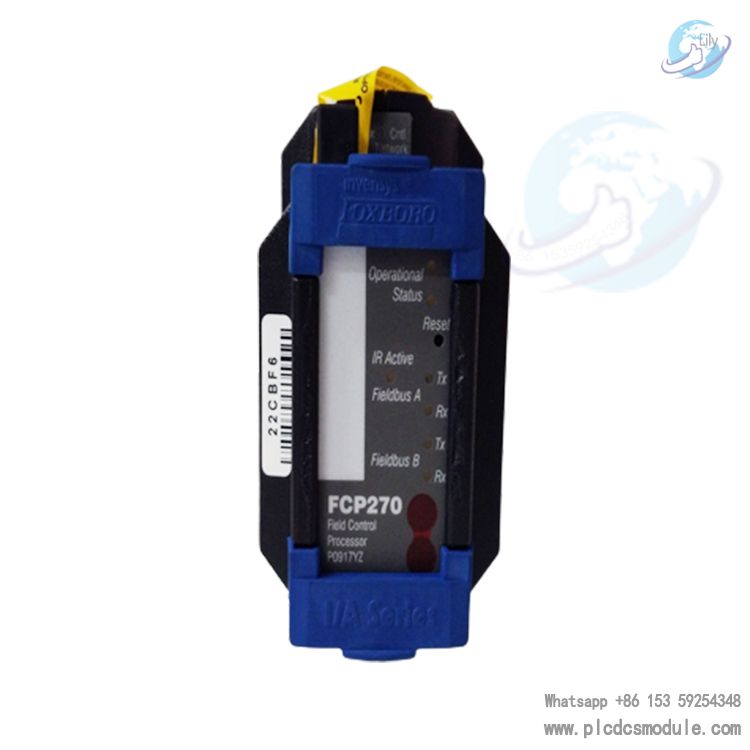

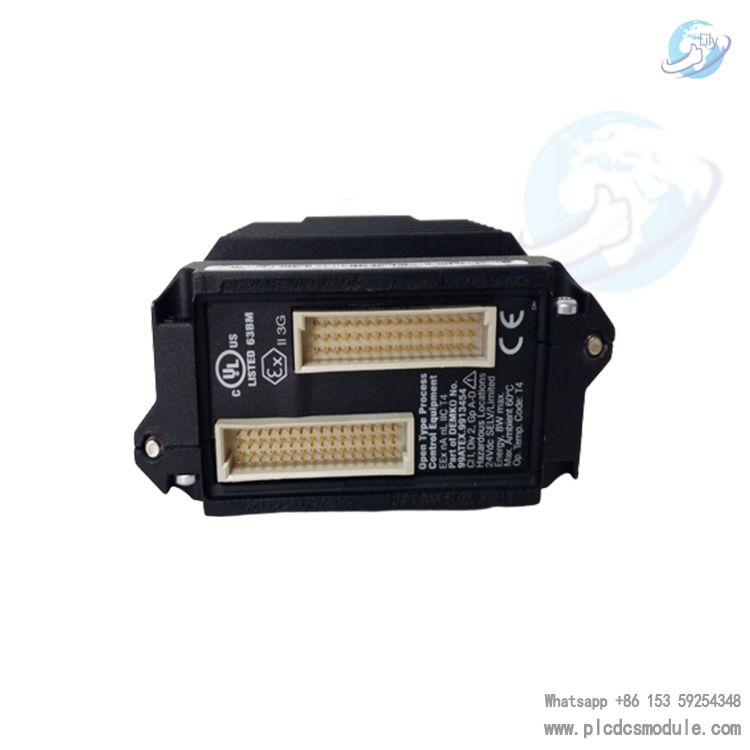

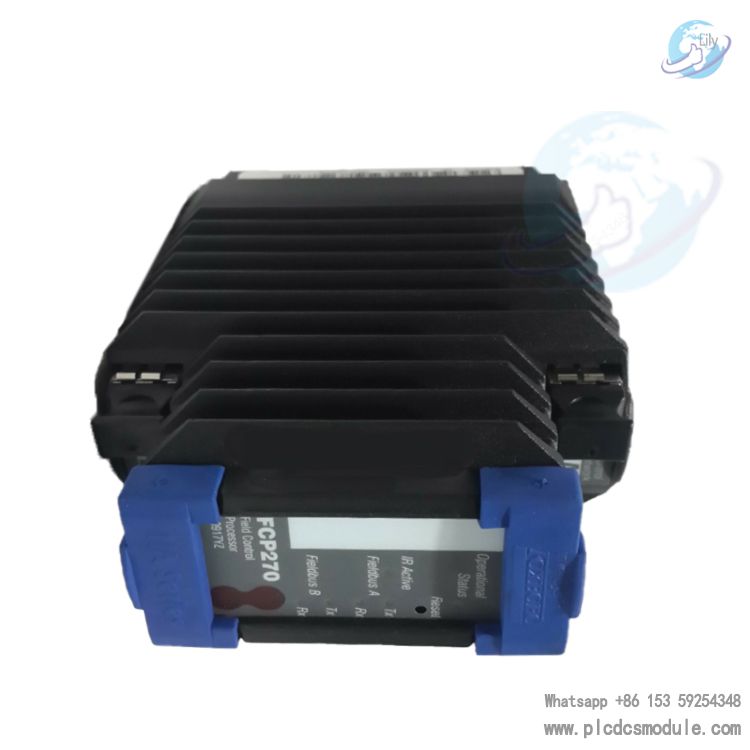

FOXBORO FCP270 P0917YZ Field Control Processor

The FCP270 P0917YZ(Field Control Processor 270) is a compact control processor of the standard 200 series subsystem in Schneider Electric's Foxboro Evo process automation system. It is similar in size to the Fieldbus Module (FBM) and can be deployed in key areas of the factory as an interface between the FBM and the Foxboro Evo control network. It supports local or remote allocation of process I/O points, adapts to the Z module form factor of the 100 series FBM rack, and can work in conjunction with FBM, Fieldbus Communication Module (FCM), etc., to realize the electrical and data interface functions of industrial equipment.

Data Sheet

FOXBORO FCP270 P0917YZ.pdf

Technical Specifications

Communication Capability

• Communicates with FBM and FCM via the control network, supporting dual baud rate functions of 2 Mbps and 268 Kbps.
• When paired with the FBI200 Fieldbus Isolator/Filter, it can communicate with 100-series FBMs, extending the communication distance to 1,830 meters (using dual-axis cables).

Number of Supported FBMs

• Without a Fieldbus Expansion Module (FEM), it supports up to 32 200-series FBMs.
• With an FEM, it supports up to 128 200-series FBMs, and simultaneously supports up to 64 100-series FBMs.

Redundancy Configuration

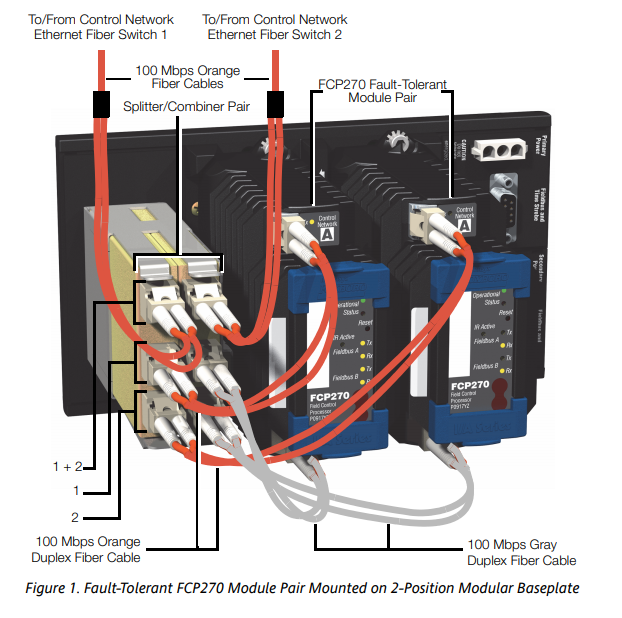

• Supports redundancy for power supplies, control networks, FCM, etc., enhancing system reliability.

Communication Interfaces

• Equipped with a module Fieldbus interface, which can be connected via shielded twisted-pair or fiber optic cables, adapting to Fast Ethernet networks and fiber optic communication.

Key Features and Advantages

Compact and Flexible Deployment

• Similar in size to FBM, it can be installed in distributed cabinets or various mounting structures, supporting vertical/horizontal DIN rail installation or 19-inch rack installation to adapt to localized deployment in key factory areas.

High-Reliability Design

• Adopts a sturdy extruded aluminum housing with no open ventilation holes, preventing contamination (compliant with ISA S71.04 Class G3 standard).
• Operating temperatures reach 50°C, 60°C, or 70°C depending on the module type, and holds certifications such as UL, ATEX, and CE, suitable for ordinary and hazardous areas.

High Performance and Fast Update

• Paired FBMs support high-resolution analog input (e.g., Sigma-Delta converters with 25ms fast updates) and built-in moving average filters to reduce noise, meeting high-speed control requirements.

Redundancy and Safety Features

• Supports redundancy for power supplies, control networks, FCM, FEM, etc. Power failures trigger alarms and display statuses.
• Provides electrical isolation and field device power protection to enhance system safety.

Technical Parameters

Operating Temperature: The module operating temperature is 50°C, 60°C, or 70°C depending on the type. For details, refer to the product specification sheet of each module.

Power Requirements: Relies on a 24 V dc power supply, supporting single power supply or redundant power configuration. The power module must comply with Class I, Division 2 application certification.

Communication Distance

When communicating with 200-series FBMs, the maximum length of the module Fieldbus cable is 60 meters (shielded twisted-pair).

When communicating with 100-series FBMs via FBI200, the maximum length of the dual-axis cable is 1,830 meters.

Protocol Support: The control network uses an asynchronous protocol, conforms to Ethernet communication requirements, and supports fiber optic interfaces. The communication protocol can be upgraded in the future by replacing the FCM.

Application Areas

Industrial Process Control: Suitable for continuous, batch, and discrete control scenarios, such as process management and control in industries like chemical, petroleum, and power.

Deployment in Hazardous Environments: Certified by ATEX and UL, it can be used in potentially explosive environments (e.g., petrochemical plant areas).

Remote I/O Distribution: With fiber optic communication and a distributed base design, it supports remote centralized management of I/O points over large factory areas.

Marine and Ship Applications: Obtains ABS and Bureau Veritas classification certifications, suitable for ship automation systems.

Installation and Maintenance

Installation Methods: Installed on 200-series standard bases or Intrinsic Safety Bases (ISTA-BP), which support DIN rail or 19-inch rack mounting, and can be deployed side by side with modules like FBM and FCM.

Wiring and Communication: Connect to the control network via shielded twisted-pair or fiber optic cables. Field I/O signals are connected through Terminal Assemblies (TA). The cable length ranges from 0.5m to 30m, supporting hot-swapping (except for some FBMs).

Maintenance Key Points: Analog FBMs are factory-calibrated and require no on-site calibration; discrete I/O modules need no on-site adjustment.

Power failures are indicated by LED indicators and system alarms. Module software is stored in flash memory, enabling quick restart after power outages.

Compatible Products

Fieldbus Modules (FBM): Supports 200-series FBMs (e.g., FBM201, FBM202 analog/digital I/O modules) and 100-series FBMs (requires pairing with FBI200).

Fieldbus Communication Modules (FCM): Such as FCM100E and FCM100Et, used for communication interface conversion between control networks and FBM, supporting fiber optic expansion.

Bases and Terminal Assemblies: Standard bases, Intrinsic Safety Bases (ISTA-BP), and Terminal Assemblies (TA), providing communication backplanes and field wiring interfaces.

Power Modules: 24 V dc power modules (e.g., FPS480-24, FPS400-24), supporting single or redundant power configurations.

Other Auxiliary Modules: FBI200 Fieldbus Isolator/Filter (extends communication distance) and FEM100 Fieldbus Expansion Module (increases the number of supported FBMs).
