Product Overview

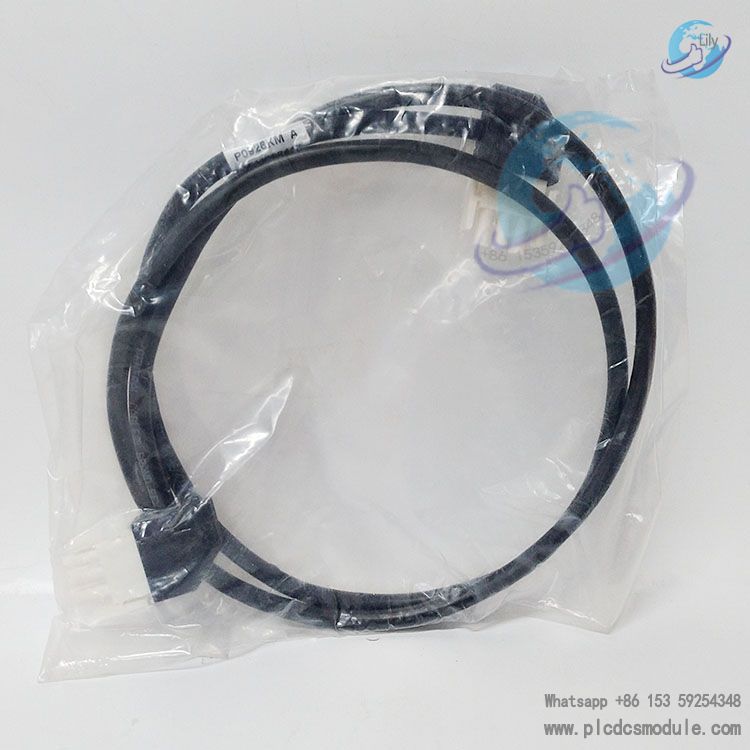

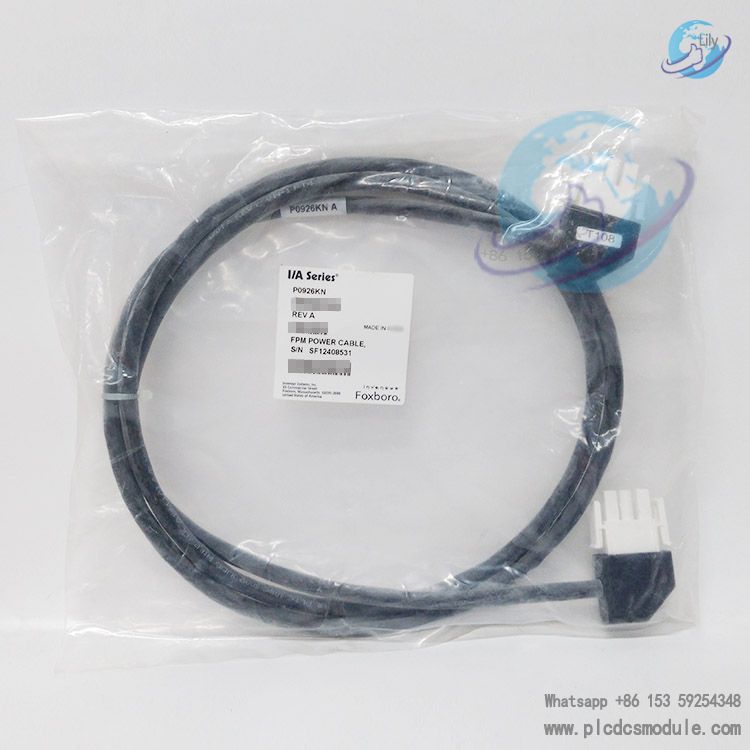

The P0926KN is a dedicated power supply output cable for Foxboro Evo Standard 200 Series systems, specifically designed to connect the FPS400-24 power supply to modular backplanes. Featuring a 16 AWG shielded wire construction, this cable ensures stable transmission and strong anti-interference capabilities in industrial environments.
As an original equipment manufacturer (OEM) accessory fully tested and certified by Foxboro, the P0926KN provides safe and reliable power connections for various industrial applications including process control, petrochemical, and energy sectors, particularly suitable for Division 2 and Zone 2 hazardous area applications.
This cable has replaced the previous model of the same designation while maintaining full compatibility with both new and legacy versions of power supplies and backplanes, simplifying system upgrades and maintenance procedures.
Key Specifications
- Model NumberP0926KN
- Length1.5m (5ft)
- Wire Gauge16 AWG Shielded
- Compatible Power SupplyFPS400-24
- Connection Type3-Pin Power Connector
- CertificationsUL, UL-C, CENELEC
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model Identification | P0926KN (Replaces previous model of same designation) |
| Physical Length | 1.5 meters (5 feet) |
| Wire Specification | 16 AWG Stranded Copper Wire with Shielding |
| Rated Voltage | 24V DC (Matches FPS400-24 Power Supply Output) |
| Rated Current | Supports Maximum 16.7A Current Transmission |
| Connector Type | 3-Pin Power Connector (Pin-Socket Type) |
| Operating Temperature Range | -30°C to 71°C (-58°F to 160°F) |
| Storage Temperature Range | -55°C to 85°C (-65°F to 185°F) |
| Humidity Range | 5% - 95% (Non-Condensing) |
| Altitude Rating | -300m to 3000m (Operating Condition) |
| Vibration Resistance | 0.75g (5-500Hz) |
Compatibility Information
Compatible Power Supplies
FPS400-24 Standard 200 Series Power Supply
Input Model: P0922YU (120/240V AC or 125V DC)
Input Model: P0922YC (24V DC)
Compatible Modular Backplanes
P0926KE/HF/HJ/HM/HT/KH/HZ/JC/JF/JM
Supports Expansion via Y-Cable (RH923NG)
System Compatibility
Foxboro Evo™ Standard 200 Series Automation Systems
Supports FBM/FCM/FCP Module Power Supply
Application Environments
Division 2, Zone 2 Hazardous Areas
Industrial Corrosive Environments (H₂S, Cl₂, etc.)
Installation Instructions
Preparation
Ensure the power supply (FPS400-24) and backplane are powered off. Verify that the installation environment meets temperature, humidity, and altitude requirements.
Connect to Power Supply
Insert the pin connector of the cable into the output interface of the FPS400-24 power supply, ensuring the connector is fully seated and secured.
Connect to Backplane
Connect the socket connector of the cable to the power input interface of the modular backplane, ensuring correct polarity (matching positive and negative terminals).
Expansion Connection (If Required)
For connecting multiple backplanes, use the RH923NG Y-cable for expansion, supporting up to 6 backplane connections (subject to power supply rated power limitations).
Inspection and Power-Up
Verify all connections are secure and free from loose or incorrect connections. Apply power and confirm operational status via the power supply indicator lights.
