Product Overview

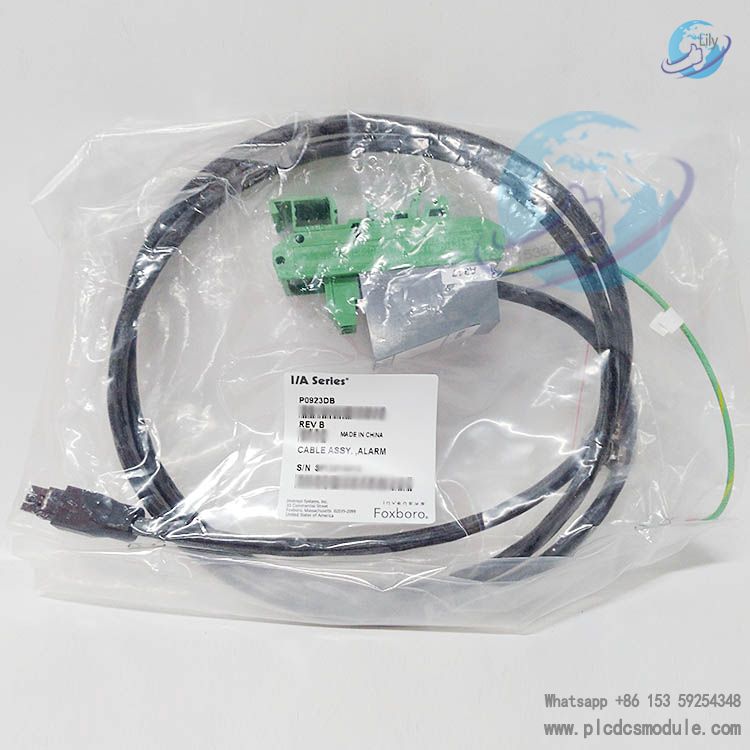

The FOXBORO P0923DB Cable Assembly is a high-quality connectivity solution specifically designed by Foxboro for industrial automation environments. Utilizing premium materials and advanced manufacturing processes, it ensures stable and reliable signal transmission under harsh industrial conditions.
As a critical connectivity component in process control systems, this cable assembly integrates excellent anti-interference capabilities, robust mechanical structure, and outstanding environmental adaptability, meeting the high reliability requirements of industries such as petrochemical, power energy, metallurgy, and building materials.
Fully compliant with international industrial standards and certified by CE, UL, RoHS, and other authoritative organizations, the product is perfectly compatible with FOXBORO's full range of controllers, sensors, actuators, and other equipment. It also supports interoperability with standard devices from other brands, making it an ideal choice for industrial automation system integration.
Quality Certification
CE, UL, RoHS
Protection Rating
IP67
Operating Temp
-40°C ~ +85°C
Warranty Period
1 Year
Technical Specifications
| Parameter Category | Specifications | Standard/Certification |
|---|---|---|
| Cable Type | Shielded Twisted Pair (STP) | IEC 60228 |
| Conductor Size | 24 AWG (0.205mm²), Stranded | UL 1007 |
| Number of Cores | 8 Cores + Ground Wire (AWG 22) | - |
| Shielding Structure | Tinned Copper Braid Shield, Coverage ≥95% | IEC 60404-8-1 |
| Insulation Material | XLPE (Cross-Linked Polyethylene) | UL 94 V-0 |
| Jacket Material | PVC / PTFE (Optional) | UL 94 V-0 |
| Operating Temperature | -40°C ~ +85°C (PVC) / -60°C ~ +125°C (PTFE) | IEC 60332-1 |
| Rated Voltage | 300V AC/DC | IEC 60332-1 |
| Connector Type | M12 8-Pin A-Code, Threaded Locking | IEC 61076-2-101 |
| Protection Rating | IP67 | IEC 60529 |
| Contact Resistance | ≤20mΩ | - |
| Insertion/Extraction Cycle | ≥1000 Times | - |
Product Features
Superior Anti-Interference Performance
High-density tinned copper braid shield (coverage ≥95%) effectively resists electromagnetic interference (EMI) and radio frequency interference (RFI) in industrial environments, ensuring stable and reliable signal transmission.
Industrial-Grade Protection Design
IP67 protection rating provides complete dustproof and waterproof performance (submersible in 1m water for 30 minutes). Combined with oil-resistant, wear-resistant, and chemical-resistant jacket material, it adapts to harsh industrial environments.
Reliable Connection Performance
M12 threaded locking connector design ensures secure connection and strong vibration resistance. With insertion/extraction cycle exceeding 1000 times and low stable contact resistance, it guarantees long-term reliable operation.
Wide Temperature Operating Range
Operating temperature ranges from -40°C to +85°C (PVC jacket). Optional PTFE jacket version supports -60°C to +125°C, adapting to extreme high and low temperature industrial environments.
High Flexibility Design
Stranded conductors combined with flexible jacket material offer a minimum bending radius of only 5 times the cable diameter (static) and 10 times (dynamic), facilitating installation and routing in confined spaces.
Strict Quality Certification
The product has passed multiple international certifications including CE, UL, and RoHS. Manufactured in accordance with ISO9001 quality management system, each batch undergoes strict testing to ensure reliable quality.
Applications
