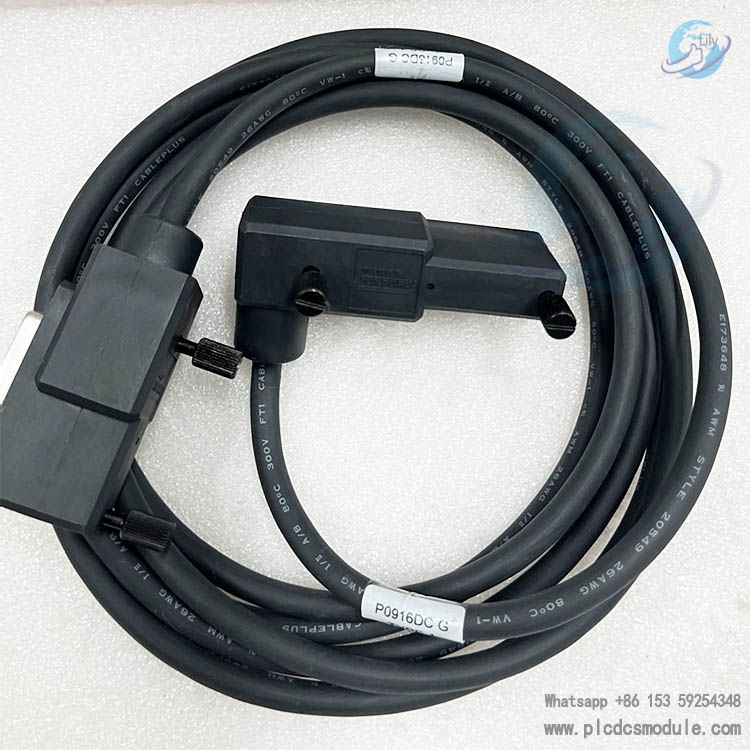

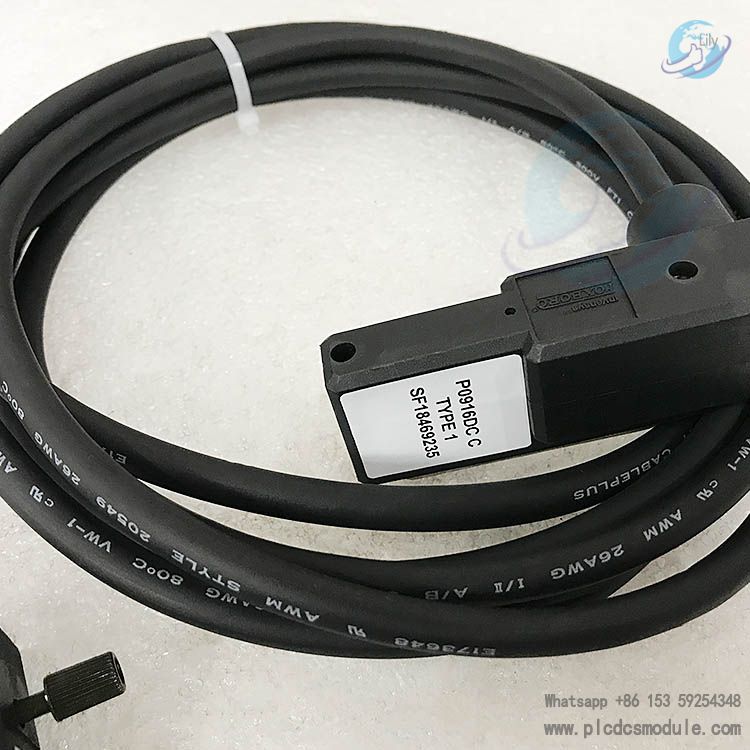

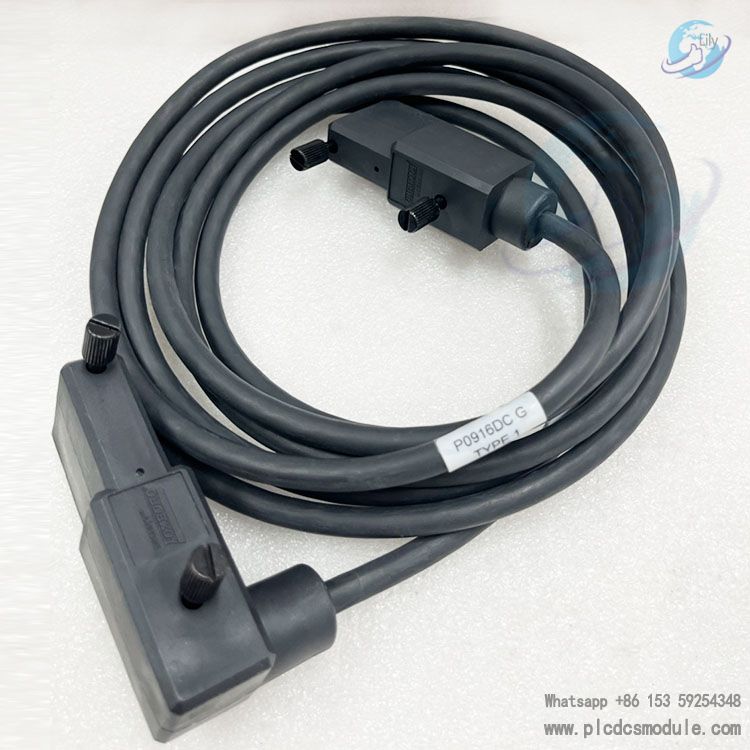

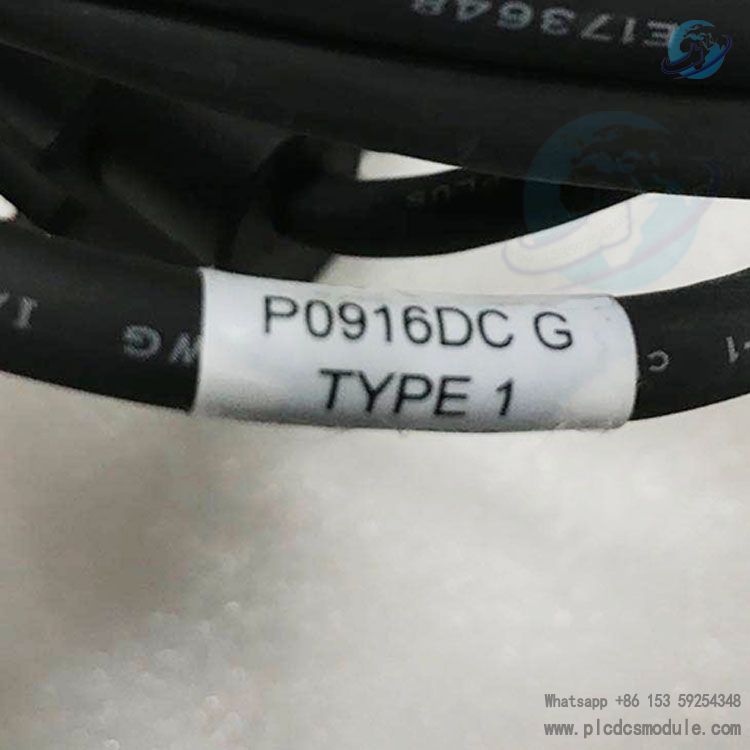

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The FOXBORO P0916DC terminal cable is specifically designed for connecting the FBM247 module to terminal assemblies (TA). It adopts a durable Type 1 termination method, ensuring stable and reliable performance in industrial environments. With a length of 3 meters (9.8 feet), it can adapt to most installation scenarios, providing flexible space for wiring. This cable can withstand harsh industrial environments, being moisture-proof, dust-proof and vibration-resistant, making it suitable for various complex working conditions. In process control systems, it is often used to connect instruments such as pressure, temperature and flow transmitters; in discrete I/O systems, it can realize connections with discrete devices like switches and buttons, serving as a capable cable product for industrial automation control connections.
Cable Length
The maximum length can reach 30 meters (98 feet), and a variety of different length specifications are available to meet the needs of different installation scenarios.
Cable Materials
There are two types of materials: Polyurethane and LSZH (Low Smoke Zero Halogen).
For cables made of polyurethane, the outer sheath is polyurethane, and the main conductor insulation is semi-rigid PVC, with a temperature range of -20 to +80°C (-4 to +176°F).
LSZH cables are composed of thermoplastic or thermosetting compounds, which produce little smoke and do not release halogens when burned at high temperatures, with a temperature range of -40 to +105°C (-40 to +221°F).
Cable Connection MethodsThe FBM backplane end features a 37-pin D-subminiature interface.
The terminal assembly end is equipped with a 25-pin D-subminiature interface.
Cable Models and Corresponding Lengths
| Cable Length (m/ft) | Type 1 P/PVC (Polyurethane outer sheath and semi-rigid PVC main conductor insulation) | Type 1 LSZH (Low Smoke Zero Halogen) |
|---|
| 0.5 (1.6) | RH916DA (replaces P0916DA) | RH928AA (replaces P0928AA) |
| 1.0 (3.2) | RH916DB (replaces P0916DB) | RH928AB (replaces P0928AB) |
| 2.0 (6.6) | RH931RM (replaces P0931RM) | RH928AC (replaces P0928AC) |
| 3.0 (9.8) | RH916DC (replaces P0916DC) | RH928AD (replaces P0928AD) |
| 5.0 (16.4) | RH916DD (replaces P0916DD) | RH928AE (replaces P0928AE) |
| 10.0 (32.8) | RH916DE (replaces P0916DE) | RH928AF (replaces P0928AF) |
| 15.0 (49.2) | RH916DF (replaces P0916DF) | RH928AG (replaces P0928AG) |
| 20.0 (65.6) | RH916DG (replaces P0916DG) | RH928AH (replaces P0928AH) |
| 25.0 (82.0) | RH916DH (replaces P0916DH) | RH928AJ (replaces P0928AJ) |
| 30.0 (98.4) | RH916DJ (replaces P0916DJ) | RH928AK (replaces P0928AK) |
Purpose
It is used to connect the DIN rail-mounted terminal assembly (TA) to the FBM247 module via the field connector on the backplane, enabling field I/O signals to access the FBM subsystem. It also allows the terminal assembly to be installed in the chassis or adjacent chassis, increasing installation flexibility.
