Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The FOXBORO FBM217 RH914TR discrete input module, a key component of the Compact 200 Series I/O subsystem, efficiently connects field sensor signals to the control processor with its 32-channel design. It is compatible with various termination assemblies, covering inputs such as 15-60VDC, 120VAC/125VDC, and 240VAC. It supports single-module or redundant deployment, and can switch seamlessly during redundancy to ensure stability. The ABS shell is suitable for Class G3 harsh environments, with LEDs displaying status in real-time. It is easy to install and replace, providing reliable signal conversion and processing capabilities for industrial control.
DATA SHEET
FOXBORO FBM217 RH914TR.pdf

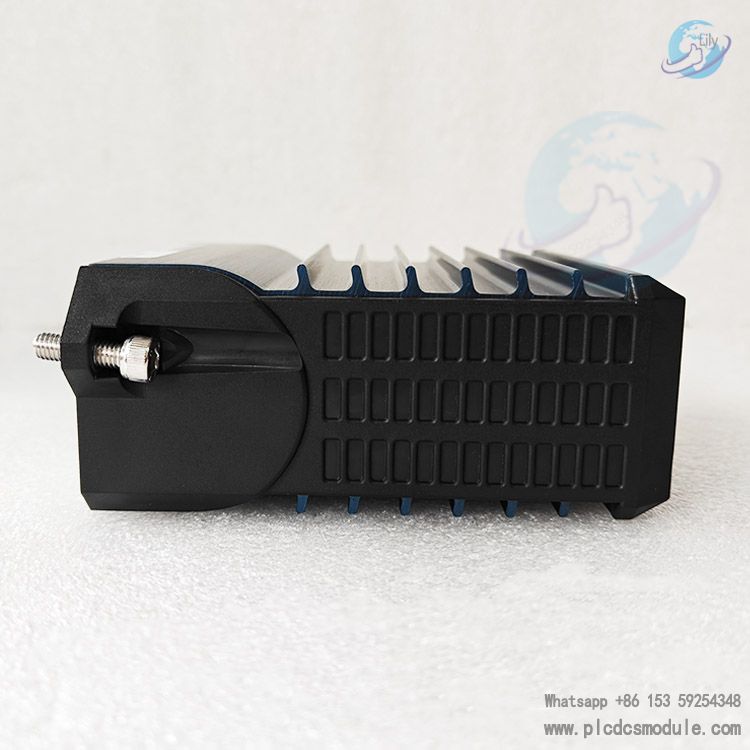

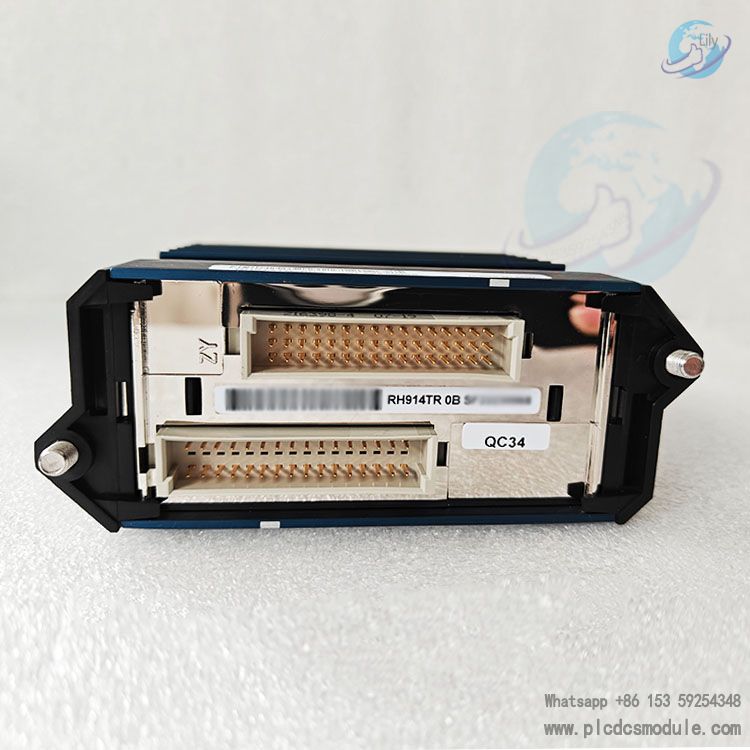

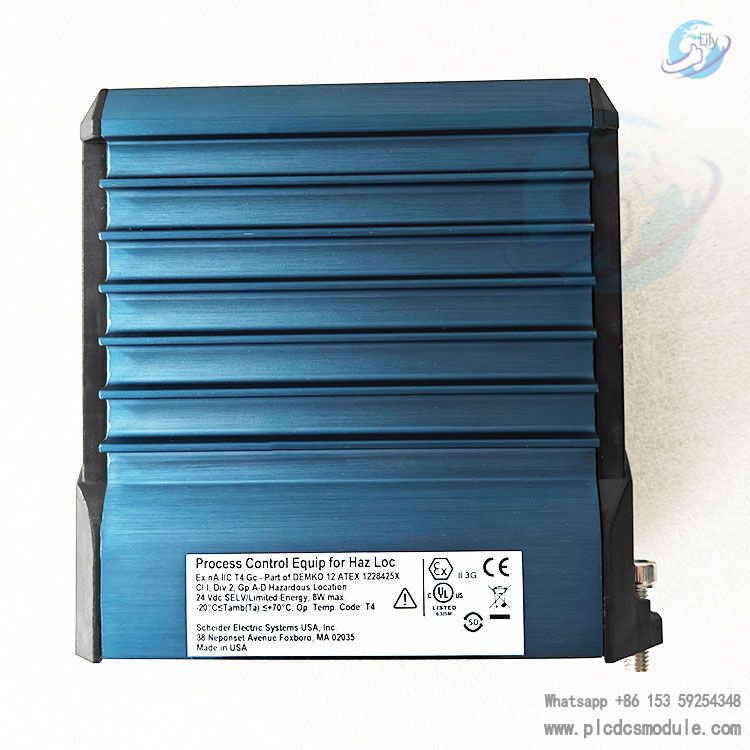

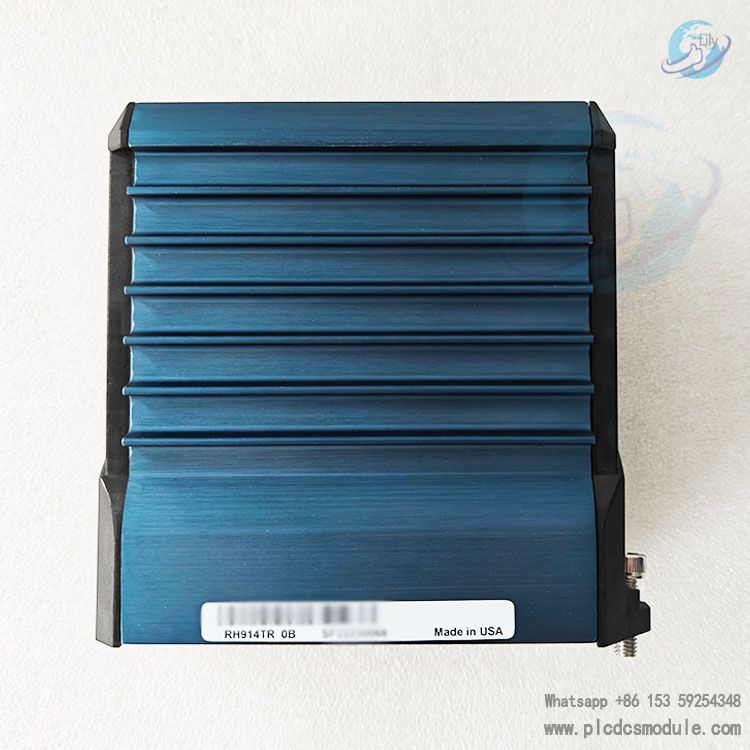

Overview of FOXBORO FBM217 RH914TR
Core Functions: It provides 32 discrete input channels, each of which accepts 2-wire input from a DC voltage source. It supports discrete inputs of below 60VAC, 120VAC/125VDC or 240VAC through related terminal assemblies (TAs), realizing the interface conversion between the on-site sensor electrical signals and FCP or ZCP.
Supported Input Types: Voltage monitoring or contact sensing of 30VDC, 125VDC, 120VAC or 240VAC.
Redundant Configuration: It can be used as a redundant pair, which needs to be installed adjacently (starting with an odd number). It is connected to the same terminal assembly through a redundant adapter (RH101AZ), and the on-site input current is doubled; the redundant digital input block in the control software verifies the input and selects high-quality signal processing. Replacing the module does not affect the on-site input signal of the normal module.
Main Features of FOXBORO FBM217 RH914TR
Channels and Voltage: 32 discrete input channels, supporting 15-60VDC, 120VAC/125VDC, 240VAC voltage signals.
Environmental Adaptability: With a compact and robust design and an ABS shell, it is suitable for the G3 level (severe) environment specified in the ISA S71.04 standard.
Function Support: It can execute discrete input, ladder logic, pulse counting and sequence of events (SOE) programs, and supports configurable options for input filtering time and fail-safe configuration.
Terminal Assemblies (TAs): They include functions such as high-voltage attenuation, optical isolation, and external power connection, providing various isolation modes (group isolation, channel isolation, paired isolation, etc.).

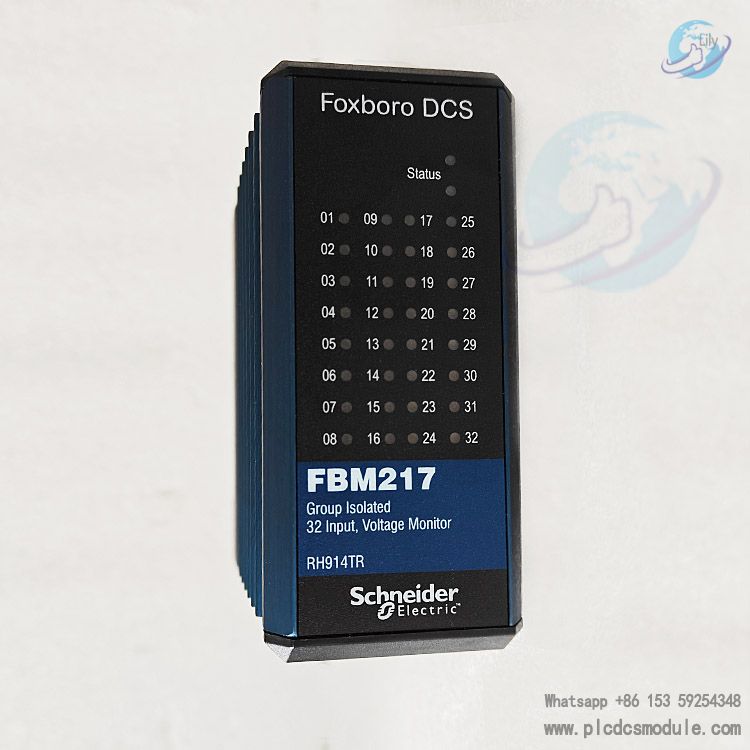

Visual Indication: There are red and green LEDs on the front to indicate the module status, and 32 blue LEDs to indicate the status of each input channel.
Installation and Replacement: It is installed on the Compact 200 series backplane and fixed with two screws. The module can be replaced without disassembling the on-site wiring, power supply and communication cables.
Functional Specifications
Input Parameters
- Turn-on voltage: 15-30VDC; Turn-off voltage: 0-5VDC.
- Typical current: 2.2mA at 30VDC input.
- Source resistance limit: Maximum 1kΩ in the on-state, minimum 100kΩ in the off-state.
- Filtering / debounce time: Configurable (no filtering, 4, 8, 16, or 32ms), requiring firmware version 1.25H or higher for 200 series FBM or competitive migration modules.
- Maximum pulse counting rate: 250Hz.
Isolation Performance
- Module / passive TA combination (such as RH916CA, etc.): Group isolation, with a withstand voltage of 600VAC for one minute.
- Module / signal conditioning TA combination: High-voltage TAs provide group isolation or channel isolation, meeting UL dielectric potential requirements.
- Other TAs (such as RH924HA/HB): Paired isolation, with a withstand voltage of 120VAC.
Communication: Communicates with fieldbus communication modules or control processors via a 2Mbps fieldbus, supporting A/B path switching.
Power Requirements: 24VDC (±5%/-10%), power consumption 3W, heat dissipation 5W.
Environmental Specifications
| Parameter | Operating Environment | Storage Environment |
|---|
| Temperature | FBM217: -20 to +60°C; PA material terminal assemblies: -20 to +70°C | -40 to +70°C |
| Relative Humidity | 5-95% (no condensation) | 5-95% (no condensation) |
| Altitude | -300 to +3000m | -300 to +12000m |
| Pollution Degree | Suitable for ISA S71.04 G3 level environment tested to EIA 364-65 Class III standards | - |
| Vibration | 5-500Hz, 0.75g | - |
Installation Method
- Module: Installed on Compact 200 series backplane, fixed with two screws. It can be replaced without disconnecting field wiring, power supply, and communication cables.
- Terminal assemblies: Mounted on 32mm or 35mm DIN rails.
Weight: Approximately 185g (6.5oz) for the module; terminal assemblies vary by type, ranging from approximately 420-950g.
Dimensions
- Module: 130mm in height, 25mm in width, 150mm in depth (139mm including backplane connector).
- Terminal assemblies: Dimensions vary by model, e.g., approximately 216mm in width for RH916CA, etc., and approximately 233mm in width for RH916QA, etc.
Part Numbers: Module RH101DF; Redundancy Adapter RH101AZ.
Terminal Cables
- Length: Maximum 30m (98ft).
- Material: Polyurethane or low-smoke zero-halogen (LSZH).
- Type: Type 4 for backplane to main TA, Type 6 for main TA to expansion TA, with D-subminiature plug/socket interfaces.
- Wiring Specifications: Compression-type supports 0.2-4mm² (24-12AWG) wires; ring lugs support 0.5-4mm² (22-12AWG) wires, equipped with #6 screw connectors.
Terminal Assemblies (TAs): Multiple models support different input signals (e.g., 32-channel voltage monitoring, 16-channel contact sensing, etc.), divided into main TAs and expansion TAs. They can be connected via Type 6 cables (P0928CQ, 0.75m), and some models support daisy-chain distribution of external excitation voltage.
Cable Specifications
