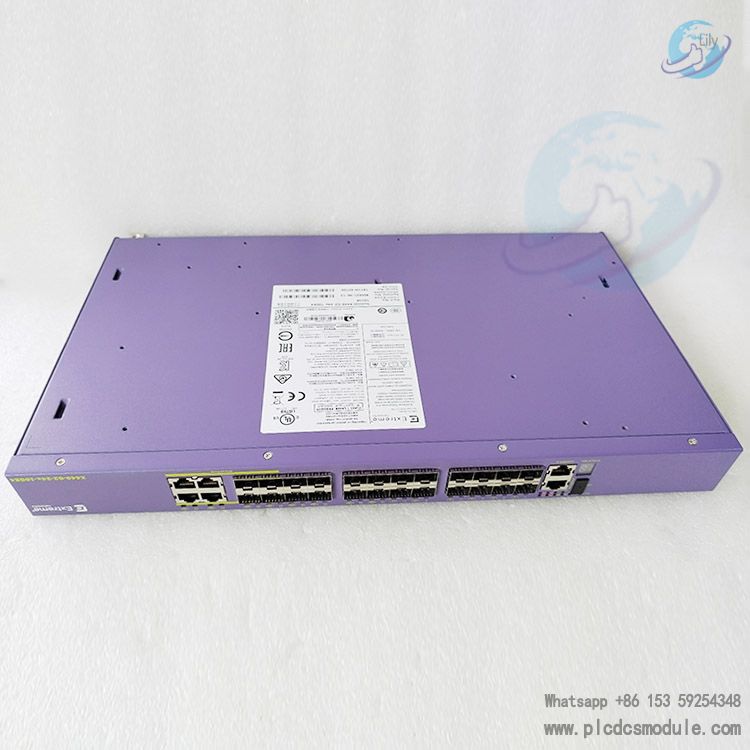

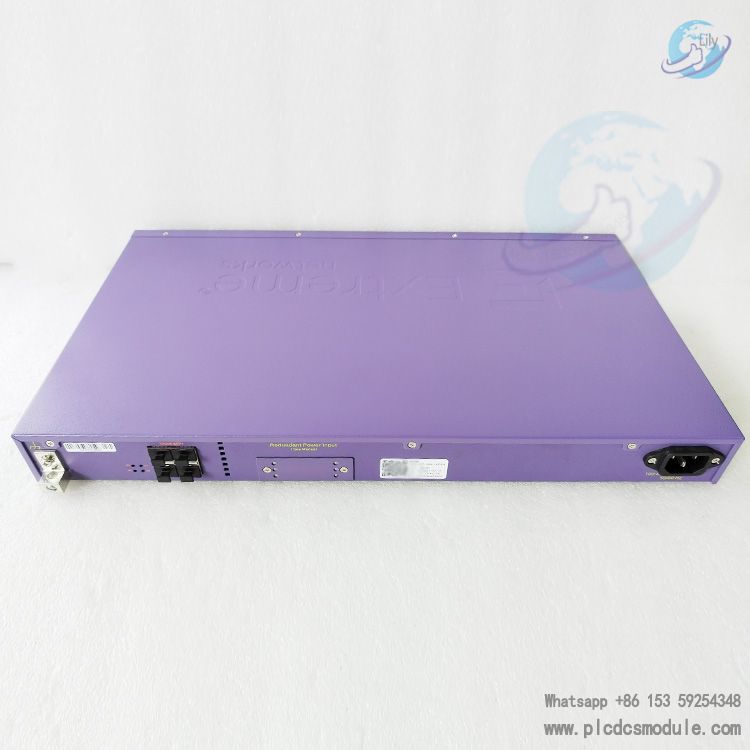

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The Extreme Networks X440-24X-10G switches features a compact 1RU rack-mount design, which saves space and facilitates installation in standard network cabinets. It is equipped with 24 10GbE SFP +ports and 4 10/100/1000 Mbps copper ports, among which some are combo ports. There are 2 SummitStack stacking ports that support stacking expansion. Additionally, it has redundant power interfaces, allowing connection to external redundant power supplies to enhance reliability.
Performance Parameters:
- The bus rate is up to 480 Gbps, enabling high-speed data transmission.
- The packet forwarding rate can typically reach 65 Mpps or higher, allowing for fast packet processing and reduced latency.
- The MAC address table size is generally 16K entries or larger, effectively managing network traffic from a large number of devices.
- Supports Jumbo frames with a maximum size of 9200 bytes or larger, which helps improve performance for applications such as large file transfers.
Functional Features:
Rich Layer 2 Functions: Supports VLAN division based on physical ports/protocols, allowing up to 4094 VLANs and complying with the 802.1Q VLAN tagging protocol. Equipped with IEEE 802.1D/IEEE 802.1w/PVST+/IEEE 802.1s spanning tree protection protocols, and supports port aggregation to achieve bandwidth expansion and link redundancy.
Layer 3 Routing Capabilities: Supports multiple IPv4 and IPv6 routing protocols such as RIP and OSPF. It also supports the VRRP virtual routing redundancy protocol and features hardware-based PBR (Policy-Based Routing) to formulate routing policies based on source/destination IP addresses, etc.
Powerful QoS Functions: Supports 802.1P and DSCP/TOS protocols, implementing hardware-based L2/L3/L4 QoS. Each port has 8 hardware egress queues for QoS, with individual bandwidth limiting per queue. It supports egress/ingress rate limiting with a granularity of 64 Kbps.
Comprehensive Security Features: Supports CPU DoS attack protection and can dynamically generate ACLs to isolate attack sources. Includes PVLAN (Private VLAN) port isolation, MAC address security, DHCP anti-spoofing, and source IP address locking. Supports hardware-based L2/L3/L4 IPv4 & IPv6 ACL filtering, as well as multiple network access authentication mechanisms such as 802.1x, web authentication, and MAC address authentication.
Easy Management: Runs on the ExtremeXOS operating system, with software processes that can be dynamically loaded, self-healed, or restarted for recovery. Supports multiple management methods including serial port, Telnet, SSH-2, and SNMPv1/v2/v3. Complies with the IEEE 802.1ab LLDP (Link Layer Discovery Protocol) for automatic discovery of third-party devices, and supports Syslog and TRAP event alert mechanisms.
Application Fields
Data Centers: Can be used to build core or aggregation layer networks in data centers, providing high-bandwidth, low-latency connections for servers, storage devices, etc., to meet the needs of fast transmission and exchange of large volumes of data within data centers.
Enterprise Campus Networks: Suitable for connecting multiple floors or departments within an enterprise campus, supporting large-scale user access and enabling efficient data exchange between different areas. It provides a stable and reliable network foundation for daily office work, business system operations, and other enterprise activities.
Industrial Automation: Can provide stable network connections for industrial field devices such as sensors and actuators, supporting process control and SCADA systems. It is applicable to industrial fields such as chemical engineering, petroleum, and natural gas, facilitating the automation and intelligentization of industrial production.
Educational Institutions: Can provide network connections for school buildings, libraries, office buildings, etc., meeting the internet access needs of teachers and students. It supports various applications such as teaching resource sharing, online teaching, and campus all-in-one cards, creating a favorable digital teaching environment.
Smart Buildings: Can be applied to security systems, building automation systems, etc., in smart buildings, enabling network connectivity and centralized management of various devices (e.g., surveillance cameras, access control systems, air conditioning control systems). It helps build an intelligent and efficient building environment.
Traffic Monitoring: In the transportation field, it can be used to connect road surveillance cameras, traffic signal controllers, and other devices, enabling real-time transmission and monitoring of traffic data. It provides network support for intelligent transportation systems, contributing to traffic management and scheduling.
