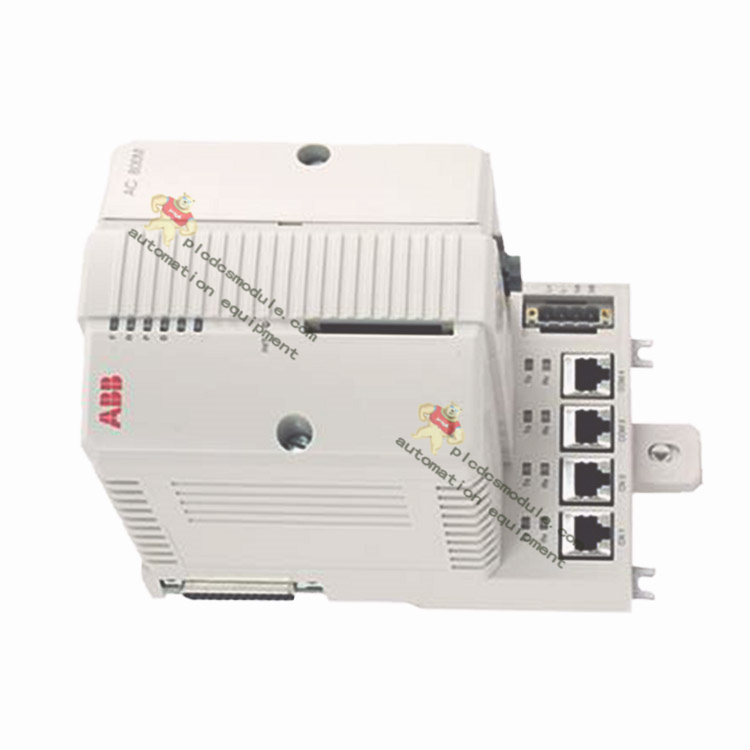

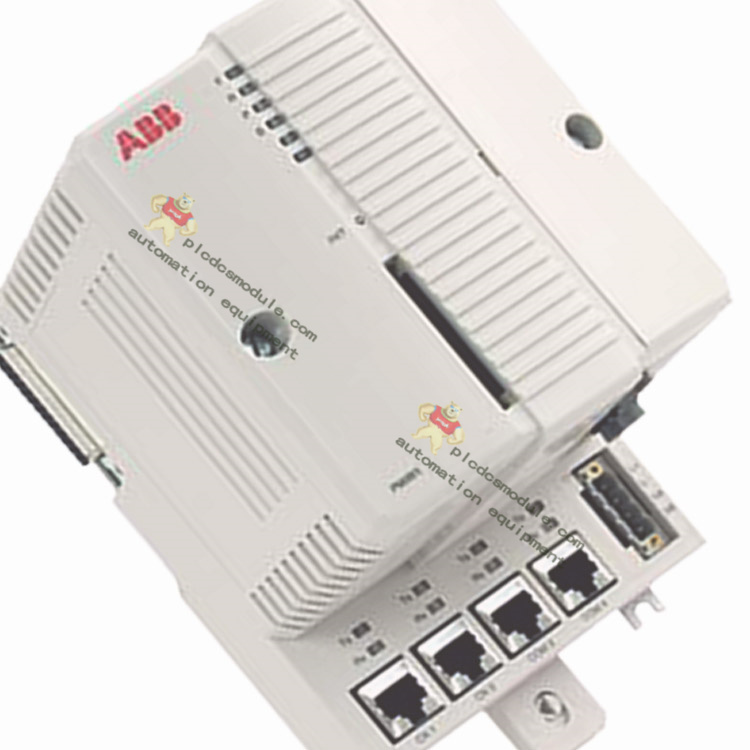

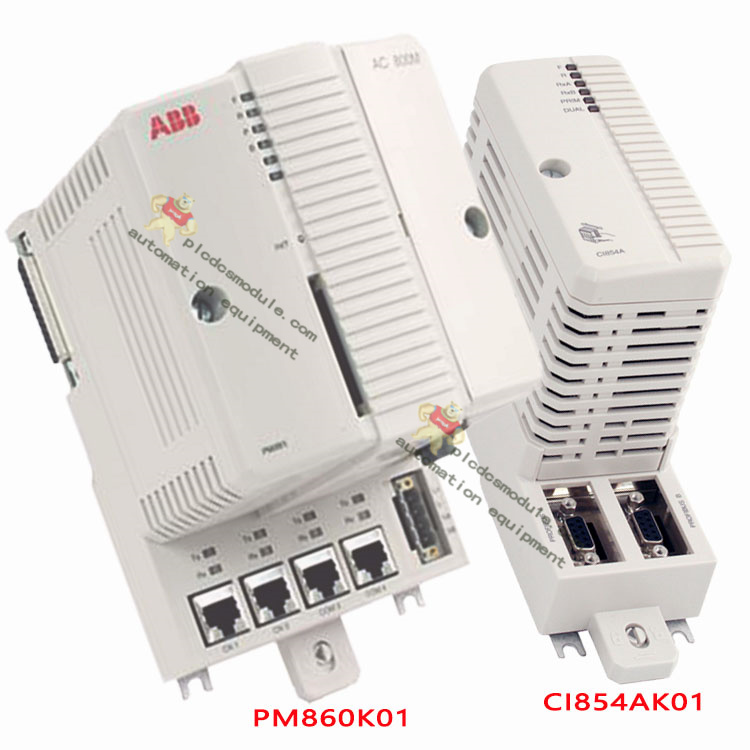

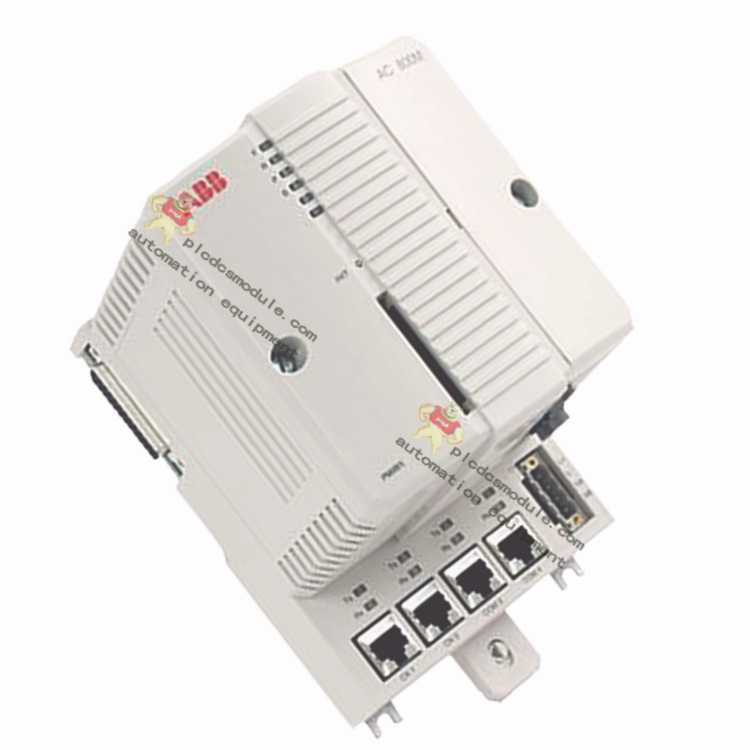

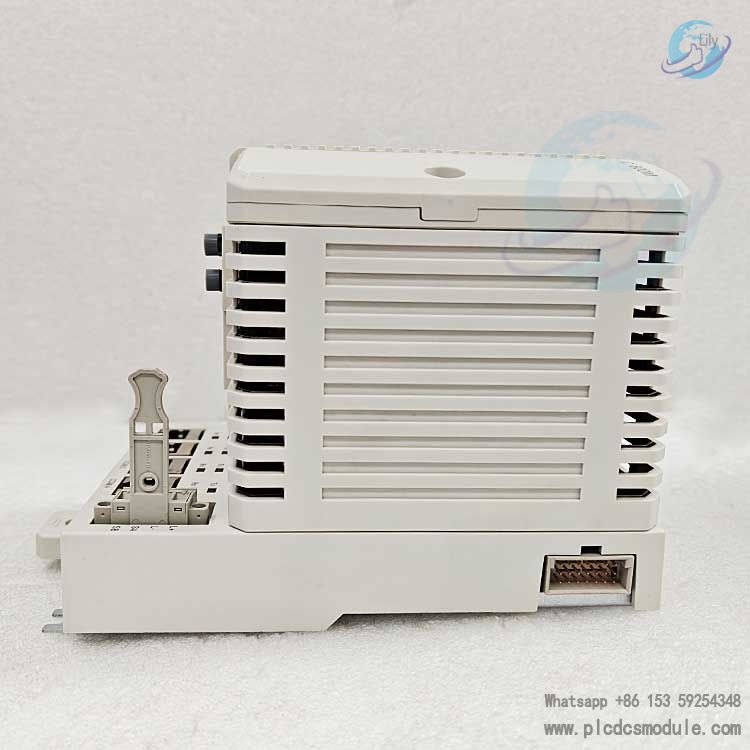

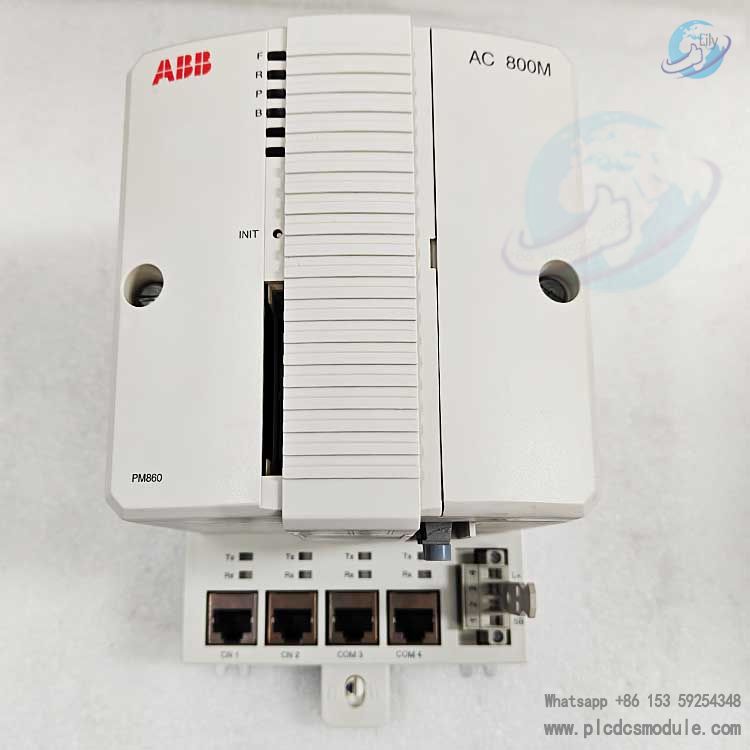

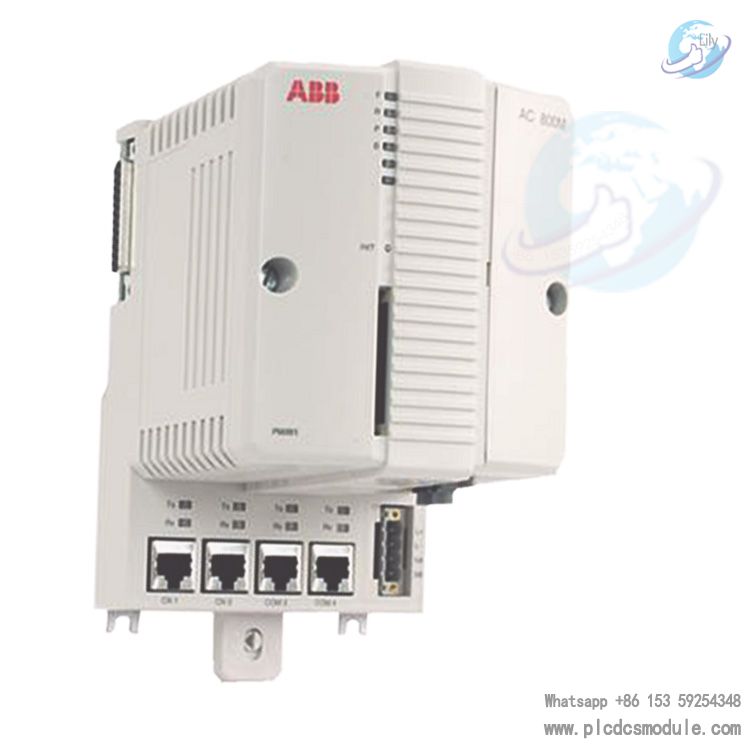

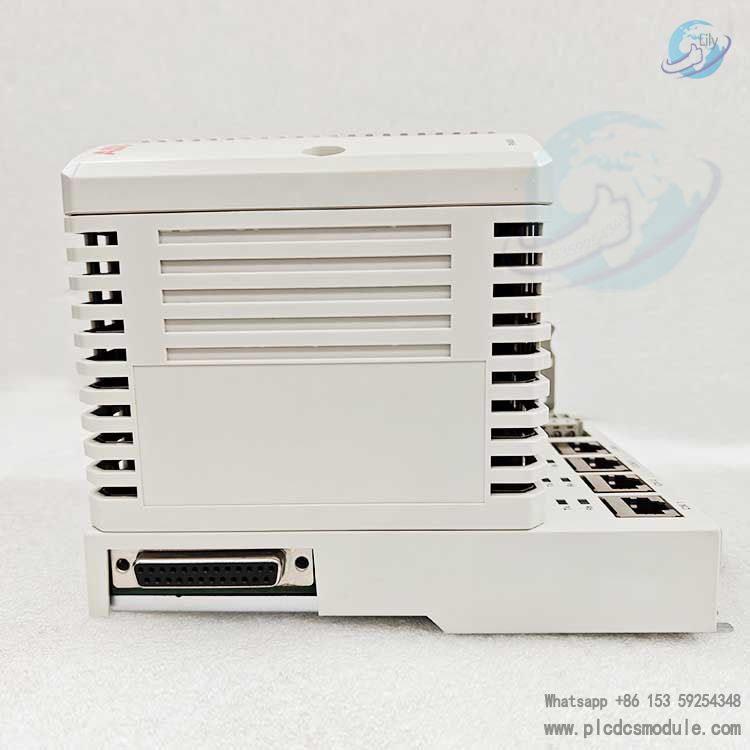

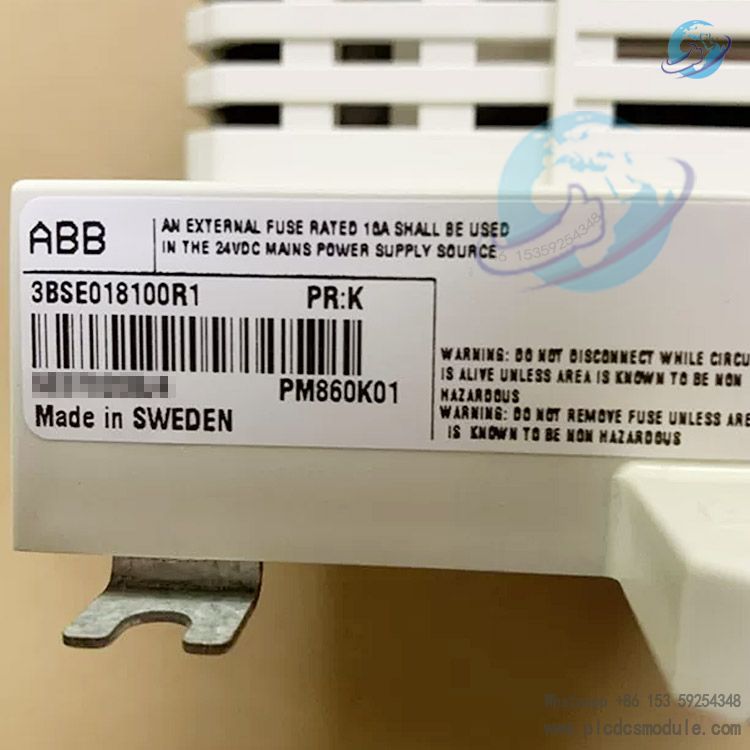

The PM860K01 3BSE018100R1 controller module is a key product in ABB AC800M series of controllers. As the core processing unit, it can accurately handle various control commands, helping industrial automation processes operate smoothly. It is widely used in many industrial scenarios, providing strong support for the efficient management and control of production processes.
Technical Specifications
Components:
PM 860 CPU
TP 830 backplane (115mm wide)
TB 850 CEX-bus terminator
TB 807 module bus terminator
Battery for memory backup (4943013-6)
4-pin power plug (3BSC 840088 R4)

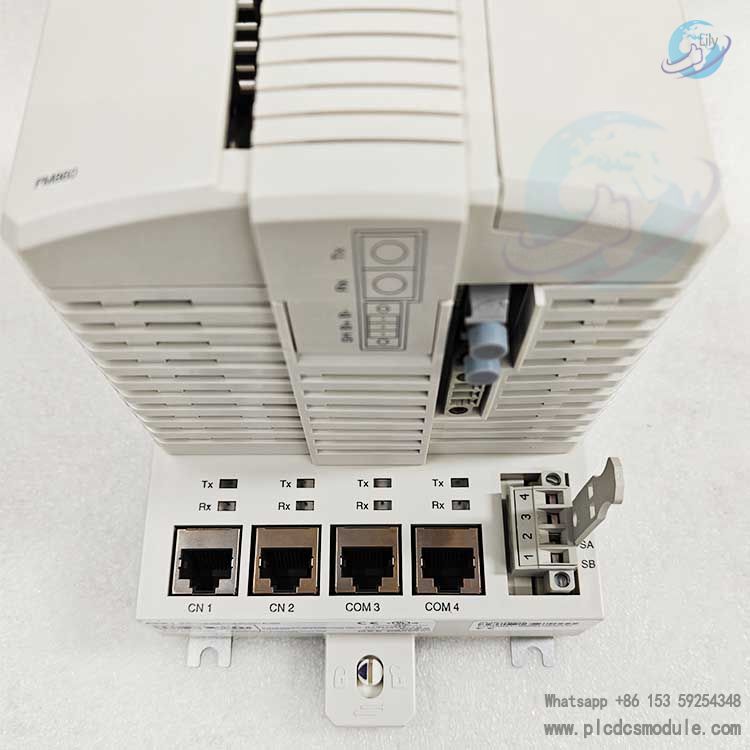

Communication Interfaces:
1 Ethernet port for connecting to control networks.
2 RS-232C ports:
COM3 with modem control signals.
COM4 isolated, for connecting configuration tools.
Key Features and Advantages
Powerful Processing: High-performance processor handles complex control strategies and large data computations, ensuring efficient execution of control tasks.
Flexible Modular Design: Compatible with various I/O modules for flexible system configuration in diverse industrial applications.
High Reliability: Designed for harsh industrial environments, minimizing failures and ensuring stable, continuous operation.
Convenient Communication: Multiple ports enable seamless integration with other devices/systems for rapid data exchange and collaborative operation.
Technical Parameters
Clock Frequency: 96 MHz
Memory: 32 MB (23.663 MB available for applications)
Dimensions (Net):
Depth/Length: 20 cm
Height: 14 cm
Width: 16 cm
Net Weight:
Product: 1.1 kg
Battery (Lithium, portable): 9 g (1 battery included)
Recommended Control Network Backbone: 100 Mbit/s–1 Gbit/s Ethernet (IEEE 802.3)
Application Fields
Process Control：Precisely regulates process parameters like temperature, pressure, and flow rate in petroleum, chemical, and power industries to ensure stable production.
Manufacturing Automation：Applied in robotic control and production lines to enhance production efficiency and product quality.
Building Automation：Enables efficient management of systems such as HVAC in large-scale buildings.
Complementary Products
I/O Modules：Works with various digital/analog input/output modules to collect field signals and output equipment control commands.
Communication Modules：Includes Ethernet communication modules, Profibus DP communication modules, etc., to expand communication capabilities and connect third-party devices or different subsystems.
