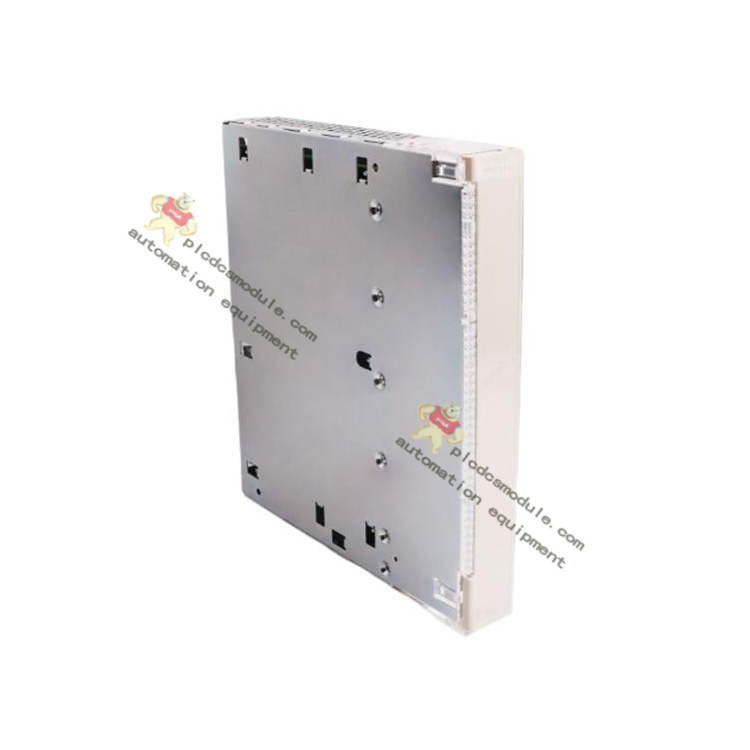

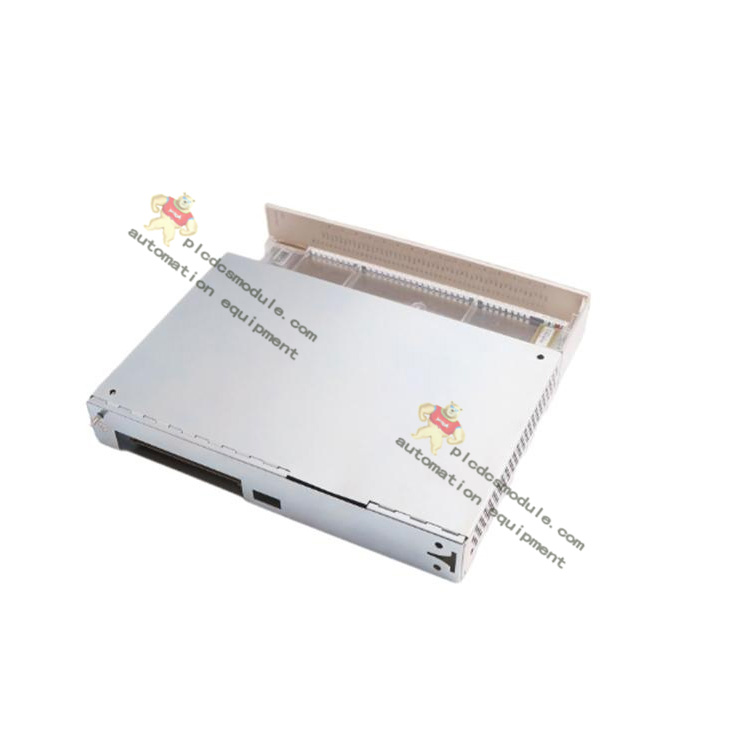

Core Technical Specifications

Channel & Signal Characteristics

• Number of Channels: 16 differential input channels, supporting simultaneous acquisition of multiple signal types to meet complex industrial monitoring requirements.
• Signal Types: Compatible with current signals including 0–20 mA, 4–20 mA, ±20 mA and voltage signals of ±10 V, matching output types of mainstream industrial sensors.
• Resolution: 12-bit, ensuring high-precision signal acquisition and capturing small signal changes to provide reliable data for control decisions.
• Load Configuration: Built-in 250 Ω shunt resistor for direct connection to standard current-type sensors without external components, simplifying system wiring and commissioning.

Electrical Performance

• Common-Mode Voltage (CMV): 100 V, providing strong common-mode interference suppression for industrial environments with multiple interference sources.
• Common-Mode Rejection Ratio (CMRR): >80 dB at 16 2/3 Hz, 50 Hz or 60 Hz, effectively filtering common-mode interference and ensuring stable and accurate input signals.

• Isolation Design: Group-to-group isolation technology enhances electromagnetic immunity for harsh industrial electromagnetic environments, complying with EC EMC Directive 89/336/EEC.

•

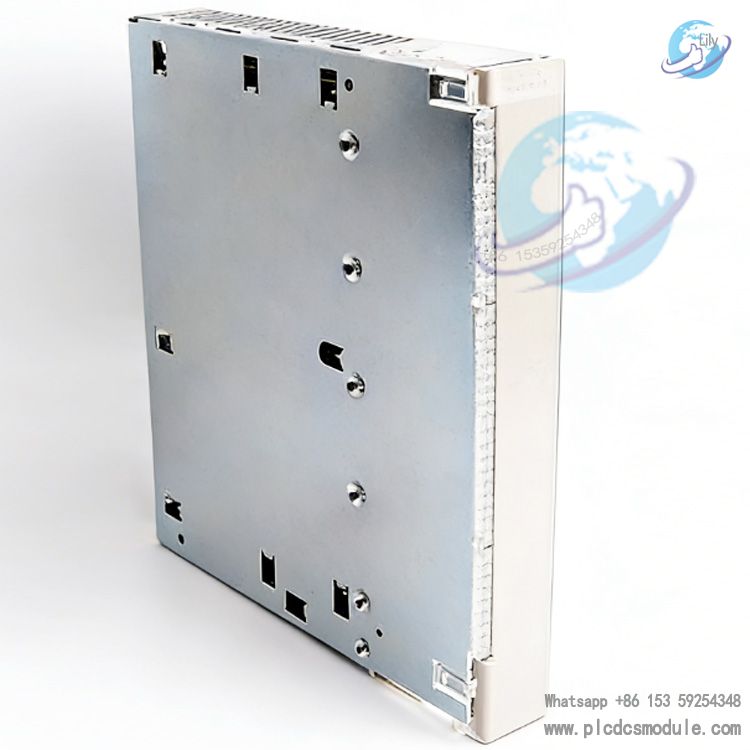

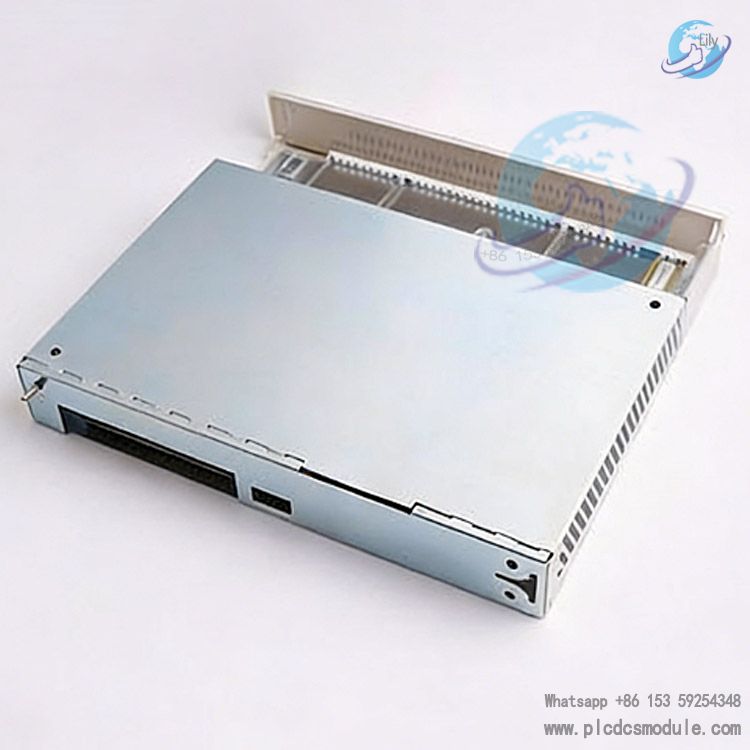

Mechanical & Installation Features

• Mechanical Compatibility: Standard module packaging, compatible with the RF616 controller subrack and RF620 expansion subrack for Advant Controller 160. It can be directly inserted into designated slots for seamless integration with other system modules.
• Mounting: Supports cabinet mounting or wall mounting (with optional mounting accessories). Module dimensions are consistent with other S600 I/O modules for easy system integration and expansion.

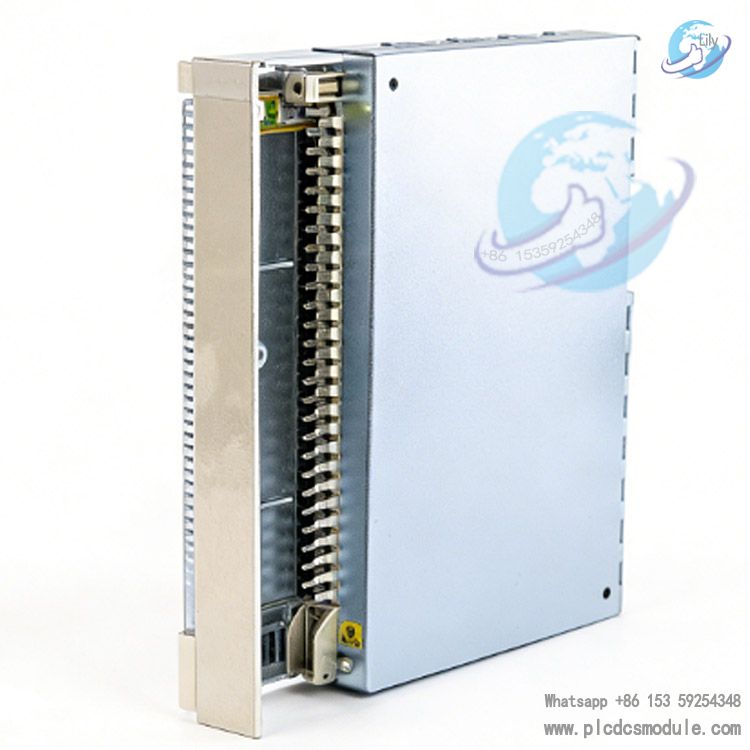

• Wiring: Front-end connectors for signal input with screw terminal fixation, ensuring secure and reliable wiring for convenient field maintenance and troubleshooting.

Functions & System Compatibility

Core Functions

• Signal Acquisition: Real-time acquisition of analog signals from field sensors, conversion to digital signals and transmission to the controller with stable, distortion-free performance.
• Hot-Swap Support: Supports module hot replacement, allowing direct module replacement during system operation without shutdown, improving system availability and production continuity.
• Fault Diagnosis: Basic fault detection capability, supporting signal anomaly monitoring and alarm in cooperation with the controller for quick fault location.

System Compatibility

• Controller Compatibility: Designed for Advant Controller 160 systems, working seamlessly with processor modules including PM640, PM644, PM665 under unified system management.
• Software Support: Compatible with Control Builder A version 1.0 and above, supporting module configuration and parameterization via Function Chart Builder with deep integration into system engineering tools.

• Expansion Capacity: Can be combined with other S600 I/O modules (digital input/output modules, pulse counter modules, etc.) via the I/O bus to form a complete industrial I/O solution. Supports up to 7 I/O stations for large-scale control requirements.

•

Applications

• Process Industry: Acquisition of pressure, temperature, flow and other process parameters in chemical, petroleum and natural gas industries.
• Energy Systems: Turbine control and boiler combustion system monitoring in thermal power, hydropower and other power plants.
• Manufacturing: Equipment condition monitoring and process control for automated production lines.
• Safety Systems: Sensor signal acquisition for industrial safety protection systems, providing data support for safety interlock control.
