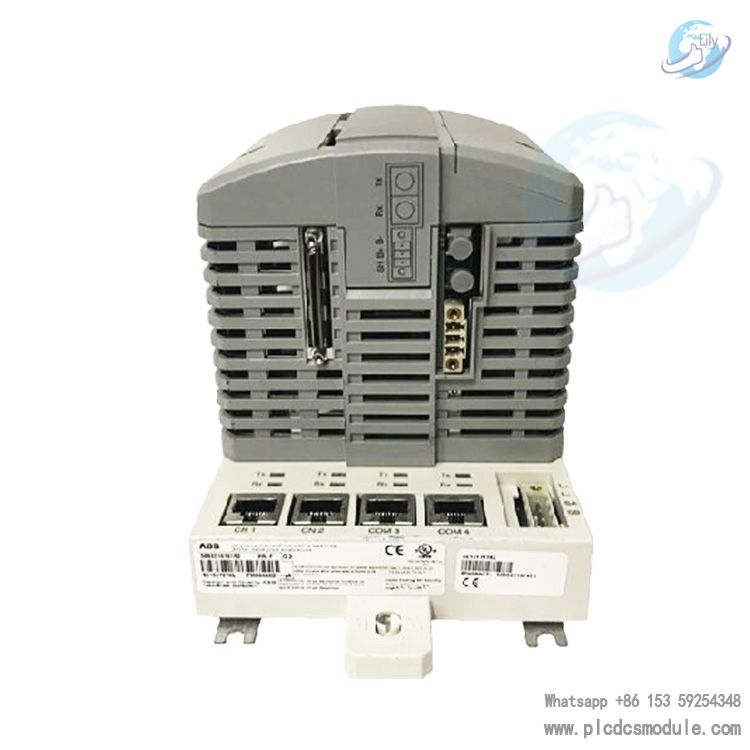

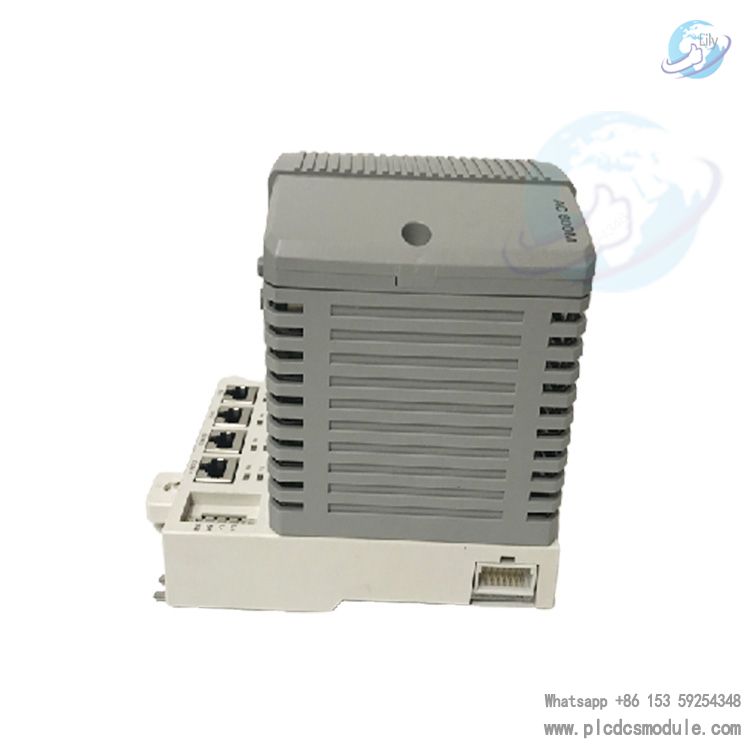

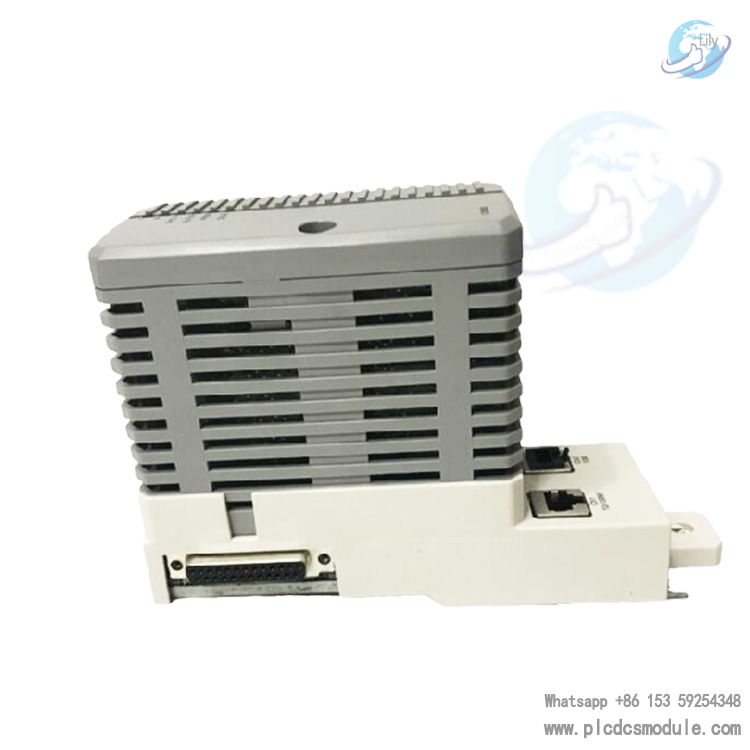

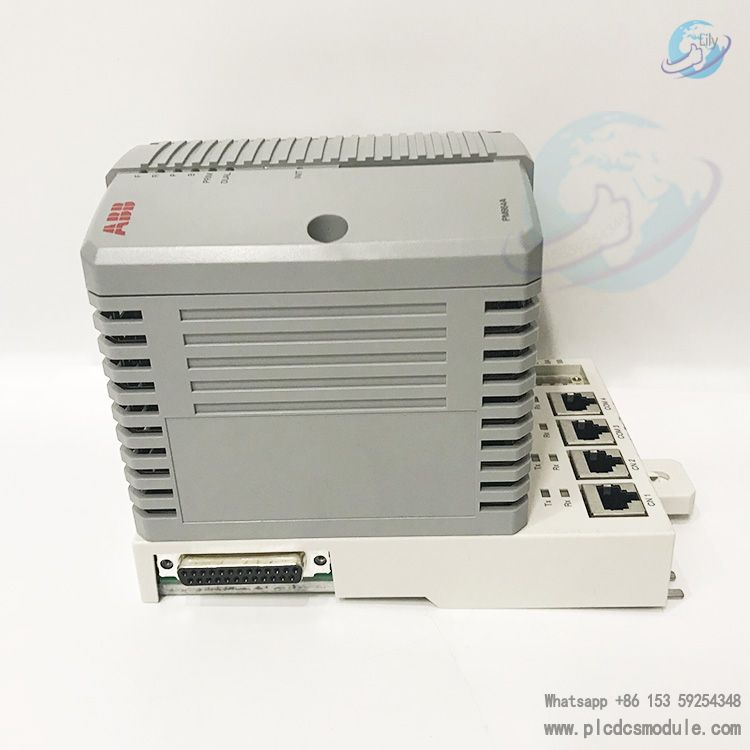

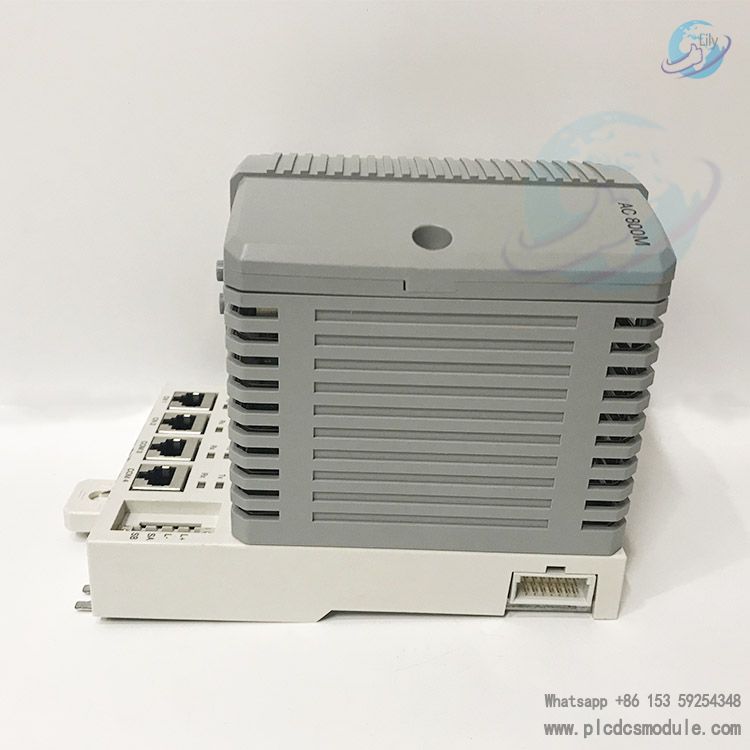

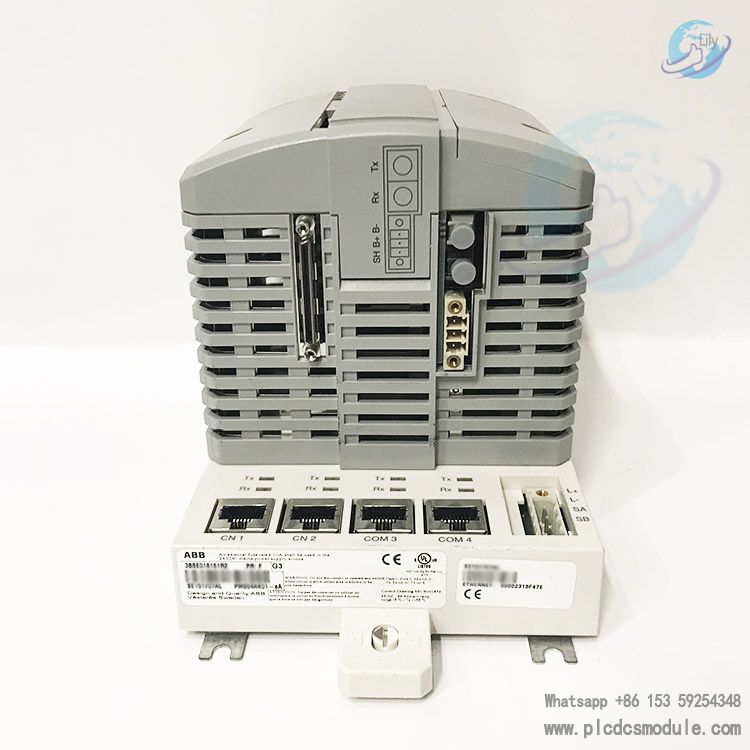

The PM864AK01-eA 3BSE018161R2 is a high-performance processor unit module in the ABB AC 800M series control system. As the core computing and control component of the system, it adopts an industrial-grade PowerPC architecture and features high reliability, strong real-time performance, and flexible scalability. It is suitable for harsh industrial scenarios such as process control and factory automation, supports redundant configuration and multi-protocol communication, and seamlessly integrates with systems like ABB 800xA, providing stable computing power and security assurance for complex control tasks.
related documents
Hardware Specifications
The processor is PowerPC 604e with a main frequency of 400 MHz, delivering stable operation for industrial-grade applications.The memory configuration includes 512MB SDRAM for dynamic storage of programs and data, as well as 256MB Flash for firmware and program solidification.
For storage backup, a 3.6V lithium battery is equipped to support long-term retention of memory data after power failure.The power supply specifications cover a 24V DC wide voltage range of 19.2–30V DC, with a typical power consumption of 6.9W and a maximum of 11.4W, and it supports redundant power input monitoring.In terms of physical specifications, the module has a width of 115mm when mounted on the TP830 backplane, with an overall dimension of approximately 119mm × 186mm × 135mm and a weight of around 1.2kg.Regarding environmental tolerance, it operates within a temperature range of -40℃ to +70℃ and a humidity range of 5%–95% (non-condensing), and its vibration and shock resistance complies with relevant industrial standards.
Functions and Features
Control Performance
Real-time Multitasking Processing: Supports IEC 61131-3 standard programming languages (such as LD, ST and FBD), enabling parallel execution of complex control logic.
Redundancy Capability: Supports the RCU-Link redundant control link with fast master-standby switchover, ensuring uninterrupted system operation.
I/O Expansion: Up to 12 S800 I/O units can be connected via ModuleBus, and the CEX bus supports the expansion of 12 communication modules, meeting the requirements of large-scale I/O and communication applications.
Communication Capability
On-board Interfaces: Equipped with 2 Ethernet ports (10/100M, supporting MMS/IAC protocols), 2 RS-232C serial ports (1 for general use and 1 dedicated to service functions), and 1 PCMCIA expansion slot.
Protocol Compatibility: Compatible with mainstream industrial protocols including PROFIBUS DP, Modbus and EtherNet/IP, facilitating cross-system data interaction.
Clock Synchronization: Achieves millisecond-level (1ms) clock synchronization between AC 800M controllers via the CNCP protocol, ensuring high-precision control coordination.
Engineering and Maintenance
Configuration Tools: Compatible with ABB Control Builder M programming software, supporting online debugging, program downloading and fault diagnosis.
Status Indication: LED indicators provide real-time feedback on power supply, operation, fault and communication status, enabling quick troubleshooting.
Hot-swappable Compatibility: Core modules support hot swapping, minimizing maintenance-related downtime.
