Widely used in distributed control scenarios within the industrial automation field, it serves as a key interface device connecting controllers and control networks. This module effectively ensures the real-time performance and accuracy of data transmission during industrial processes.

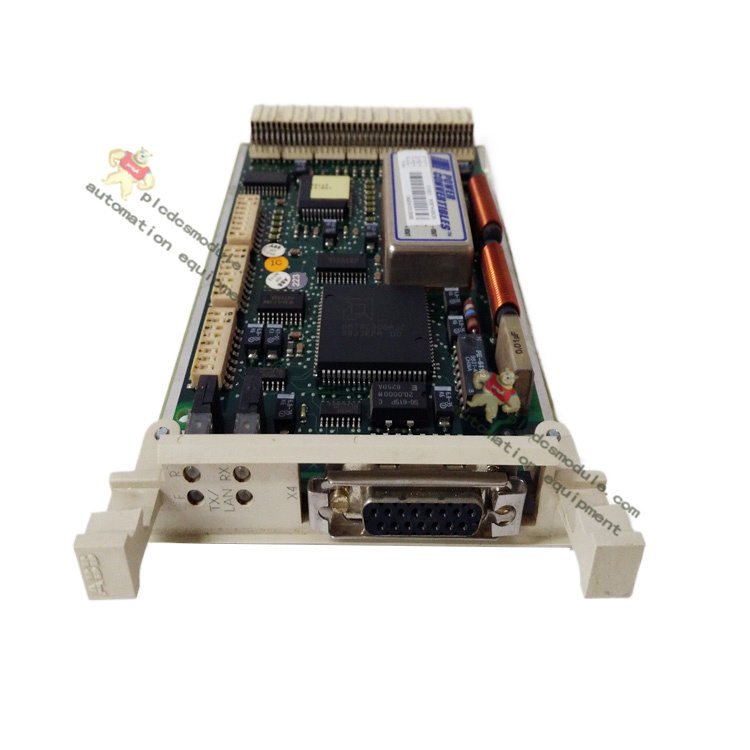

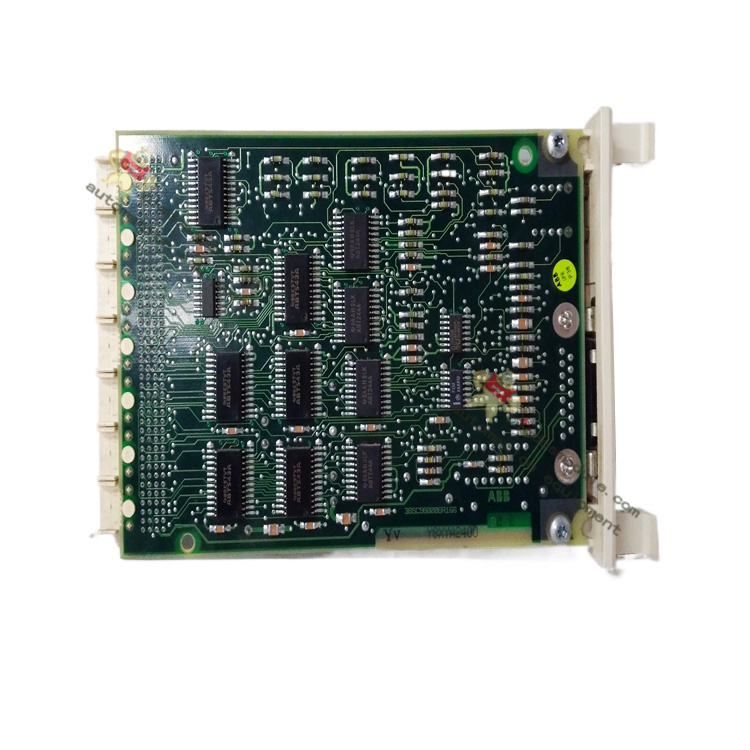

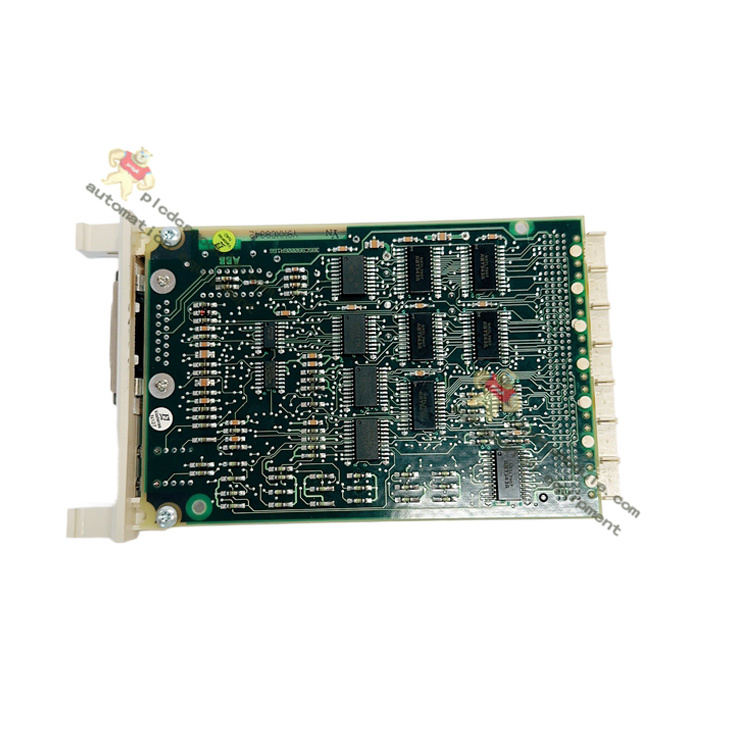

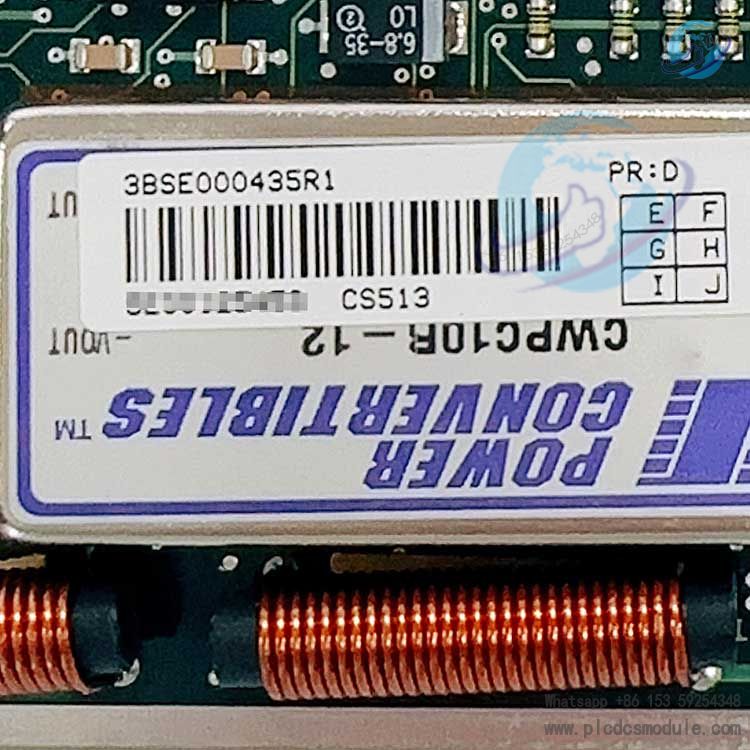

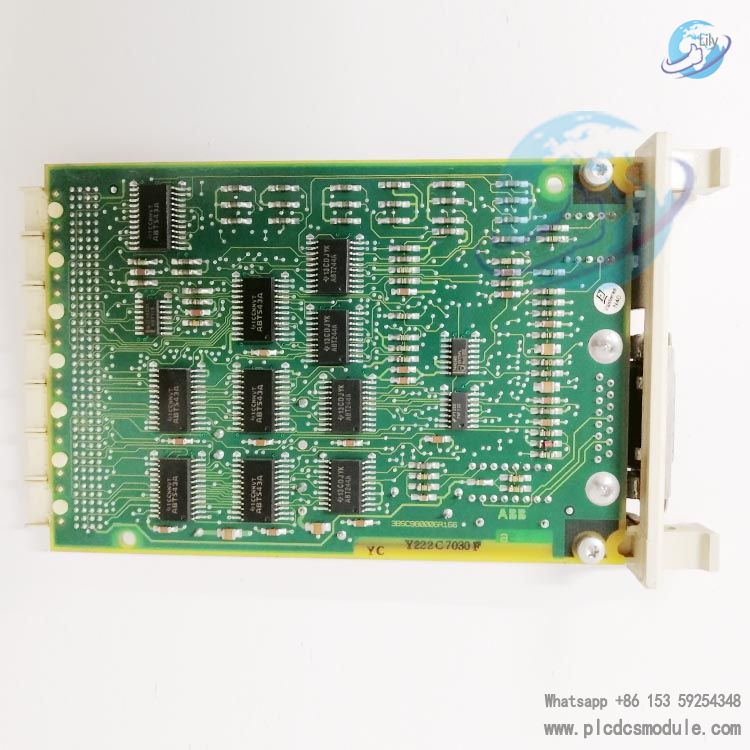

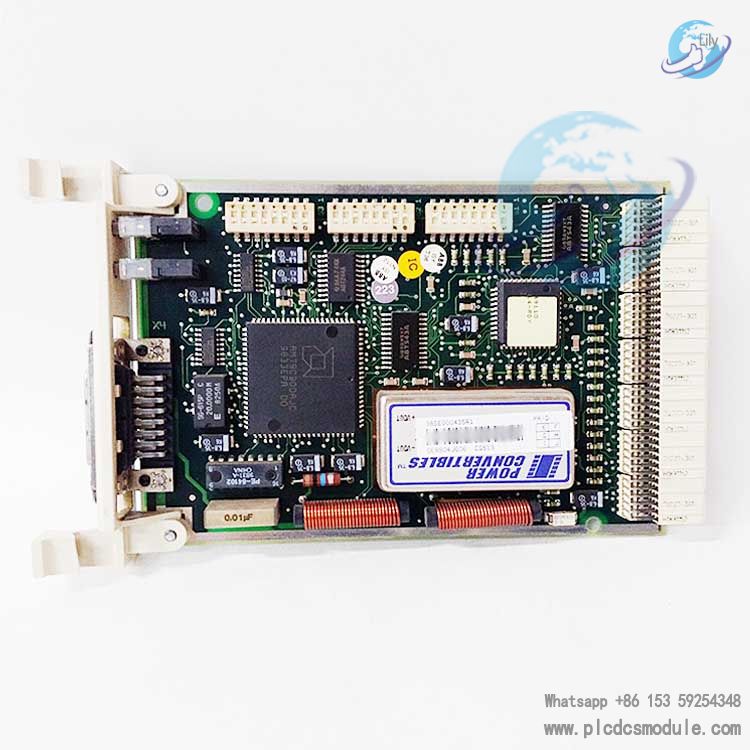

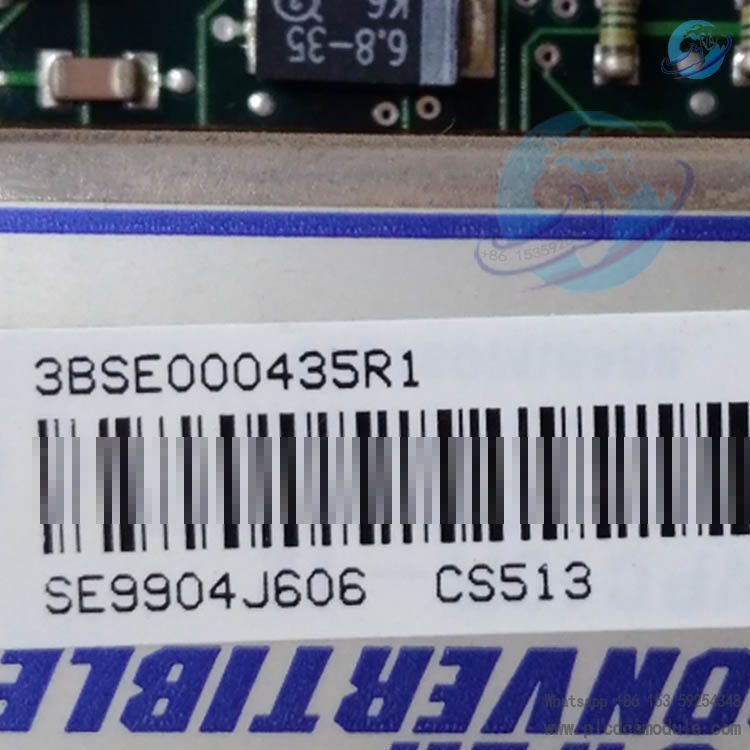

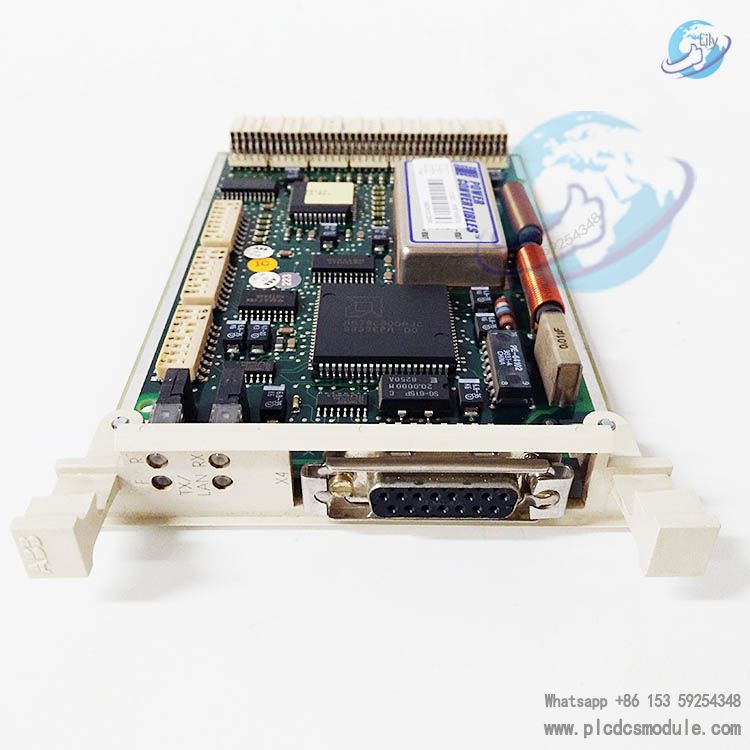

ABB CS513 3BSE000435R1  LAN-Module

beskrivelse:CS513 IEEE 802.3 LAN-Module

Teknisk informasjon:CS513 IEEE 802.3 LAN-Module

Switch in pos. 1 BIN = MB300(Std)

Switch in pos. 3 BIN = MB300E(Extended)

AC410 and SG400 ask for price.

See replacement for

AC450 3BSE091971R1

CS513AK01

AC460 3BSE091972R1

CS513AK02

Document Download：

CS513 3BSE000435R1.pdf

Advant_Controller_450.pdf

Core Functions and Technical Features

• Communication Protocol Support: Focuses on the MasterBus 300 and MasterBus 300E protocols. A single module supports 1 communication line, providing a standardized data transmission channel for industrial control networks and adapting to the communication needs of controller series such as the ABB Advant Controller 450.
• Hardware Adaptability: Can be flexibly installed on two types of sub-module carriers, SC510 and SC520. When used on the SC520 carrier, it is more suitable for the operation scenario of MasterBus 300/300E in the slave CPU. A single carrier can be configured with a maximum of 1 CS513 module (for master CPU operation scenarios) or multiple modules (for slave CPU operation scenarios), meeting the design requirements of different system architectures.
• Redundant Configuration Support: Supports bus redundancy through dual single-bus configuration. Combined with the redundant system design of the Advant Controller 450, it greatly improves the availability of the control network and avoids communication interruptions caused by single-point failures.
• Industrial-Grade Stability: Adopts an industrial-grade hardware design, adapting to the harsh operating environment of industrial sites. It can withstand adverse conditions such as vibration and electromagnetic interference, and cooperates with the entire Advant OCS system to meet the high requirements of industrial control for stability and durability.

Key Points for Installation and Configuration

• Installation Compatibility: The module size is compatible with the RF533 controller subrack of the Advant Controller 450. It must be installed in the Part A area (FB + module slot) of the subrack and work in coordination with the processor module and other communication sub-modules. The installation process must comply with ABB system installation specifications.
• Connection Requirements: It connects to the MasterBus cable via a dedicated transceiver kit (such as MB300K01) and connection cables (such as TK576V050, TK576V115). The cable length supports specifications like 5m and 15m, meeting the needs of different on-site layout requirements.
• Configuration Tools: System configuration must be performed with configuration tools such as Advant Station 140 (equipped with AMPL Control Configuration version 1.7 or above). Operations including communication parameter setting and bus topology definition should be completed to ensure seamless integration of the module with the control network.

Application Scenarios

This module is mainly used in distributed control systems within industrial fields such as petrochemicals, electric power, metallurgy, and papermaking. Serving as a communication interface between the Advant Controller 450 and the MasterNet control network, it enables real-time data interaction between the controller and other stations, I/O modules, and operation stations. It supports core industrial control functions including logic control, process monitoring, and alarm transmission, and is particularly suitable for continuous production processes that have high requirements for communication reliability.

To achieve complete industrial control and communication functions, the CS513 3BSE000435R1 LAN module needs to be used in conjunction with multiple types of ABB products. Its core compatible products include the following:Core Controllers: It works with the Advant Controller 400 series (such as the Advant Controller 410, 450 and their PM511V08/PM511V16 processor modules) as core controllers, and also with the AC 800M controllers of the 800xA system (such as the PM861/PM864).Sub-module Carriers: It must be installed on sub-module carriers, either the SC510 (without a built-in processor, suitable for master CPU operation scenarios) or the SC520 (with a built-in processor, suitable for slave CPU operation scenarios).I/O Modules: It needs to be paired with S100 I/O modules (such as the DSDI 110A, DSDO 115, DSAI 130, DSAO 110, DSDP 150, etc.) or S800 I/O modules (such as the AI801, AO801, DI801, etc.) to realize the collection and output of control signals. Communication Components: At the communication level, it requires the MB300K01 transceiver kit and TK576V050/TK576V115 connection cables to complete physical connections. For redundancy or multi-protocol expansion, it can be matched with two sets of CS513 modules, as well as PROFIBUS-DP modules (CI541V1) and Modbus modules (CI532V02/CI534V02), etc.Power Supply and Diagnosis: Its power supply and diagnosis rely on the SR511 voltage regulator for power supply and the TC520 supervision unit for monitoring the operating status.Configuration and Operation Tools: Configuration must be completed through the Advant Station 140 engineering station (AMPL Control Configuration version 1.7 or above) or the 800xA Engineering tool. It should also be integrated into the AdvaCommand operation station, MasterView 320 local operation station or 800xA Operator Workplace to achieve data visualization monitoring and operation.
