ABB PP877K 3BSE069274R1 is a standard operator panel of the Panel 800 Version 6 series, specially designed for human-machine interaction in industrial automation scenarios. It features ease of operation, environmental adaptability and communication compatibility.
The panel adopts an object-oriented operation logic and can be personalized via the Panel Builder configuration tool. It seamlessly connects with various automation control devices such as PLCs, servos and drives, and is widely used in industrial production control, equipment monitoring and other applications.It complies with multiple certification standards including CE, UL and marine classification society certifications, making it suitable for harsh industrial field environments. It is one of the core human-machine interface devices in ABB industrial automation solutions.
Hardware Specifications and Performance

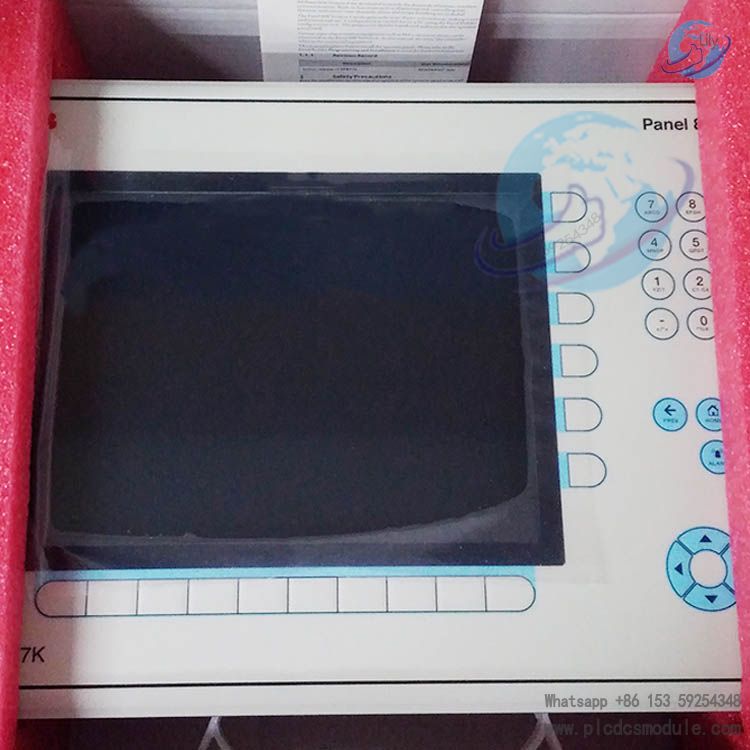

Display and Operating Components
Equipped with a 10.0-inch TFT-LCD LED backlight display, with a resolution of 800×480/640×480 pixels, supporting 64K color display. The screen brightness is 450 cd/m², the horizontal/vertical viewing angles reach 160°/140° respectively, and the backlight service life is up to 50,000 hours, meeting the operation requirements from different viewing angles on industrial sites.

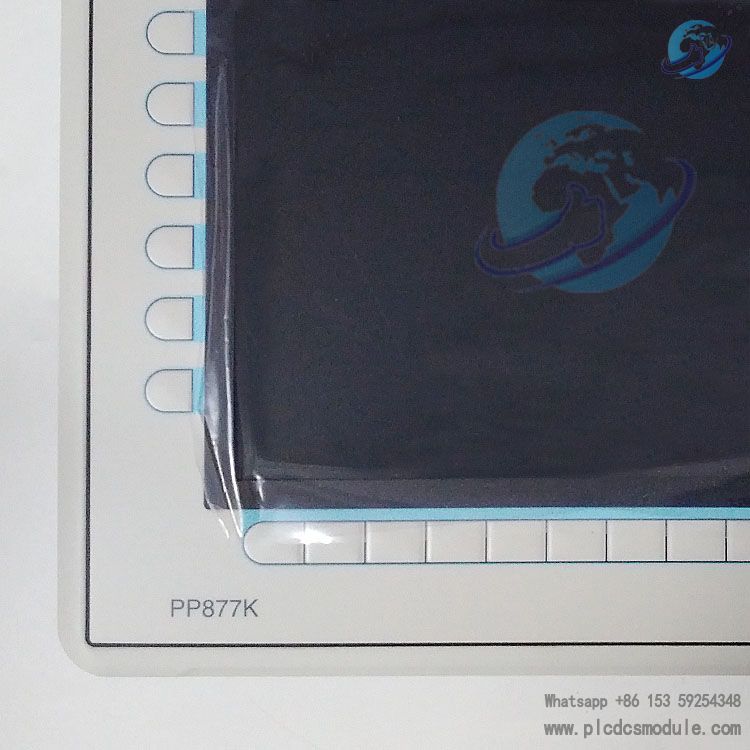

It adopts a membrane keypad with metal domes, covered with Autotex F150 material printed on the back. A single key supports 1 million presses. It is equipped with alphanumeric keys, shortcut function keys, navigation keys, and 22 custom function keys (F1-F22), ensuring accurate and durable operation.

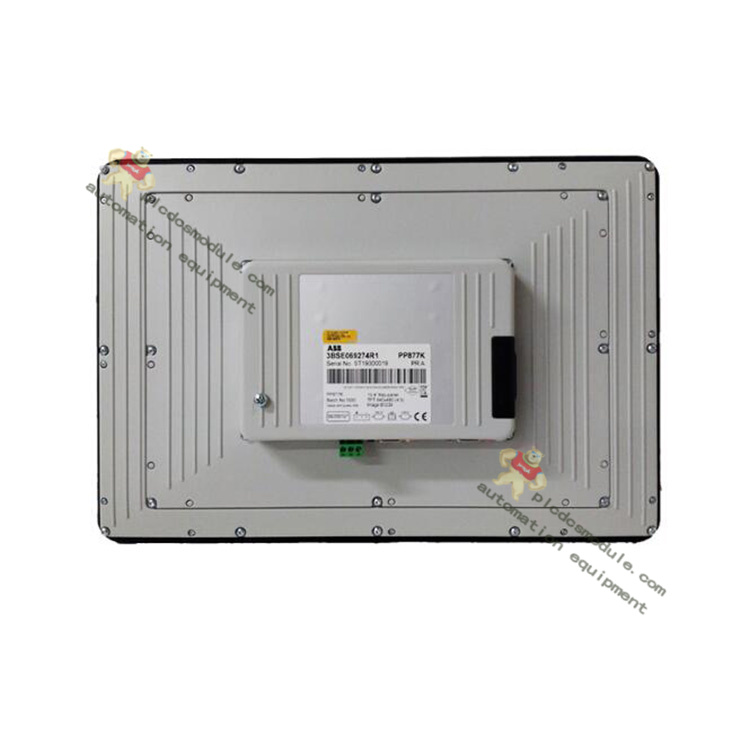

Body and Protection
The frame and rear of the unit are made of powder-coated aluminum alloy. The front panel has an IP65 sealing rating, resistant to dust and liquid splashes, while the rear panel is IP20. For flush mounting, the entire device must meet IP54 protection requirements, adapting to the protection needs of industrial sites.

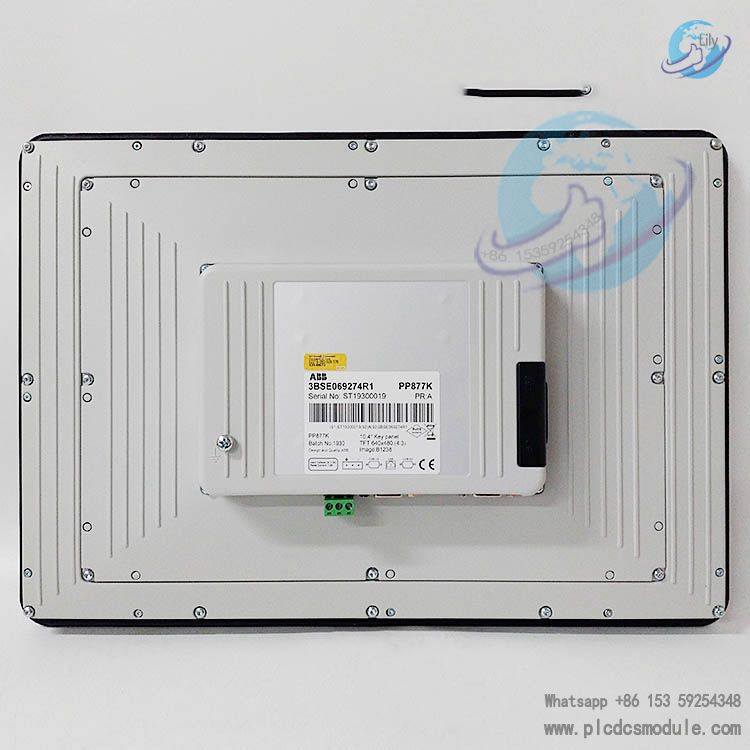

For dimensions: front panel 410×286×7 mm, cut-out dimension 394×270 mm, installation depth 76 mm (176 mm including clearance). Supports 75×75 VESA standalone mounting (max. screw length 4 mm). Unit weight 3.8 kg, max. mounting plate thickness 8 mm.
Configuration and Storage
Powered by a 400 MHz ARM9 processor, equipped with 128 MB DDR2 memory and 128 MB SSD NAND Flash application memory (80 MB available). Supports 1 standard SD card expansion (up to 2 GB), meeting the needs of configuration program storage and on-site data temporary logging.
Built-in on-chip real-time clock powered by a BR2032 soldered lithium battery. Equipped with 1 blue/red software-programmable LED indicator for customizable status prompts such as device operation and alarms.
Power Parameters
Power supply range: +24V DC (18–32V DC), power consumption 9.6W at rated voltage, equipped with a 2.0AT fuse. For CE certification, the power supply shall comply with IEC 60950 and IEC 61558-2-4; for UL/cUL certification, it is a Class 2 power supply, only suitable for Class 2 non-hazardous areas.

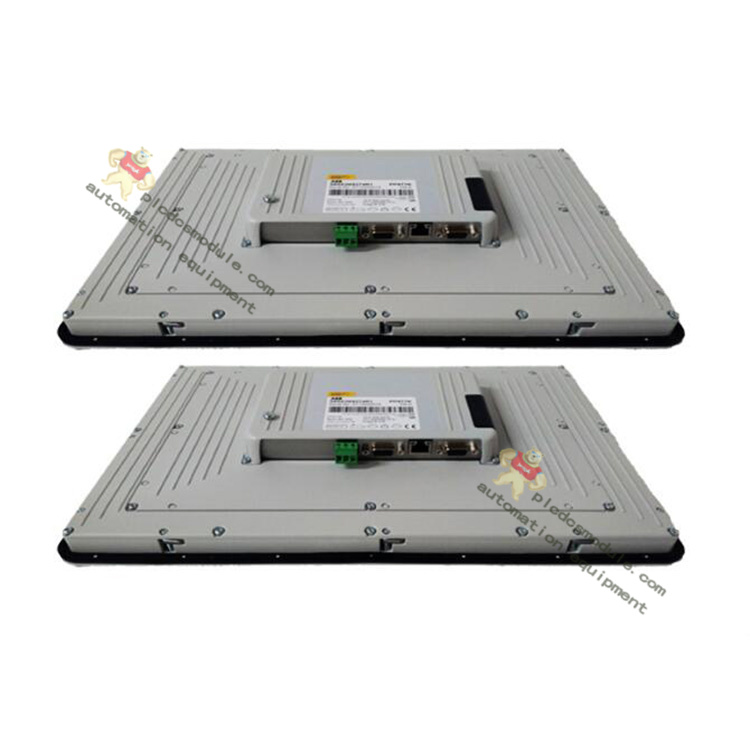

Communication Interfaces and Compatibility
The PP877K is equipped with abundant industrial communication interfaces, supporting multi-protocol and multi-device connection to meet networking requirements on industrial sites:

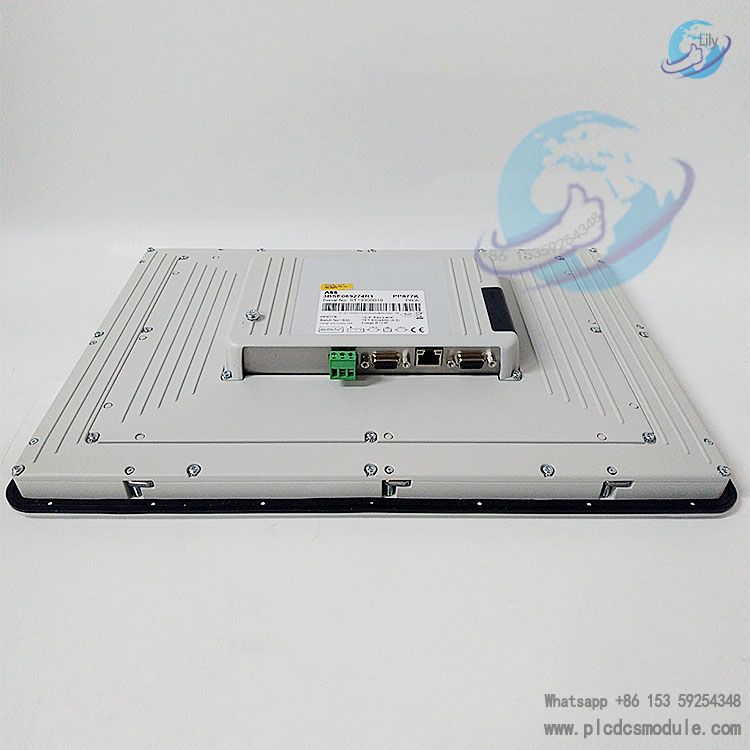

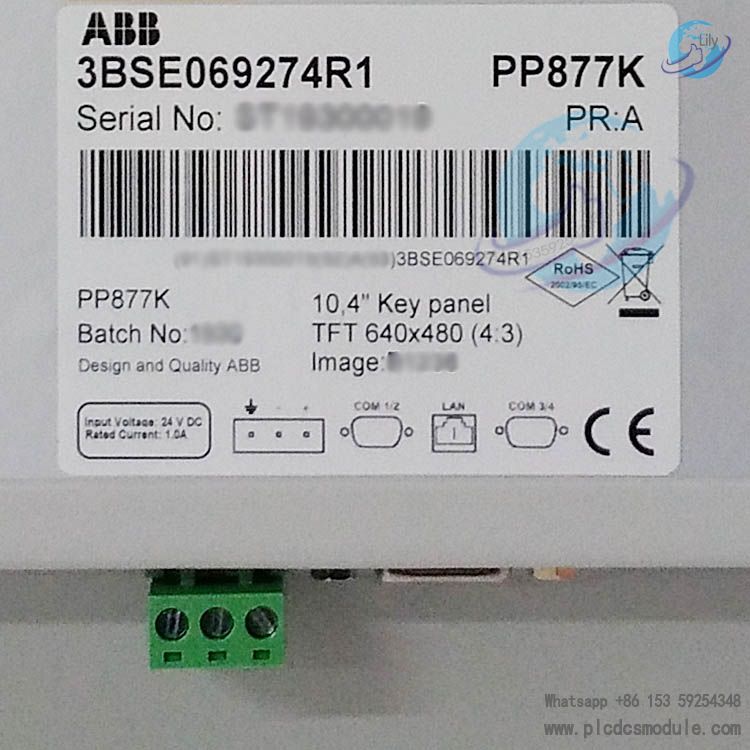

- Serial Ports: 2 groups of 9-pin D-sub female connectors (COM1/2, COM3/4), both supporting RS232 (with RTS/CTS) and compatible with RS422/RS485. The Y-split cable TK860V001 (3BSE069476R1) is required to realize dual communication port multiplexing on a single physical port.
- Ethernet: 1×10/100 Base-T shielded RJ45 interface, electrically isolated – the only isolated communication interface on the panel, supporting industrial Ethernet networking.
- USB Interface: 1×USB Host 2.0 interface, max. output current 200 mA, for connecting peripherals such as USB flash drives and keyboards.
- Expansion Port: Reserved EXPANSION port, currently only supporting expansion units with UL/cUL certification (no matching units available temporarily).
All communication interfaces can be connected to controllers such as PLC and DCS via suitable cables. Shielded cables are recommended for communication cables; twisted-pair shielded cables shall be used for RS422/485 to ensure stable communication in industrial environments.
Environmental Adaptability and Chemical Resistance
Temperature, Humidity and Environment
Operating temperature: -10℃ to +60℃Storage temperature: -20℃ to +70℃Operating relative humidity: 5%–85% (non-condensing)Suitable for industrial sites with high/low temperatures, dry or humid conditions.
Installation is prohibited in environments with strong magnetic fields, direct sunlight, rapid temperature changes, or high explosion risk.For Zone 2 hazardous areas, the unit must be installed in an enclosure with IP54–IP65 protection.For Zone 22 environments, the unit must be installed in an enclosure with IP64–IP65 protection.
Chemical Resistance
Metal enclosure:Powder coating resists common industrial media including 10% acetic acid, diesel fuel, seawater, and 20% sulfuric acid.Resistance to 5% hydrochloric acid and isopropanol is limited.Contact with highly corrosive substances such as concentrated acetic acid, acetone, concentrated ammonia water, and 30% nitric acid is strictly forbidden.
Screen surface (Autotex F150):Resists exposure for over 24 hours to ethanol, diesel fuel, hydrochloric acid below 36%, nitric acid below 10%, etc.Not resistant to high-pressure steam (>100℃), concentrated inorganic acids, or concentrated alkaline solutions.
Display surface:Allows short-term contact: acetone (10 min), isopropanol (10 min), toluene (5 hours).It is recommended to use ABB original Autoflex EBA 180L protective film (RX877K) for improved protection.
Installation and Safety Specifications
Installation Requirements
Installation shall only be carried out by qualified professionals. Ensure the electrical grounding of the panel and the controller is consistent. High-voltage cables shall be routed separately from signal and power cables; shielded communication cables are recommended.A power-on test shall be performed before installation. The panel must return to ambient temperature before being powered on to prevent damage caused by condensation.
Use short and thick grounding conductors (braided grounding wire is recommended) to complete grounding connections in sequence:panel to chassis, chassis to cabinet door, cabinet door to equipment cabinet.The 24V power cable can be wound 2–3 turns around a ferrite core to suppress electromagnetic interference.
For Ethernet wiring, attention shall be paid to shield grounding to avoid ground loops caused by grounding at both ends.Optimization can be achieved by single‑end grounding or series connection with a 0.1 μF/250V capacitor to ground.
Safe Operation
The panel must not be used to control safety functions such as emergency stop.Do not touch the display and keypad with sharp objects.Prevent liquids and metal chips from entering the openings of the panel to avoid short circuits or fire hazards.
Disconnect the power supply before cleaning. Wipe with a soft cloth and neutral cleaning agent.The use of highly corrosive cleaning agents is strictly prohibited.
As an industrial-grade human-machine interface (HMI), the ABB PP877K 3BSE069274R1 features a wide temperature operating range, high protection rating, multiple communication interfaces and reliable industrial performance. It can seamlessly connect to various automation equipment such as PLCs, servos and drives, and is widely applied in process industries including petrochemical engineering, metallurgy and pharmaceutical manufacturing, discrete manufacturing industries such as automobile production, mechanical processing and food processing, the energy and power sector covering thermal power, hydropower and new energy, as well as scenarios like water treatment, environmental protection and municipal infrastructure. It is also suitable for special industrial environments with stringent requirements for equipment reliability and safety such as marine and rail transit, serving as a core operating terminal for production process monitoring, equipment status management and process parameter adjustment across all these fields.
Compatible Models in the Same Panel 800 Series (Same Platform as PP877K, High Compatibility)
Keypad-type equivalents: PP874K, also a standard keypad industrial HMI of Panel 800 V6, suitable for extreme temperature zones. It shares the same operating logic as PP877K with a smaller screen, making it ideal for space-constrained industrial sites and meeting basic needs for equipment monitoring and parameter adjustment.
Touch-type alternatives: PP871, PP874 and PP877, touch panels in the same series with a keyless design for more intuitive operation. All support a wide operating temperature range of -10°C to +60°C and feature an IP65 front panel protection rating. They can replace the keypad-type panel according to on-site operating habits and are fully compatible with existing configuration programs and communication protocols.
High-performance upgraded models: PP882 and PP885, high-performance operation panels of the Panel 800 series, equipped with faster processors and higher-resolution displays, as well as more communication interface options and enhanced data processing capabilities. They support centralized management of multiple devices and visualization of complex process parameters for high-end needs, ideal for the upgrading and transformation of large production lines or high-complexity industrial scenarios.
Small-size cost-effective models: PP820A, PP826A, PP836A, PP846A (keypad-type), PP815A, PP825A, etc. These small-display models are more cost-effective, suitable for simple scenarios such as small automated equipment and single-machine control. They share the Panel Builder configuration tool with PP877K, enabling unified later-stage expansion and maintenance.
New-generation Standard Models of the Panel 800 Series
PP875, PP881, PP883, PP886 and PP895 are new-generation standard operation panels, equipped with high-resolution wide-screen TFT/LED displays (7"-21.5" optional) and die-cast powder-coated aluminum alloy enclosures with an IP65/IP66 high protection rating. Supporting an operating temperature range of -10°C to +60°C with smoother touch operation and richer communication protocols, they serve as the new-generation replacements for PP877K and meet the visualization and intelligent needs of modern industrial sites.
CP600 Series Universal HMIs (All-scenario Compatibility, High Cost Performance)
Cost-effective basic models: CP600-eco (CP620, CP630, etc.), with optional 4.3"-10.1" displays, supporting customizable standard functions and rich communication interfaces at a low cost. Ideal for simple human-machine interaction scenarios such as small production lines and civil industrial equipment, they can be paired with PP877K to form a hierarchical production line management and control system.
Mainstream practical models: CP600 (CP635, CP650, CP675, etc.), with 7"-15" displays and an aluminum alloy front frame with an IP66 protection rating. Supporting a wide operating temperature range of -20°C to +60°C and both portrait and landscape installation, they are suitable for harsh industrial environments with high humidity and dust. Boasting full coverage of communication protocols, they can seamlessly connect to ABB PLCs, frequency converters and other equipment, serving as the mainstream universal model for industrial sites.
High-end intelligent models: CP600-pro, large-screen multi-touch panels with 5"-21.5" displays, equipped with powerful processors and innovative communication technologies, supporting web browsing to enable remote monitoring and cloud data interaction. Ideal for high-end human-machine interaction needs in smart manufacturing and Industry 4.0 scenarios, they can form a multi-terminal management and control system with PP877K.
Small-size Specialized Models: CP400 Series
3.5" and 5.7" monochrome control panels, specially designed for simple equipment control with a compact size, flexible installation and ultra-low cost. Ideal for minimal human-machine interaction scenarios such as auxiliary equipment and small control cabinets in industrial sites, they can be used with PP877K to achieve hierarchical monitoring of main and auxiliary equipment.
All the above products are original ABB industrial-grade HMIs, sharing the unified configuration tool (Panel Builder/Panel Builder 600) with PP877K. They are fully compatible with ABB and third-party automation equipment such as PLCs, servos and drives in terms of communication protocols. Users can select models flexibly based on on-site requirements for screen size, operating mode (keypad/touch), performance and cost budget. All models meet core industrial-grade requirements such as protective ratings and wide temperature adaptability, and are suitable for various industrial scenarios.
