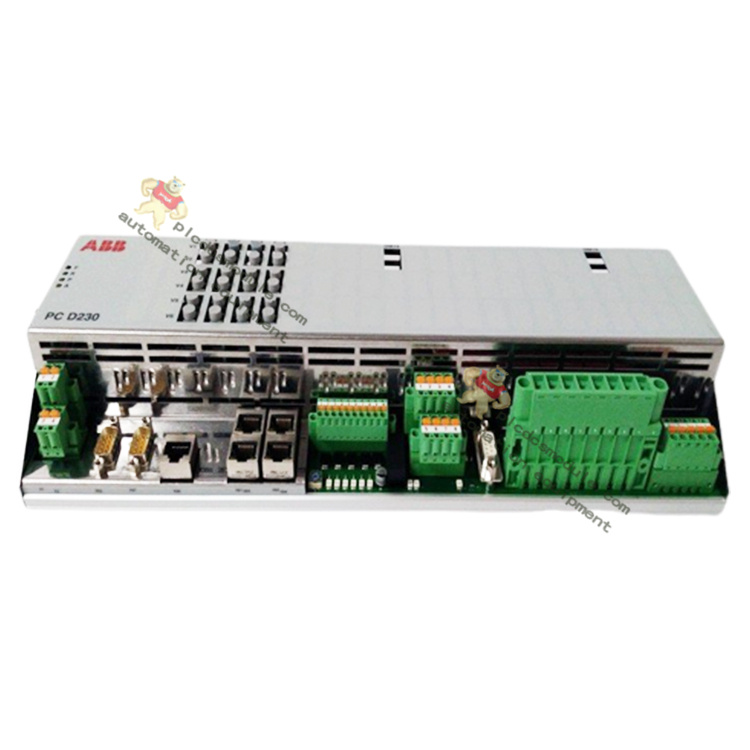

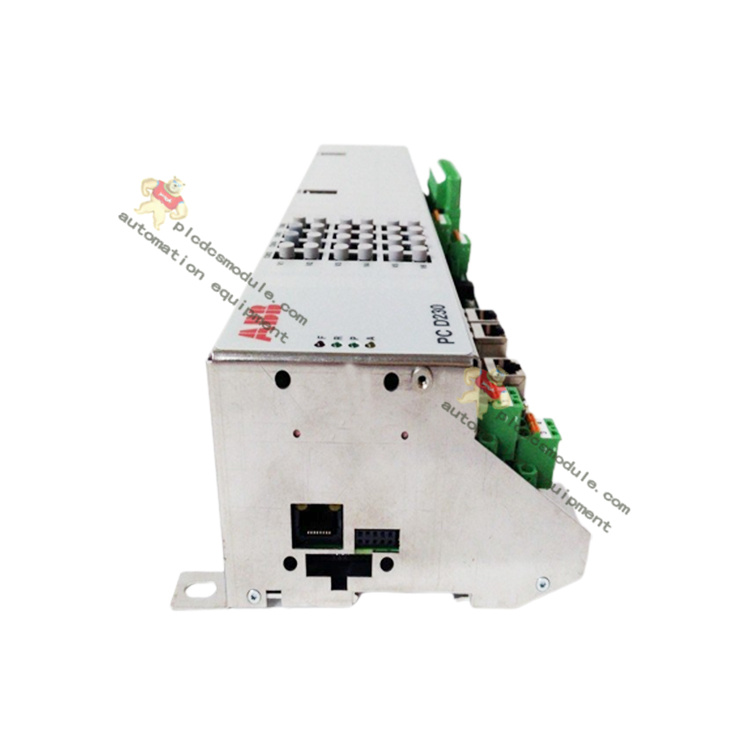

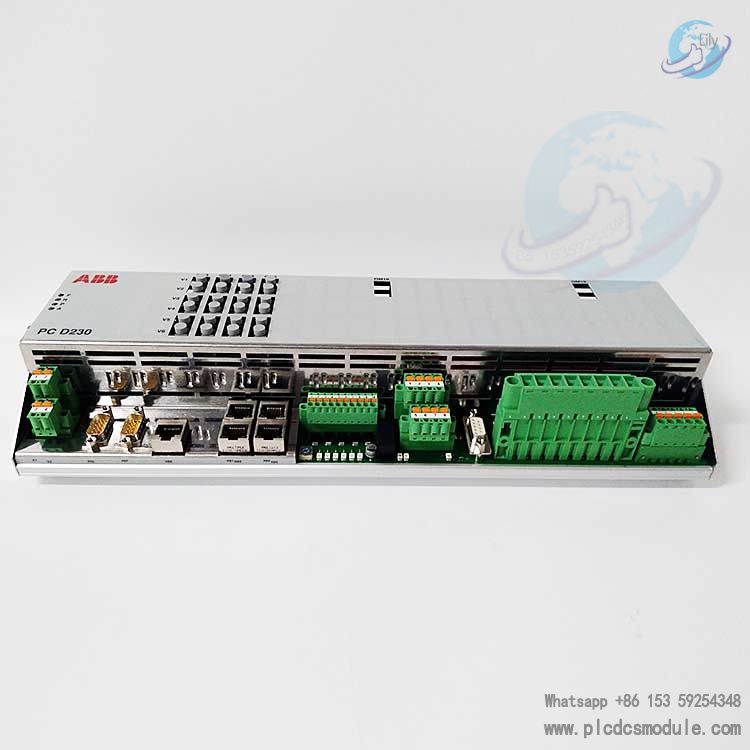

ABB PCD230A 3BHE022291R0101 PEC80-CCM Control Module PCD230

The ABB PCD230A 3BHE022291R0101 is a high-performance control module specifically designed for industrial automation systems, primarily applicable to ABB's Advant OCS and Industrial IT platforms. As the central processing unit (CPU) of a distributed control system (DCS), it provides real-time control, monitoring, and communication functions for complex industrial processes.

Core Features

Dual-Core Processing

• Equipped with redundant processors for fault-tolerant operation, ensuring continuous control during hardware failures.
• Supports deterministic control loops with cycle times as low as 10 milliseconds.

Comprehensive I/O Support

• Connects to various ABB I/O modules (e.g., analog, digital, specialty I/O) via the S800 I/O system.
• Configurable for up to 2,048 I/O points per controller.

Communication Protocols

• Built-in support for Profibus DP, Modbus RTU/TCP, and Ethernet for seamless integration with field devices and upper-level systems.
• Redundant communication ports ensure network reliability.

Advanced Control Algorithms

• Implements PID control, sequential logic, and complex regulatory loops.
• Supports IEC 61131-3 programming languages (e.g., ladder logic, function block diagram).

Safety Integration

• Certified for SIL 2 applications when paired with ABB safety I/O modules.
• Enables fault detection and diagnostic capabilities for critical systems.

Technical Specifications

• Processor: Dual-core 32-bit CPU
• Memory: 512 MB RAM, 4 GB flash memory
• Power Supply: 24 V DC (redundant inputs supported)
• Operating Temperature: -25°C to +60°C
• Dimensions: 210 mm × 150 mm × 80 mm
• Weight: 1.5 kg

Application Fields

Power Generation：Turbine control, boiler management, and grid integration.

Oil & Gas：Pipeline monitoring, compressor control, and refining processes.

Chemical & Petrochemical：Batch control, reactor monitoring, and safety shutdown systems.

Manufacturing：Conveyor systems, material handling, and process automation.

Product Advantages

High Availability：Redundant design minimizes downtime to the greatest extent.

Scalability：Flexible expansion supported by I/O and communication options.

Seamless Integration：Compatible with the full range of ABB automation products.

Long Lifecycle：Entitled to ABB's lifecycle support and firmware updates.
