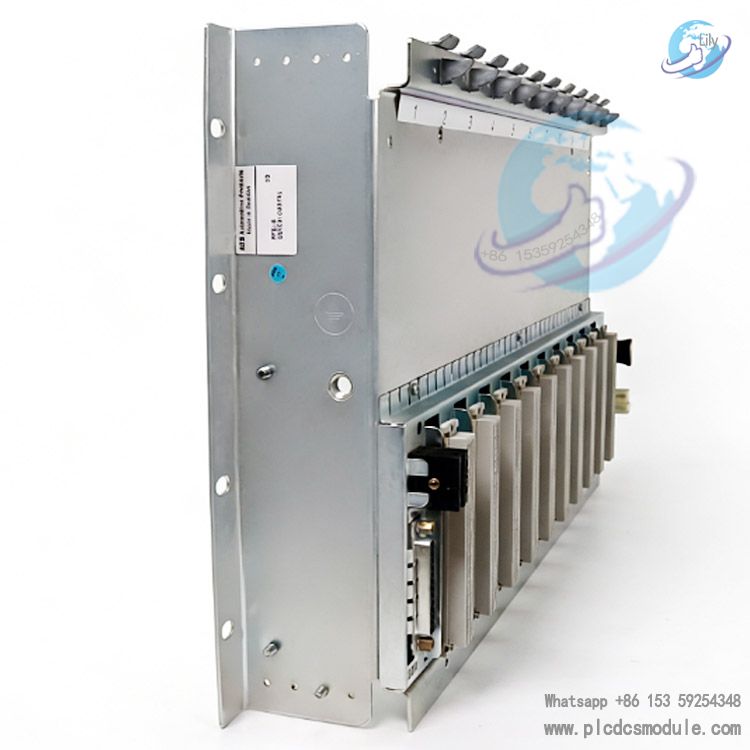

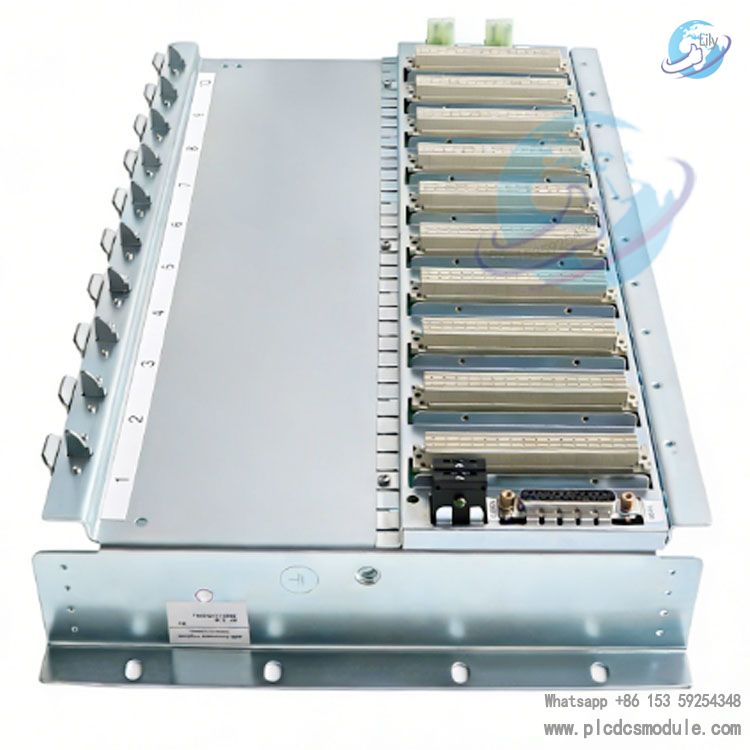

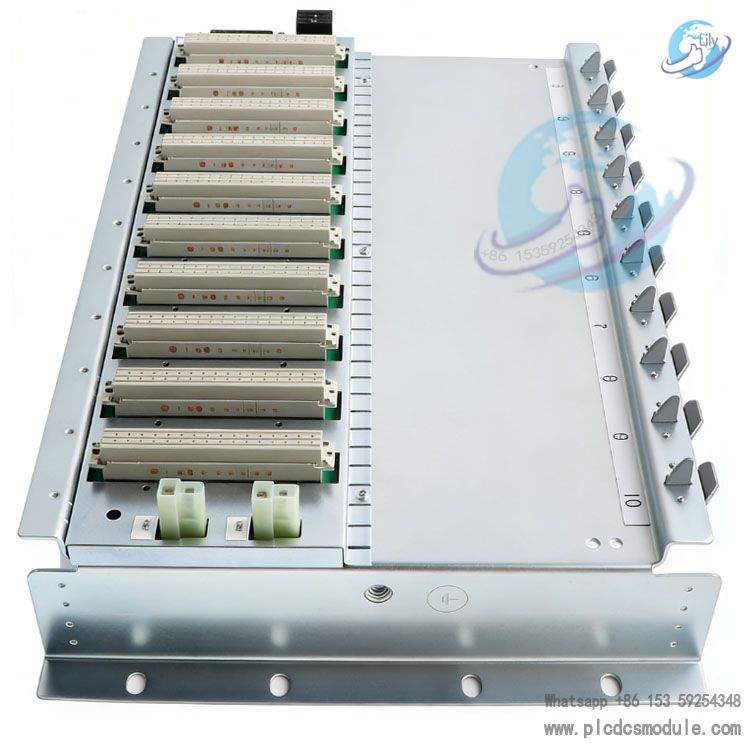

RF616 3BSE010997R1 10-Slot Base Back Panelis a core auxiliary component developed by ABB specifically for industrial automation control systems. It belongs to the supporting series of industrial control modules, designed to provide a stable and reliable installation carrier and signal transmission channel for various PLC modules.
Featuring flexible expandability with 10 standard slots, high-quality manufacturing processes and excellent environmental adaptability, this product is widely used in complex industrial scenarios such as manufacturing production lines and energy management. As a key basic component for building efficient and stable industrial automation control systems, it is perfectly compatible with relevant ABB control modules, enabling efficient data interaction and collaboration between modules to ensure the stable operation of the entire control system.
Download
| Parameter | Specification |
|---|---|
| Number of Slots | 10 standard slots, supporting flexible expansion of compatible modules |
| Physical Dimensions (W×H×D) | 470.7 mm × 84.6 mm × 245.7 mm |
| Net Weight | 3 kg (without installed modules) |
| Power Supply | Compatible with ABB AC800M series power supply modules; 24V DC (operating range: 19.2–30V DC, consistent with matching modules) |
| Operating Temperature | Industrial‑grade standard, suitable for general industrial sites (-10℃ ~ 60℃, reference to ABB similar backplane products) |
| Protection Rating | IP20 (enclosure‑free design, for indoor installation in control cabinets, protection against solid foreign objects) |
| Material | High‑quality industrial‑grade steel with special surface treatment, excellent corrosion resistance and mechanical strength |
| Signal Transmission | Supports high‑speed signal transmission between modules; ensures stable I/O and control signal interaction with no noticeable delay |
Core Features & Advantages
ABB RF616 3BSE010997R1 Base Back Panel, supported by ABB profound industrial manufacturing expertise, offers outstanding advantages in stability, expandability and usability, fully meeting the stringent requirements of industrial field applications:
- Flexible Expansion CapacityEquipped with 10 standard slots, supporting the installation and expansion of up to 10 compatible modules simultaneously. Users can flexibly configure PLC CPU modules, I/O modules, communication modules and others according to actual control demands without additional back panels, greatly improving system configuration flexibility and cost-effectiveness to suit automation control systems of various scales.
- Excellent Stability & ReliabilityConstructed with high‑grade industrial‑grade materials and rigorously tested for industrial environments. It features superior anti‑interference, anti‑vibration and temperature resistance, enabling long‑term stable operation in harsh industrial conditions, effectively reducing equipment failure rates and ensuring control system continuity. Optimized circuit design guarantees stable signal transmission between modules, minimizing data loss or transmission delay and enhancing control accuracy.
- Compact Design for Easy Installation & MaintenanceAdopts a compact structure with optimized dimensions(W×H×D: 470.7 × 84.6 × 245.7 mm) and a weight of only 3 kg. It saves mounting space inside the control cabinet and facilitates on‑site installation, removal and later maintenance. Modules are installed via standardized clip‑on design, allowing quick plug‑and‑play operation, reducing maintenance costs and downtime.
- Superior Heat Dissipation PerformanceOptimized thermal management structure effectively dissipates heat generated during module operation, preventing performance degradation or damage caused by overheating. It ensures the back panel and installed modules maintain efficient and stable operation under various working conditions, adapting to temperature fluctuations in industrial sites.
- Industrial Standard Compliance & High CompatibilityFully compliant with ABB’s unified design standards for industrial automation products, enabling seamless compatibility with ABB AC800M series and related modules without extra adaptation or debugging, allowing quick integration into existing control systems. It also meets relevant industrial safety and technical standards, ensuring product universality and interchangeability, and lowering costs for system upgrade and retrofitting.
Compatible Modules
This 10-slot basic backplane is mainly compatible with ABB AC800M series industrial control modules, including but not limited to:
- Processor modules such as the PM856AK01 series (Order No.: 3BSE066490R1, etc.)
- Various digital I/O modules and analog I/O modules
- Communication expansion modules (e.g., modules supporting Profibus DP, Ethernet and other protocols)
- Power supply modules and other auxiliary function modules.
All compatible modules must comply with ABB’s unified installation and interface standards to ensure seamless connection and stable operation with the backplane.
Applications
Thanks to its excellent stability, scalability and compatibility, this product is widely used in various industrial automation control scenarios, especially in fields with high requirements for system reliability and expandability:
- Manufacturing: Automated production line control, smart manufacturing equipment, assembly line control systems. It provides a stable installation and connection foundation for various control modules, ensuring continuous and efficient operation of production processes.
- Energy Sector: Power system control, energy management equipment, new energy (photovoltaic, wind power) control systems. It adapts to harsh industrial environments and guarantees stable and precise energy control.
- Other Industrial Scenarios: Automation control systems in metallurgy, chemical, building materials and other industries. Modules can be flexibly configured according to different industry control requirements to build personalized control solutions suitable for complex industrial field environments.
ABB Advant Controller 160 (AC 160) is a modular control system, categorized into four types: Base Units, Processor Modules, I/O Modules, and Communication/Function Modules.Below is a partial list of model numbers:
- 3BDS005559R4: Advant Controller 160 2.2 Base Unit (including RF616 Rack, RC610 Cable Duct, Base Software 2.2) – ABB Group
- 3BSE005559R3: Advant Controller 160 2.1 Base Unit
- RF616 (3BSE010997R1): 10‑slot Standard Rack (Backplane) – ABB Group
- RC610 (3BHT100018R1): Cable Duct – ABB Group
- PM640 (3BSE010534R1): Non‑redundant Processor Module
- PM644 (3BSE014664R1): Non‑redundant, with Profibus‑DP and speed signal input
- PM645B (3BSE010535R1): Redundant Processor, high‑speed link, speed signal input (replaces PM645A/C)
- PM646 (3BSE014700R1): Redundant, with safety application monitoring function
- PM665 (3BDS005799R1): PowerPC architecture, high‑performance redundant processor
- AI620 (3BHT300005R1): 16 channels, 12‑bit, 0–20 mA / 4–20 mA
- AI625 (3BHT300036R1): 16 channels, 12‑bit, 4–20 mA, group isolated
- AI630 (3BHT300011R1): 12 channels, Pt100 / resistance, ‑200 °C ~ +600 °C
- AI635 (3BHT300032R1): 14 channels, thermocouple / millivolt, with cold junction compensation
- DI620 (3BHT300002R1): 32‑channel Digital Input
- DO620 (3BHT300003R1): 32‑channel Digital Output
- DI630 (3BHT300012R1): 16‑channel isolated Digital Input
- DO630 (3BHT300013R1): 16‑channel isolated Digital Output
- DP620 (3BHT300016R1): High‑speed Counter Module
- PI610 (3BHT300007R1): Pulse Input Module
- CI627 (3BHB002916R0001): Communication Interface Module
- CI853K01: Profibus‑DP Master Communication Module (standard for AC160)
- 3BDZ000398R1: Redundancy Link Module
- SA162: System Application Module
