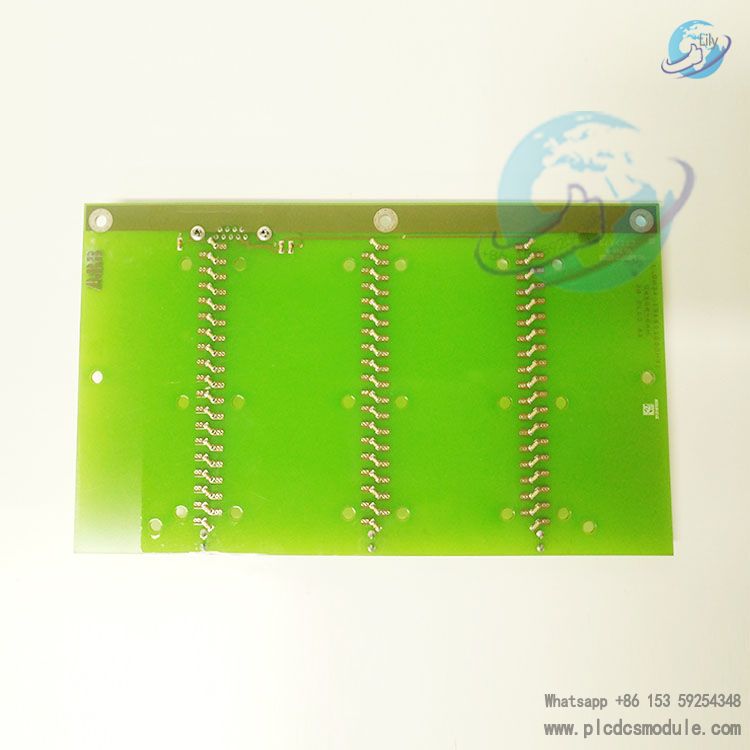

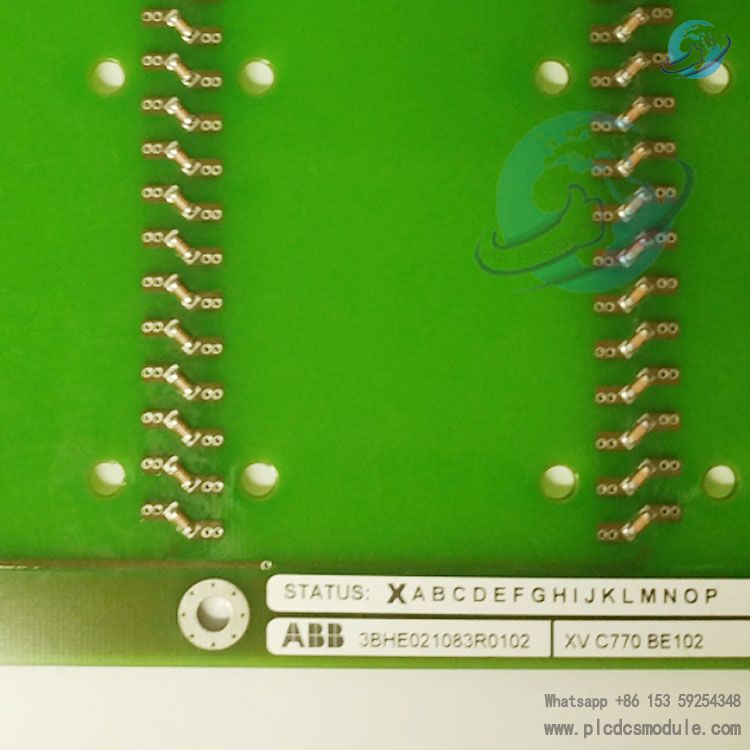

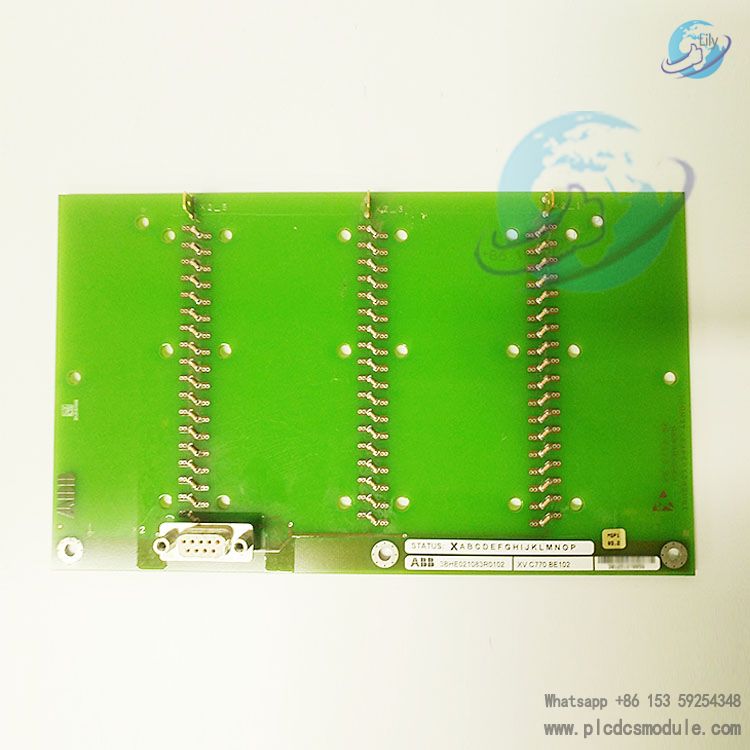

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The ABB XVC770BE102 3BHE021083R0102 controller module is a high-performance industrial control unit specifically designed for complex automation systems. It integrates advanced processing capabilities, flexible communication interfaces, and powerful control functions. As a key component of the ABB Advant OCS and Symphony Plus systems, this controller module enables precise process control, real-time data processing, and multi-system collaborative operations, providing a reliable control core for large-scale industrial facilities in industries such as electric power, chemical engineering, and metallurgy.
Core Features and Advantages
Powerful Processing Performance
- Adopts a high-performance 32-bit microprocessor with an operation speed of 100 MIPS, supporting complex control algorithms.
- Equipped with 8MB program memory and 16MB data memory, capable of handling large-scale control logic and real-time data.
- Supports multi-task parallel processing, with a control cycle as low as 10ms to ensure fast response.
- Built-in floating-point arithmetic unit to improve the efficiency of complex mathematical operations.
Flexible Communication Capabilities
- Integrates multiple industrial communication interfaces: Ethernet/IP, Profibus DP, and Modbus RTU/ASCII.
- Supports redundant network configuration to ensure communication continuity.
- Compatible with the communication protocols of systems such as ABB AC 800M and Symphony Plus.
- Supports the OPC UA standard, facilitating integration with upper-level management systems.
High-Reliability Design
- Fanless heat dissipation design to reduce mechanical failure points.
- Wide temperature operating range, adapting to harsh industrial on-site environments.
- Supports 1+1 hot redundancy configuration with a switching time of < 50ms.
- Equipped with self-diagnosis and fault alarm functions for easy and quick troubleshooting.
Enhanced Security
- Complies with the IEC 61508 SIL 2 safety standard, suitable for safety-related systems.
- Supports access permission management to prevent unauthorized configuration changes.
- Features data encrypted transmission to ensure communication security.
- Meets the electromagnetic compatibility (EMC) requirements for industrial environments.
Technical Specifications
Installation and Configuration
Installation Requirements
- Standard 3U rack mounting, compatible with 19-inch industrial control cabinets.
- The installation location must be free from severe vibration, shock, and strong electromagnetic interference.
- It is recommended to reserve at least 50mm of space above and below to ensure good heat dissipation.
- The installation environment should be free from corrosive gases, liquids, and excessive dust.
Configuration Tools
- Compatible with ABB Control Builder M programming software.
- Supports programming in Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST).
- Provides a rich library of function blocks to simplify control logic development.
- Supports online monitoring and debugging, shortening the system commissioning cycle.
Typical Applications
The ABB XVC770BE102 controller module is widely used in industrial fields requiring high-precision control:
