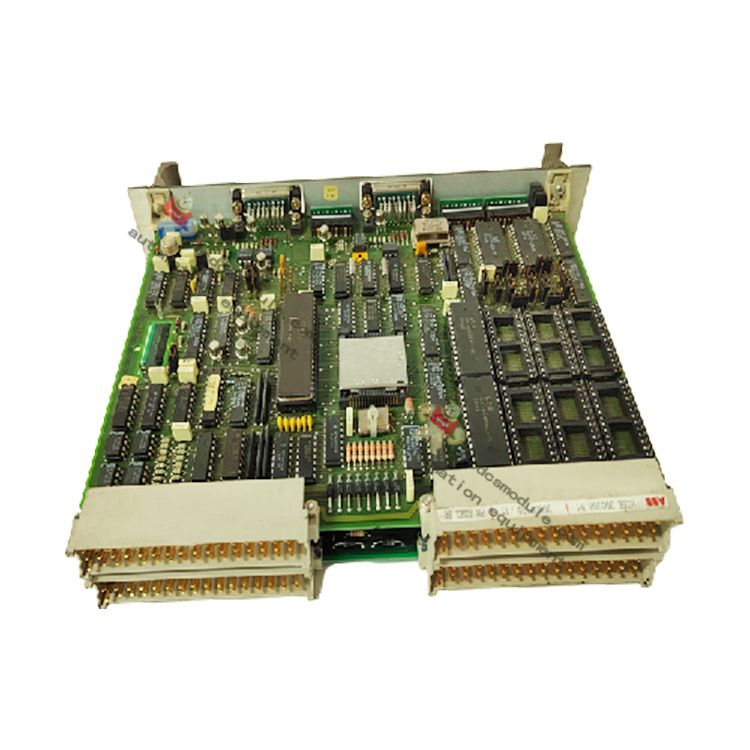

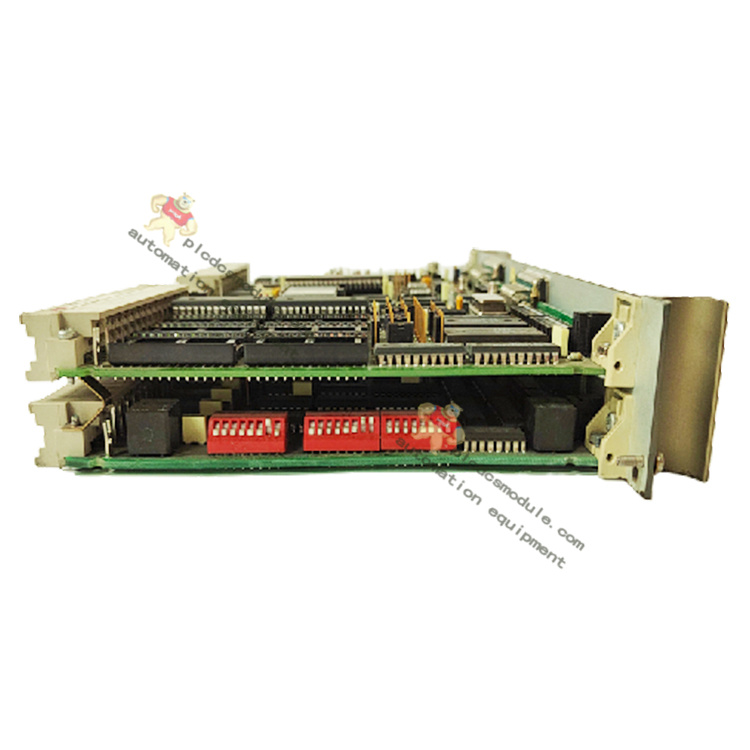

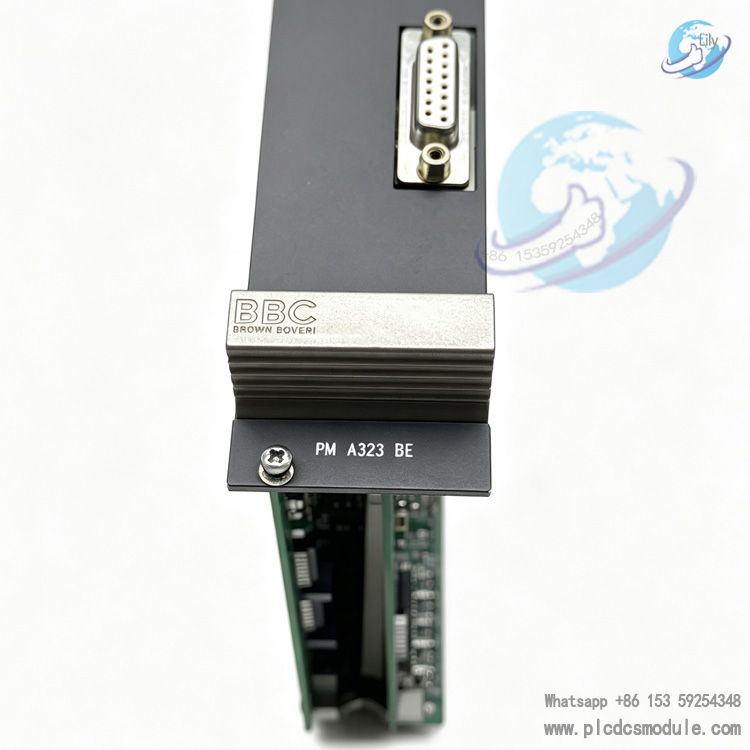

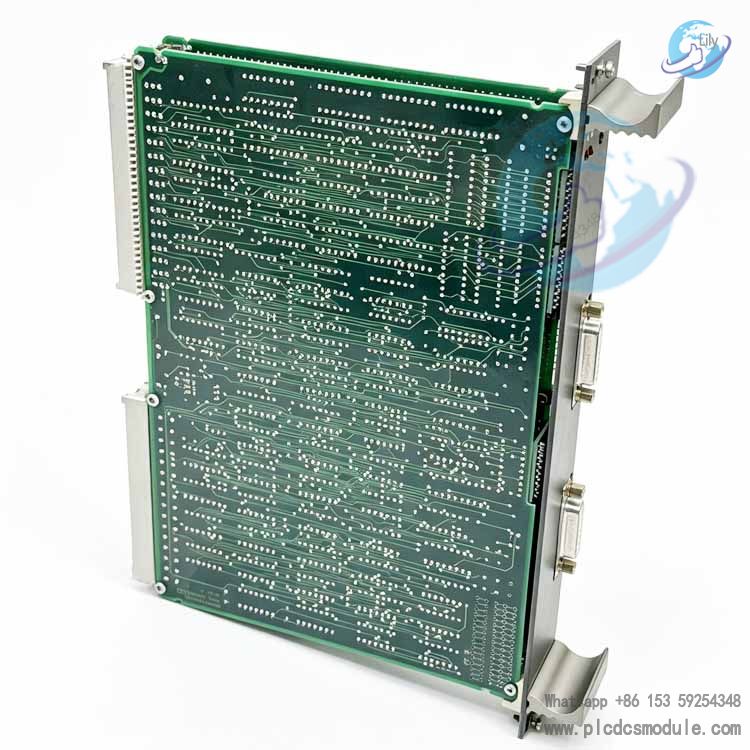

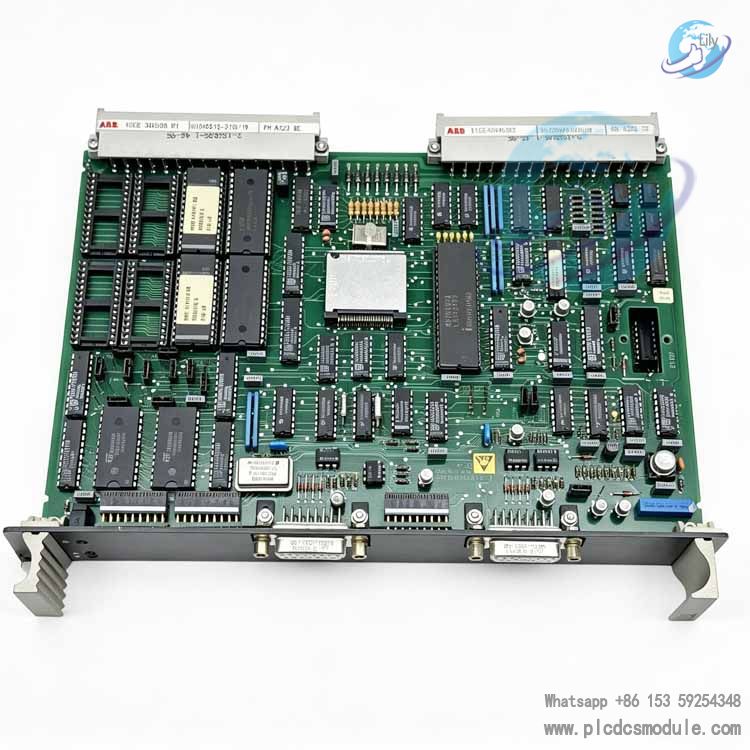

The ABB PMA323BE (Part No. HIEE300308R1) is a dedicated control power supply unit for the ABB Advant Controller 250 automation control system. It integrates dual functions of main control logic processing and system power conversion. As a core underlying component of the complete DCS system, it supplies stable 24VDC operating power to processors, I/O boards and communication modules installed in the rack. Equipped with basic loop monitoring and signal isolation circuits, it collects real-time power supply status data of the rack and transmits such data to the upper monitoring terminal.
Adopting a plug-in rack-mounted hardware design, this unit fits DIN rail installation inside industrial control cabinets. It targets process industrial sectors including power generation, oil & gas, water treatment and large-scale manufacturing. The unit supports standalone operation as well as dual-module redundant configuration to mitigate the risk of unplanned shutdowns.
Technical Features
Wide Temperature Industrial Compatibility
Standard operating temperature range: 0℃~55℃. It can operate stably in an extended environment of -20℃~+70℃. No performance degradation occurs under ambient relative humidity of 5%~95% without condensation.
Integrated Multi-level Circuit Protection
Built-in four-level protection circuits including overcurrent, overvoltage, undervoltage and short-circuit protection. It automatically cuts off output and illuminates fault indicator upon power supply abnormality, preventing secondary damage to other boards in the rack.
Multi-protocol Compatible Communication Interface
Equipped with onboard RS485 hardware channel, it natively supports Modbus and Profibus fieldbus protocols. Direct data interaction with system processors and remote I/O sub-stations is available without additional adapter boards.
Integrated All-in-one Design
The power conversion unit and basic control & monitoring circuits are integrated into a single plug-in card, reducing rack slot occupation, minimizing internal cabinet wiring and lowering the probability of circuit interference.
Hardware-based Fault Self-diagnosis
Multiple groups of status LED indicators are mounted on the board, corresponding to four types of status: power input, output load, communication link and hardware fault. Maintenance personnel can quickly locate fault points via indicator status.
Compatibility with Redundant Operation
Two modules of the same model can form a 1-master-1-standby redundant architecture. Undisturbed automatic switching is realized when the master module fails, ensuring uninterrupted system operation in continuous production scenarios.
Model Interpretation

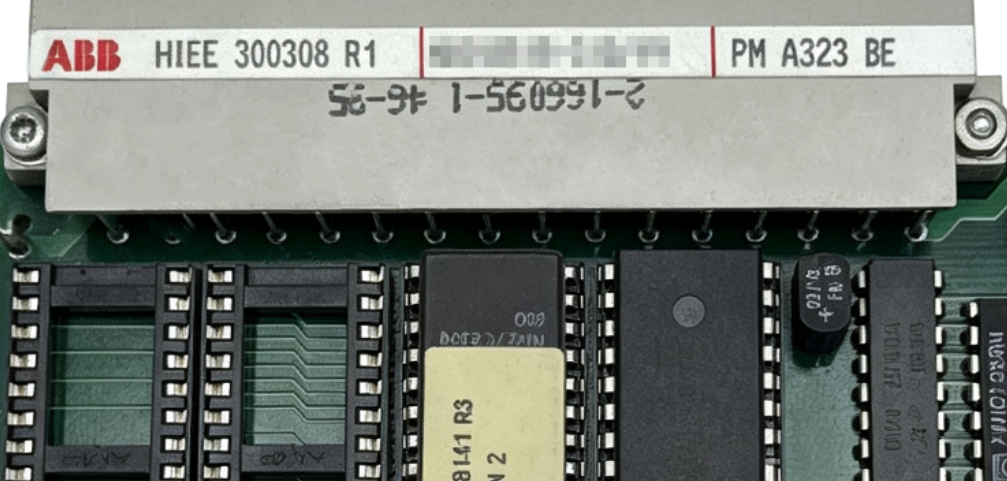

The complete model consists of two segments of codes: PMA323BE and HIEE300308R1. The breakdown definitions are as follows:
PMA323BE
- PMA: General product function code, representing system power control unit for Advant Controller series
- 323: Hardware form factor and power rating code, corresponding to standard 24VDC output power and hardware form factor with dual communication interfaces
- BE: Hardware version identifier, representing the second-generation enhanced version with optimized wide-temperature operation and electromagnetic interference resistance
HIEE300308R1
- HIEE: Material prefix for ABB industrial control spare parts, used for internal warehouse and procurement code identification
- 300308: Exclusive material serial number of this hardware, serving as the unique index code for original factory drawings and technical manuals
R1: Hardware revision version, representing the first iteration and optimization of hardware
Product Characteristics
Excellent Installation Adaptability
Adopting standard European plug-in card structure, it can be directly inserted into the slot of AC250 system rack. Equipped with DIN rail brackets, the whole module can be fixed inside control cabinets, and disassembly & assembly do not require removing main internal cabinet wiring.
High Power Conversion Efficiency
Switching power supply topology is adopted with low power conversion loss. The overall temperature rise of the unit is controlled within a reasonable range under long-term full-load operation, reducing heat dissipation load inside cabinets.
Signal Isolation & Anti-interference Performance
Hardware partition layout for strong and weak current areas. Isolation optocouplers and high-frequency filter capacitors separate power supply power loops and communication signal loops, effectively resisting electromagnetic interference generated by frequency converters and motor start-stop on industrial sites.
Lightweight & Compact Body
The unit weighs approximately 1.9kg and occupies a single rack slot. Compared with split power supply + control board combinations, it greatly saves internal installation space of control cabinets.
Standardized Electrical Parameters
The input adapts to industry-standard 24VDC DC power supply. Multiple regulated DC outputs match the rated power supply parameters of all processors, I/O and communication boards of the same series, eliminating the need for extra voltage conversion accessories.
Convenient Maintenance
Modular independent plug-in card design allows direct hot-swap replacement of faulty modules without powering off the entire rack. Terminal definitions and fault code comparison tables are printed on the board surface to simplify on-site maintenance procedures.
Application Fields
Power Industry
Deployed in distributed control systems (DCS) of thermal power plants, hydropower plants and substations to monitor unit load and implement logic interlock control for power transformation equipment.
Oil, Gas & Chemical Industry
Applied to process control systems for oilfield exploitation, refineries and chemical reaction units. It conducts real-time monitoring of pipeline pressure and medium temperature, and triggers safety interlock actions as required.
Water Treatment Industry
Suitable for municipal wastewater treatment plants, tap water purification plants and industrial circulating water systems. It collects water quality parameters and realizes automatic regulation of water pumps and valves.
Large Equipment Manufacturing
Used in complete automation control systems for metallurgical steel rolling production lines, cement clinker production lines and papermaking assembly lines.
Urban Infrastructure
Applied to centralized HVAC control systems of large buildings and equipment monitoring systems for rail transit platforms.
Product Comparison (Power Control Units of Advant Controller 250 Series)
| Comparison Items | PMA323BE HIEE300308R1 | PMA322BE HIEE300016R2 | PMA324BE HIEE300456R1 |
|---|---|---|---|
| Hardware Form Factor | Enhanced standard version, dual communication interfaces | Basic standard version, single communication interface | High-power extended version, multi-channel output terminals |
| Operating Temperature Range | -20℃ ~ +70℃ | 0℃ ~ +55℃ | -40℃ ~ +75℃ |
| Redundancy Support | Supports 1-master-1-standby redundancy | Redundant operation not supported | Supports dual redundancy & load expansion |
| Occupied Rack Slots | Single slot | Single slot | Double slots |
| Applicable Scenarios | General process industry, medium-load racks | Small standalone automation control cabinets | Large high-density racks with numerous boards, high-temperature sites |
| Protection Circuit Grade | Four-level full protection (Overcurrent / Overvoltage / Undervoltage / Short-circuit) | Three-level protection (No dedicated undervoltage protection) | Five-level protection with additional surge absorption circuit |
FAQ
Q1 Is this module brand new in stock? Are there any alternative models?
A1 Brand-new stock materials of this model are available. For high-power applications, the PMA324BE from the same series can be used as a replacement, while PMA322BE is an option for small-scale low-load scenarios.
Q2 The red fault indicator stays lit after the module is powered on. Which points should be checked first?
A2 Check items in sequence:
- Verify whether the voltage of the external 24VDC input power supply meets the standard;
- Check if any I/O boards inside the rack have short-circuited loads;
- Inspect the backplane connectors for oxidation or poor contact;
- Check for aging or failed internal capacitors of the module.
Q3 What causes failure of automatic switchover between master and standby modules in a redundant architecture?
A3 There are three core root causes:
- Incorrect wiring or damaged cables of redundant synchronous signal wires;
- Inconsistent hardware versions of the two modules, leading to failure of parameter synchronization;
- Malfunction of the redundant channel on the rack backplane.
Q4 The module communication LED does not flash at all, and the bus fails to exchange data with the processor. How to troubleshoot?
A4 Troubleshoot step by step:
- The positive and negative poles of RS485 bus terminals are reversed;
- The bus terminal matching resistor is not connected;
- Faults of other boards on the same bus pull down the bus voltage level;
- Hardware damage to the module’s communication chip.
Q5 Excessive temperature rise occurs when the module runs under full load for a long time. What optimization solutions are available?
A5 Optimization solutions:
- Install cooling fans inside the control cabinet to improve air circulation;
- Remove redundant I/O boards from the rack to reduce the overall load;
- Check for hidden leakage loads on the module’s output circuits;
- Replace it with the high-power wide-temperature PMA324BE model for high-temperature working sites.
