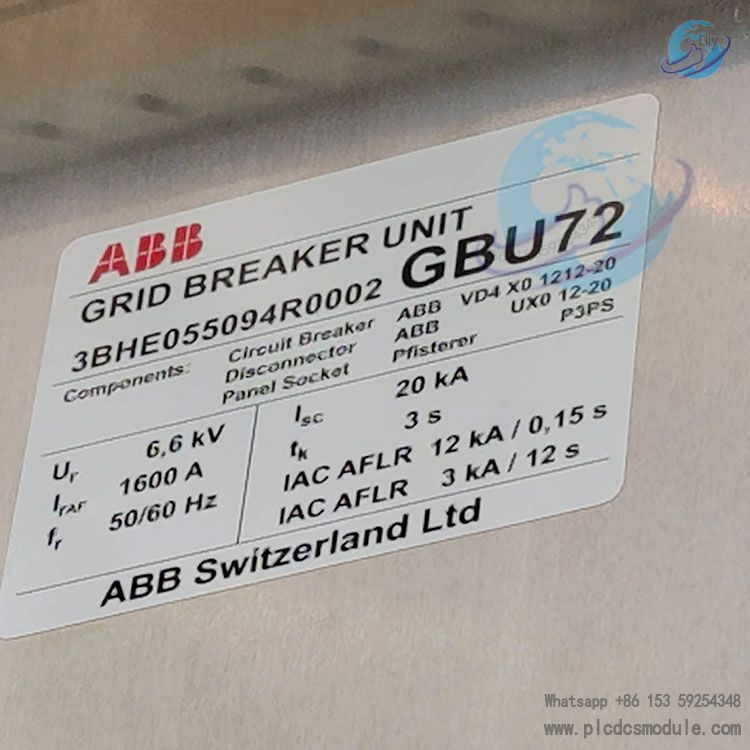

The PCS6000 GBU72 3BHE055094R0002 Grid Breaker Unit is a core drive control module exclusively developed by ABB for high-voltage and high-power power electronic systems. It is a key component of the PCS6000 series. Its core function is to provide accurate and high-speed gate drive signals for IGBT/IGCT high-voltage power devices (such as the IGCT modules with compatible models 3BHB030310R0001 and 5SHY4045L0006) rated at 4500V and 4000A (depending on cooling conditions), so as to realize reliable turn-on and turn-off control of the devices.

Integrating high-reliability design and strong environmental adaptability, this unit not only features safety protection functions such as short-circuit protection, undervoltage locking, over-temperature protection and real-time self-diagnosis, enabling stable operation in harsh industrial environments like wide temperature range (-20°C to 60°C), high humidity and vibration, but also achieves high-voltage isolation and high-speed anti-electromagnetic interference signal transmission through fiber optic communication interfaces. Meanwhile, it is highly compatible with other components of the PCS6000 series and can be flexibly integrated into the system.

Widely applied in scenarios including offshore wind power (compatible with wind turbines of 4-12MW and above), industrial automation such as iron and steel smelting, and power systems like STATCOM (Static Synchronous Compensator), it provides key technical support for power conversion, equipment speed regulation and power grid power quality optimization.

Technical Features

High-Efficiency Driving Capability

Adopting advanced driving technology, it can provide accurate and stable driving signals for high-voltage power devices such as IGCTs, ensuring reliable turn-on and turn-off of the devices. Its driving circuit design is optimized to achieve fast switching actions, thereby improving the overall operating efficiency of the system.

High-Reliability Design

This unit is equipped with a comprehensive self-diagnostic function, which can real-time monitor its own working status, such as detecting the integrity of driving signals and the stability of power supply voltage. Once an abnormality is detected, it can promptly send an alarm signal and take corresponding protective measures to prevent the expansion of faults. Meanwhile, the internal electronic components have undergone strict screening and testing, featuring high anti-aging and anti-interference capabilities, enabling long-term stable operation in harsh industrial environments.

Excellent Compatibility

The GBU72 is designed to be highly compatible with other components of the ABB PCS6000 series, allowing for easy integration into the entire system. It can work in coordination with different types of power modules, control units, and communication modules, enabling flexible system configuration and expansion to meet the requirements of different application scenarios.

Communication and Interfaces

Fiber Optic Communication Interface

Fiber optic is used as the communication medium to realize high-speed and reliable communication between the driving unit and the control unit. Fiber optic communication has the advantages of strong anti-electromagnetic interference capability, fast transmission speed, and low signal attenuation, which can ensure the accurate transmission of driving signals and control commands in high-voltage environments.

Other Interfaces

In addition to the fiber optic interface, the GBU72 may also be equipped with other types of interfaces, such as RS-485 interface or Ethernet interface for debugging and maintenance. Through these interfaces, technicians can conveniently perform operations such as parameter setting, status monitoring, and fault diagnosis on the driving unit.

Application Scenarios

Wind Power Generation

In the field of offshore wind power, it can be adapted to wind turbines with a power of 4-12MW or even higher, converting the unstable wind energy captured by the turbines into stable electrical energy and feeding it into the power grid. Its fault ride-through capability and characteristics that meet the requirements of power grid specifications strongly guarantee the reliable operation of offshore wind farms.

Industrial Automation

In industrial automation scenarios such as iron and steel smelting, it can be used to drive large motors, realizing precise speed regulation and control of production equipment, optimizing the production process, and improving production efficiency and product quality. For example, in the iron and steel smelting process, the motor speed is precisely controlled to adjust the feeding speed and force of the blast furnace, ensuring the stability of the smelting process.

Power Systems

In low-frequency and large-capacity application scenarios such as STATCOM (Static Synchronous Compensator), the GBU72 can be used to improve the power quality of the power grid, increase the power factor, reduce line losses, and realize functions such as dynamic voltage stabilization and voltage balancing of asymmetrical loads.
