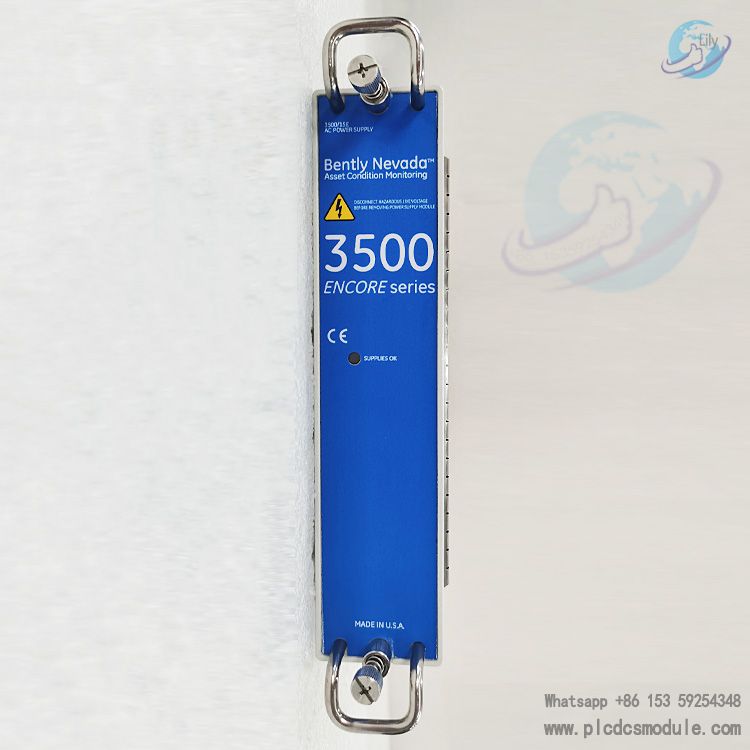

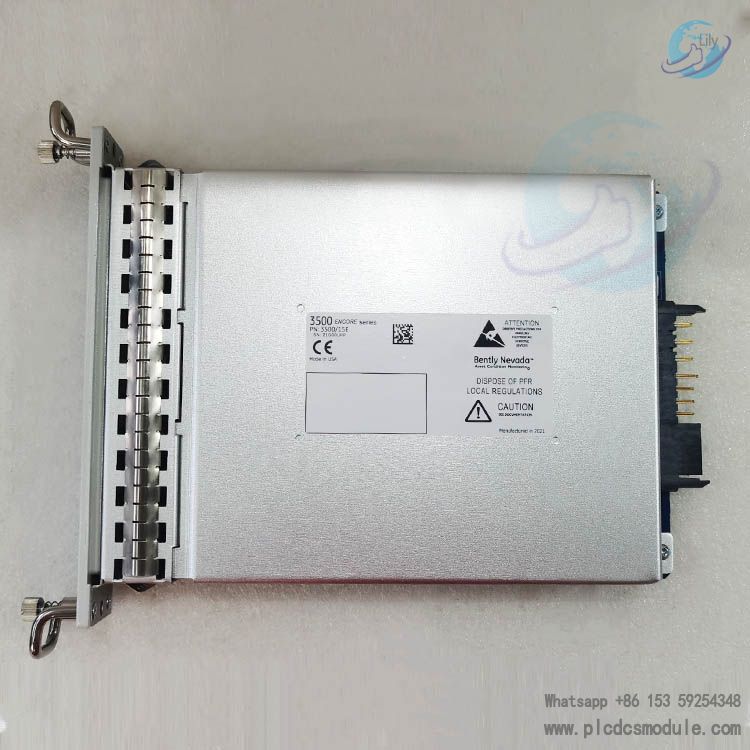

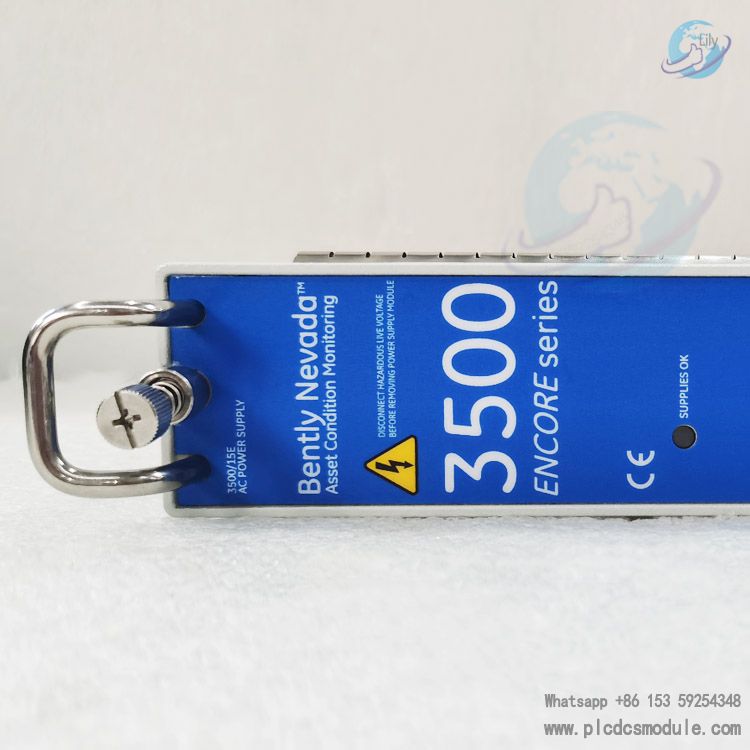

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Product Overview of Bently Nevada 3500/15E 164949-01 AC Power Supply
Product Type: A full-height power supply module belonging to the 3500 Encore series, which must be installed in a specially designed slot on the left side of the rack.
Working Mode: Works in conjunction with the power input module and transformer in the existing 3300 rack or the DC input board. It can accept a wide range of input voltages and convert them into voltages usable by other 3500 Encore modules.
Version Types: Available in three versions: AC (110/230VAC), low-voltage DC (24VDC), and high-voltage DC (125VDC).
Technical Specifications
(I) Input and Output
| Type | Input Voltage Range | Maximum Input Current | Maximum Output Current |
|---|
| AC | 95-125Vac or 190-250Vac (based on replaceable welding jumpers and fuses on the power input module) | 1.9A | 4.5A rms (AC) |
| Low-voltage DC | 20-34Vdc | - | 7.5A |
| High-voltage DC | 88-140Vdc | - | 2.3A rms (High-voltage DC) |
(II) Environmental Limits
- Operating Temperature: -20°C to +65°C (-4°F to +150°F)
- Storage Temperature: -30°C to +85°C (-22°F to +185°F)
- Humidity: 95% non-condensing
(III) Certifications and Standards
- CE Marking Directive: Complies with EMC Directive, Declaration of Conformity No. 287885, and adheres to standards such as EN61000-6-4.
- Safety Requirements: Conforms to EN61010-01.
- Hazardous Area Certifications: CSA/NRTL/C certified, rated as Class 1, Div 2, Groups A, B, C, D. Temperature ranges include T4A @ Ta = -20°C to +60°C (-4°F to +140°F) and T4 @ Ta = -20°C to +65°C (-4°F to +150°F).
(IV) Physical Parameters
Installation and Planning Information
(I) Maximum Load
Determined based on the transformer or DC
input board at the rear of the rack (behind the power input module).
(II) Replacement of Different Power Supply Models
Replacing 3300/10 AC power supply: The 3300/10 AC transformer (79867-01) retained after upgrade supports 3500/23E TDI and up to 8 monitors (any combination of 3500/42E, 3500/50E, 3500/61E, or 3500/67E). If there is a 3500/45E position monitor in the rack, the maximum number of monitors in the rack (including /45E) is reduced to 7, with no more than 4 being 3500/45E position monitors.
Replacing 3300/12 AC power supply: The 3300/12 AC transformer (147262-01) retained after upgrade supports 3500/23E TDI and up to 10 monitors (any combination of 3500/42E, /50E, /61E, or /67E), with no more than 5 of the 10 being 3500/45E position monitors.
Replacing 3300/14 or 3300/11 DC
power supply: The 3300 DC power input board retained after upgrade supports up to 12 monitors in the rack, with no more than 6 being 3500/45E position monitors. The Encore DC power supply will support a full 14-slot rack as long as there are 6 or fewer 3500/45E position monitors.
