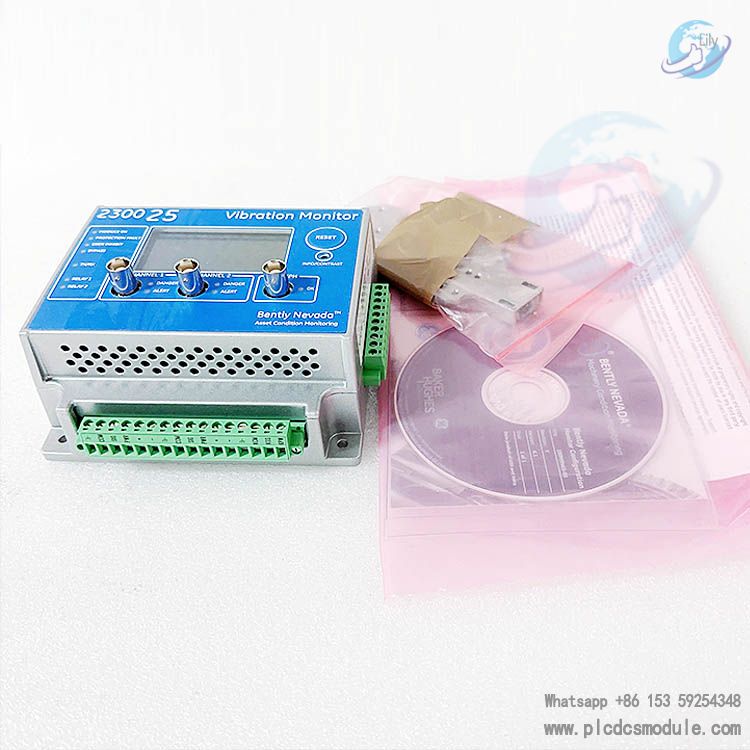

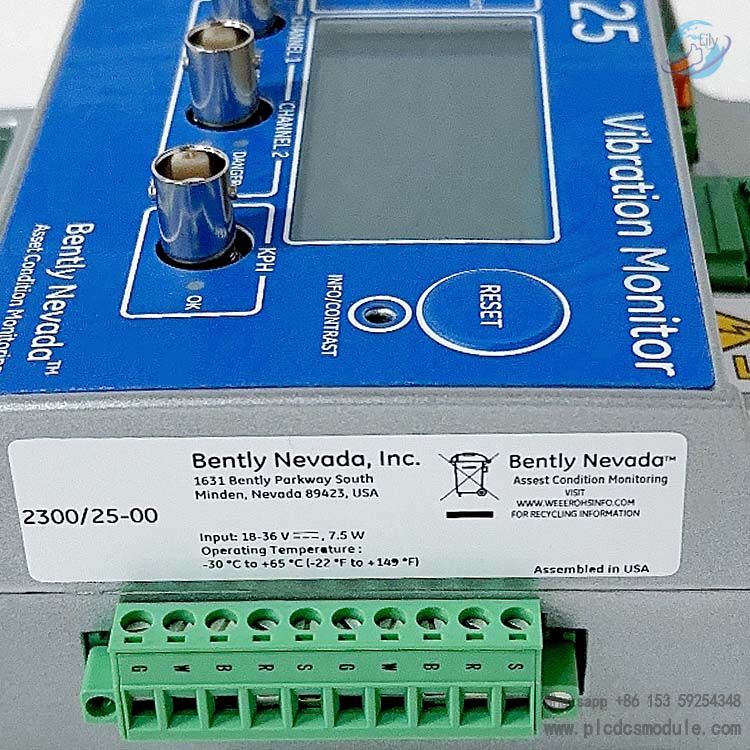

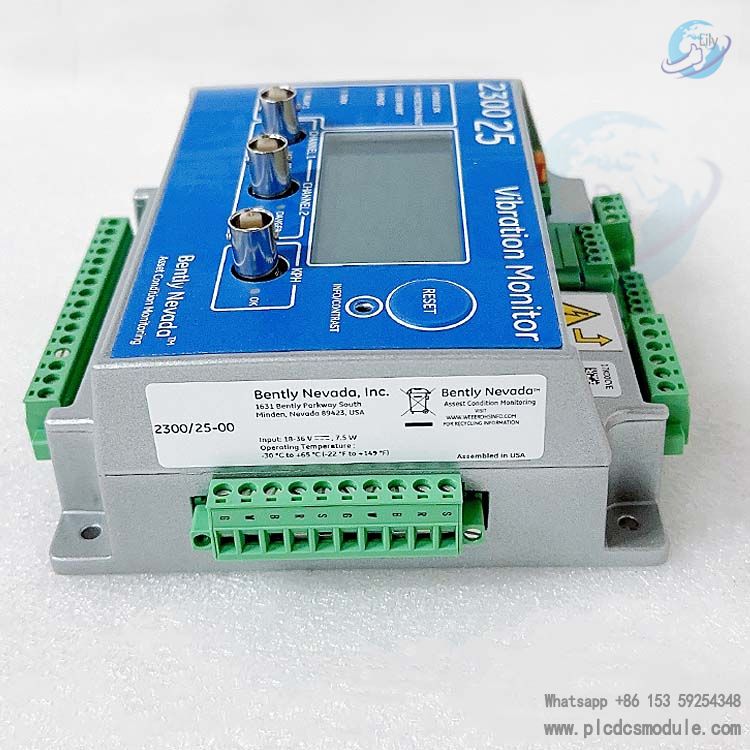

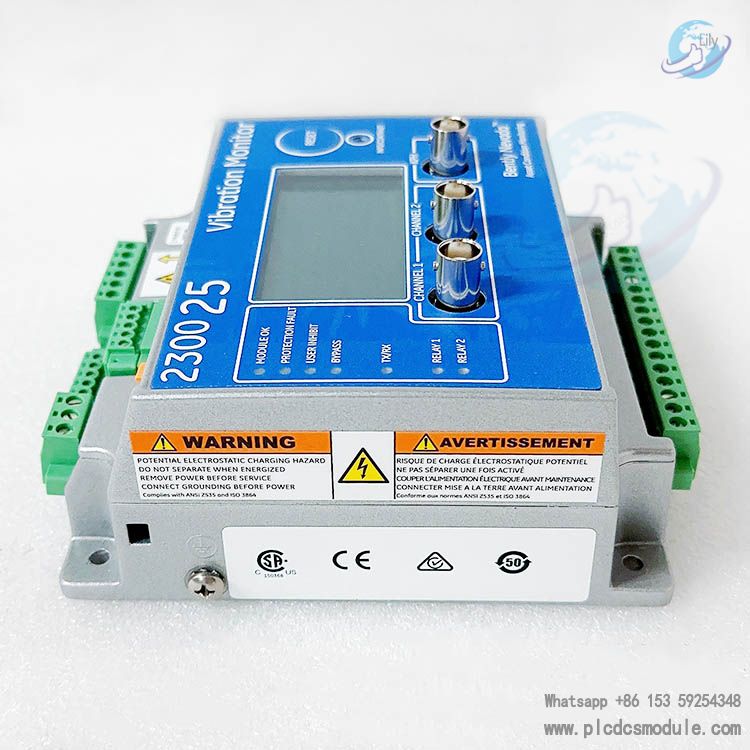

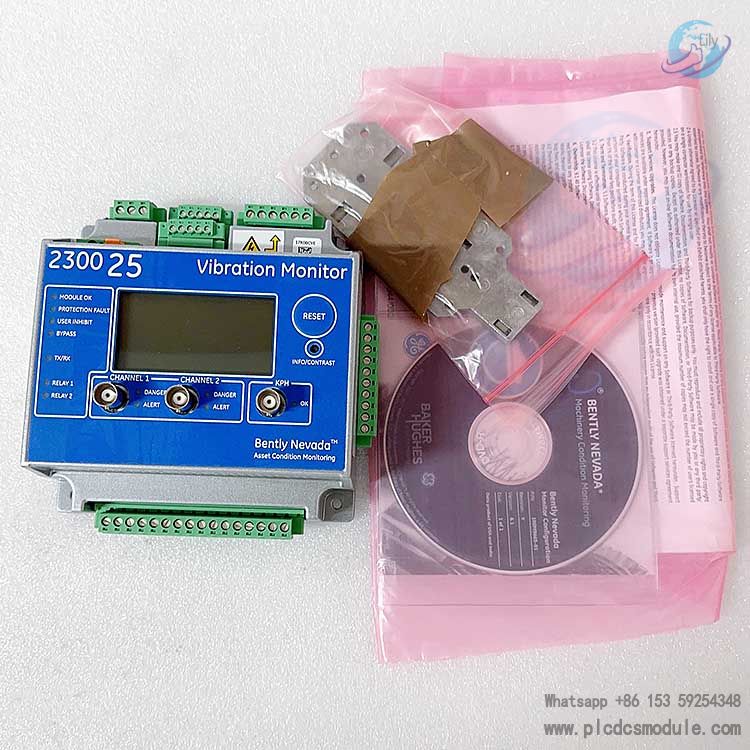

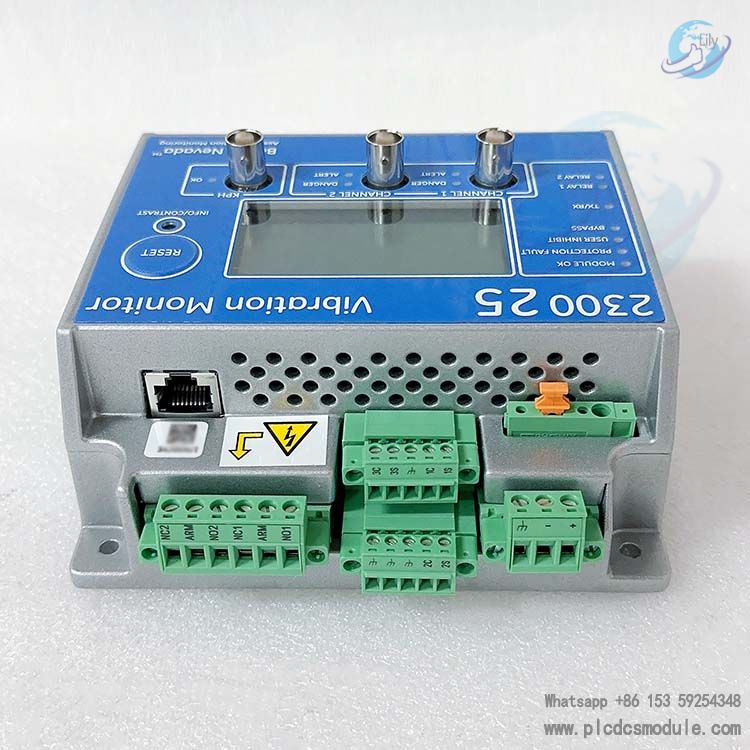

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The 2300/25 Vibration Monitor is a cost-effective continuous vibration monitoring and protection device launched by Bently Nevada. It is specially designed for medium and low criticality mechanical equipment, and is suitable for various industries such as oil and gas, power generation, water treatment, papermaking, manufacturing, mining, and cement. Its core function is to continuously monitor equipment and issue alarms when vibration levels are too high. It can be used for various units or independent enclosures where the number of sensor points matches the number of monitor channels, and supports advanced signal processing.
data sheet
Bently Nevada 2300/25 Vibration Monitors.pdf
2300/25 Vibration Monitor Core Functions & Features
Monitoring & Protection:
Provides continuous vibration monitoring and protection, supporting real-time measurement of critical parameters such as acceleration, velocity, and displacement. Configurable alarms are available.
Input Channels:
- Two acceleration/velocity/proximity input channels supporting synchronous sampling for advanced diagnostics.
- One dedicated speed channel compatible with proximity probes, magnetoelectric sensors, and proximity switch-type sensors.
- All three input channels support process variables.
Measurement Parameters:
Real-time provision of multiple critical measurements, including:
- Acceleration peak (Acceleration pk),
- Acceleration root mean square (Acceleration rms),
- Acceleration peak-to-rms ratio (Acceleration pk/rms),
- Velocity peak (Velocity pk),
- Velocity root mean square (Velocity rms),
- Displacement peak-to-peak (Displacement pp),
- Displacement root mean square (Displacement rms),
- Speed.
All parameters are configurable with alarms.
Measurement Groups:
Each channel includes one measurement group and two additional band-pass measurements.
Display Functions:
Equipped with LCD and LED for real-time display of measurements and status.
Communication Capabilities:
- Supports 10/100 Base-T Ethernet communication.
- Configurable via Bently Nevada Monitor Configuration software (with RSA encryption).
- Supports Modbus over Ethernet.
Interfaces & Outputs:
- Trendmaster SPA interface for leveraging existing DSM SPA infrastructure.
- Two relay outputs with programmable setpoints.
- Three buffered sensor outputs (including Keyphasor signal) with short-circuit and electromagnetic interference (EMI) protection, via BNC connectors.
Local Control:
Features local contacts for positive actions such as channel bypass, configuration lockout, and reset.
Button Functions:
External buttons: Reset latched alarms and relays.
Internal button: Three functions—display monitor information, adjust LCD contrast, and reset settings to defaults.
Technical Specifications of 2300/25 Vibration Monitor
ICP Accelerometer:
- Configurable band-pass filter: 0.2 Hz to 20 kHz.
- Scale factor range: 5 to 1000 mV/g.
- Full-scale range: 2 to 80 g peak.
- Current source: 3.3 mA ±5%.
- Open-circuit voltage: -21 to -24 VDC.
Velocity:
- Configurable band-pass filter: 0.2 Hz to 20 kHz.
- Scale factor range: 5 to 1000 mV/in/s.
- Full-scale range: 0 to 50 in/s peak.
Radial Vibration:
- Configurable band-pass filter: 0.2 Hz to 20 kHz.
- Scale factor range: 5 to 1000 mV/mil.
- Full-scale range: 0 to 160 mil peak-to-peak.
Thrust Channel: Scale factor range 5 to 1000 mV/mil.
Process Variable Channel: Supports most units, with temperature as the default unit.
Channel Hardware Specifications:
- Configurable upper normal limit: -0.25 to -22 V (greater than the lower normal limit).
- Configurable lower normal limit: -0.25 to -22 V (less than the upper normal limit).
- Accuracy: ±1% of full-scale range.
Speed/Keyphasor: Keyphasor sensors support multiple events per revolution and event ratios, with speed input up to 20 kHz.
Proximity Sensor Interface:
- Supply voltage: -22.8 to -25.2 VDC.
- Maximum rated current: 15 mA.
- Short-circuit current: 15.1 mA to 23.6 mA.
- Accuracy: ±1% of full-scale range.
- Input impedance: 3-wire voltage mode, 10 kΩ.
- Speed range: 1 to 120,000 rpm.
Proximity Switch Interface:
- Supply voltage: -10 to -24 VDC.
- Lower abnormal limit: -2.75 ±0.05 V.
- Speed range: 1 to 120,000 rpm.
Magnetoelectric Sensor:
- Input voltage: up to ±125V (250Vp-p).
- Speed range: 200 to 120,000 rpm.
Contact Inputs: The monitor provides 3 contact functions with input terminals, including configuration lock, latched alarm/relay reset, and monitor alarm/relay inhibition. Activation resistance: 0 to 10 kΩ; deactivation resistance: 150 kΩ to infinity.
SPA Output:
- Input signal range: High AC 8Vpp, low AC 1.6Vpp, DC gap 0 to -20Vdc (maximum measurable AC signal 1Vpp).
- Accuracy: High/low AC ±1% full-scale (at 100Hz), DC gap ±0.5V (measurable AC accuracy ±20mV).
- Frequency response: 10Hz to 3000Hz ±5%.
Relays:
- Non-hazardous area: Maximum switching power 1500VA AC / 150 Watts DC.
- Hazardous area: Maximum switching voltage and current: 6A@24VAC, 5A@30VAC, 5.8A@24VDC, 4A@30VDC.
- OK: Indicates normal operation of the monitor.
- Protection Fault: Indicates hardware faults affecting alarm judgment.
- User Inhibit: Indicates that alarms/relays have been intentionally inhibited.
- Bypass: Indicates a user-initiated bypass operation.
- Relay Status: Indicates whether the relay is activated.
- TX/RX: Indicates Ethernet status and communication between the monitor and remote software.
- Speed/Auxiliary Channel Status: Indicates valid speed signal input in the speed channel or normal operation of the auxiliary channel.
- Channel Alarm Status: Alert LED illuminates when any channel is in alarm state; Danger LED illuminates when any channel is in danger state.
- Storage temperature: -40°C to +85°C (-40°F to +185°F).
- Humidity: Up to 95% without condensation.
- Vibration limit: 3g.
- Real-time clock battery life: 38 years at 50°C (122°F) when powered; 12 years at 50°C (122°F) when unpowered.
General and Electrical Safety: Complies with UL Std. No. 61010 (3rd edition), CAN/CSA C22.2 No. 61010-1-12, 2014/35/EU Low Voltage Directive, EN61010-1:2010.
Hazardous Area Certifications:
- CSA/NRTL/C: Class I, Division 2/Zone 2, AEx nA nC [ic] IIC T4 Gc; Class I, Division 2, Groups A, B, C & D; T4.
- ATEX/IECEx: II 3G Ex nA nC ic [ic] IIC T4 Gc, T4@-30°C≤Ta≤65°C (-22°F≤+149°F).
Intrinsic Safety Parameters:
- Proximity sensor: Uo:24V; Io:46mA; Co:200nF; Lo:1mH.
- Accelerometer sensor: Uo:24V; Io:3.3mA; Co:200nF; Lo:1mH.
- SPA power supply (2300/25 only): Ui=15V; Ii=150mA; Pi=560mW; Ci=0; Li=0.
- SPA signal (2300/25 only): Ui=12V; Ii=12mA; Pi=36mW; Ci=0; Li=0.
Ordering Information for 2300/25 Vibration Monitor
Model: 2300/25-AA, where "AA" represents certification options (00 = none; 02 = multiple explosive environment certifications (ATEX/IECEx/CSA)).
Kit: 2300/25_KIT-AAA-BB, where:
- "AAA" denotes configuration, such as 001 (2 sensors and 1 enclosure), 002 (1 sensor and 1 enclosure), etc.
- "BB" indicates certification options (00 = none; 02 = multiple explosive environment certifications).
Accessories
- Power Supply: e.g., 106M7607-01 (DIN rail mount, 100/240AC to 24DC/1.5A, ATEX certified), etc.
- Enclosure: e.g., 105M6193-02 (stainless steel enclosure for hazardous areas); 105M6193-01 (fiberglass NEMA 4X/IP66 waterproof enclosure with door window for non-hazardous areas).
- Sensor: e.g., 200350 accelerometer sensor; 330500 Velomitor sensor, etc.
- Cable: e.g., 9571-AA (low-cost accelerometer cable); 138131-AAA (standard 10 Base-T/100 Base-TX shielded Category 5 Ethernet cable), etc.
