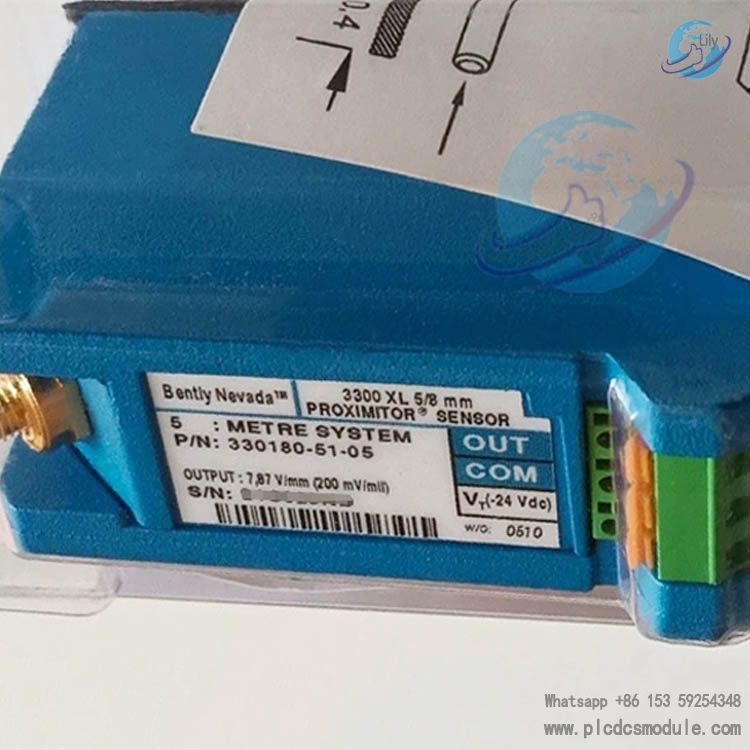

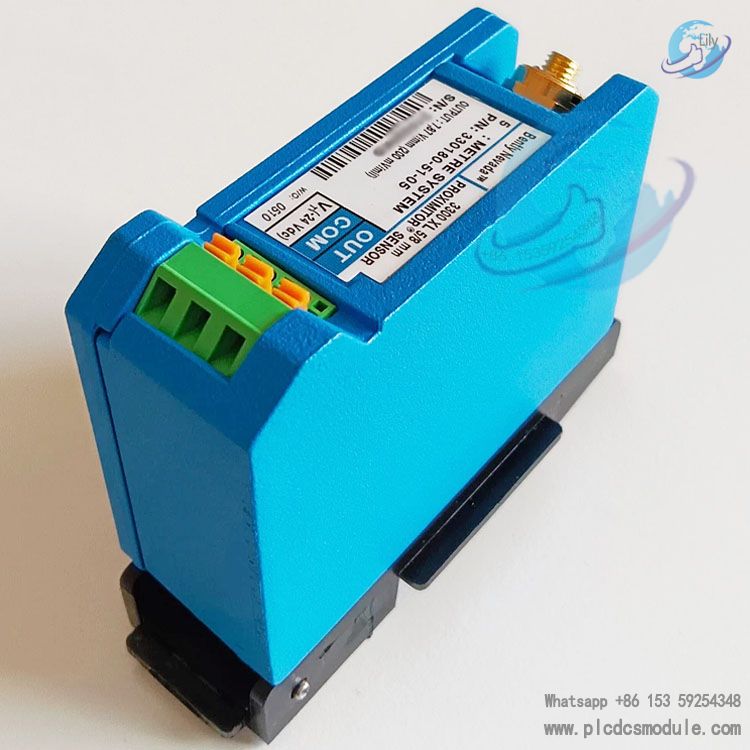

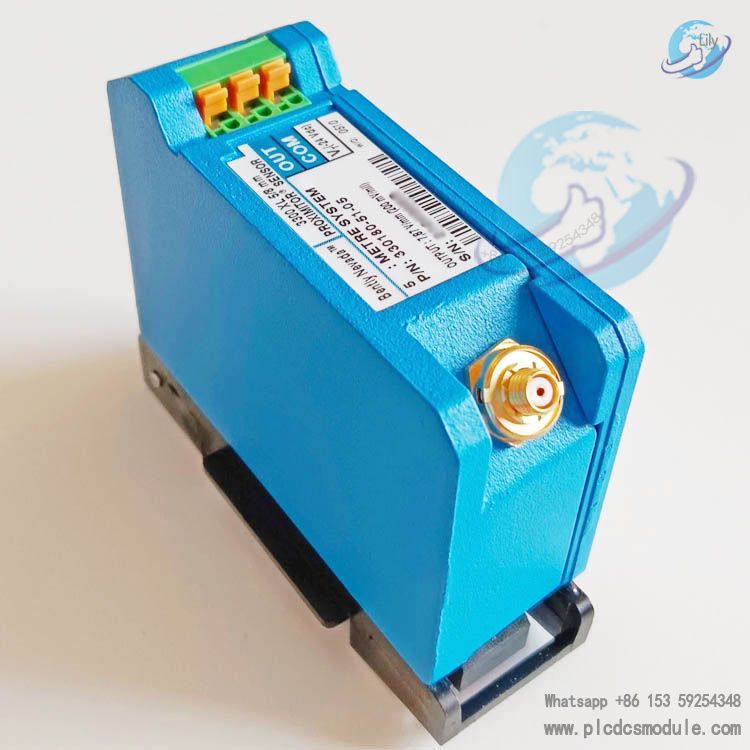

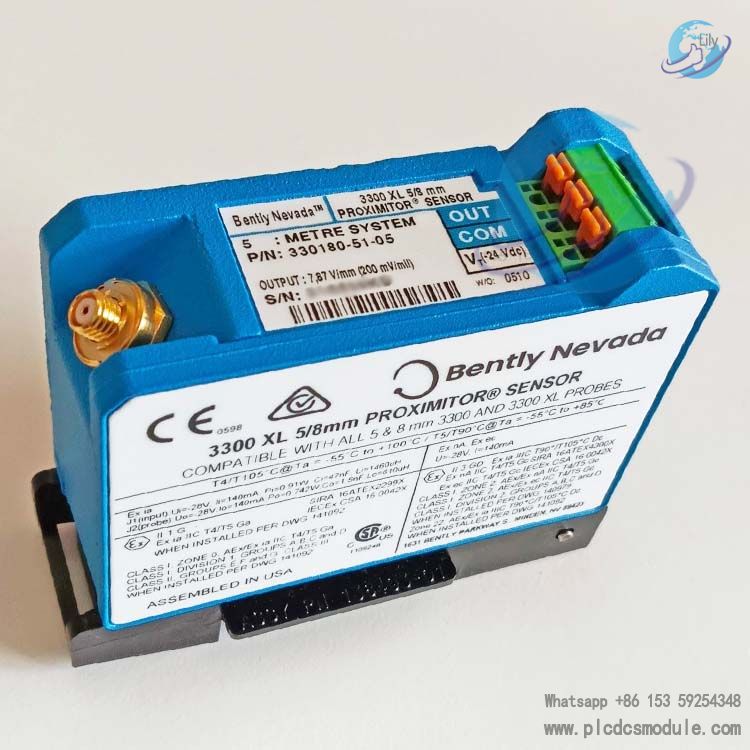

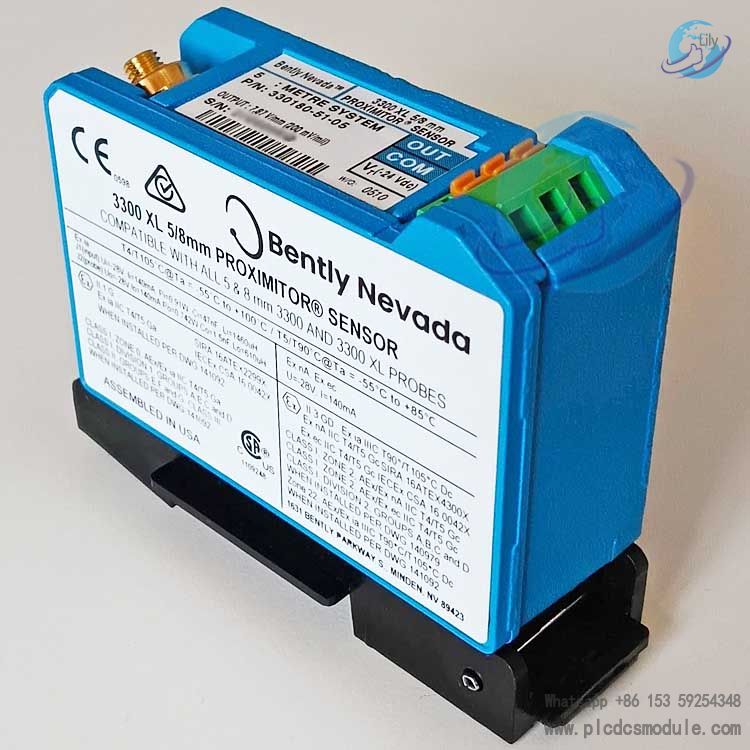

Bently Nevada 330180-51-05 is the core proximitor sensor for the Baker Hughes Bently 3300 XL 8mm complete eddy current sensor system. It features a 5-meter system length, DIN rail mounting, and full explosion-proof certifications including CSA, ATEX and IECEx. As a core component for industrial vibration monitoring, it boasts the largest available stock in circulation.
The complete 8mm eddy current system consists of three parts: the 330180 proximitor, an 8mm probe, and an extension cable of matching length. Based on the eddy current effect, it linearly converts gap variations between the probe and metal shaft into standard DC voltage signals, and simultaneously collects static shaft displacement, dynamic vibration and keyphase speed data. Fully compliant with the API 670 standard for petroleum machinery, it serves as standard safety monitoring equipment for steam turbines, compressors and large motors.
Designed primarily for high-density cabinet rail mounting applications, the 330180-51-05 comes with an integrated electrically isolated base. Its resistance to radio frequency and electromagnetic interference is significantly superior to older non-XL 3300 series proximitors. All assemblies including probes, cables and proximitors are interchangeable without separate matching or calibration, greatly reducing on-site spare part and commissioning costs. Equipped with complete explosion-proof approvals, it can be directly deployed in hazardous explosion-prone zones of chemical, oil and gas industries.
Product Advantages
- Unrestricted interchangeability of all components8mm probes, extension cables and proximitors of the same series can be mixed and matched arbitrarily. All units are factory-calibrated based on AISI 4140 steel, eliminating the need for bench pairing and calibration. They are compatible with probes and cables of the older non-XL 3300 series (5mm/8mm). Note that mixed assembly will downgrade measurement accuracy to the specification level of legacy models.
- Dual compatible mounting configurationsSupports dense arrangement on standard 35 mm DIN rails, as well as 4-hole panel mounting. The integrated mounting base features electrical isolation, removing the requirement for additional insulating gaskets. Its panel mounting hole layout is fully consistent with traditional legacy proximitors, so no new drilling is needed for retrofit projects.
- Superior RFI and EMI immunityPasses CE EMC compliance without metal shielding enclosures or dedicated shielded conduits. When installed inside fiberglass explosion-proof housings, the unit remains unaffected by surrounding radio frequency signals, effectively resolving fluctuating readings caused by inverters and walkie-talkies at power plants, refineries and other industrial sites.
- Tool-free quick-connect terminalsAdopts SpringLoc spring-loaded terminals instead of loose-prone screw clamping structures. Three-core shielded cables can be wired manually with bare hands, preventing poor contact under long-term high-temperature and vibrating operating conditions.
- Wide temperature stability & comprehensive explosion-proof certificationsOperating temperature range: -52°C to +100°C; storage temperature range: -52°C to +105°C. Models with suffix 05 are equipped with complete intrinsic safety and flameproof certifications, permitting direct installation in Zone 0 / Zone 2 hazardous areas and complying with explosion protection standards for petrochemical plants and offshore platforms.
- Standardized linear outputFixed system scale factor: 7.87 V/mm (200 mV/mil). Linear measurement range: 0.25–2.3 mm (10–90 mil). Recommended installation gap: 1.27 mm (50 mil). Output voltage: -1 ~ -17 Vdc, compatible with all types of plant-wide TSI monitoring instruments.
- Clear tolerance for matched cable lengthsFor the 5-meter system, the sum of the probe integral cable length plus extension cable length must equal 5 meters. The total cable capacitance is precisely matched to the proximitor circuitry, delivering stable signal transmission up to 305 meters with negligible signal attenuation for field wiring.
Model Code Breakdown (330180-51-05)
330180 is the base part number exclusively for the proximitor of the 3300 XL 8mm system. The two subsequent suffix segments define system specifications and explosion-proof certifications, with detailed breakdown as follows:
First Suffix Segment (51): System Cable Length + Mounting Style
- 50: 5-meter system, panel mount
- 51: 5-meter system, DIN rail mount (this model)
- 52: 5-meter system, no mounting base
- 90 / 91 / 92: Three mounting variants for 9-meter systems respectively
- 10 / 11 / 12: 1-meter short systems (no extension cable)
Second Suffix Segment (05): Explosion-Proof Certification Options
- 00: No explosion-proof certifications, for general indoor environments only
- 05: Fully certified with CSA, ATEX and IECEx approvals; supports intrinsic safety ia and flameproof nA/ec explosion-protected circuits, specially designed for hazardous areas in oil, gas and chemical industries.
Core Mechanical & Electrical Characteristics
(I) Mechanical Structural Features
- Housing material: A308 aluminum alloy; total unit weight: 246 g. Compact form factor ideal for high-density cabinet layouts.
- A 3.05 mm clearance is reserved for disassembly under DIN rail mounting; panel mounting adopts industry-standard four-hole layout.
- Test pins integrated on terminal blocks. Signal on-line testing is available with matching test plug 330148722 without disconnecting field cables.
- IP54 protection rating for the terminal area against dust and water splashing, suitable for humid control rooms and outdoor explosion-proof cabinets.
(II) Electrical Specifications (Standard Test Conditions: 25°C, -24 Vdc power supply, AISI 4140 steel target, 1.27 mm gap)
- Power supply: -23 ~ -26 Vdc DC; maximum power consumption: 12 mA. Output variation less than 2 mV with 1 V supply fluctuation, delivering outstanding power supply stability.
- Input compatibility: Works with all 3300 series 5 mm probes and 3300 XL 8 mm probes plus matched extension cables.
- Output: Output impedance 50 Ω; linear range 2 mm (80 mil). Linear error ≤ ±0.025 mm for standard 1 m / 5 m systems.
- Frequency response: 0 ~ 10 kHz (-3 dB). Complete vibration signal acquisition is maintained even with up to 305 meters of field three-core shielded cable.
- Magnetic interference immunity: Output offset limited to within 0.035 mil under 300 Gauss 60 Hz power frequency magnetic field, ensuring drift-free measurement beside high-power motors in power plants.
Matching & Compatibility Features
- Connector MatchingBoth probes and extension cables adopt gold-plated ClickLoc self-locking connectors. Hand-tightening until an audible click confirms full locking with no tools required to prevent loosening. Optional connector boots are available to isolate oil, water and moisture.
- High-Temperature CompatibilityCan be paired with ETR high-temperature probes and high-temperature extension cables. Probes withstand temperatures up to 218°C, while cables tolerate up to 260°C, suited for high-temperature measurement points on steam turbine casings.
- Interchangeability LimitationMixed use of XL and non-XL components downgrades system accuracy to legacy 3300 series standards and widens high-temperature error to ±18%. Full sets of XL components are recommended for high-precision turbine units.
Application Industries & Measurement Scenarios
1. Power Industry (Core Application Field)
Thermal power/gas turbines, hydro generators, boiler induced draft fans and forced draft fans: Monitor radial shaft vibration, axial displacement, keyphase rotational speed and differential expansion. As core measuring points of the unit TSI protection system, they prevent bearing bush wear and rotor-stator rub impact.
2. Petrochemical & Oil and Gas Production
Reciprocating compressors, centrifugal compressors, offshore platform turbines and hydrogenation unit equipment: Explosion-proof certified models are applicable to hazardous workshops. They track piston rod drop, shaft vibration and overspeed protection, complying with the mandatory API 670 standard for petrochemical equipment.
3. Metallurgical Industry
Large rolling mills, blast furnace fans and waste heat power generation turbines: Designed for continuous high-temperature and heavy dust operating conditions. When matched with armored cables and high-temperature probes, they provide long-term rotor vibration monitoring to avoid shaft fracture and unplanned shutdowns.
4. Water Treatment & Air Separation Industry
Large centrifugal water pumps, air compressors and expanders: Adopt non-contact measurement with zero mechanical wear, ideal for condition monitoring of units running 24/7 continuously.
5. Marine & Offshore Engineering
Marine main steam turbines and offshore power generators: Certified by marine classification societies, capable of withstanding cabin environments with high humidity and alternating temperatures.
Proximitor Comparison
| Model | System Cable Length | Mounting Method | Explosion-Proof Certifications | Applicable Scenarios | Core Differences |
|---|---|---|---|---|---|
| 330180-51-05 | 5 m | DIN rail mount | Full ATEX/CSA/IECEx explosion-proof approvals | Dense explosion-proof cabinets, power plant TSI cabinets | Main in-stock model; DIN rail mounting; complete explosion-proof certifications; widely used for medium and small units |
| 330180-50-00 | 5 m | Panel mount | No explosion-proof certifications | Ordinary non-hazardous indoor control rooms | Retrofit of legacy equipment; no explosion protection required; installed via drilled panel holes |
| 330180-91-05 | 9 m | DIN rail mount | Full set of explosion-proof certifications | Measuring points far from control cabinets, large steam turbines | Supports total 9-meter cable length; slightly higher signal transmission error over long distances |
| 330180-11-00 | 1 m | DIN rail mount | No explosion-proof certifications | Measuring points adjacent to control cabinets, no extension cable required | For short-distance monitoring of small fans and water pumps; lower cost |
| Legacy 3300 non-XL Proximitors | 5 / 9 m | Panel mount | Partial explosion-proof approvals | Replacement of old equipment | No spring terminals, poor anti-interference performance, non-interchangeable components and lower measurement accuracy |
List of Matching Accessories
1. Matching 8mm Probes (Exclusive for 330180-51-05)
Standard ambient-temperature probes: 330101 (unarmored), 330102 (armored) with 3/8-24 UNF thread; 330103 / 330104 with metric M10×1 thread.ETR high-temperature probes: 330191 / 330192, withstand up to 218°C at the probe tip.Reverse-mount probes: 330105 / 330106 for installation in narrow confined spaces inside equipment.Smooth-body probe 330140 requires separate purchase of mounting clamps.
2. Matching Extension Cables for 5-meter Systems
(Total length of probe integral cable + extension cable = 5 m)
Standard cables from the 330130 series and ETR high-temperature cables from the 330190 series. Armored, FluidLoc oil-resistant and connector boot versions are optional, with common lengths of 3 m, 3.5 m, 4 m and 4.5 m.
3. Mounting Accessories
Aluminum threaded clamp 137492, phenolic insulating clamp 27474 (for electrical isolation at motor measuring points), lock nuts with safety holes, connector protection kit 40180-02, silicone self-fusing tape, DIN rail mounting shims.
4. Backend Monitoring Instruments
Bently 3500 / 3300 series TSI vibration monitoring racks, 1900 local on-site display meters; matched safety barriers (mandatory for intrinsically safe explosion-proof circuits).
Frequently Asked Questions
Q1: Can the 5-meter system of model 330180-51-05 be paired with a 9-meter probe?
No. The internal circuitry of the proximitor is calibrated to match the total cable capacitance. For a 5-meter proximitor, the combined length of the probe integral cable and extension cable must strictly equal 5 meters. 9-meter probes can only be used with 9-meter proximitors suffixed 90/91/92. Mismatched cable lengths will cause linear offset, zero drift and distorted measurement readings.
Q2: Are explosion-proof 05-suffix and standard 00-suffix proximitors interchangeable?
They share identical physical and electrical parameters, yet cross-replacement is strictly prohibited in hazardous areas. Models suffixed 00 carry no explosion-proof certifications; deploying them in Zone 0 / Zone 1 hazardous locations invalidates explosion-proof approvals and fails safety supervision inspections. Temporary substitution is only acceptable for emergency use in ordinary non-hazardous control rooms.
Q3: What consequences arise from mixing XL probes/cables with legacy 3300 non-XL components?
Physical connection is feasible, yet overall system performance will degrade: linear error and temperature drift will increase, and scale factor error can reach up to ±18% under high-temperature operating conditions. Mixed assemblies are not recommended for high-precision units and unit interlock protection measuring points. Full sets of XL components are required to meet the precision criteria of API 670.
Q4: For high-temperature measuring points on steam turbine casings, should ETR probes or standard probes be selected?
Standard probes are suitable where ambient temperature ≤177°C. ETR high-temperature probes paired with 330190 high-temperature extension cables are required if cables or probe tips are exposed to sustained temperatures of 177°C to 218°C. Note that ETR assemblies compromise overall system accuracy, so they are not recommended for measuring points operating at ambient temperatures.
Q5: What is the troubleshooting sequence when encountering output voltage drift and fluctuating gap readings on site?
- Check connectors for oil or water ingress and replace connector protection boots if necessary;
- Inspect cables for crushing or sharp bending and verify compliance with minimum bend radius requirements;
- Confirm power supply voltage remains stable between -23 Vdc and -26 Vdc;
- Isolate nearby inverters and high-power cables to eliminate RFI interference;
- Swap out probes or extension cables to identify faulty components.
Q6: How to choose between armored cables and FluidLoc oil-resistant cables during procurement?
Armored cables are deployed in areas prone to abrasion, foot traffic and mechanical impact. FluidLoc oil-resistant cables are installed inside steam turbines and compressors to block lubricating oil from seeping outward along cable gaps. For oil & gas units, it is advised to select both types simultaneously.
Q7: What are the mandatory minimum requirements for shaft diameter and target surface size?
Minimum target surface diameter: 15.2 mm. The recommended minimum diameter of the monitored shaft is 76.2 mm (3 inches). Shafts smaller than 50.8 mm will alter the scale factor. Adjacent probes must be spaced at least 38 mm apart to prevent crosstalk (cross interference exceeding 50 mV).
Q8: If only a proximitor is purchased as a spare part, can existing legacy probes be used directly?
Direct wiring is possible, subject to two limitations:
- System precision will drop to the standard of legacy non-XL units;
- Temperature drift error will rise significantly under high-temperature conditions.For long-term interlock protection measuring points, it is recommended to procure matching XL series probes and extension cables together to guarantee reliable unit protection.
