BENTLY NEVADA 3500/05-02-05-00-00-01 RACK MODULE

Manufacturer: BENTLY NEVADA

Product Number: 3500/05-02-05-00-00-01

Product Type: RACK MODULE

Country of Origin: USA

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ Delivery time: Shipment within 3 days of inventory availability.

Mail： plcdcsmodule@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

The 3500/05-02-05-00-00-01 is a 12-inch Mini-Rack for the Bently Nevada 3500 Machinery Condition Monitoring System under Baker Hughes, designed for installation in standard 19-inch cabinets.Serving as a unified mounting base for all monitoring modules, power supply modules and rack interface modules of the entire 3500 series, it integrates on-line condition monitoring hardware for vibration, displacement, rotational speed and other parameters of rotating machinery including steam turbines, compressors, fans and electric motors, enabling high-speed internal communication among monitoring modules and centralized power distribution.

This model is engineered for field cabinet installations with limited space and fits standard 19-inch EIA industrial cabinets. It fully complies with industrial electromagnetic compatibility (EMC) requirements, explosion-proof safety standards and EU CE directives, and acts as the core mounting carrier for vibration monitoring systems of medium and small-sized machinery units.

Download

3500/05 Datasheet.pdf

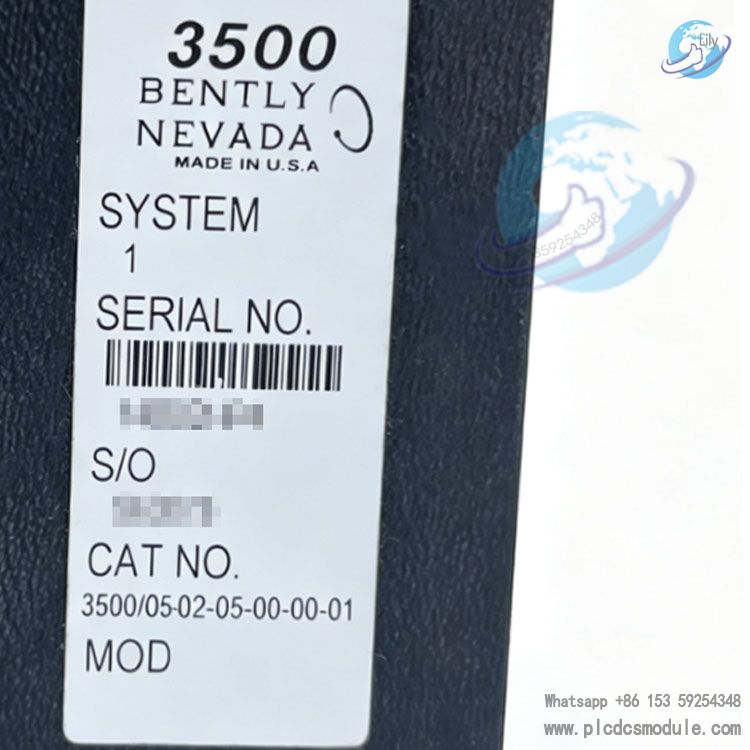

BENTLY NEVADA 3500-05-02-05-00-00-01 RACK MODULE......jpg

Model Code Breakdown (3500/05-AA-BB-CC-DD-EE)

The full product coding standard follows the format 3500/05-AA-BB-CC-DD-EE, where each segment corresponds to rack dimension, mounting type, explosion-proof certification, reserved parameter and EU compliance respectively. The breakdown of model 3500/05-02-05-00-00-01 is detailed below:

Segment AA = 02: Rack Dimension

Denotes a 12-inch Mini-Rack with a total of 7 module slots. In contrast, code 01 stands for the 19-inch full-size rack equipped with 14 slots. This variant is ideal for site locations with limited installation space and a small number of measurement points.

Segment BB = 05: Mounting Method

Mini-Rack dedicated rack mount configuration. It can be secured to universal 19-inch EIA industrial cabinets with the adapter panel part number 144863-01. The Mini-Rack does not support bulkhead mounting; only panel mount and rack mount are available as installation options.

Segment CC = 00: Explosion-Proof Certification Option

No CSA/NRTL/C, ATEX or IECEx hazardous area certifications. This unit is only applicable to non-hazardous non-ex classified chemical and oil & gas environments. Models with certification code 01 or 02 shall be selected for Zone 1 and Zone 2 explosive hazardous locations.

Segment DD = 00: Reserved Field

Factory-reserved expansion segment with no configurable functions at present; the default code for all units is 00.

Segment EE = 01: EU Compliance Option

Comes with CE certification, complying with three mandatory EU directives: EMC Electromagnetic Compatibility, LV Low Voltage Safety and RoHS Restriction of Hazardous Substances. It is eligible for legal deployment in industrial projects within the European Union.

Hardware Structure & Slot Configuration

Slot Layout Rules

The power supply module and rack interface module must be installed at the fixed leftmost slots of the rack. The remaining 7 free slots can be flexibly populated with 3500 series functional cards including vibration monitoring modules, displacement modules, speed modules and communication modules. Monitoring modules cannot be fitted into the dedicated left-side power supply slots.

Mandatory Compatible Accessories

When installing into a standard 19-inch EIA cabinet, the 144863-01 Mini-Rack 19-inch adapter panel must be purchased as a matching component; cabinet mounting cannot be completed without this adapter panel.

Software Version Restriction: This Mini-Rack only supports 3500/01 configuration software V2.70 and newer. Older software versions fail to recognize the Mini-Rack hardware architecture.
Compatibility Limitations: Incompatible with the 3500/93 System Display A01 front-mount kit, 3500/06 weatherproof enclosure and bulkhead mounting assemblies. If internal isolators are required, one additional slot must be allocated for the 3500/04-01 isolator grounding module to provide an intrinsically safe grounding circuit.

Spare Parts Kit List

A complete standardized spare parts kit is supplied, consisting of half-height module brackets, card guides, power supply blank filler panels, I/O module blank panels, mounting hardware screws, TMR/SIM backplane jumpers, field wiring diagrams and rack operation & maintenance manuals. These standard consumables facilitate on-site maintenance and replacement of blank slot covers and damaged internal brackets.

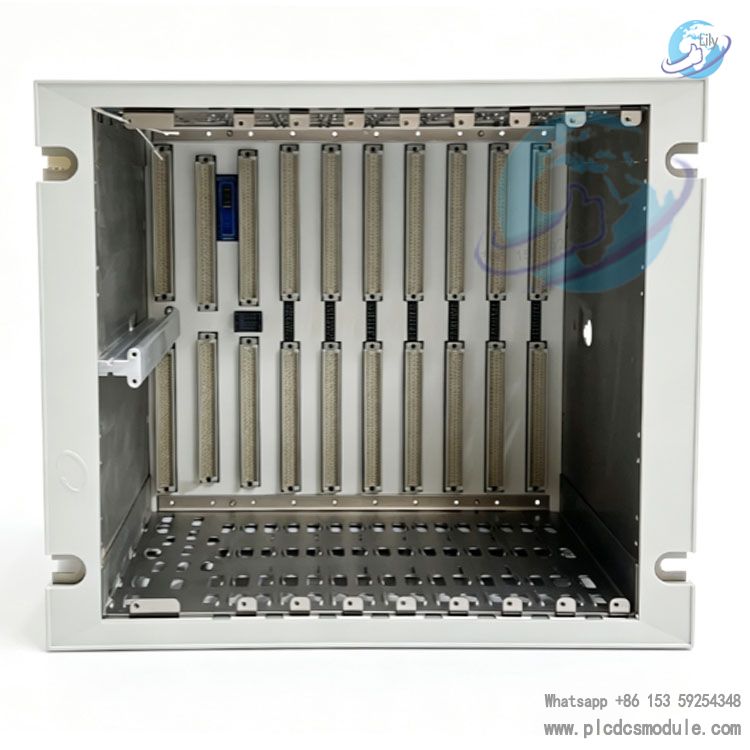

BENTLY NEVADA 3500-05-02-05-00-00-01 RACK MODULE.jpg

Comparison of Three Mounting Types (This Model Only Supports Rack Mount & Panel Mount)

Rack Mount (Corresponding to BB=05 for this model)

The unit is fixed to a 19-inch EIA cabinet via the 144863-01 adapter panel. All wiring and I/O module terminals are accessible from the rear of the rack, making this mounting type suitable for centralized installation in standard control room cabinets.

Panel Mount (BB=04 for Mini-Rack)

The rack is embedded into a cutout on the control cabinet panel and secured with original factory clamps; wiring and maintenance operations are performed from the rear side.

Bulkhead Mount (Not available for Mini-Rack)

This mounting type is exclusively supported by full-size 19-inch racks. The rack is mounted flush against the wall, with all wiring and I/O terminals accessible from the front. This structural option is not offered for the Mini-Rack.

Dimension & Cutout Specifications

1. Overall Mounting Dimensions of Mini-Rack (Based on Panel Mount)

Overall height: 265.94 mm (10.470 in)
Rack width: 304.80 mm (12.000 in)
Depth: 246.38 mm (9.700 in)
Overall depth increases to 422.91 mm (16.650 in) when internal isolators are installed.

2. Recommended Control Cabinet Panel Cutout Dimensions

Rectangular cutout size: 452.1±1.5 mm (17.80±0.06 in) × 251.5±1.5 mm (9.90±0.60 in)Maximum corner radius: 3.2 mm (0.125 in)Tight tolerance control of cutout dimensions is required to prevent failure of rack locking and fastening.

3. Auxiliary Structure for Rack Mount

When fitted with the 144863-01 adapter panel, the unit fits standard 482.60 mm (19-inch) industrial cabinets widely used in the industry. The adapter panel acts as an intermediate connector to bridge the dimensional gap between the 12-inch Mini-Rack and 19-inch cabinets.

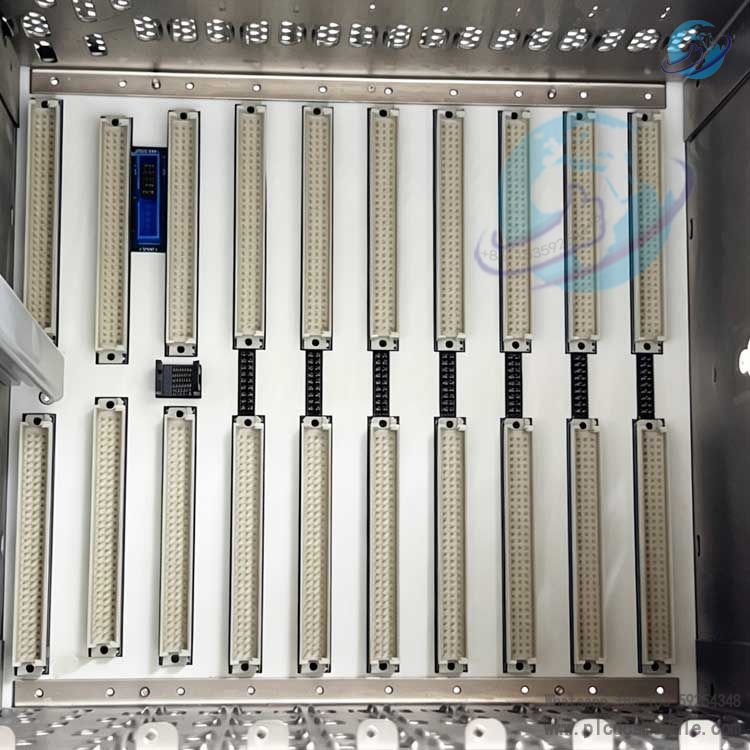

BENTLY NEVADA 3500-05-02-05-00-00-01 RACK MODULE..jpg

Applicable Scenarios & Selection Advantages

Applicable Scenarios

Online vibration monitoring for rotating machinery with limited measurement points (≤7 monitoring modules), including medium & small steam turbine generator sets, small centrifugal compressors, fans, pump units and high-speed motors;Retrofit projects with compact on-site installation space and centralized layout inside standard 19-inch control room cabinets;Machinery condition monitoring industrial projects to be delivered and operated within the European Union.

Core Product Advantages

Compact Footprint

The 12-inch Mini-Rack is equipped with only 7 slots, drastically saving cabinet installation space.

Compatibility with Standard Cabinets

It fits universal industry-standard 19-inch EIA cabinets when used with the matching adapter panel; no custom non-standard cabinets are required for equipment retrofits.

Full CE Compliance

It meets three mandatory EU standards covering electrical safety, electromagnetic compatibility and environmental protection, eliminating certification barriers for overseas projects.

Modular Expandability

Vacant slots can be freely populated with various 3500 series monitoring cards for displacement, vibration, rotational speed and communication, delivering flexible expansion capability.

Complete Standard Spare Parts Kit

Factory-standard blank panels, brackets and screw sets are supplied, enabling convenient replacement and on-site maintenance.

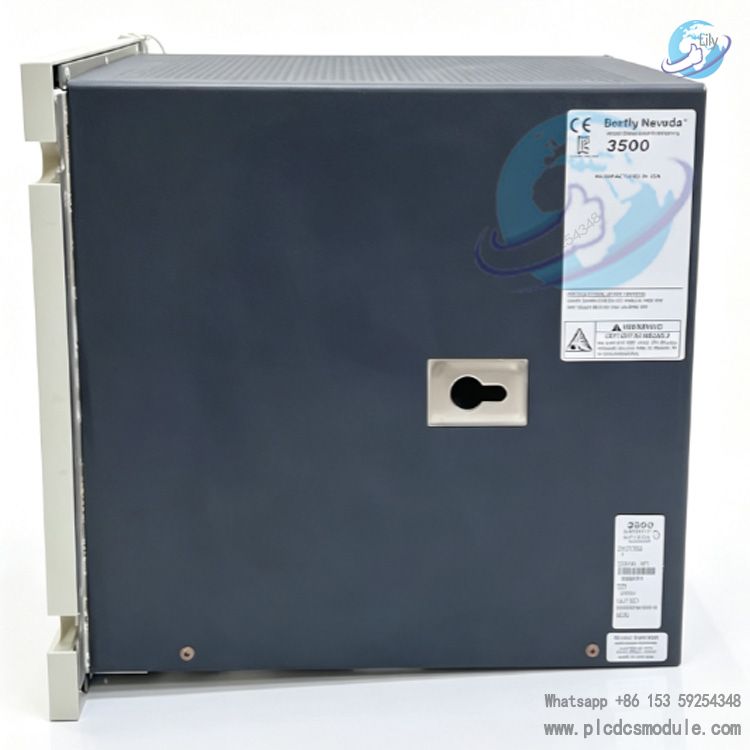

BENTLY NEVADA 3500-05-02-05-00-00-01 RACK MODULE...jpg

Usage Restrictions & Precautions

This rack shall not be deployed in explosive hazardous areas. Racks with explosion-proof certification codes must be selected for hazardous location projects.

The configuration software must be upgraded to 3500/01 V2.70 or later; hardware recognition will fail on older software revisions.

It is incompatible with the front-mounted display 3500/93, weatherproof enclosure 3500/06 and bulkhead mounting assemblies.

Installation of internal isolators will occupy one available slot, and a dedicated grounding module must be purchased separately.

The 144863-01 adapter panel is mandatory for mounting into a 19-inch cabinet; secure fastening cannot be achieved without this accessory.

The power supply module and rack interface module must be fitted in the leftmost slots of the rack. Random slot rearrangement will result in loss of system communication.

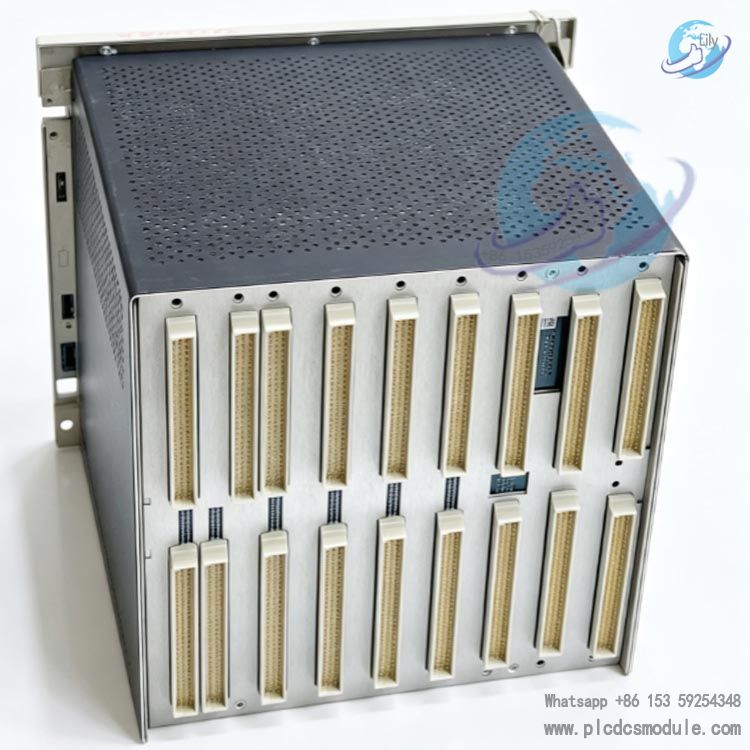

BENTLY NEVADA 3500-05-02-05-00-00-01 RACK MODULE.....jpg

Supporting Products

Power Supply Hardware: Special power supply modules for the 3500 series, which provide stable DC power to all monitor modules in the rack.

Communication Interface Hardware: Rack interface modules that enable data exchange between the rack and upper computer configuration software.

Signal Acquisition & Monitoring Modules: Various signal acquisition cards including the 3500/40 Vibration Monitor Module, 3500/42 Displacement Monitor Module, and 3500/45 Speed Monitor Module.

Isolation & Earthing Accessories: 3500/04-01 Internal Barrier Earthing Module, a mandatory accessory when internal barriers are installed in the rack.

Installation Auxiliary Materials: 144863-01 19-inch adapter panel for mini-rack, full set of blank covers, module card guides, fixing screws, and TMR/SIM backplane jumpers.

Commissioning & Maintenance Tools: 3500/01 host configuration software, 129766-01 Rack Installation and Maintenance Manual, and 130432-01 Field Wiring Diagrams.

Frequently Asked Questions

Q1: Can model 3500/05-02-05-00-00-01 be mounted directly into a standard 19-inch cabinet?

A1: Direct mounting is not possible. The adapter panel with part number 144863-01 is mandatory. Secure the adapter panel onto the cabinet rails first, then install the mini rack onto the panel.

Q2: Can this mini rack adopt bulkhead mounting configuration?

A2: Bulkhead mounting is not available for all 3500 series mini racks. This mounting option is only offered for full-size 19-inch racks with corresponding ordering code, so this model is incompatible.

Q3: Is this rack suitable for site applications under Zone 2 hazardous area conditions?

A3: The CC code of this model is 00, which means it does not hold CSA, ATEX or IECEx hazardous area certifications. For explosion-proof applications, the CC segment of the model code must be changed to 02 to select a rack with full hazardous area approvals.

Q4: What is the minimum software version required for the upper-level configuration software matching this rack?

A4: The minimum required version of the 3500/01 configuration software is V2.70. Versions lower than this cannot recognize the mini rack hardware and will lead to communication reading failures.

Q5: Will installing internal barriers inside the rack occupy an extra module slot?

A5: Yes. The 3500/04-01 Internal Barrier Earthing Module is required when internal barriers are fitted, and this module occupies one dedicated rack slot. A spare slot must be reserved during layout planning.

Q6: Can the 3500/93 System Display be used with this mini rack?

A6: They are structurally incompatible. The 3500/93 display panel is only designed for full-size 19-inch racks, and no matching mounting structure is available for mini racks.

Q7: What problems will occur if blank covers are not installed on unused rack slots?

A7: Dust and moisture from the site will penetrate into the backplane slots and corrode connector contacts. Long-term operation without covers will result in signal fluctuation and communication dropout. All vacant slots must be fitted with matching half-height or full-height dust blank covers.

Q8: What are the upper and lower limits of the operating ambient temperature for this rack?

A8: The stable operating temperature range is -20°C to +65°C. Operating outside this range may cause modules to go offline automatically and distort measured data.
