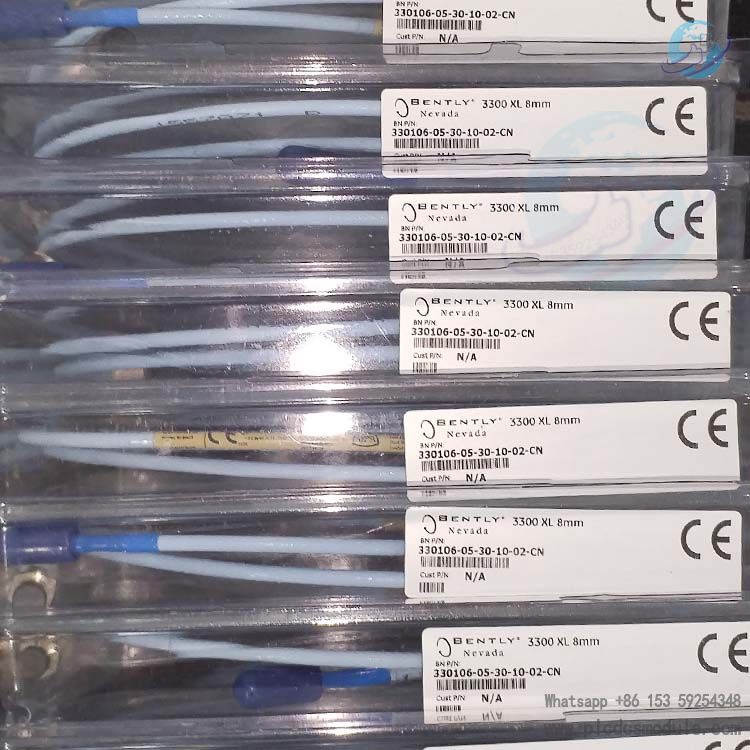

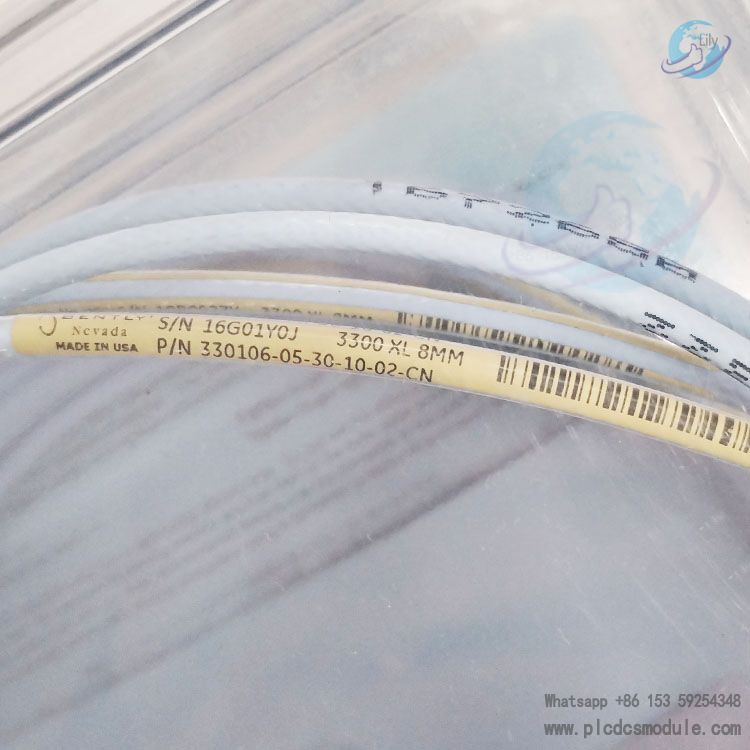

Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Proximity Sensor

The Bently Nevada 3300 XL 8 mm 330106-05-30-10-02-CN Proximity Sensor is a high-precision sensor for industrial monitoring. It belongs to the 3300 XL series of products by Bently Nevada. It is mainly used to measure the distance between the probe tip and the conductive surface, and can be applied in fields such as vibration monitoring of rotating machinery and position measurement of fluid film bearing machines.

• Measurement Range: The linear measurement range is 8mm, which can accurately measure the distance change between the probe and the measured object.
• Accuracy: It usually has high accuracy, generally reaching ±0.5% to ±1% of full-scale accuracy, ensuring the accuracy of measurement results.
• Operating Temperature Range: The operating temperature range of the probe is generally -40°C to +125°C, while that of the proximitor sensor is usually -40°C to +85°C, which can adapt to various industrial environments.
• Output Signal: The common output signal is 4-20mA current signal, and voltage signal output is also available, facilitating connection with various monitoring systems and controllers.
• Frequency Response: The frequency range is generally 10Hz to 100kHz, which can quickly and accurately respond to the dynamic changes of the measured object.
• Probe Material: The tip of the probe is made of polyphenylene sulfide (PPS), and the probe housing is made of AISI 303 or 304 stainless steel, which has good corrosion resistance and mechanical strength, extending the service life of the sensor.

• Electrical Connection: It adopts a miniature coaxial Click Loc™ connector and standard cable, ensuring the stability and reliability of signal transmission, and is easy to install and disassemble.

• Interchangeability: The probe, extension cable and proximitor sensor of the 3300 XL 8mm proximity transducer system are fully interchangeable. There is no need for matching or bench calibration of individual components, which facilitates the maintenance and upgrading of the system.
• Anti-interference: It has a high immunity to radio frequency interference (RFI) and can be installed in fiberglass enclosures without being adversely affected by nearby radio frequency signals. It meets the European CE marking certification, eliminating the need for special shielded conduits or metal enclosures, thus reducing installation costs and complexity.
• Compliance with Standards: The standard 3300 XL 8mm 5-meter system fully complies with the mechanical configuration, linear range, accuracy and temperature stability requirements of the American Petroleum Institute (API) 670 standard (4th edition).

• Vibration Monitoring of Rotating Machinery: Used to monitor the vibration of rotating machinery such as motors, pumps, compressors, etc., so as to detect abnormal vibration of equipment in time and prevent equipment failures.
• Position Measurement: It can accurately measure the position of the shaft in fluid film bearing machines, ensuring the normal operation of the equipment and the correct cooperation between components.
• Keyphasor Reference and Speed Measurement: Provides keyphasor reference signals for rotating machinery and can also be used to measure the speed of rotating equipment.
• Shaft Runout Measurement: Monitors the radial runout of the shaft to judge the operating status of the shaft and the wear condition of mechanical components.

• Gap and Spacing Measurement: Measures the gap or spacing between mechanical components to ensure the assembly accuracy and safe operation of the equipment.
