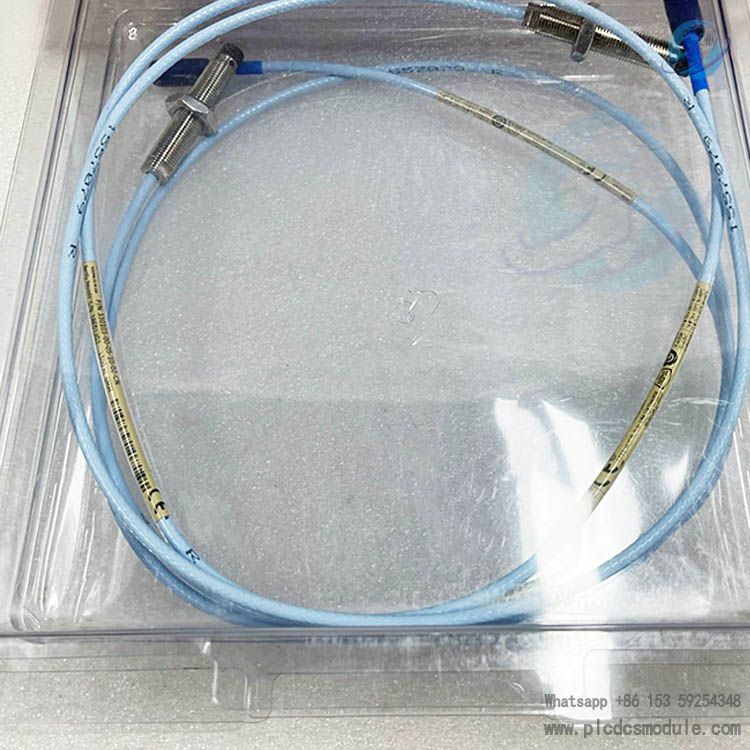

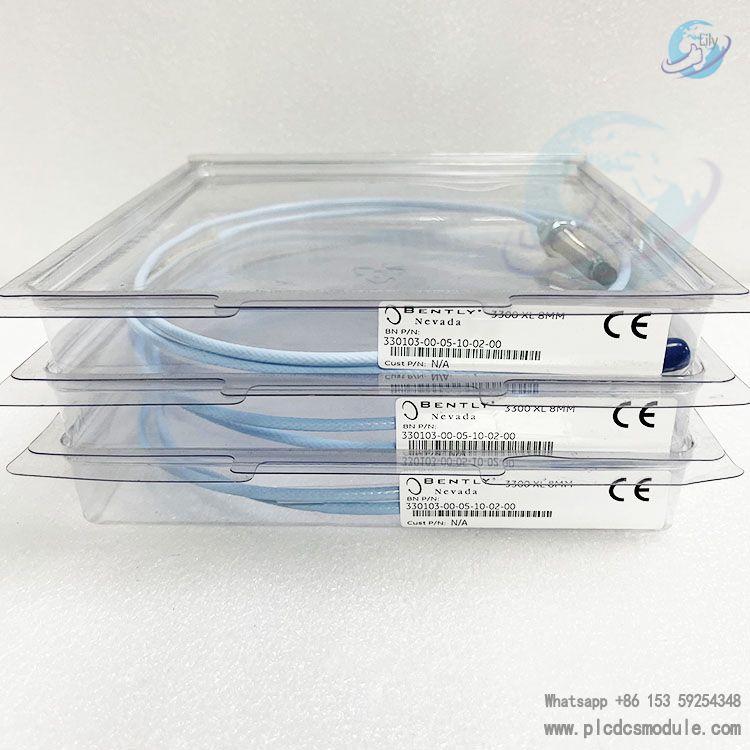

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The 330103-00-05-10-02-00 is a Bently Nevada 3300 XL series 8mm proximity probe with Metric specifications, featuring an M10×1 thread and no armor. It is designed for use with the 3300 XL system and excels at accurately measuring the static position and dynamic vibration of conductive surfaces. Constructed with durable materials, the probe tip is made of PPS and the housing is stainless steel, while the cable offers excellent insulation. It is easy to install thanks to the ClickLoc connector that requires no tools, and it is also compatible with some non-XL series components. This probe is suitable for monitoring equipment such as fluid film bearings and provides reliable data for mechanical condition monitoring.
Basic Information
System Compatibility: Part of the 3300 XL 8 mm Proximity Sensor System, which includes a 3300 XL 8 mm Probe, 3300 XL Extension Cable, and 3300 XL Proximitor Sensor. This system measures the distance between the probe tip and a conductive surface, outputting a proportional voltage for both static (position) and dynamic (vibration) measurements. It is primarily used for vibration and position monitoring in fluid-film bearing machinery, as well as Keyphasor referencing and speed measurement.
Interchangeability: Electrically and physically compatible with non-XL 3300 Series 5 mm and 8 mm sensor components, including 3300 5 mm probes (for installations where space is limited). Probes, extension cables, and Proximitor Sensors within the 3300 XL 8 mm system are fully interchangeable without requiring component matching or bench calibration.

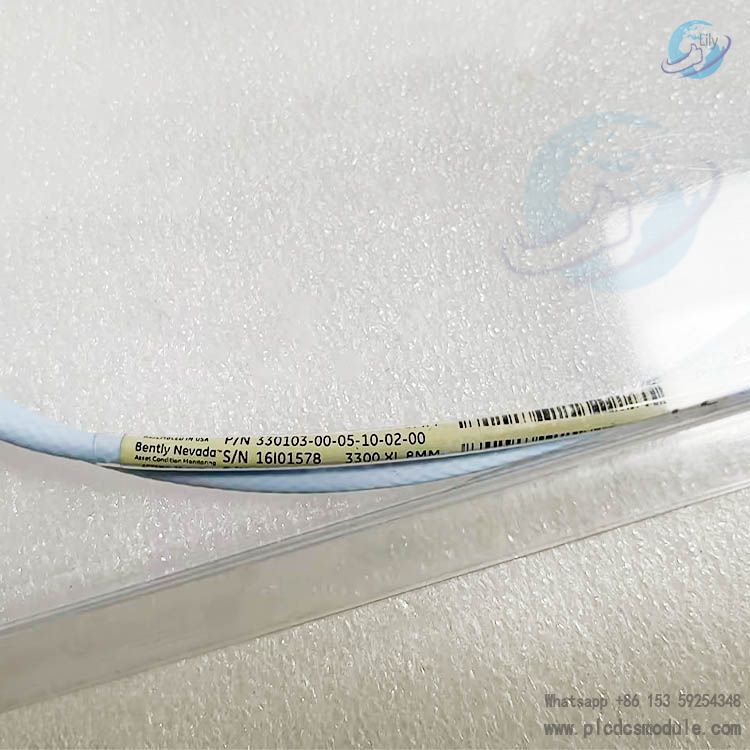

Probe Model Interpretation (330103-00-05-10-02-00):
- Base Model: 330103 denotes a 3300 XL 8 mm probe with M10×1 thread and no armor.
- Parameter Breakdown:
- AA (00): No threaded length (0 mm, inferred based on housing length constraints).
- BB (05): Total housing length of 50 mm (increments of 10 mm; 05 = 50 mm).
- CC (10): Total length of 1.0 meter (3.3 feet).
- DD (02): Miniature coaxial ClickLoc connector with standard 75Ω triaxial FEP-insulated cable.
- EE (00): No agency certifications required.
Technical Specifications
- Probe Tip Material: Polyphenylene Sulfide (PPS).
- Housing Material: AISI 303 or 304 Stainless Steel (SST).
- Cable: Standard 75Ω triaxial with Fluorinated Ethylene Propylene (FEP) insulation.
- Thread: M10×1 metric thread.
- Temperature Range: -52°C to +177°C (-62°F to +350°F) for operation and storage.
- Linear Range: 2 mm (80 mils) from ~0.25 mm (10 mils) to 2.3 mm (90 mils) (~–1 to –17 Vdc).
- Recommended Radial Vibration Gap: -9 Vdc (≈1.27 mm or 50 mils).
Incremental Sensitivity Factor (ISF):
- Standard 1-meter System: 7.87 V/mm (200 mV/mil) ±5% (including interchangeability error) from 0°C to +45°C (+32°F to +113°F) within the 80-mil linear range (measured in 0.25 mm/10-mil increments).
- Temperature Variation: Maintains ±10% of 7.87 V/mm (200 mV/mil) with probe temperatures from –35°C to +120°C (-31°F to +248°F) and Proximitor/extension cable temperatures from 0°C to +45°C (+32°F to +113°F).
Deviation from Straight Line (DSL):
Mechanical Characteristics
- Weight: The probe weighs 323g/m (11.4oz).
- Thread Engagement Limit: For the M10×1 thread, the maximum thread engagement length is 15mm, adhering to the industry standard of 1.5 times the nominal thread diameter. Exceeding this length may cause jamming during installation, and damage to the proximity probe due to excessive thread engagement is not covered under warranty.
- Connector: Features a corrosion-resistant, gold-plated ClickLoc connector, which can be tightened by hand (with an audible "click" to indicate proper seating). Its specially designed locking mechanism prevents loosening, and no special tools are required for installation or removal. This probe model is equipped with a miniature coaxial ClickLoc connector and does not include a connector protector.
Application and Compatibility Notes
- Application Scenarios: Suitable for vibration and position measurement in fluid-film bearing machinery, as well as Keyphasor referencing and speed measurement. When installation space permits, 8mm probes are recommended for priority use due to their thicker coil encapsulation in the molded PPS plastic tip and larger housing diameter, offering enhanced durability.
- Compatibility Details: Interchangeable with non-XL 3300 Series 5mm and 8mm components. However, when used in combination, system performance will be limited to the specifications of non-XL 3300 Series 5mm and 8mm sensor systems. It is also compatible with 3300 XL Proximitor sensors and extension cables. If extended temperature range (ETR) components are used, system accuracy will be limited to the precision of ETR systems.
