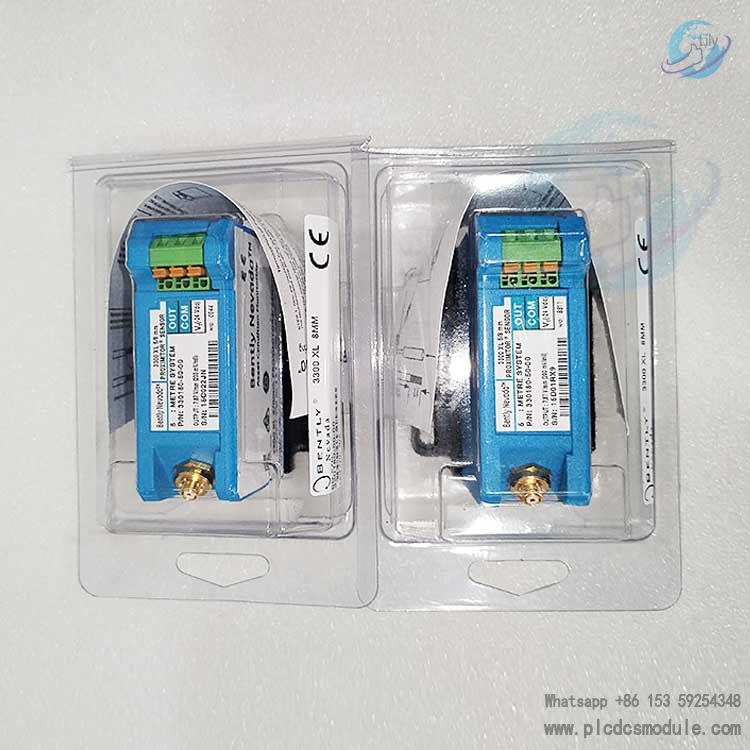

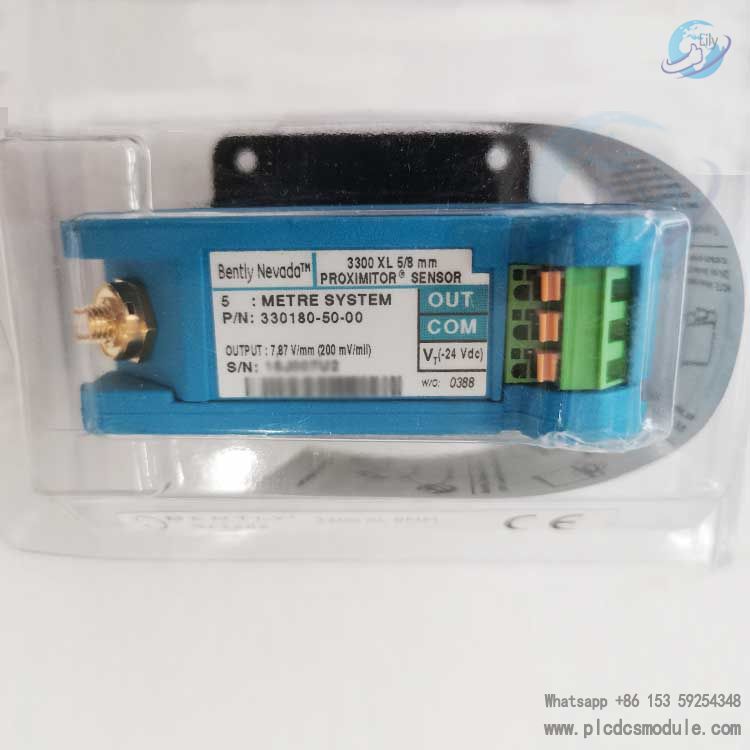

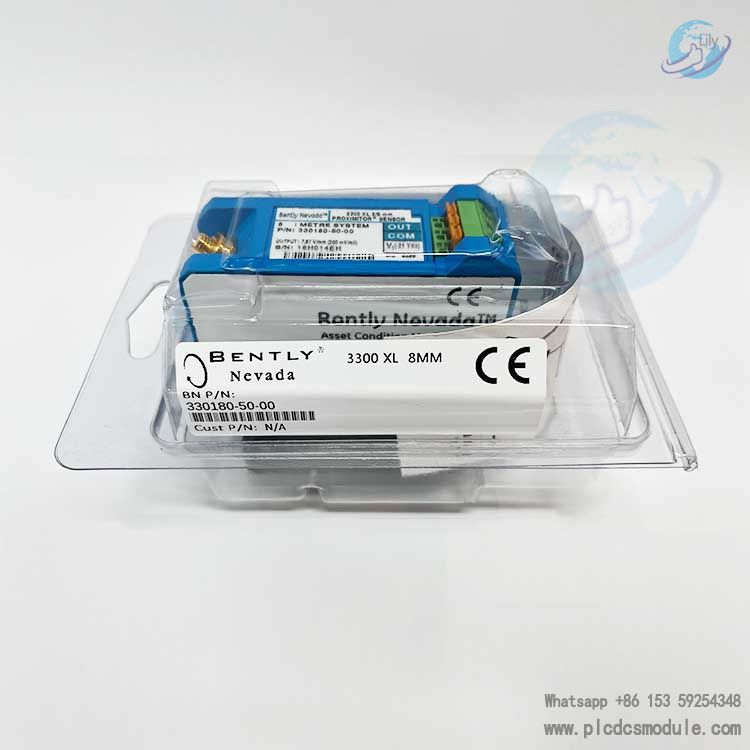

Bently Nevada 330180-50-00 Proximitor Sensor, a key member of the 3300 XL series, stands out for its (excellent) performance. It receives signals from specified 3300-series probes and extension cables, outputting voltages proportional to the distance between the probe tip and the measured conductive surface. This enables precise measurement of both static positions and dynamic vibrations. With a rugged and reliable design, the sensor is highly immune to radio frequency interference, adapting to various harsh environments. Its flexible installation supports high-density DIN rail or traditional panel mounting, providing a stable and efficient solution for industrial equipment condition monitoring.
Data Sheet
3300 XL 50 mm Proximity Transducer.pdf
Bently Nevada 330180-50-00 Proximitor Sensor Specifications
Input: Receives signals from non-contact 3300 Series 5mm, 3300 8mm, or 3300 XL 8mm eddy current probes and extension cables.
Power Supply:
Without safety barrier: -17.5Vdc to -26Vdc, max current 12mA.
With safety barrier: -23Vdc to -26Vdc.
Note: Operation above -23.5Vdc reduces linear range.
Supply Voltage Sensitivity: Output voltage changes <2mV per 1V change in supply voltage.
Extension Cable Capacitance: Typical 69.9pF/m (21.3pF/ft).
Field Wiring:
Recommended cable: 3-core shielded, 0.2-1.5mm² (16-24AWG), or 0.25-0.75mm² (18-23AWG) with ferrules.
Maximum length from 3300 XL proximitor to monitor: 305m (1000ft).
Linear Range: 2mm (80 mils), starting ~0.25mm (10 mils) from target surface, spanning 0.25-2.3mm (10-90 mils, approx. -1 to -17Vdc).
Recommended Gap Setting: 1.27mm (50 mils).
Mounting:
Compact design supports:
High-density DIN rail mounting.
Traditional panel mounting.
Enhanced RFI/EMI immunity meets European EMC standards without special installation considerations. SpringLoc terminal strips enable tool-free, secure field wiring.
System Overview:
The 3300 XL 8mm proximity sensor system (probe, extension cable, and proximitor) provides an output voltage proportional to the distance between the probe tip and conductive target. It measures both static (position) and dynamic (vibration) values, ideal for:
Vibration and position monitoring in fluid-film bearing machinery.
Phase reference and speed measurement applications.
Bently Nevada 330180-50-00 Proximitor Sensor is widely used in the following industries:
Power Industry: Applied to monitor shaft vibration and shaft displacement of rotating equipment such as steam turbines and generators, ensuring stable equipment operation and avoiding shutdowns caused by mechanical failures.
Oil & Gas: Suitable for condition monitoring of critical equipment like compressors and pumps, tracking issues such as bearing wear and rotor offset in real time to safeguard the safe operation of oil and gas extraction and transportation systems.
Chemical Industry: Capable of monitoring the mechanical status of equipment such as reactor agitators and centrifuges, preventing leaks or equipment damage caused by abnormal vibrations, and reducing production safety risks.
Metallurgical Manufacturing: Used in large equipment like rolling mills and blowers, optimizing maintenance cycles and improving production efficiency through precise measurement of vibration and position parameters.
Aerospace & Heavy Industry: Applied in scenarios such as aero-engine testing and marine turbine monitoring to capture high-frequency vibration data, supporting equipment fault early warning and performance optimization.
Paper & Food Processing: Monitors the condition of high-speed paper-making machinery and food processing production line equipment, reducing production interruptions caused by mechanical failures.
With its anti-interference capability and high-precision measurement characteristics, Bently Nevada 330180-50-00 Proximitor Sensor has become a core component of preventive maintenance for industrial equipment, especially suitable for critical process scenarios with extremely high reliability requirements.
