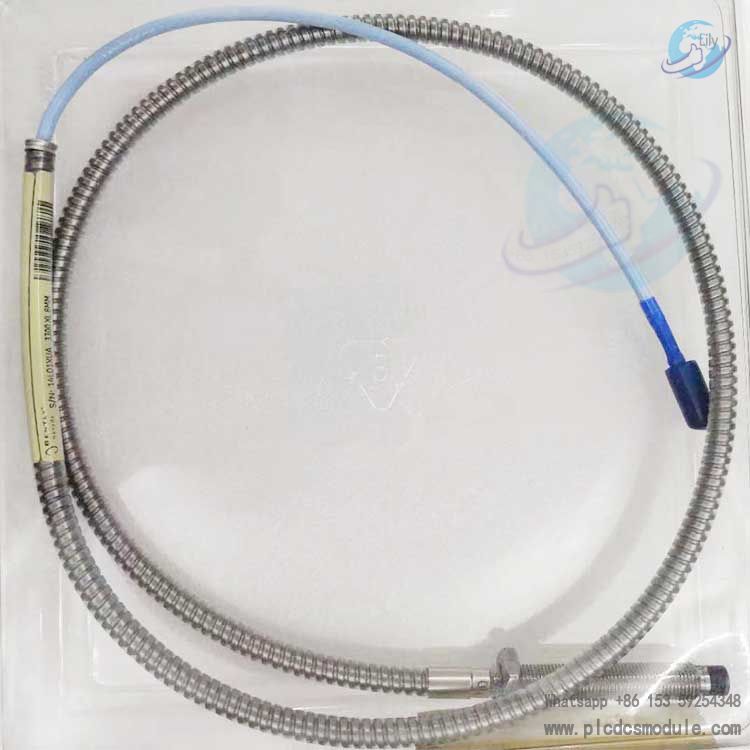

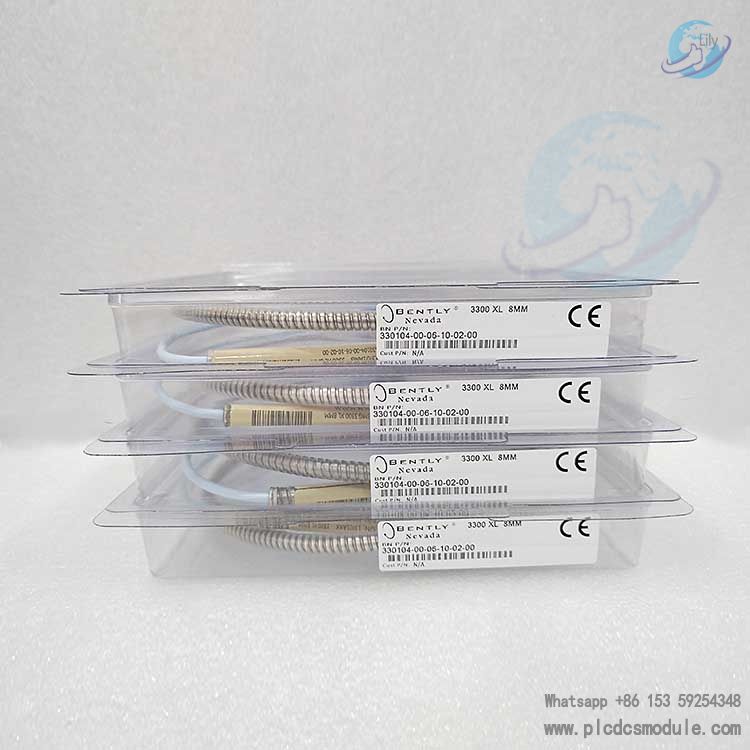

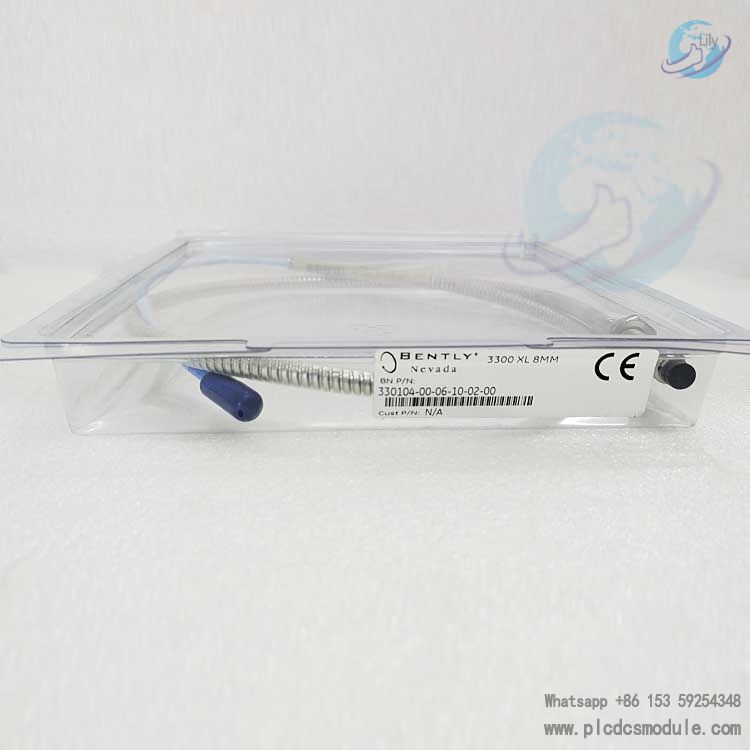

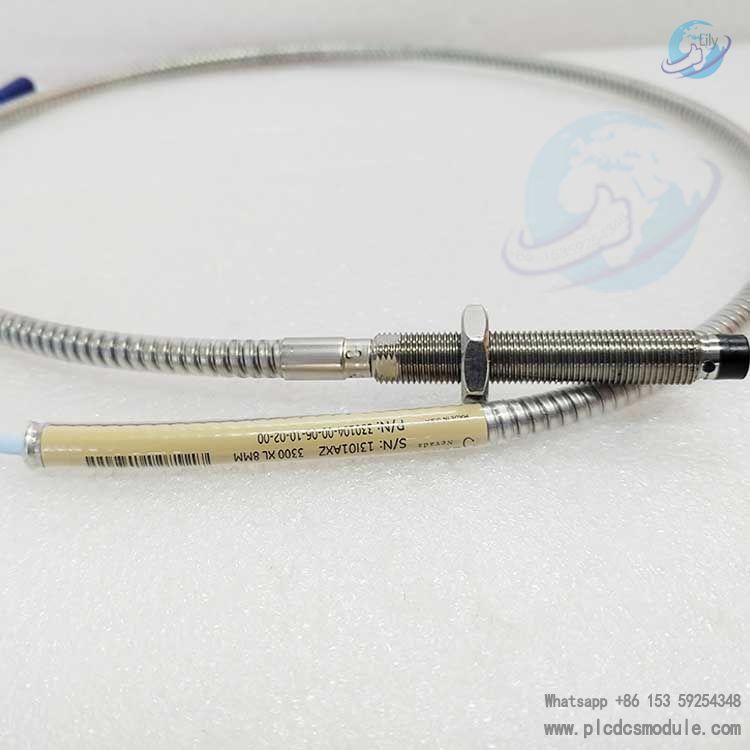

The Bently Nevada 330104-00-06-10-02-00 is an 8mm eddy current proximity probe in the 3300 XL series. As a non-contact displacement sensor, it is used for precise measurement of parameters such as shaft vibration, shaft displacement, eccentricity, key phasor and rotational speed of rotating machinery.
Basic Specifications
Measurement Range
Linear Range: 2 mm (80 mils)
Recommended Gap: 1.27 mm (50 mils, corresponding to -8.5 Vdc output)
Nonlinear Error: ≤±1% (full scale)
Physical Parameters
Probe Diameter: 8 mm (standard type)
Housing Material: Stainless steel (17-4 PH)
Cable Material: Teflon-insulated, stainless steel braided shield
Operating Temperature
Probe: -54°C to +177°C (-65°F to +350°F)
Extension Cable: -54°C to +177°C (-65°F to +350°F)
Proximitor: -40°C to +85°C (-40°F to +185°F)
System Composition
Probe: 330104-00-06-10-02-00 (8 mm diameter)
Extension Cable: 330130-06 (6 m, customizable length)
Proximitor: 330180 (required for supporting use)
Technical Characteristics
Output Characteristics
Sensitivity: -7.87V/mm (-200mV/mil)
Output Voltage Range: -2 to -18Vdc (relative to ground)
Linearity: ±1% (within the recommended gap range)
Electrical Parameters
Supply Voltage: -24Vdc (typical, requires matching with proximitor)
Quiescent Current: ≤12mA
Frequency Response: 0 to 10kHz (±1dB)
Linear Range: 0.25mm to 2.3mm (10 to 90 mils)
Anti-Interference Capability
RFI Immunity: Complies with European EMC standards
EMI Immunity: Built-in shielding layer to reduce external interference
Application Scenarios
Rotating Machinery Monitoring
Shaft vibration and displacement monitoring for turbines, generators, compressors, pumps, and other equipment
Fault diagnosis for bearing wear, rotor unbalance, misalignment, etc.
Industrial Automation
Precision positioning control
Material thickness detection
Vibration analysis and fault prediction
