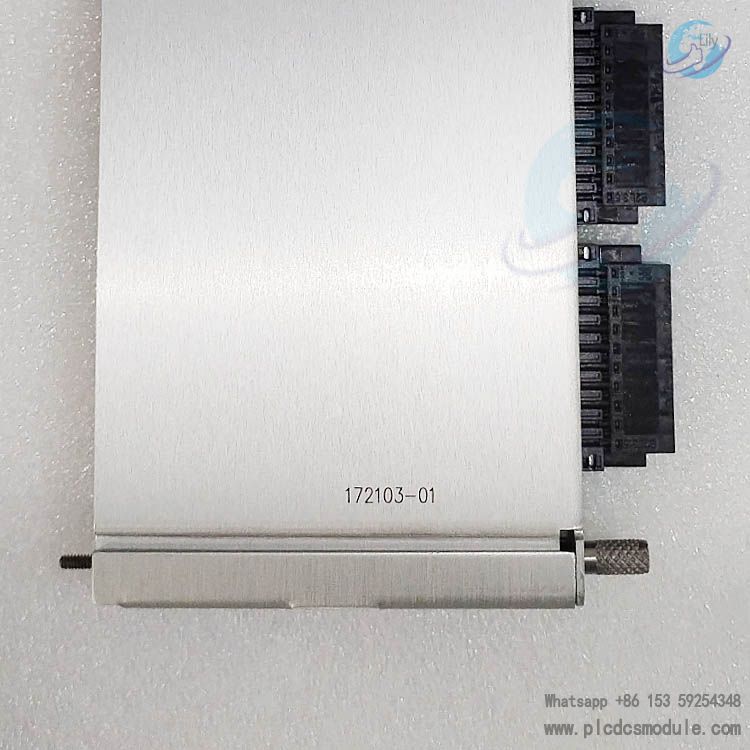

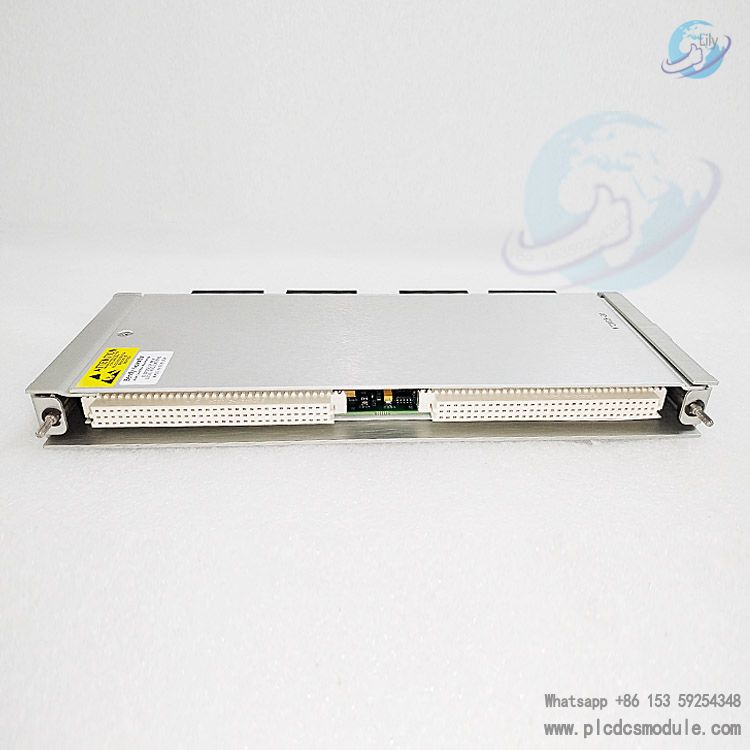

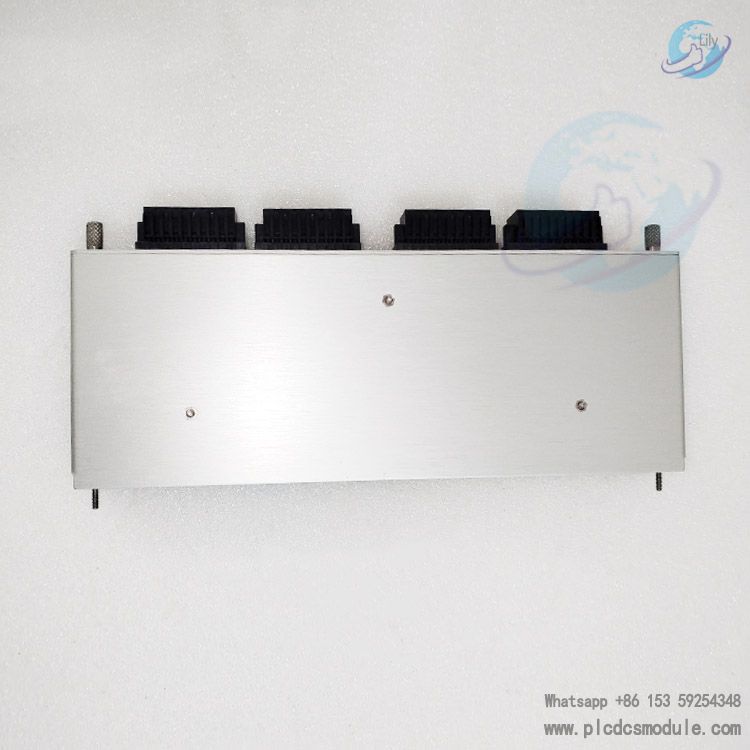

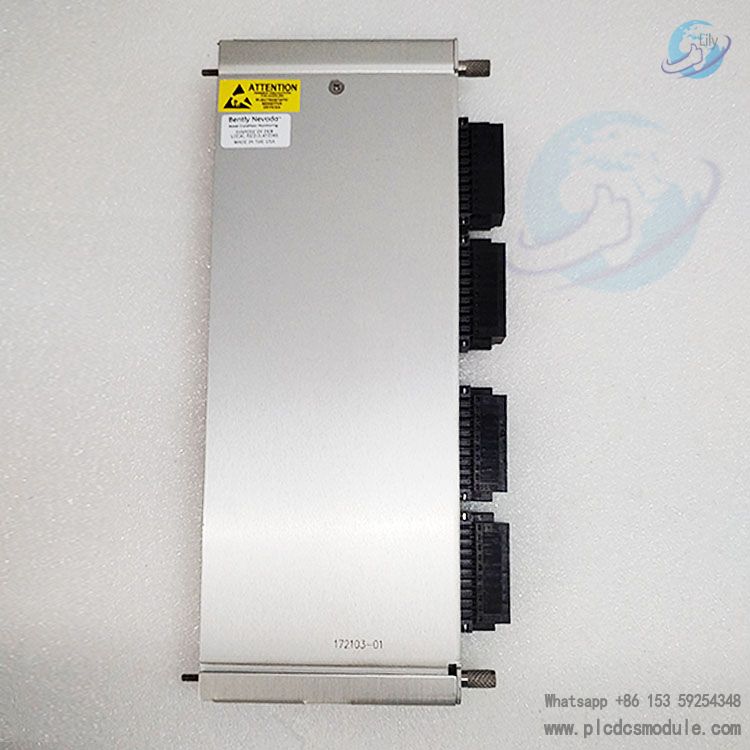

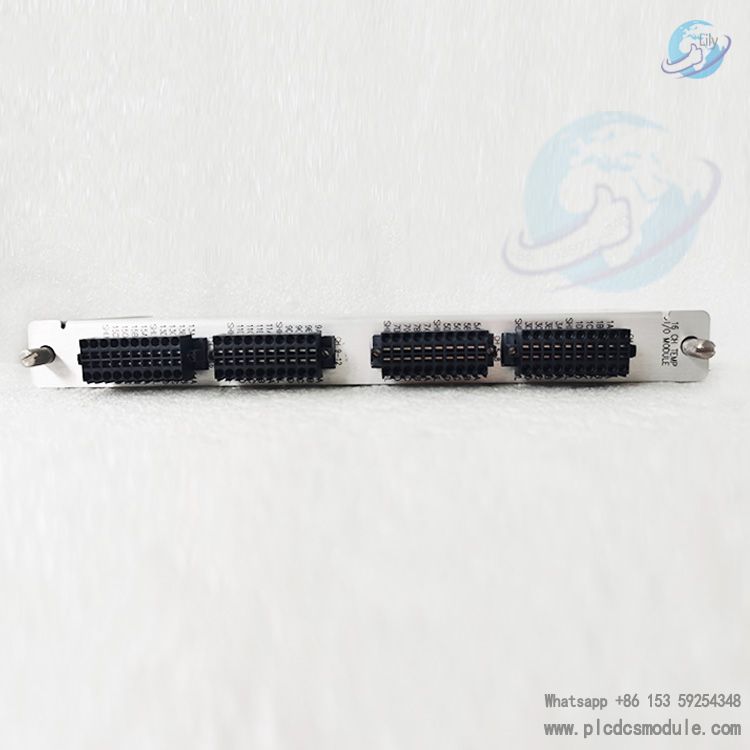

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Bently Nevada 172103-01 is the RTD/Isolated Tip Thermocouple (TC) Input/Output (I/O) Module with internal terminations for the 3500/65 16-Channel Temperature Monitor. The monitor is primarily used to provide 16 channels of temperature monitoring, accepting temperature inputs from Resistance Temperature Detectors (RTDs) and isolated tip thermocouples (TCs), conditioning these inputs, and comparing them against user-programmable alarm setpoints.
Data Sheet
Bently Nevada 172103-01.pdf
- Signal Type: Accepts 1 to 16 RTD or isolated tip TC transducer signals.
- Input Impedance: Greater than 1 MΩ for each lead input.
- Resolution: 1°C or 1°F.
- Accuracy
- Internal Termination: ±3°C at +25°C (±5.4°F at +77°F) for Bulkhead Rack.
- External Termination: ±3°C at +25°C (±5.4°F at +77°F) for both Bulkhead and Standard Racks; ±2°C at +25°C (±3.6°F at +77°F) for Cold Junction Compensation Sensor (used for TC measurements).
Alarm Setpoints: Alert and Danger setpoints are software-programmable, adjustable from 0 to 100% of full-scale for each measured value. If the full-scale range exceeds the sensor range, the software limits the setpoint to the sensor’s range. Alarm accuracy is within 0.13% of the desired value. Both under- and over-alarm setpoints are supported.
Alarm Time Delays:
- Alert Delay: 1 to 60 seconds in 1-second increments.
- Danger Delay: 1 to 60 seconds in 0.5-second increments.
- Operating Temperature: -30°C to +65°C (-22°F to +150°F).
- Storage Temperature: -40°C to +85°C (-40°F to +185°F).
- Dimensions (Height × Width × Depth): 241.3 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in).
- Weight: 0.45 kg (1.0 lbs).
Suitable for various industrial scenarios requiring temperature monitoring. It realizes real-time temperature monitoring of equipment by accepting temperature inputs from RTDs and isolated tip thermocouples.
As part of the Bently Nevada machinery condition monitoring system, it is used to monitor the temperature status of machines, providing data support for equipment operation status evaluation and fault early warning.
In TMR configurations, three adjacent temperature monitors must be installed in groups. Two types of voting are used to ensure accurate operation and avoid single-point failures, making it suitable for critical systems with extremely high reliability requirements.
With maritime certifications such as ABS (Marine and Offshore Applications) and DNV GL (Rules for Classification of Ships, Offshore Units, High Speed and Light Craft), it can be used for temperature monitoring in marine engineering fields such as ships and offshore platforms.
