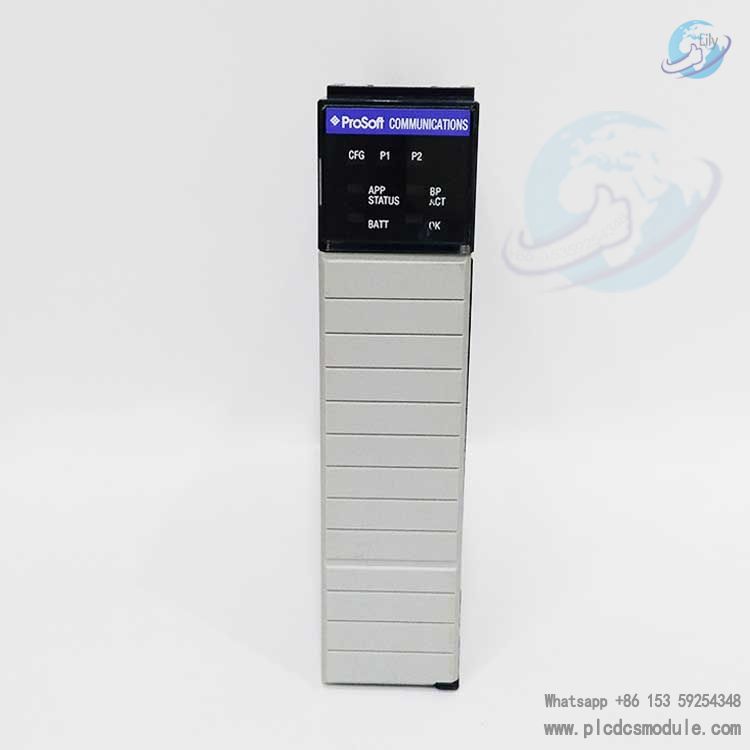

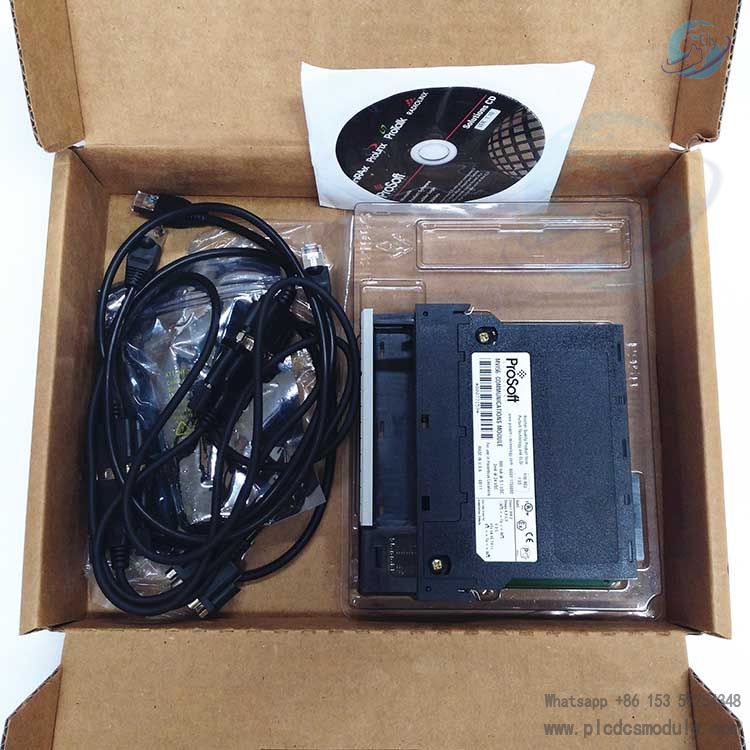

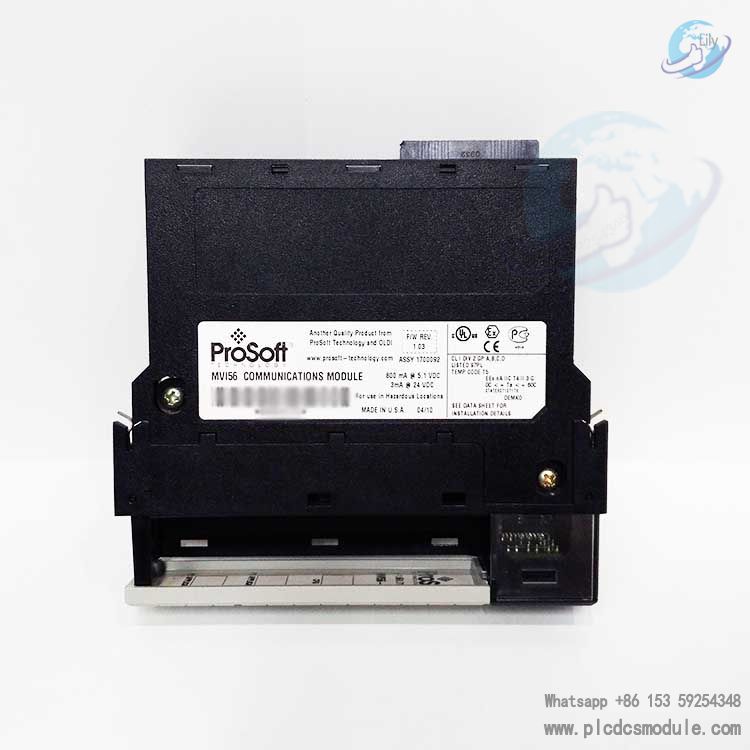

The PROSOFT MVI56-MCM is a high-performance Modbus communication module specifically engineered for Allen-Bradley ControlLogix and CompactLogix PLC platforms. Developed by ProSoft Technology, a company specializing in industrial automation communication solutions, this module serves as a bridge between Modbus RTU/ASCII masters or slaves and ControlLogix systems. It supports multiple communication protocols and network topologies, meeting the complex communication requirements of industrial environments and ensuring reliable data exchange between disparate devices.
Functional Features
Multi-Protocol Support
Supports both Modbus RTU and Modbus ASCII protocols, operating as a master or slave to flexibly adapt to diverse industrial communication scenarios. This enables seamless communication with various Modbus-compatible devices (e.g., variable frequency drives, instruments, sensors), facilitating data interaction and collaborative operation between equipment of different brands and types.
Flexible Network Configuration
Offers multiple network configuration options, supporting point-to-point, multi-drop, and daisy-chain topologies. Users can select the most suitable network topology based on the layout and device distribution of the industrial site, enabling easy system integration and expansion while reducing cabling costs and complexity.
Abundant I/O Mapping
Features up to 16,384 I/O mapping registers, enabling massive data transmission between Modbus devices and ControlLogix controllers. This allows the system to acquire and process real-time data from Modbus devices (such as physical quantities collected by sensors, equipment status information, etc.), providing sufficient data support for industrial automation control.
Advanced Diagnostic Functions
Equipped with comprehensive diagnostic capabilities to monitor communication status and equipment operation in real time. Through LED indicators on the module and diagnostic information in ControlLogix, users can quickly detect issues like communication failures or equipment anomalies, allowing prompt troubleshooting. This significantly reduces fault diagnosis time and improves production efficiency.
Redundant Communication Support
Supports redundant communication configurations, achieving network redundancy via dual ports. In critical industrial applications, network redundancy ensures that if one communication line fails, the system automatically switches to the backup line, maintaining communication continuity and reliability. This prevents production downtime and losses caused by communication interruptions.
Technical Parameters
Communication Interfaces

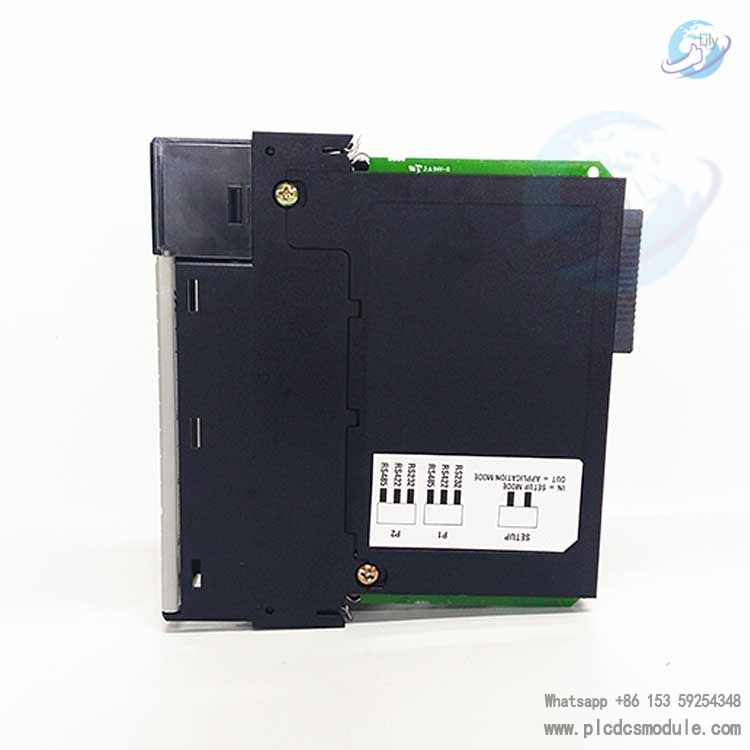

Physical Interfaces: Provides RS-232, RS-422, or RS-485 interface options. Users can select suitable interface types based on actual requirements to adapt to different communication distances and environmental conditions.
Baud Rate Range: Supports baud rates from 1200 to 115200 bps, allowing flexible adjustment according to communication distance and data transmission rate requirements to ensure communication stability and efficiency.
Protocol Support
Modbus Function Codes: Supports multiple Modbus function codes, including 01 (Read Coils), 02 (Read Discrete Inputs), 03 (Read Holding Registers), 04 (Read Input Registers), 05 (Write Single Coil), 06 (Write Single Register), 15 (Write Multiple Coils), and 16 (Write Multiple Registers), etc., meeting the communication needs of different types of Modbus devices.
Protocol Conversion: Supports automatic mapping between Modbus RTU/ASCII and ControlLogix tags, enabling data conversion between the two protocols without complex programming, which simplifies the system integration process.
Electrical Characteristics
Operating Voltage: 20.4 to 28.8 VDC, adapting to the common power voltage range in industrial fields to ensure the module operates stably under different power conditions.
Power Consumption: Typical power consumption is 3.5 W. The low-power design helps reduce system operation costs and energy consumption.
Environmental Parameters
Operating Temperature: -20°C to 60°C, capable of normal operation within a wide temperature range and adapting to harsh industrial environment temperature changes.
Storage Temperature: -40°C to 85°C, ensuring the module's reliability during transportation and storage.
Humidity: 5% to 95% relative humidity, non-condensing, enabling stable operation in high-humidity environments without additional moisture-proof measures.
Mechanical Characteristics
Dimensions: 120.65 mm × 71.12 mm × 114.3 mm (Height × Width × Depth). The compact design allows for convenient installation in ControlLogix and Co
Application Fields
Industrial Automation System Integration: In industrial automation projects, integrating devices of different brands and types into a unified control system is often required. As a Modbus communication interface, the MVI56-MCM module enables seamless connection between Allen-Bradley PLCs and various Modbus devices, providing a convenient solution for system integration.
Energy Management Systems: In the field of energy management, real-time monitoring and control of energy production, transmission, and consumption (such as electricity, water, and gas) are essential. The module can connect Modbus devices like energy monitoring instruments and smart meters, transmitting energy data to ControlLogix controllers to achieve refined energy management and optimized utilization.
Manufacturing Equipment Monitoring: In manufacturing, monitoring the status of production equipment and diagnosing faults are critical. Through the MVI56-MCM module, operational data from various production equipment (such as machine tools, robots, conveyors, etc.) can be transmitted in real time to the control system, enabling operators to promptly understand equipment status, detect potential faults in advance, reduce downtime, and improve production efficiency.
Process Control Industries: In process control industries such as chemical, petroleum, and food processing, precise control of process parameters (temperature, pressure, flow, etc.) is required. The module can connect sensors and actuators with Modbus protocols to achieve process data collection and control command issuance, ensuring production process stability and product quality consistency.
