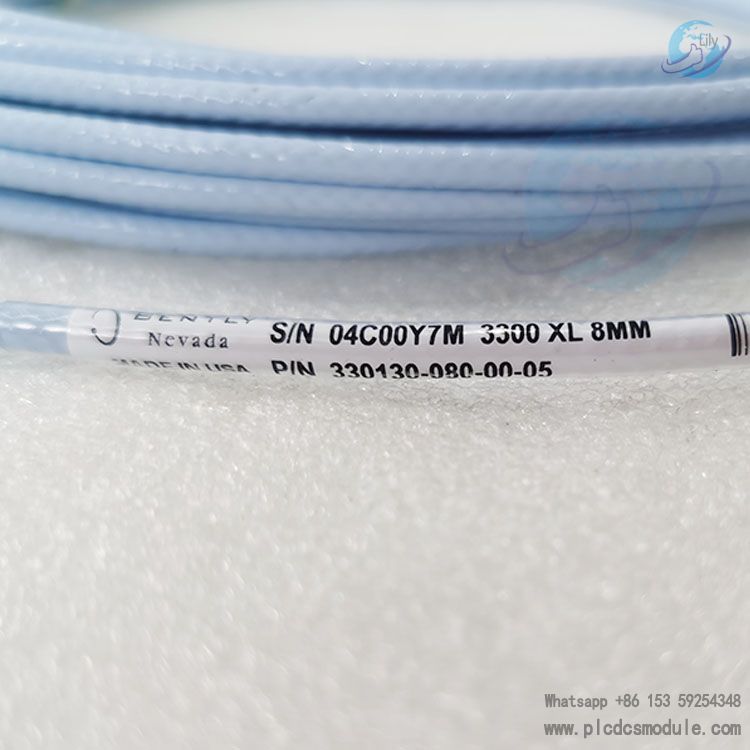

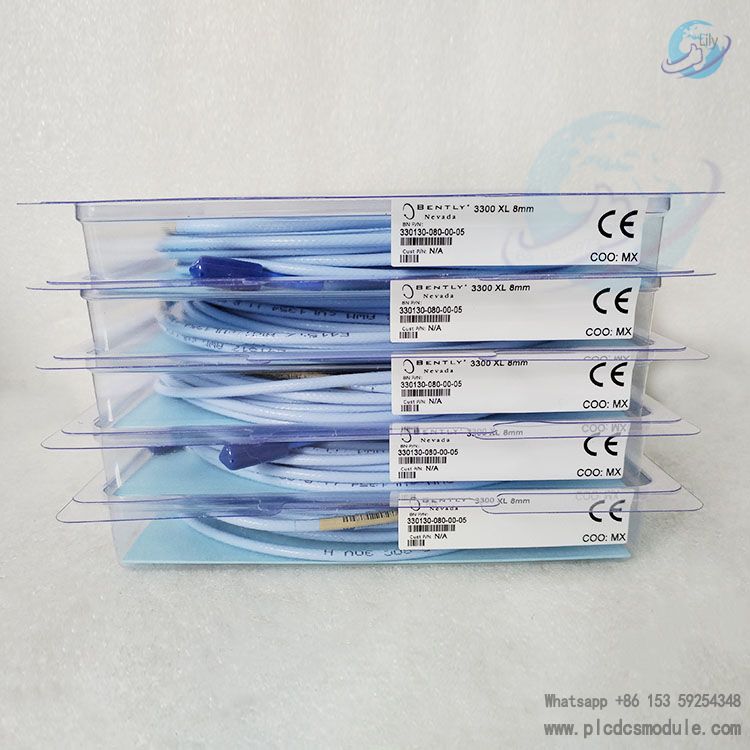

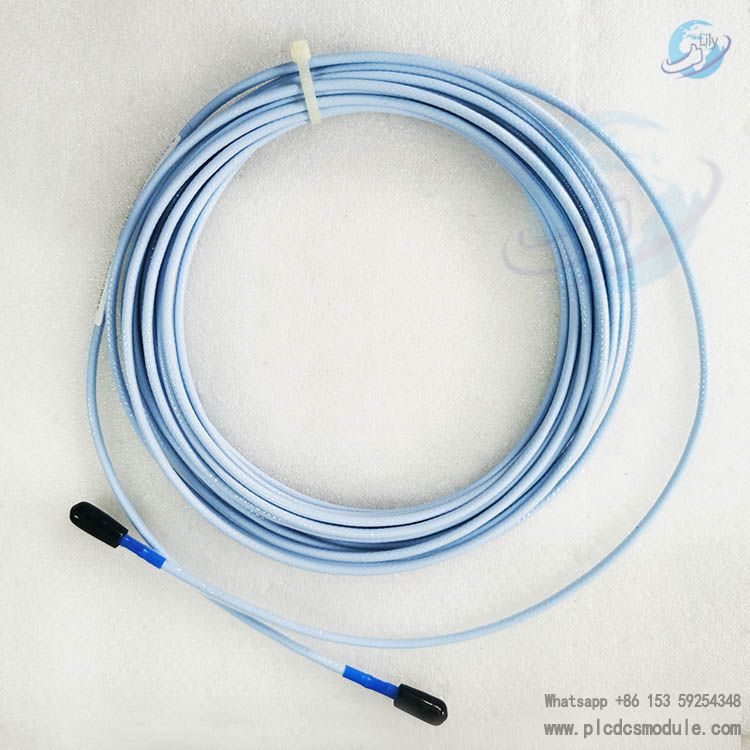

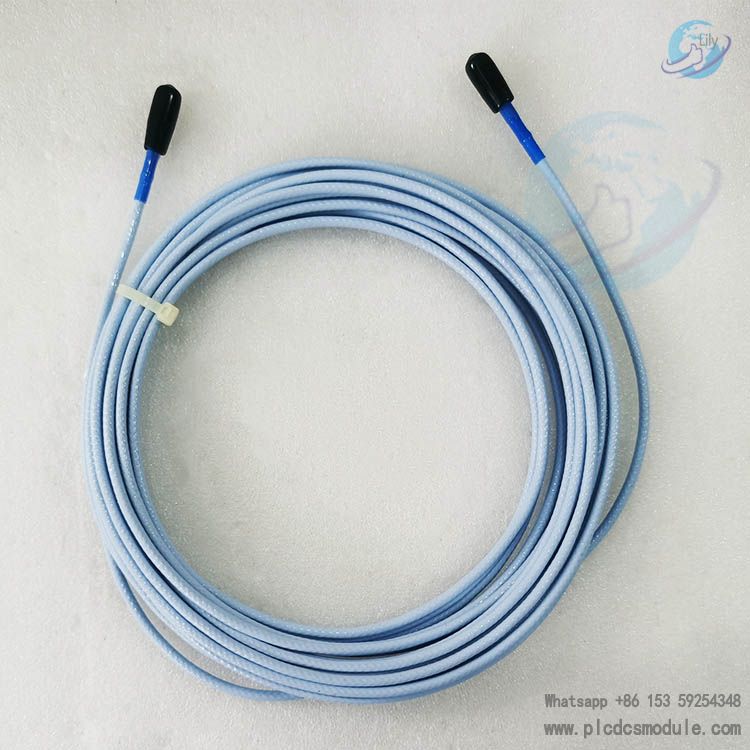

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Bently Nevada 330130-080-00-05 is a 3300 XL standard extension cable. It has a length of 8 meters and is made of 75Ω triaxial fluorinated ethylene propylene (FEP) insulation material, with a typical capacitance of 69.9pF/m. Both ends are equipped with standard connectors and feature connector protection. It is suitable for hazardous areas and has obtained CSA, ATEX, and IECEx certifications. Mainly used to extend the cable length of Bently sensors, it can be paired with speed, vibration and other sensors, meeting the needs of vibration and displacement measurement in compression systems, oil-film bearing machinery, etc. Moreover, the probe, extension cable and preamplifier are fully interchangeable.
DATA SHEET
330130-080-00-05.pdf
Basic Information
System Affiliation: It belongs to the 3300 XL 8 mm Proximity Transducer System, serving as an extension cable component of the system. It must be used in conjunction with probes and proximitor sensors of the same series.
Compatibility: Fully compatible with 8 mm probes and proximitors in the 3300 XL series, and interchangeable with 5 mm and 8 mm components of the non-XL 3300 series (when used in a mixed manner, the system performance is subject to the standards of non-XL components).
Specifications and Parameters
Electrical Characteristics
Resistance:
- Resistance between center conductors (R CORE): 1.76 ± 0.26 Ω at 8.0 meters length.
- Resistance between outer conductors (R JACKET): 0.53 ± 0.11 Ω at 8.0 meters length.
Capacitance: Typical value is 69.9 pF/m (21.3 pF/ft).
Frequency Response: Within the range of 0-10 kHz, the frequency response is +0, -3 dB. It supports on-site wiring with a maximum length of 305 meters (1000 feet), but long-distance wiring may cause high-frequency signal attenuation.
Mechanical Characteristics
Cable Type: 75 Ω triaxial cable with fluorinated ethylene propylene (FEP) insulation.
Length: 8.0 meters (26.2 feet), indicated by "080" in the model number.
Minimum Bending Radius: 25.4 mm (1.0 inch).
Tensile Strength: The maximum rated value at the connector between the probe cable and the extension cable is 270 N (60 lbf).
Connectors:
- Material: Gold-plated brass or gold-plated beryllium copper, featuring corrosion resistance.
- Characteristics: Adopting ClickLoc design, which allows manual tightening without tools (a "click" sound indicates proper positioning). The anti-loosening locking mechanism enhances connection stability.
Protection Devices: It can be paired with connector protectors (to be ordered separately or provided as accessories). It is recommended for all installations to improve environmental protection capabilities. The supplied silicone tape can also be used (not recommended for scenarios in contact with turbine oil).
Environmental and Temperature Ranges
Operating Temperature: -52°C to +177°C (-62°F to +350°F), classified as a cable with standard temperature range (non-ETR model).
Storage Temperature: Same as the operating temperature range.
Humidity Resistance: In a 93% humidity environment (in compliance with IEC 68 2 3 standard), the average scale factor (ASF) change is less than 3%.
Interpretation of Ordering Information (Model 330130-080-00-05)
330130: Indicates 3300 XL standard extension cable (FEP insulation).
080: Cable length is 8.0 meters (26.2 feet).
00: Cable type is standard cable (non-armored, non-FluidLoc).
05: Complies with CSA, ATEX, and IECEx certification requirements.
Installation and Usage Notes
When paired with probes and proximitors, the total length must match the length of the proximitor system (e.g., 5-meter or 9-meter systems).
It supports high-density DIN rail mounting or traditional panel mounting. The bases for both mounting methods provide electrical isolation, eliminating the need for additional isolation plates.
It has strong resistance to radio frequency interference (RFI) and can be installed in fiberglass enclosures without the need for special shielded conduits or metal enclosures, reducing installation costs.
Additional Information
Accessory Options: Armored, FluidLoc cables (resistant to fluid leakage), or versions with connector protectors are available. These specific options need to be specified via model suffixes (such as -01, -12, etc.).
Compatibility Extension: It is compatible with 3300 XL ETR (Extended Temperature Range) probes and cables. However, when ETR components are used, the system accuracy is limited by ETR standards.
