To learn more about this product click on the file below or download the file:

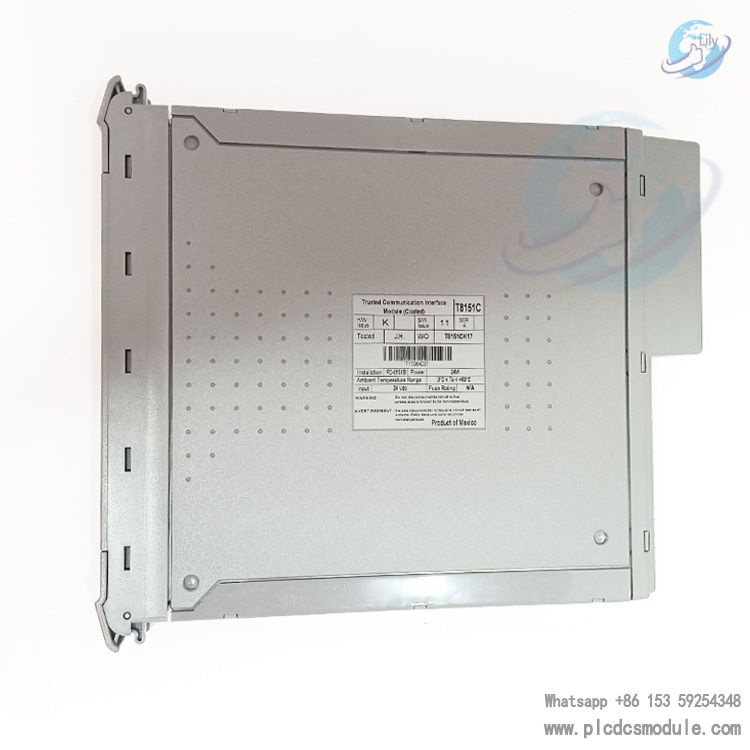

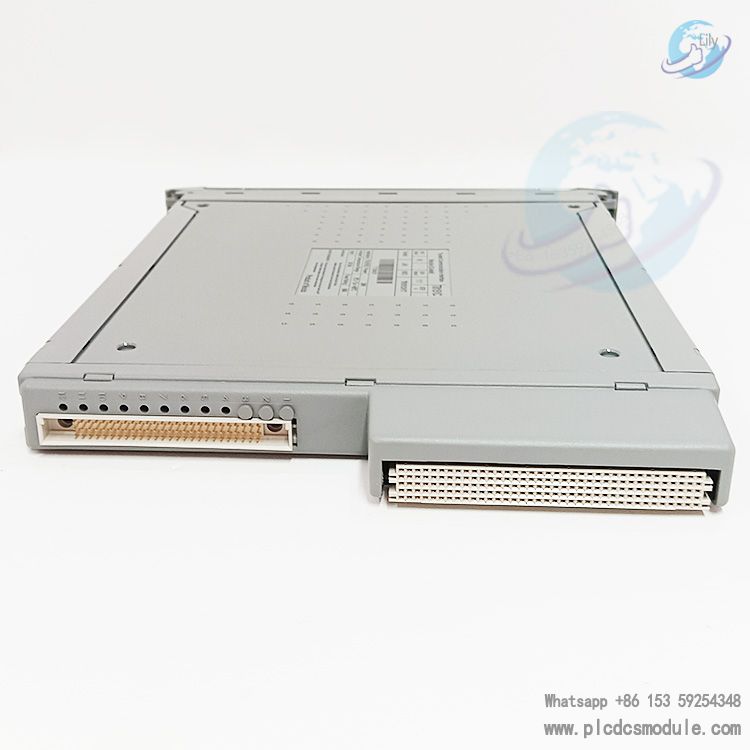

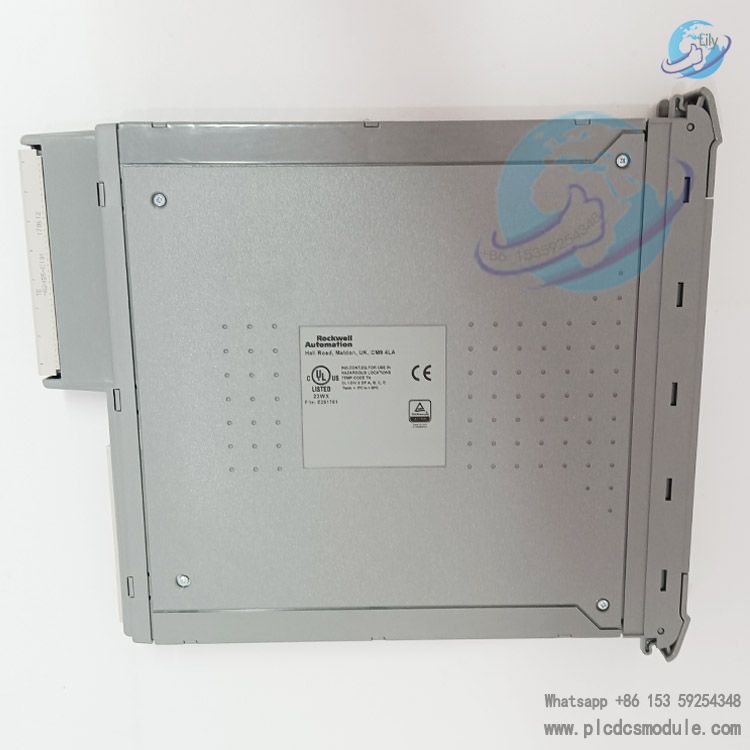

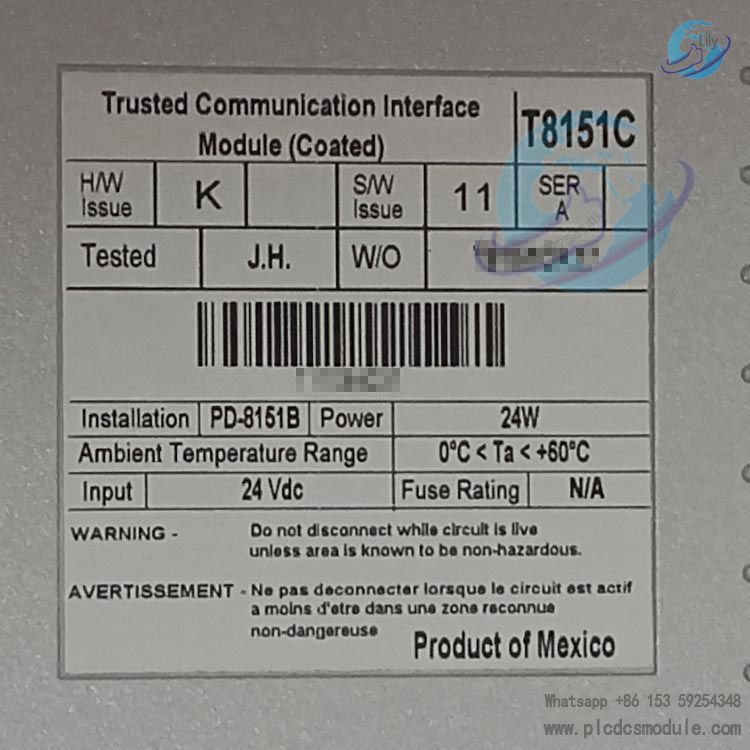

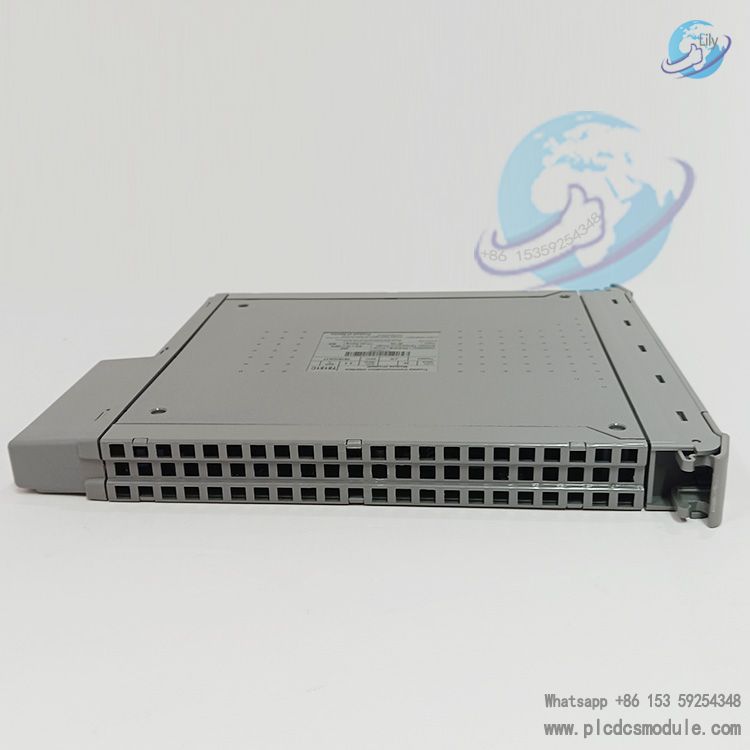

Hardware Specifications
Protection Features: All communication ports feature reinforced 50V insulation. The electrostatic-sensitive PCB must be installed in compliance with anti-static operation specifications.

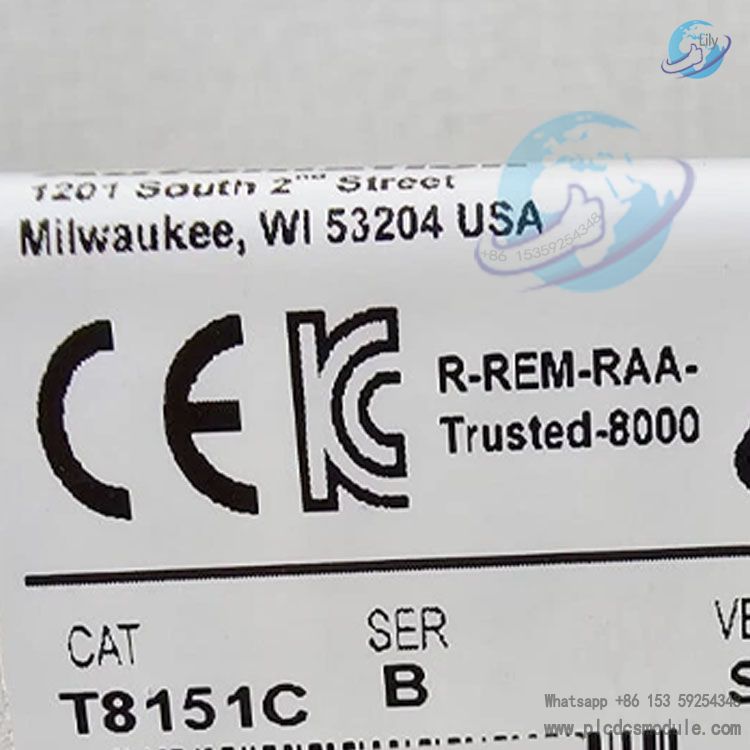

Model Breakdown
- T: Unified prefix for all hardware within the Trusted safety system product range
- 8151: Base hardware designation for communications interface modules
- C: Third-generation hardware revision, the only compatible communications card for Trusted V4.0 systems
Historical Iteration Differentiation
T8151 (Rev H and earlier): Equipped with dual 10Base2 coaxial ports plus one 10BaseT Ethernet port; serial ports mounted on daughterboard

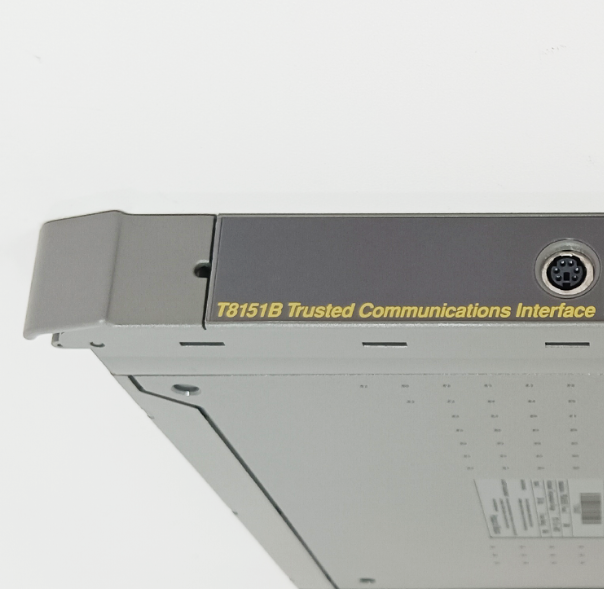

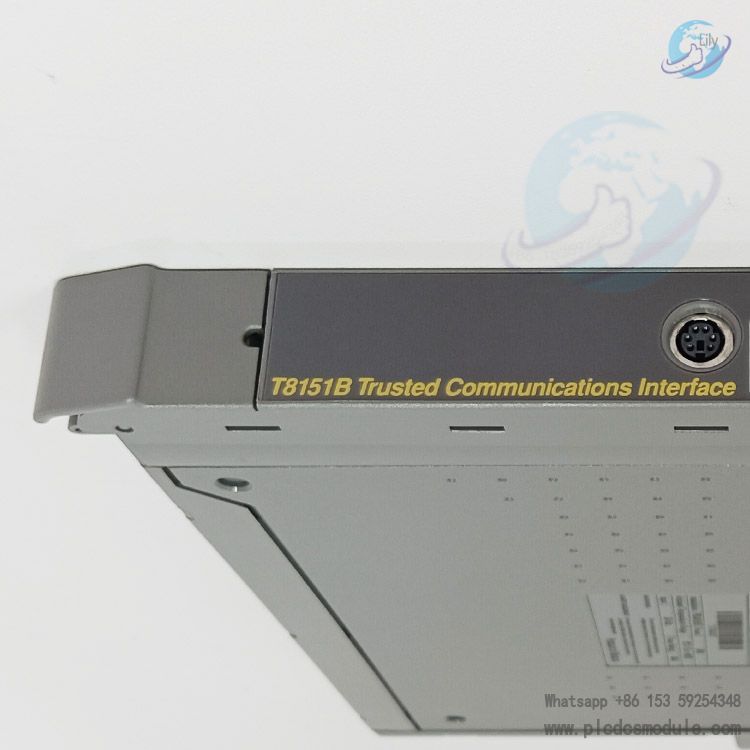

T8151B (Rev B and older hardware): Retained 10Base2 coaxial interfaces with relatively limited hardware performance
T8151B Rev C: Removed 10Base2 ports, only 10/100 Mbps Ethernet available, without event log backup function
T8151C: Current standard production model; full 10/100 Mbps Ethernet, serial ports integrated on mainboard, built-in event log backup storage, compatible with Trusted Release 4.0
Core Product Advantages
Load Separation Architecture
A standalone PowerPC processor processes all communication messages, preventing massive external read/write operations from consuming computing resources of the TMR controller and ensuring stable scan cycles of safety control logic.
Fully Isolated Multi-channel Hardware
All four serial ports and dual Ethernet ports adopt galvanic isolation with no crosstalk between channels. Its resistance to on-site static electricity and radio frequency interference meets the standards for industrial hazardous area applications.
Integrated Multi-protocol Support
Natively compatible with Modbus RTU, Modbus TCP, Trusted peer-to-peer communication and SOE timestamped event transmission. Connection to third-party instruments and PLCs can be realized without additional gateways.
Upgraded Iterative Hardware Design
Successor to legacy T8151 and T8151B models. Obsolete 10Base2 coaxial ports are eliminated; it adopts a single-piece integrated PCB with built-in system event log backup storage. All serial ports are integrated onto the mainboard to remove the need for a daughterboard.
Online Configuration Activation
When editing communication parameters in the system INI file or updating application firmware online, only the module’s communication links restart automatically, with no requirement for full system power cycle.
Comprehensive Fault Diagnosis System
Three layers of diagnostic tools are available: front-panel LED status indicators, front-mounted RS232 diagnostic port and Telnet remote command line. It supports message capture, port traffic statistics and troubleshooting of Modbus link failures.
Redundant Communication Compatibility
Supports redundant networking with multiple modules. Dual CI hot standby can be configured for SOE event collection. Event cache data will be automatically synchronized after link disconnection without loss of chronological sequence data.
Applicable Industries
Petrochemical Industry
SIS safety interlock systems for refining units, used to interface Modbus signals from third-party analyzers and valve positioners.
Thermal & Nuclear Power
Unit safety protection systems, SOE fault sequence recording, and redundant cross-cabinet communication.
Natural Gas Pipelines
Safety instruments for long-distance transmission pipelines, enabling remote Modbus data collection of station field instruments.
Pharmaceutical & Fine Chemicals
Safety control systems for hazardous classified explosion-proof workshops; isolated serial ports eliminate signal interference.
Water Treatment & Waste Incineration
Process safety interlocks, connecting third-party PLCs and online monitoring equipment.
Offshore Platforms
Offshore oil & gas safety control systems; wide-temperature hardware design adapts to harsh marine operating environments.
Same-brand Module Comparison Table
| Comparison Item | T8151C | T8151B | T8173 Gateway Adapter | T8311 Expansion Communication Module |
|---|---|---|---|---|
| Core Positioning | General-purpose system communications interface | Legacy first-generation communications card | Auxiliary breakout hardware for gateway connection | Interconnection module for expansion chassis |
| Ethernet Port | Dual 10/100 Mbps, no coaxial port | 10Base2 coaxial + 10 Mbps Ethernet | Only Ethernet breakout, no data processing capacity | Dedicated chassis expansion bus only |
| Modbus Master Function | Supported (with T8122 adapter) | Supported | Not supported | Not supported |
| SOE Event Cache Capacity | 4,000 records | 2,000 records | No data cache | No SOE function |
| Cross-controller Peer-to-Peer Communication | Full SXP2P / DXP protocols | Basic SXP2P only | Gateway signal forwarding only | Chassis internal data exchange only |
| Firmware Upgrade Method | Online upgrade via front diagnostic port | Physical disassembly required for upgrade | No independent firmware | Firmware dependent on main processor |
| Compatible System Version | Trusted V4.0 and later | Legacy systems V3.4 and below | Matches all Trusted series | Multi-chassis expansion applications |
| Max Modbus Master Load per Slot | Up to 16 Modbus master channels | Up to 8 Modbus master channels | No computing capacity | Bus signal forwarding only |
Supporting Hardware & Software Products
Supporting Hardware
Supporting Software
FAQ
Q1: Can T8151C directly replace T8151B? Is configuration modification required?
Q2: Can T8151C operate as a Modbus master without the T8122 adapter?
Q3: What is the maximum number of Modbus RTU slave devices supported by a single T8151C?
Q4: Does T8151C support hot swapping? What is the replacement procedure for faulty units?
Q5: What system parameters need modification when configuring two T8151C modules for SOE redundancy?
- Deselect the "auto-protect network variables" option in processor configuration;
- Set identical SOE base addresses and block quantities for both CI modules;
- Define 4 synchronization registers in the variable dictionary, occupying the first 4 addresses of the SOE window.
Q6: Can both Ethernet ports be connected to the same network segment?
Q7: How to troubleshoot frequent packet loss of RS485 multi-drop field devices?
- Switch the serial port mode to rs485fdmux multi-drop mode;
- Install 120Ω terminating resistors at both ends of the bus;
- Increase the minimum message interval (ms) in Modbus slave configuration;
- Check UART port error counters via the diagnostic serial port to locate short-circuit faults on wiring.
Q8: What troubleshooting steps apply when the module Health red LED flashes?
- Verify the dual redundant 24 VDC chassis supply voltage stays within 20~32 V;
- Run the command
vin command line to check whether the firmware version matches the system; - Clear event logs and restart the module;
- Replace the module if backplane pins are bent or internal hardware chip damage exists.
