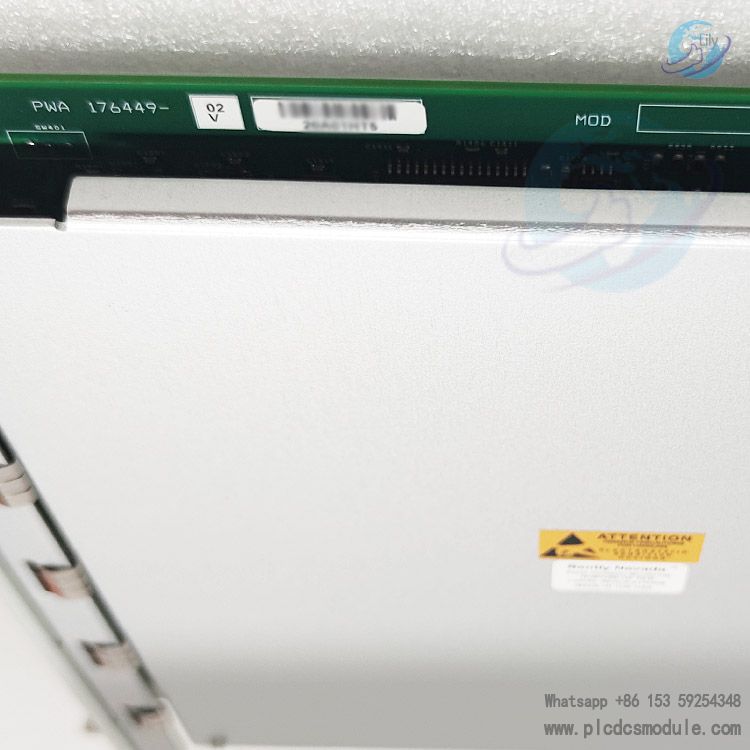

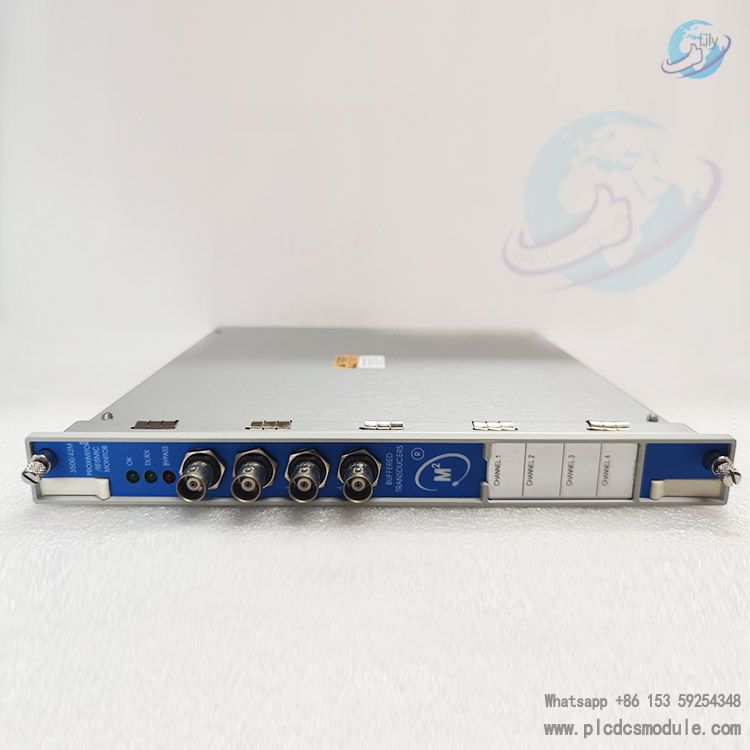

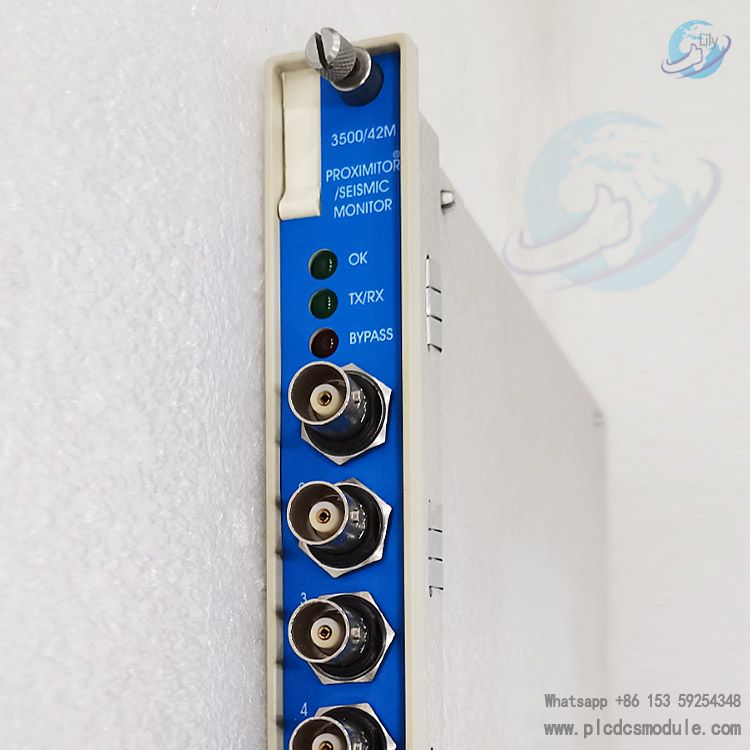

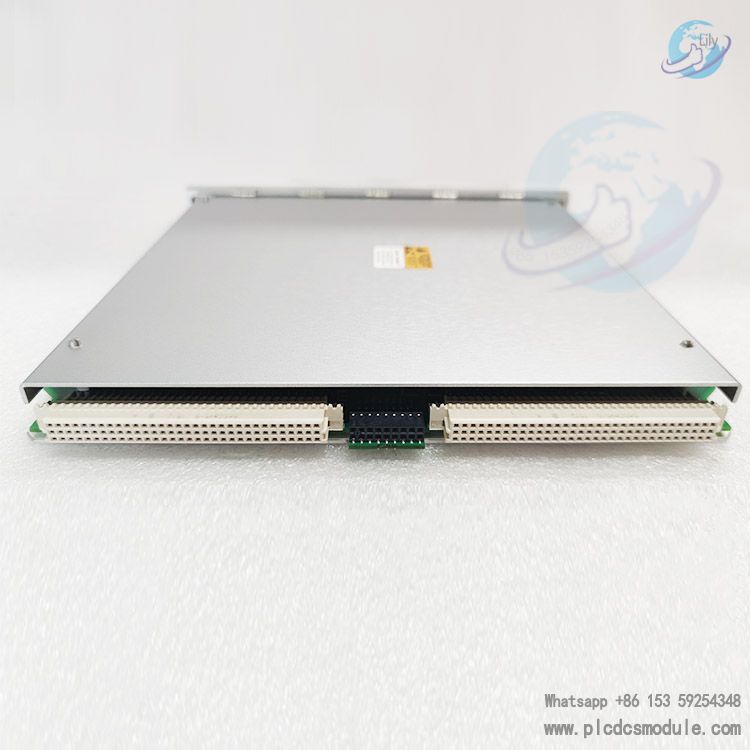

The Bently Nevada 3500/42M-01-00 Proximitor Seismic Monitor is a four-channel monitor. It can receive inputs from proximity sensors and seismic sensors, condition the signals, and then provide accurate vibration and position measurement data. One of its prominent features is the ability to compare the conditioned signals with user-defined programmed alarms. Each channel can be programmed via the 3500 rack configuration software to monitor parameters such as radial vibration and thrust position. The monitor can real-time compare the monitored parameters with the set alarm thresholds, and trigger an alarm once an abnormality is detected, providing strong protection for the safe operation of mechanical equipment.
Basic Information
Manufacturer: Bently Nevada
Product Type: Proximitor/Seismic Monitor
Place of Origin: United States
Dimensions: There are slight differences in different data. One is 16cm × 16cm × 12cm, and the other is 24.18cm × 2.44cm × 24.13cm.
Weight: Approximately between 0.8kg and 0.91kg
Functional Features
Multi-channel Monitoring: It is a four-channel monitor with monitoring channels set in pairs, which can perform up to two specified functions at the same time. For example, channels 1 and 2 can perform one function, while channels 3 and 4 can perform another or the same function.
Signal Processing: It accepts inputs from proximity sensors and seismic sensors, conditions the signals to provide vibration and position measurements.
Programmable Alarms: It compares the conditioned signals with user-programmable alarms. Alarm levels can be set for any value measured by the monitor through the 3500 rack configuration software, and dangerous setpoints can be set for any two values. When the monitored parameters reach or exceed the set alarm thresholds, an alarm will be triggered to inform operators and maintenance personnel of key machine information.
Monitoring of Multiple Parameters: Each channel can monitor and report various parameters according to the configuration, such as radial vibration, thrust position, REBAM, acceleration, differential expansion, eccentricity, velocity, etc.
Technical Parameters
Input Type: Supports inputs from proximity sensors and seismic sensors.
Input Impedance: 10kΩ standard I/O.
Power Consumption: 7.7W.
Operating Temperature Range: Generally -30°C to +85°C; some data also indicate -20°C to +65°C.
Humidity Range: For example, 90% in a non-condensing environment.
I/O Module Types and Other Options
I/O Module Types: There are multiple options. For instance, "01" indicates a Prox/Seismic I/O module with internal terminals; "02" indicates a Prox/Seismic I/O module with external terminals, etc.
Hazardous Area Certification Options: For example, "02" represents ATEX/IECEx/CSA (Class 1, Zone 2), but it is only applicable to specific module types.
