Bently Nevada

Bently Nevada 136719-01 Earthing I/O Module

The 136719-01 Earthing I/O Module is a grounding I/O module in the Bently Nevada 3500 series, suitable for fields such as petroleum, natural gas, and electric power. It features functions like grounding protection and signal processing, supports 4 independently programmable relay outputs and multiple communication interfaces, adopts anti-interference design and closed-loop feedback control, and is convenient for installation and maintenance, which can ensure the stable operation of industrial equipment.

Mail: plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp:+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

The 136719-01 Earthing I/O Module is a high-performance grounding I/O module in the Bently Nevada 3500 series, widely used in industrial automation, control systems and mechanical protection fields. It features grounding protection, which can convert the grounding signal of the monitoring system into an industrial standard signal, ensuring the safety of the sensor system, especially resisting the impact of explosive gases in hazardous environments. Meanwhile, it supports signal processing, independent programming of multiple relays and various communication interfaces. It is compatible with an input voltage of 12-48VDC, with a maximum output current of 10A, an operating temperature range of -40°C to 82°C, and an IP67 protection rating. It is easy to install and maintain, providing reliable support for the stable operation of industrial equipment.

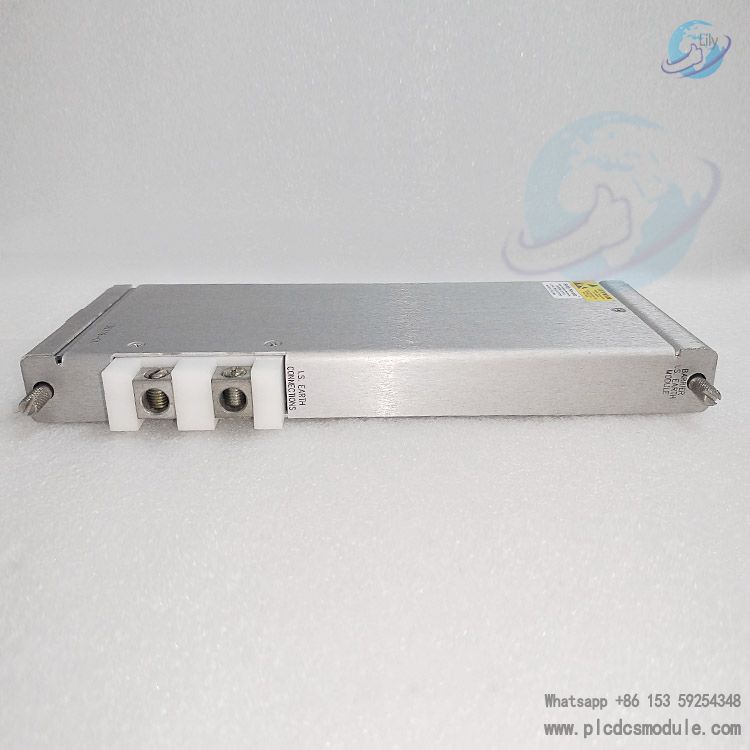

Bently Nevada 136719-01 Earthing IO Module..jpg

Functional Characteristics of Bently Nevada 136719-01 Earthing I/O Module:
  • Earthing protection: Ensures the safe operation of the sensor system, converts the grounding signal of the monitoring system into an industrial standard grounding signal, and can protect the sensor system from explosive gases in hazardous environments.
  • Signal processing: Capable of processing analog and digital signals from various sensors and actuators.
  • Relay configuration: Supports the configuration of 4-channel relay modules, and each relay output can be independently programmed.
  • Communication interfaces: Supports multiple communication interfaces such as LAN interface, serial interface and IO digital interface, facilitating data exchange and control with remote master stations.
Technical Parameters of Bently Nevada 136719-01 Earthing I/O Module:
  • Input voltage: 12~48VDC.
  • Output current: Maximum 10A.
  • Acceleration frequency range: 0 to 10,000Hz.
  • Analog output: 4-20mA or 0-5VDC, with a maximum output current of 10mA.
  • Operating temperature range: -10 to 65°C.
  • Protection class: IP67.

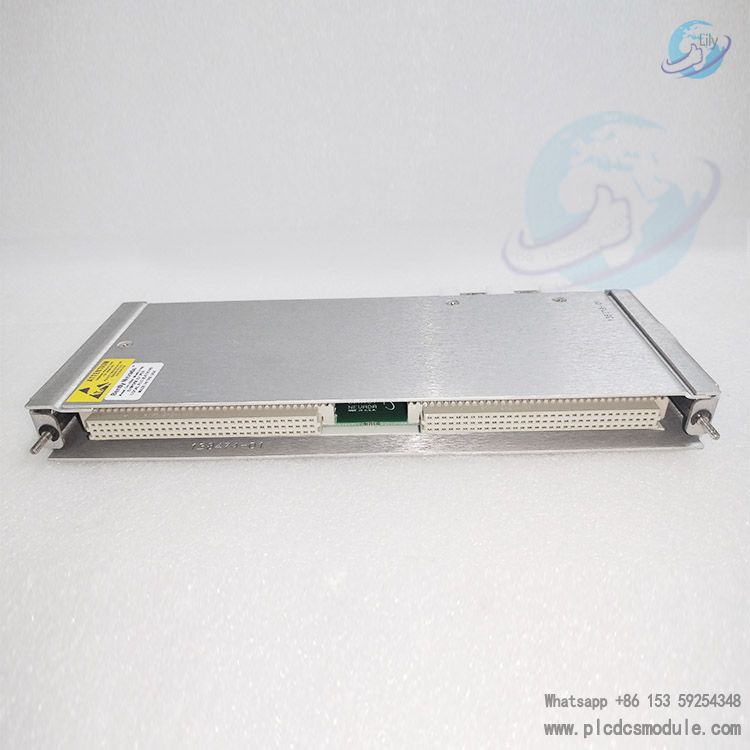

Bently Nevada 136719-01 Earthing IO Module.jpg

Functional Characteristics of 136719-01 Earthing I/O Module

  • Earthing protection: Ensures the safe operation of the sensor system, can convert the grounding signal of the monitoring system into an industrial standard grounding signal, and can also protect the sensor system from explosive gases in hazardous environments.
  • Signal processing: Capable of processing analog and digital signals from various sensors and actuators such as proximity probes or magnetic pickups, and converting them into signals recognizable by the system.
  • Relay configuration: Provides 4 relay outputs, each of which can be independently programmed to meet different control requirements.
  • Communication interfaces: Supports multiple communication interfaces including LAN interface, serial interface and IO digital interface, facilitating data exchange and control with remote master stations.
  • Anti-interference design: Adopts the "busbar separate routing" method to separate analog ground from digital ground, effectively reducing interference.
  • Motion control: Realizes precise mechanical motion control through a closed-loop feedback mechanism, suitable for controlling equipment such as servo motors and hydraulic actuators.

Installation and Maintenance of 136719-01 Earthing I/O Module

  • Installation method: Optional rail mounting or panel mounting. It has a compact design, which is convenient for installation in space-constrained environments. Moreover, it is a half-height dual-channel module, suitable for application scenarios with limited space.
  • Maintenance features: Equipped with hot-swap functionality, facilitating maintenance and upgrades, and reducing system downtime.

Application Fields of 136719-01 Earthing I/O Module

  • Petroleum and natural gas: Can be used to monitor rotating equipment in drilling platforms, pump stations and compressor stations.
  • Power industry: Often used to monitor turbines, generators, variable speed equipment, etc. in power stations.

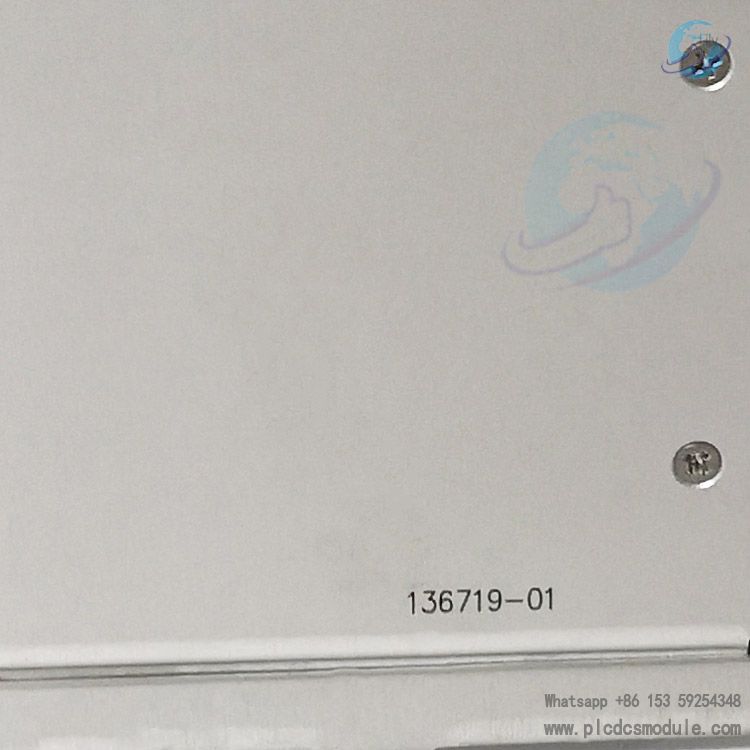

Bently Nevada 136719-01 Earthing IO Module...jpg
