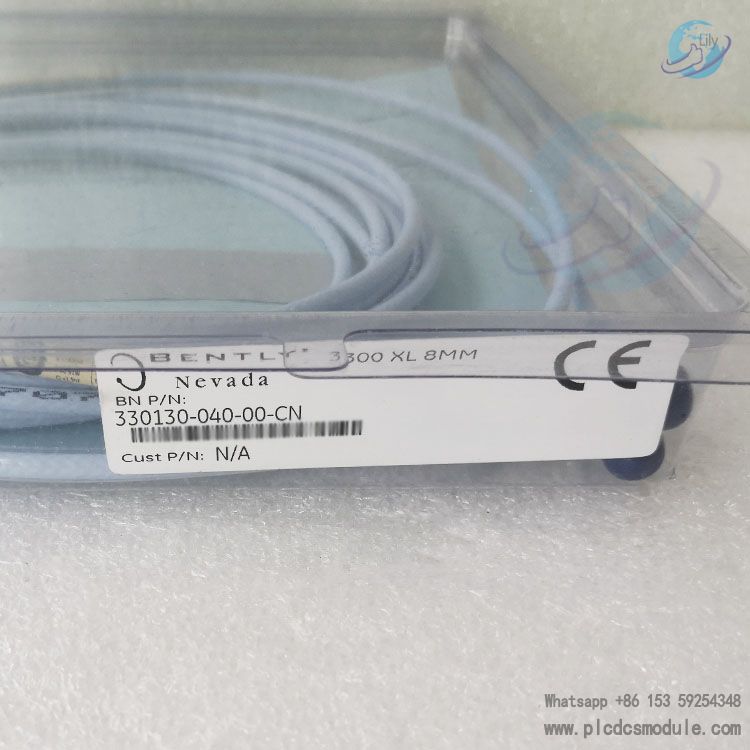

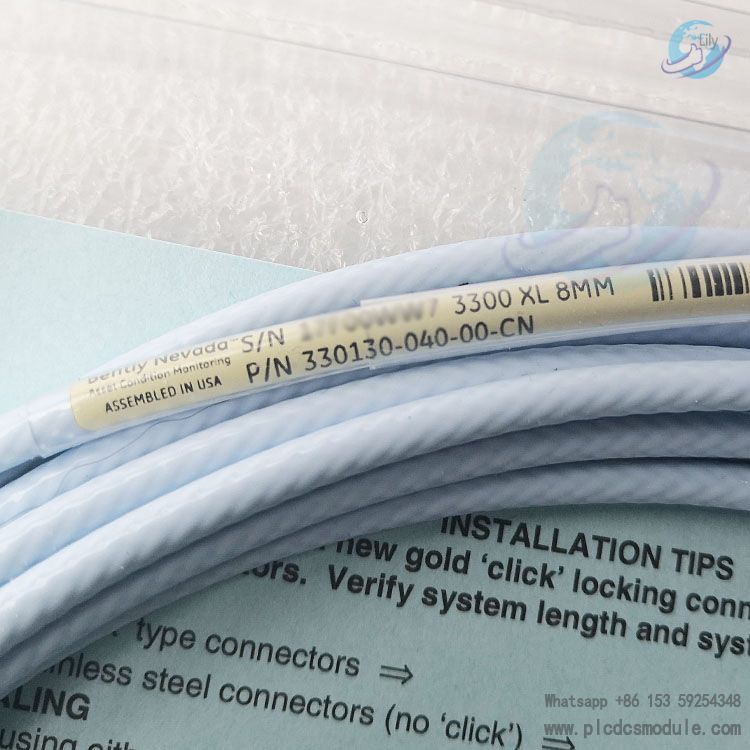

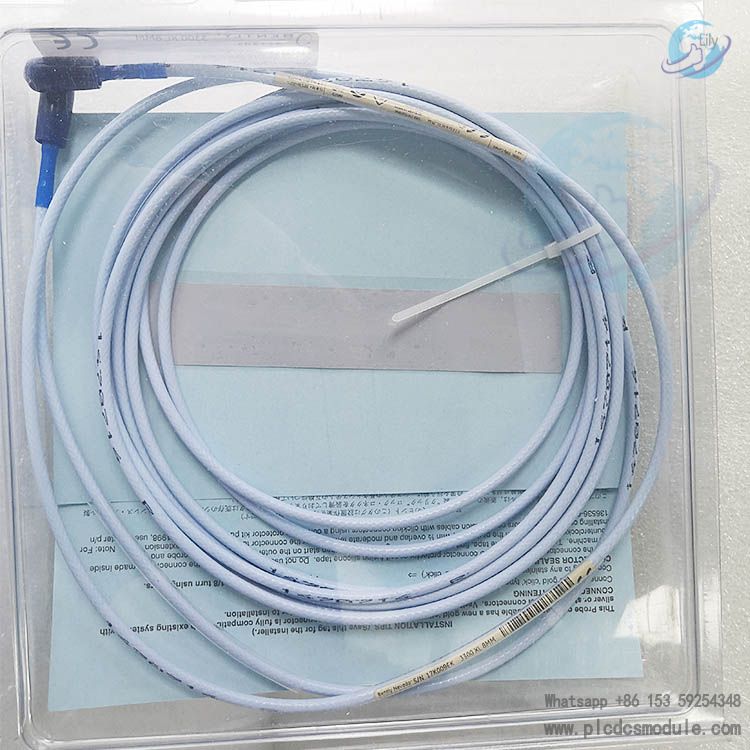

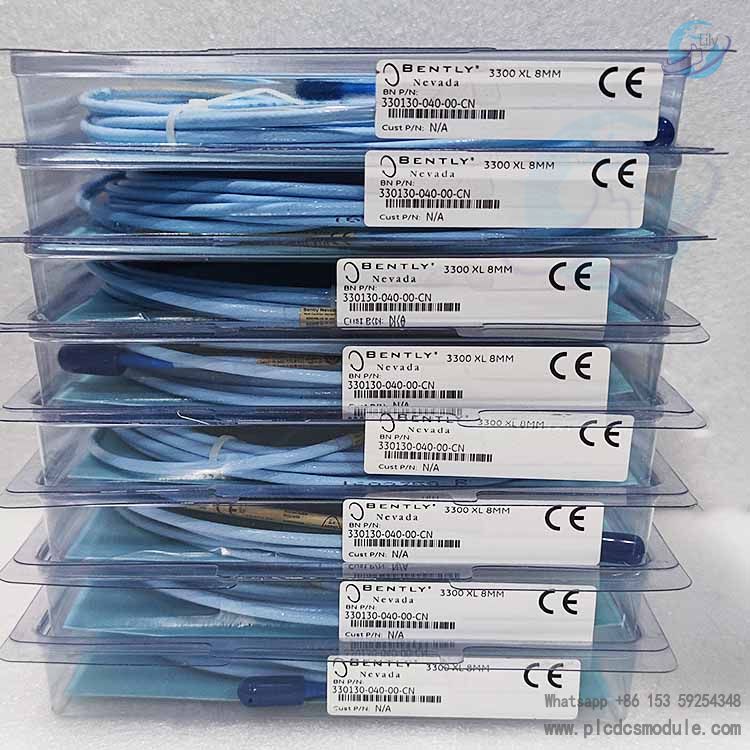

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Bently Nevada 330130-040-00-CN is a 4.0-meter standard extension cable for the 3300 XL series, compatible with the 8mm proximity sensor systems of the same series. It features a 75Ω triaxial design with FEP insulation, and optional armor for enhanced protection. Equipped with gold-plated ClickLoc connectors, it allows tool-free installation and supports DIN rail and panel mounting. It is compatible with non-XL 3300 series components, with the total system length requiring matching with the probe length. Environmental protection solutions and optional certifications are available, meeting the signal transmission needs for vibration and position measurement in industrial scenarios and ensuring stable system operation.
Basic Information
- Product Type: It is a standard extension cable of the 3300 XL series, which is part of the 3300 XL 8mm proximity sensor system and needs to be used with probes and Proximitor sensors of the same series.
- Core Function: It extends the connection between the probe and the Proximitor sensor, ensuring the normal operation of the system's static (position) and dynamic (vibration) distance measurement functions for conductive surfaces.
Specifications of 330130-040-00-CN
Cable Length: The "040" in the model corresponds to 4.0 meters (13.1 feet).
Electrical Characteristics:
- DC resistance (between center conductors, Rₒₒᵣₑ): 0.88±0.13Ω.
- DC resistance (between outer conductors, Rⱼₐcₖₑₜ): 0.26±0.05Ω.
- Capacitance: Typical value is 69.9 pF/m (21.3 pF/ft).
- Impedance: 75Ω triaxial cable.
Material and Insulation:
- Insulation material: Fluorinated Ethylene Propylene (FEP).
- Optional armor: Flexible AISI 302 or 304 stainless steel (with FEP outer sheath).
Mechanical Characteristics:
- Minimum bending radius: 25.4 mm (1.0 inch).
- Connector: Corrosion-resistant gold-plated ClickLoc connector (made of brass or beryllium copper), requiring no special tools for installation and can be tightened by hand (a "click" sound indicates proper seating).
- Tensile strength: Maximum 270 N (60 lbf) at the connection between the probe wire and the extension cable connector.
Temperature Range:
- Operating and storage temperature: -52°C to +177°C (-62°F to +350°F).
Certification Options:
- "00" in the model indicates no institutional certification is required; if it is "05", it includes CSA, ATEX, and IECEx certifications.
Installation and Compatibility
Compatibility:
Compatible with 3300 XL series 8mm probes and non-XL 3300 series 5mm and 8mm components. However, when used in a mixed configuration, the system performance is subject to the specifications of non-XL components.
It is necessary to ensure that the sum of the extension cable length and the probe length equals the total system length of the Proximitor sensor.
Connector Protection:
Pre-installed connector protectors can be selected, or they can be ordered separately (recommended for all installations to enhance environmental protection capabilities).
Silicone tape is provided as an alternative protection solution, but it is not recommended for scenarios in contact with turbine oil.
Installation Precautions:
Supports high-density DIN rail mounting and traditional panel mounting. The bases for both mounting methods provide electrical isolation, eliminating the need for additional isolation plates.
Connector tightening method: For two 3300 XL gold-plated "click" type connectors, only finger tightening is required; when paired with non-XL stainless steel connectors, tighten by hand first and then an additional 1/8 turn with pliers.
Synergistic Performance of 330130-040-00-CN with the System
Frequency Response: In the range of 0-10 kHz, with a maximum of 305 meters (1000 feet) of on-site wiring, the attenuation is +0/-3 dB.
Anti-interference: It has strong immunity to radio frequency interference (RFI) and electromagnetic interference (EMI), and can be installed in fiberglass enclosures without the need for special shielded conduits or metal enclosures, reducing installation costs.
System Accuracy: When used with pure 3300 XL 8mm components, it meets the linear range, accuracy, and temperature stability requirements of the API 670 standard; if it includes extended temperature range (ETR) components, the system accuracy is limited by the ETR components.
Other Instructions
Ordering Correlation: The extension cable of corresponding length should be selected according to the total length of the Proximitor sensor (e.g., 5 meters or 9 meters) to ensure that the sum of the probe length and the extension cable length matches.
Accessories: Connector protection kits (including protective sleeves and installation tools), replacement mounting pads, etc., can be ordered separately.
The main application industries of the 3300 XL 8 mm Proximity Transducer System are concentrated in fields that require vibration and position measurement of fluid film bearing machinery, such as the petroleum and chemical industries, which is related to its compliance with the American Petroleum Institute (API) 670 standard. Meanwhile, the system is also applied in industrial scenarios involving equipment such as generators and motors, and can be used for key phase reference and speed measurement, among other purposes. In addition, it is applied in offshore installations and structures in the maritime field.
