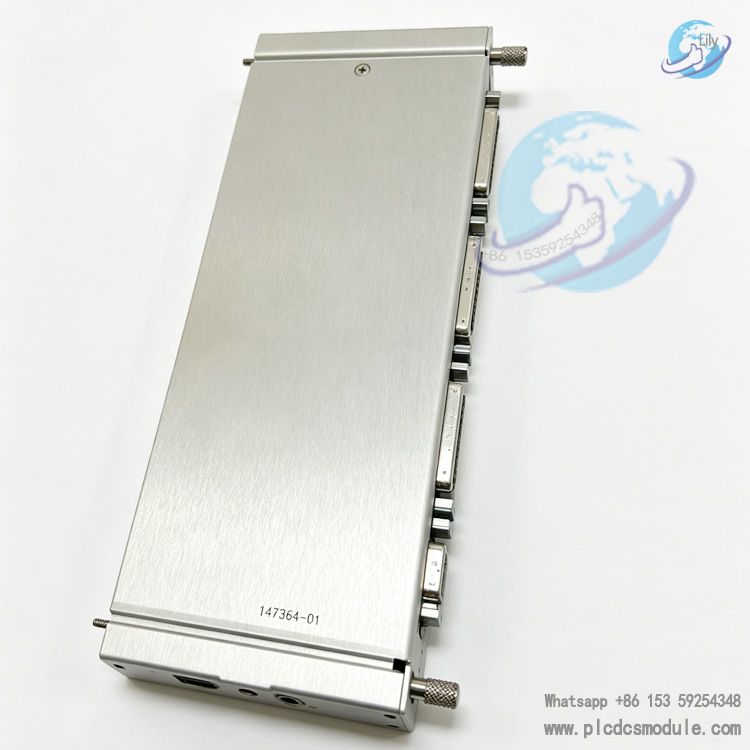

The 147364-01 Buffer I/O Module is a supporting I/O daughter card for the Bently Nevada 3500 Machinery Protection Monitoring System. Serving as a signal buffering and transfer unit within the system, it undertakes internal signal distribution, impedance matching, and signal isolation & buffering for the monitor rack. It resolves common issues including signal attenuation under parallel connection of multiple monitoring channels, impedance mismatch, and electromagnetic crosstalk.
This module fits standard rack slots of the 3500 series and can be combined with main monitoring modules for vibration, displacement, speed and temperature measurement. It buffers and shapes analog and digital discrete signals for stable transmission to upper-level control systems such as DCS and PLC. It is widely deployed in condition monitoring links for large rotating machinery units.
Technical Features
Multi-channel signal buffering architecture with independent channel impedance adjustment. Compatible with output signals of eddy current and piezoelectric sensors; the standard input impedance of 10 kΩ suppresses signal loss caused by signal shunting.
Built-in simplified signal isolation circuit that differentiates three types of ports: analog input, analog output and digital discrete signals, mitigating electromagnetic interference generated by frequency converters and high-voltage equipment on industrial sites.
Standard full-height card structure for the 3500 rack, with rear terminal wiring and integrated status indicators that provide real-time alerts for channel open circuits, short circuits and signal overload faults.
Wide-range electrical adaptability for diverse operating conditions. Operates at 24 VDC with power consumption below 1.5 W per module. Ensures stable operation within an ambient temperature range of -40℃ to +70℃, suitable for high-temperature cabinet environments in chemical and power industries.
Signal bandwidth spans 0.5 Hz to 10 kHz, supporting full-spectrum monitoring signals including low-frequency displacement and high-frequency vibration of units, with a maximum signal conversion error ≤1%.
No complex software configuration required. Buffering modes can be switched via hardware jumpers, simplifying on-site commissioning procedures and lowering maintenance and operation barriers.
Product Features
Signal Distribution & Buffering Performance
A single module receives output signals from multiple monitoring modules. After buffering, signals are split and transmitted to local display units and remote control systems without signal distortion under multi-channel parallel operation.
Built-in Self-Diagnosis Function
Each I/O channel is equipped with independent fault detection. The corresponding panel indicator light turns on in case of circuit short circuits, sensor wire breakages or out-of-range signals, enabling fault channel localization without external testing instruments.
Modular Compatibility
It fully fits all standard rack slots of the 3500 series, and can be freely combined with all types of main monitoring modules. The module supports standalone installation and capacity expansion via multi-module parallel connection.
Strong On-Site Anti-Interference Capability
Adopting a fully enclosed metal housing, the wiring terminals are equipped with crimp points for shielded cables. Combined with the rack grounding circuit, the module effectively resists electromagnetic radiation interference from high-power equipment in power plants and petrochemical plants.
Lightweight & Easy Maintenance
The module has a net weight of 0.4 kg and a card-type pluggable structure. Individual replacement is available without disassembling the entire rack. Locking terminal posts are used for wiring to prevent loose connections during long-term operation.
Application Fields
Power Industry
Signal transfer for TSI condition monitoring systems of steam turbine generator sets, gas turbines, boiler induced draft fans and feed water pump units.
Petrochemical Industry
Vibration monitoring links for large centrifugal compressors, hydrogenation plant circulating compressors, LNG refrigeration units and pipeline booster pump units.
Metallurgical Industry
Machinery protection systems for blast furnace blowers, main steel rolling drive motors and sintering main exhaust fans.
Coal Chemical Industry
Buffering and transmission of online monitoring signals for syngas compressors, air separation booster units and gasifier supporting fans.
Offshore Platforms
Compressors and power turbine units for offshore oil & gas extraction. Designed for cabinet installation under harsh offshore operating conditions with high humidity and intense vibration.
Matching Products
Rack Accessories
3500/05 Standard System Rack, 3500/15 AC/DC Power Supply Module
Main Monitoring Module Accessories
3500/40M Displacement Monitor Module, 3500/42M Vibration Monitor Module, 3500/25 Keyphasor Speed Module, 3500/53 Overspeed Detection Module
Output Execution Accessories
3500/32M 4-Channel Relay Module, 3500/33 16-Channel Relay Module
Upper Computer Communication Accessories
3500/22M Transient Data Interface Module, 3500/92 Communication Gateway Module
Front-End Sensor Accessories
3300 Series Eddy Current Probes, 3300XL Proximitor, Piezoelectric Velocity Sensors
Q1: What issues may arise if you only submit the model number 147364-01 for procurement?
A1: This model corresponds to the 3500/22M Buffer I/O Module, which only fits the 3500 series racks and is incompatible with the legacy 3300 systems.If only the short model number is provided without specifying the rack version and on-site functional requirements (Keyphasor buffering / transient TDI data acquisition), the delivered module may fail to fit the slot or trigger communication faults.The rack model and system configuration requirements must be provided when placing orders.
Q2: What faults will occur if the 147364-01 is inserted into the wrong slot during installation? What confirmation items are required before procurement?
A2: The 3500/22M buffer module requires a dedicated RIM slot. Insertion into an incorrect slot will result in the rack failing to recognize the module and loss of Keyphasor buffer signals.Prior to procurement, confirm the specifications and position of vacant slots on the existing rack.
Q3: What problems will be caused by firmware incompatibility between the newly purchased 147364-01 and the old rack? How to avoid this in advance?
A3: Outdated rack firmware will cause intermittent module communication disconnections and failed transient TDI data collection.Before procurement, provide the existing rack’s firmware version to the supplier to verify module firmware compatibility, or arrange a synchronous firmware upgrade.
Q4: What drawbacks exist when purchasing the 147364-01 for basic general vibration monitoring only?
A4: This module is designed primarily for Keyphasor signal buffer output and transient data interaction. Deploying it solely for standard routine vibration monitoring creates redundant functionality and triggers persistent system configuration errors.Clarify on-site application requirements prior to order placement.
