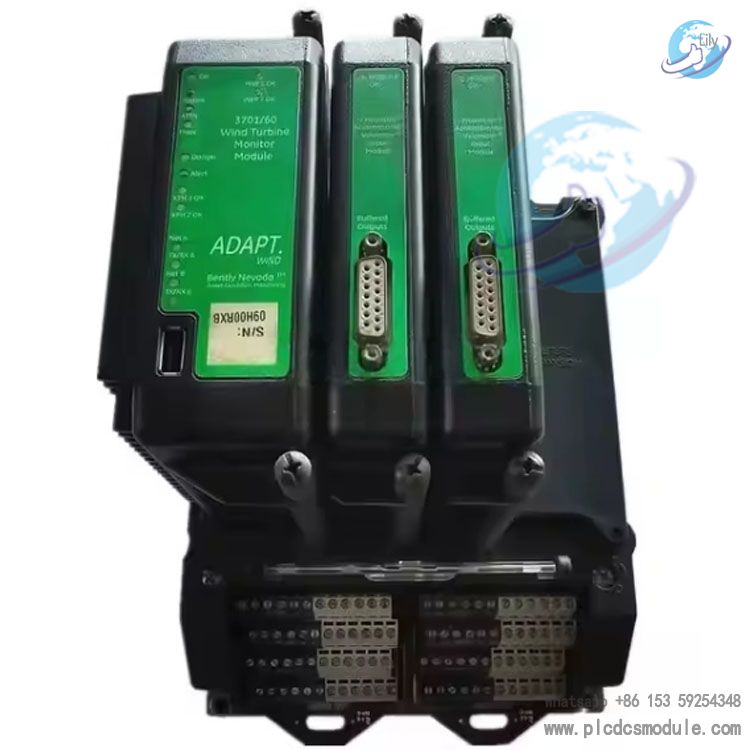

The Bently Nevada 3701/60 177989-02 Wind Turbine Monitor is a monitoring device specifically designed for wind turbine generators. It is mainly used for condition monitoring and fault diagnosis of key mechanical components of wind turbine generators. It can help users prevent potential machine failures through real-time monitoring, improve operational efficiency, and reduce downtime. This device focuses on high-reliability applications such as tower sway, bearing and gearbox monitoring.
Main Functions
Vibration Monitoring: Perform vibration analysis on important mechanical components inside the wind turbine (such as the main shaft, gearbox, generator, etc.) to identify potential problems.
Process Variable Monitoring: Monitor process variables such as temperature, pressure, and speed to ensure these parameters remain within safe ranges.
Data Analysis and Reporting: Provide data recording and analysis functions, support the generation of detailed health status reports, and facilitate predictive maintenance.
Remote Access: Support remote monitoring and diagnosis, making it convenient for technicians to keep abreast of equipment status and take measures even when they are not on site.
Alarm Settings: Multiple alarm levels can be configured to notify operators immediately once an abnormal situation is detected.
Basic Information
Manufacturer: Bently Nevada
Product Type: Wind Turbine Monitor
Origin: USA
Warranty Period: 12 months
Electrical Specifications

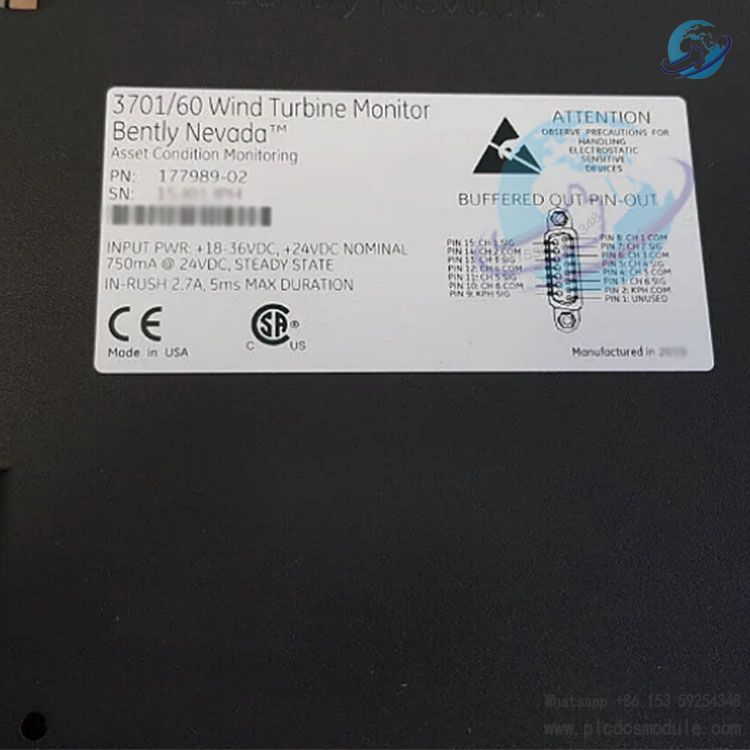

Input Power: 18V DC - 36V DC
Maximum Current: 1.7A
Inrush Current: 2.7A (less than 5ms)
Processor Module
Inputs: 12 dynamic signals, 2 keyphasor signals
Dynamic Range: 110dB
A/D Conversion: 24-bit sigma-delta
Bandwidth: 0 - 40kHz
Outputs: 2 independent Ethernet ports (10/100BaseT)

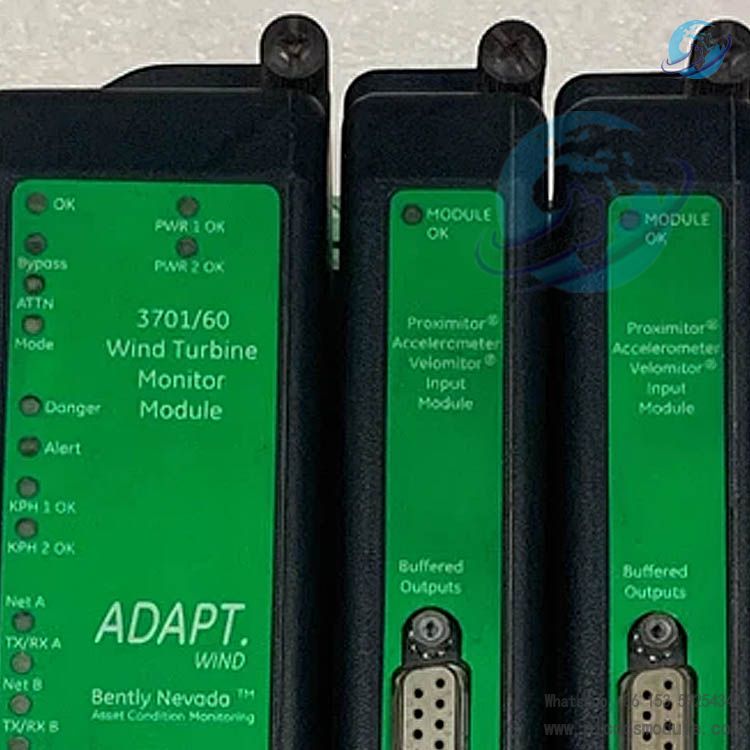

LED Indicators: OK, Bypass, Attention, Mode, Alarm, Warning, and Keyphasor
Accuracy and Monitoring
Accuracy: ±0.5% (typical)
Frequency Monitoring: Rotor, bearing, and meshing frequencies ±6.7%
Tower Sway: ±0.16m/s² (typical)
Generator Electrical Noise: ±1% (50Hz to 10,000Hz)
Alarm Modes and Data
Alarm Modes: 5 modes based on generator power
Setpoints: Warning and alarm levels
Dynamic Data: Asynchronous and synchronous waveforms
Keyphasor Signals and Speed Range
Speed Range: 1 - 120,000rpm (limited to 2,000rpm for wind turbines)
Supported Sensors: Bently eddy current probes, Turning Point TP100 accelerometers
Environmental Specifications
Operating Temperature: -40°C to +70°C
Storage Temperature: -45°C to +85°C
Humidity: 0% - 95% (non-condensing)
Application Fields
This monitor is particularly suitable for the wind power industry, providing a comprehensive condition monitoring solution for wind turbines. It not only improves the reliability and availability of equipment but also reduces maintenance costs and risks.
