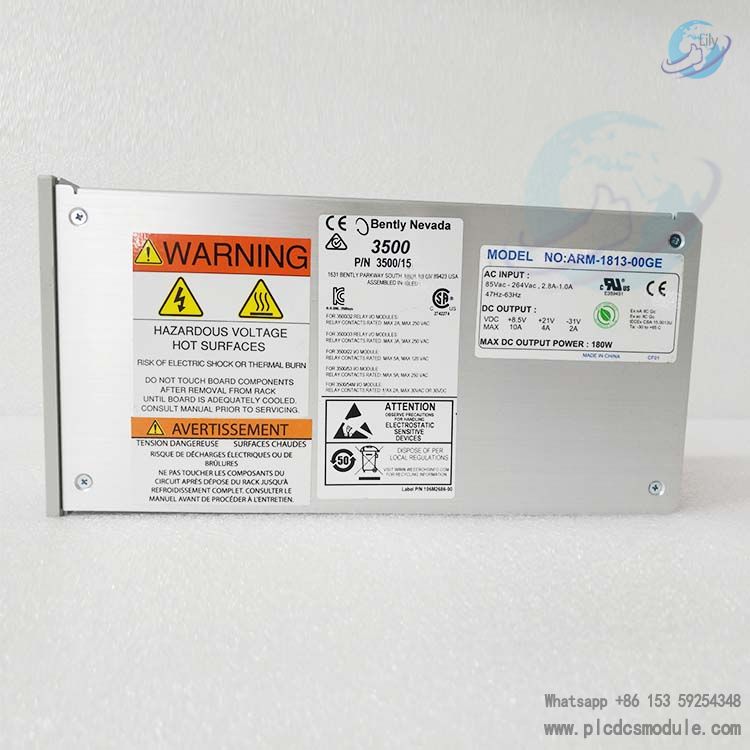

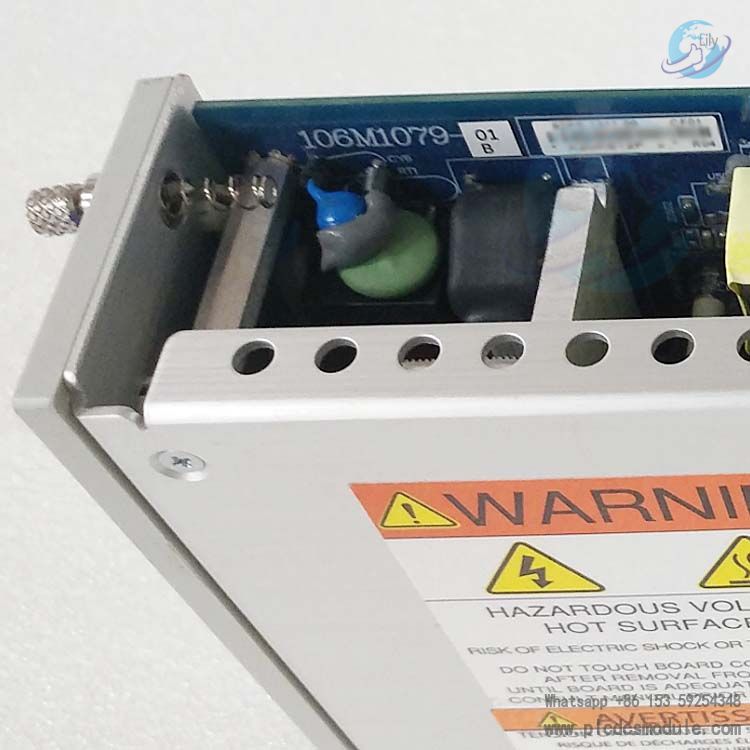

The 106M1079-01 Universal AC Power Supply is a power module in the BENTLY NEVADA 3500 series, with the model number 3500/15. It plays a key role in the 3500 series by providing stable power for other modules.
Key Features:
Wide Input Range: Capable of accommodating diverse AC power input requirements, it operates stably across a broad voltage spectrum, enhancing adaptability to varying power conditions globally.
Excellent Compatibility: Fully compatible with other modules in the 3500 series, enabling seamless system expansion and integration per user needs. This compatibility reduces overall solution costs by leveraging existing infrastructure.
In the 3500 series rack system, the 3500/15 power supply module is a half-height module that must be installed in the designated slot on the left side of the rack. A 3500 rack can accommodate one or two power supplies, which can be any combination of AC and DC, and either power supply can supply power to the entire rack. When two power supplies are installed in the rack, the one in the lower slot serves as the main power supply, and the one in the higher slot serves as the backup power supply.
Bently Nevada also has the following commonly used power supply modules:
Other Models in the 3500/15 Series
129489-01: An AC power supply module in the 3500/15 series, suitable for precision vibration monitoring and protection in industrial control systems. It provides real-time data analysis and fault detection.
127610-01: Also an AC power supply module in the 3500/15 series, with an input voltage of 90–264VAC and 47–63Hz. Although this model is discontinued, it can still be found from some suppliers.
Other Power Supply Modules in the 3500 Series
3500/23E: A power input module for the 3500 series mechanical monitoring system. It can monitor parameters such as power voltage, current, and frequency, control the power supply via built-in relays, support multiple communication protocols and interfaces, and features high reliability, stability, and ease of maintenance.
High-Voltage DC Power Input Module: With an input voltage of 88–140Vdc, it provides high-voltage DC power for the 3500 system.
Low-Voltage DC Power Input Module: With an input voltage of 20–30Vdc, it provides low-voltage DC power for the 3500 system (e.g., model 133300-01).
3300 Series Power Supply Modules
Designed for 3300 series racks, these modules convert 115VAC or 220VAC input into the DC voltage required by the rack’s monitors. They provide stable and reliable power for up to 12 monitors and their associated sensors, and built-in line noise filters enhance performance.
