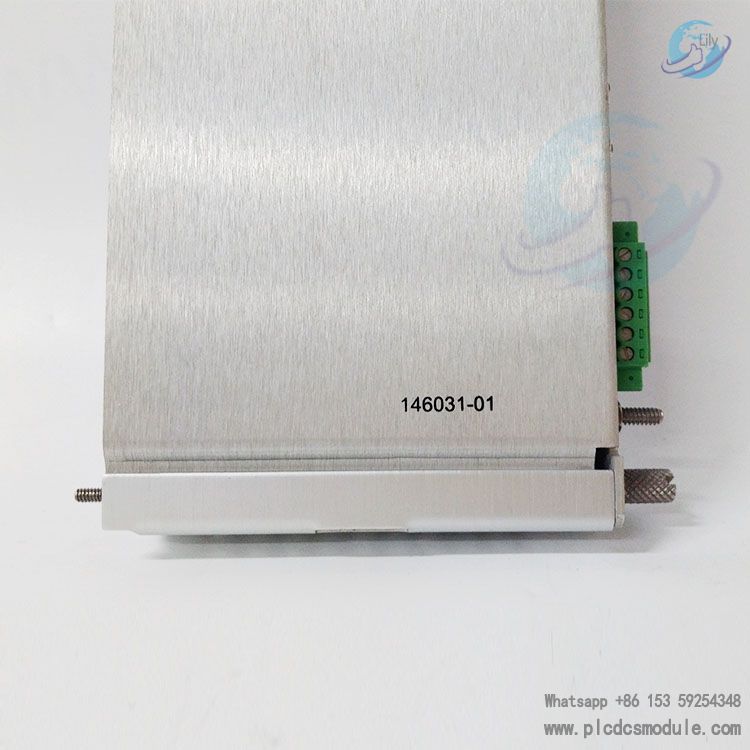

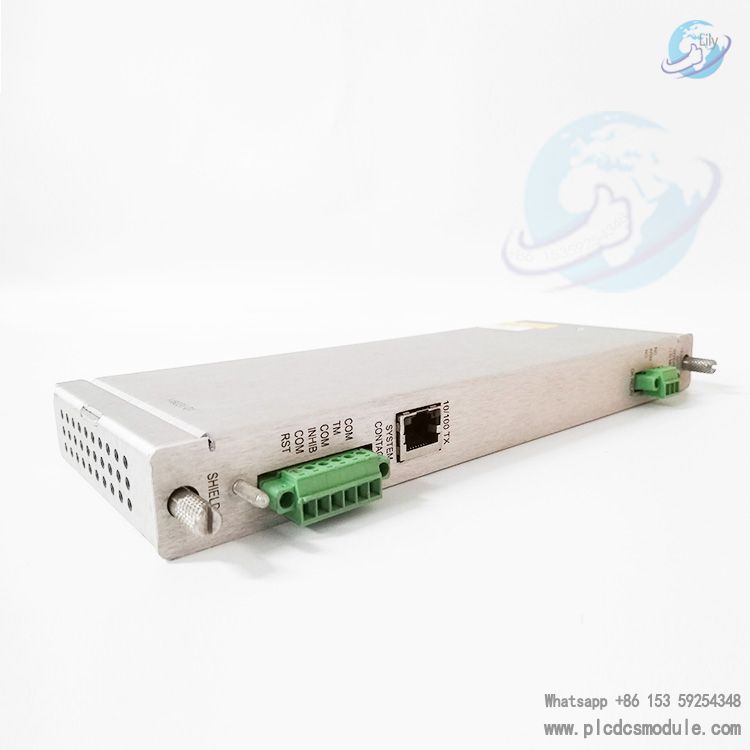

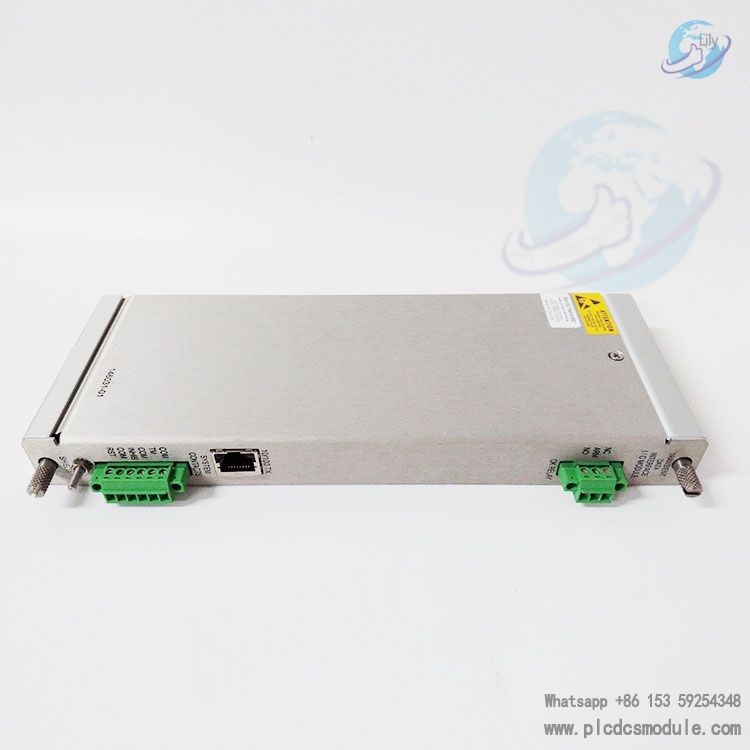

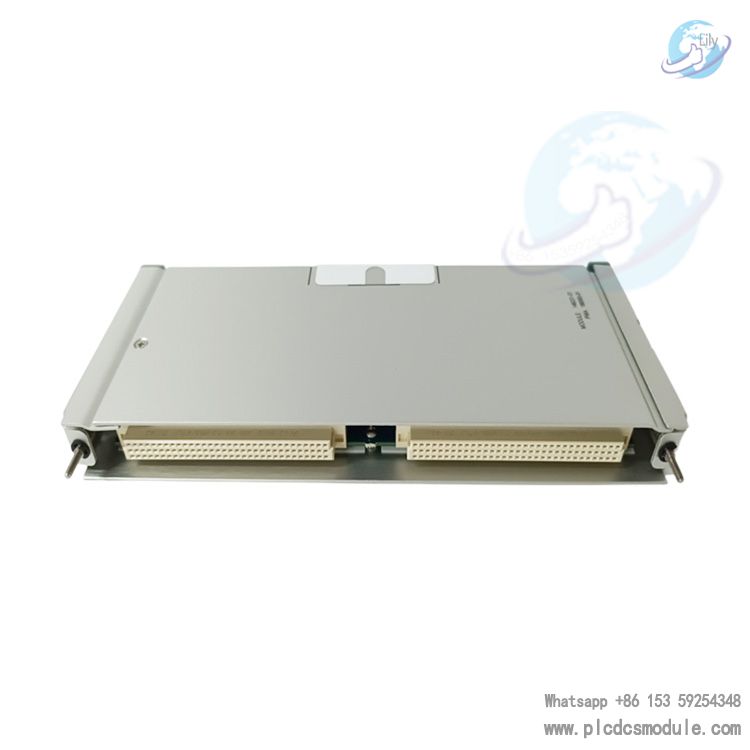

Bently Nevada 146031-01 3500/22M Transient Data Interface I/O Module.The Bently Nevada 3500/22M 146031-01 TDI I/O module needs to be installed in the 3500 rack. The 3500/20 is the basic interface of the 3500 rack, which supports Bently Nevada's proprietary protocol and is used for rack configuration and obtaining information from the equipment. The 146031-01 module, when used in conjunction with it, can implement the communication processing function within the 3500 rack.
146031-01 Functional Description
The TDI comes with built-in static data capture capability. However, the Channel Enablement Disk is an optional device that enables the TDI to also record dynamic and high resolution transient data. 3500 racks include communication processing capabilities for the TDI.
The 3500/22M series transient data interface connects the 3500 monitoring system to Bently Nevada's System 1 machine management software. tdi combines the functionality of the 3500/20 rack interface module with the data collection capabilities of communication processors such as TDXnet.
The TDI works in the RIM slot of the 3500 rack with M-Series monitors (3500/40M, 3500/42M, etc.) to continuously capture steady-state and transient waveform data and transmit it to the host software via an Ethernet link. By default, the TDI captures static data, but installing additional channel-enabled disks also allows you to record dynamic or transient data.
The data collected by the 146031-01 module will be transmitted to this software via Ethernet. The System 1 software can conduct in-depth analysis, storage, and presentation of this data, helping users comprehensively understand the operating status of the equipment, predict potential faults, and formulate maintenance plans.
Communication Cables and Accessories
Ethernet Cables
The 146031-01 module is equipped with Ethernet interfaces (such as 10Base-T/100Base-TX). Appropriate Ethernet cables are required to connect it to the network for data transmission. Different types of Ethernet cables are suitable for different transmission distances and rate requirements.
3500/22M Dynamic Data-Enabled Disk
This is an optional accessory. When used in conjunction with the 146031-01 module, it can support the collection of dynamic or transient data. Moreover, one disk can support multiple TDI modules.
Application Scenarios
Power Industry
Power Plants: For equipment such as steam turbines, gas turbines, and generators in power plants, the system equipped with the 146031 - 01 module can be used to monitor parameters like vibration, temperature, and pressure of these devices. By collecting and analyzing this data, problems such as equipment imbalance, misalignment, and bearing wear can be detected in a timely manner, ensuring the safe and stable operation of power generation equipment and reducing unplanned downtime.
Petroleum and Natural Gas Industry
Refineries and Natural Gas Processing Plants: Install relevant monitoring systems on rotating equipment such as compressors and pumps. This module can collect the operation data of the equipment in real time, helping operators detect potential equipment failures promptly and avoiding production interruptions and safety accidents caused by equipment damage.
Chemical Industry
Chemical Production Units: Conduct condition monitoring on various equipment such as reaction vessels and mixers. Through analyzing the collected data, the operation parameters of the equipment can be optimized to improve production efficiency. At the same time, it ensures the safe operation of the equipment and prevents accidents such as chemical leakage.
Metallurgical Industry
Steel Plants: It is used to monitor the operation status of large equipment such as blast furnace blowers and rolling mills. By continuously monitoring parameters such as the vibration and temperature of the equipment, equipment failures can be detected in a timely manner and repaired, ensuring the continuity and quality of steel production.
