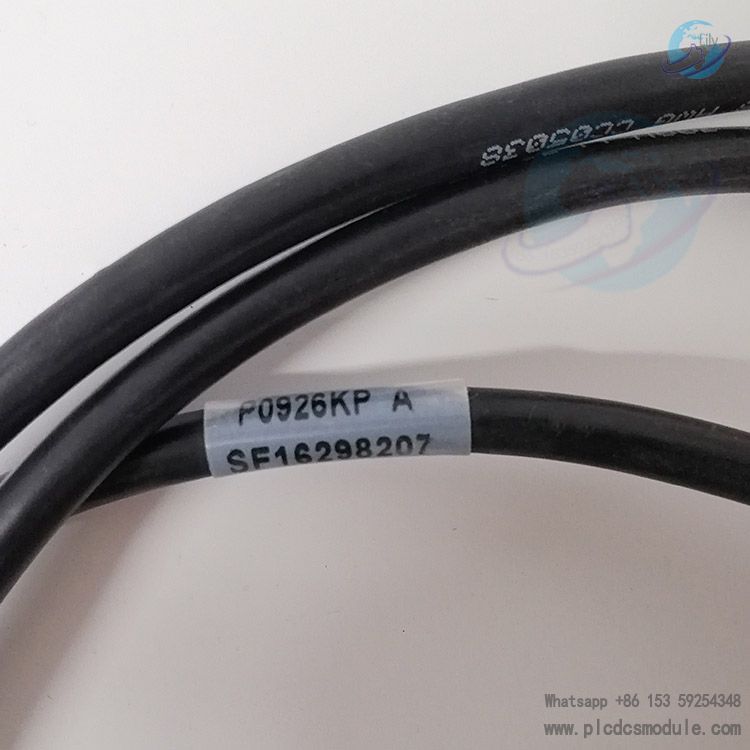

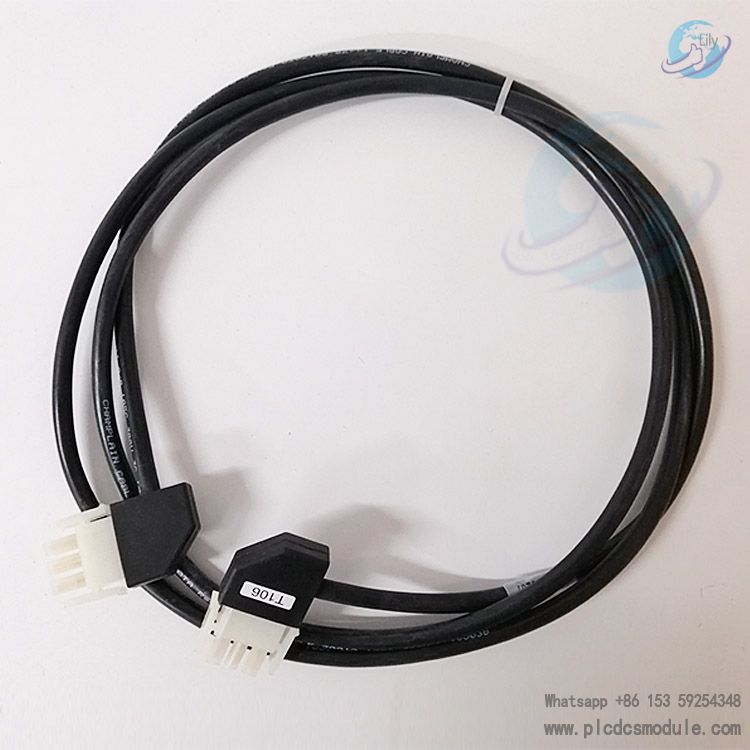

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The P0926KP is a key supporting cable for the FPS400-24 power supply in the Foxboro Evo system. It is used to transmit 24V DC power to modular bases, supporting parallel power supply for multiple bases and redundant design. Its 1.8-meter shielded cable structure is adapted to industrial cabinet layouts, featuring anti-interference and explosion - proof characteristics, making it suitable for harsh environments such as petroleum and chemical industries. The replacement model RH926KP is further optimized in compatibility and environmental adaptability to ensure the stability and safety of system power supply.
DATA SHEET
FOXBORO P0926KP.pdf
Technical Parameters
- Cable Type: New modular base power cable, replacing the original model P0926KP.
- Length Specification: 1.8 meters (6 feet), suitable for short-distance power connections within cabinets.
- Material & Interface:
- 16 AWG shielded wire, ensuring stable power signal transmission.
- Interfaces compatible with both old and new cable versions, 适配 to the output connector of the FPS400-24 power supply.
Application Scenarios & Compatible Systems
- Compatible Power Supply: Only for FPS400-24 standard 200-series power supplies (400W, 24V DC output).
- Base Compatibility:
- New modular bases (e.g., P0926KE/HF/HJ/HM/HT/KH/HZ/JC/JF/JM).
- Supports parallel connection of up to 6 cables of the same type to meet multi-base power requirements.
Electrical Characteristics
- Power Transmission:
- Transmits 24V DC power with a rated output current of 16.7A (max 400W).
- Supports redundant power design to ensure system stability.
- Protection Features:
- Shielded design with EMC compliance to EN61326-1:2013 Class A standard.
- Resistant to harsh industrial environments (G3 level) and corrosive gases (e.g., hydrogen sulfide, chlorine).
Installation & Physical Specifications
- Installation Method:
- Connects the power output to the base power interface, supporting horizontal/vertical routing in cabinets.
- Tool-free plug-and-play connection for easy maintenance and replacement.
- Physical Parameters:
- Length: 1.8 meters (6 feet).
- Wire Gauge: 16 AWG (approx. 1.31mm²), shielded structure.
- Weight: Not individually specified; 参考同类电缆约 0.5kg.
Replacement Model & Compatibility
- Replacement Relationship: RH926KP replaces P0926KP with fully compatible interfaces and upgraded materials for wider temperature ranges.
- Compatible Products:
Must be used with FPS400-24 power supplies (P0922YU/P0922YC), modular bases, and terminal blocks (P0926DZ).
Can be paired with Y-type cables (e.g., RH923NG) for multi-base expansions.
