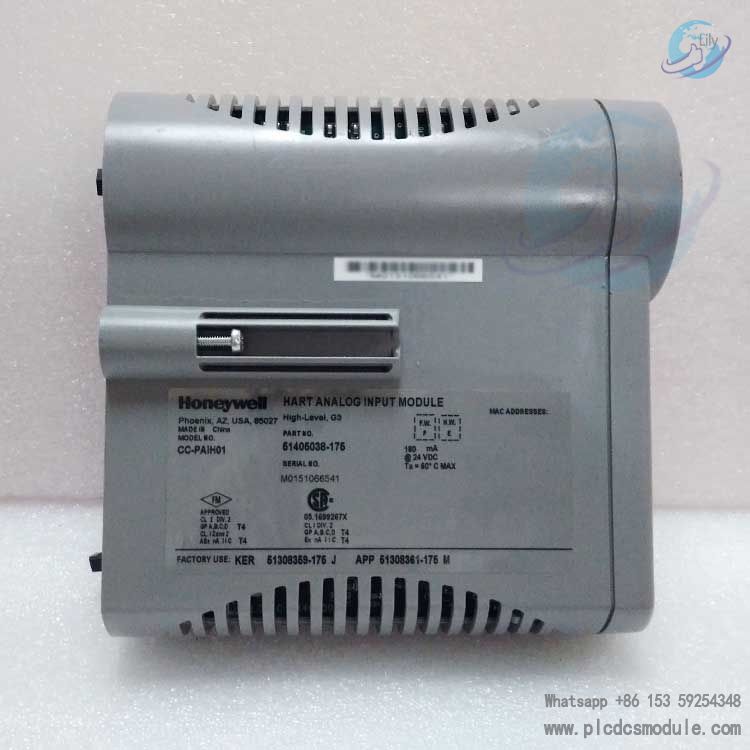

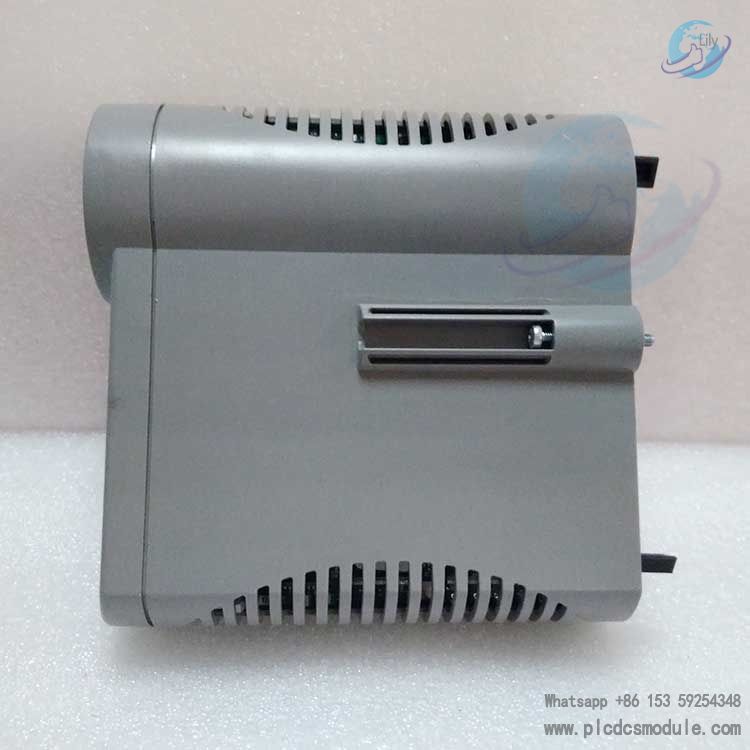

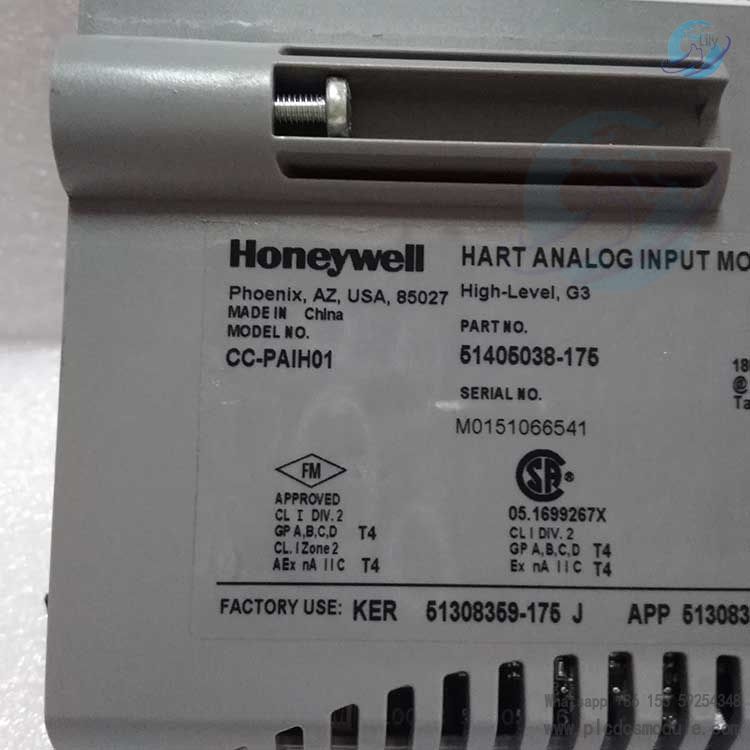

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The Honeywell CC-PAIH01 51405038-175 Hart analog input module is a key component of Honeywell's industrial automation products, specially designed for precise acquisition and processing of analog signals. It efficiently receives signals from various sensors and transmitters, providing critical data support for control systems. Widely applied in complex industrial environments, it helps ensure the smooth operation of automation processes.
Technical Specifications
Channel Quantity：Equipped with 16 analog input channels, enabling simultaneous connection of multiple field devices for multi-signal synchronous acquisition.
Input Signal Types：Supports 4-20mA current input and 0-10V DC voltage input, adapting to output signal types of various common industrial sensors and transmitters. Channels 13 to 16 also support differential input.
Communication Protocol：Features HART communication capability, allowing rapid collection of control variables from multivariable instruments and multiple modems. It enables two-way communication with intelligent devices for easy access to detailed device information and parameter configuration.
I/O Module and Terminals：The I/O module and field terminals are integrated in the same area, adopting two-stage "detachable" terminals for convenient wiring and maintenance. Field power supply can be provided via IOTA (I/O Termination Assembly), which directly supports redundant configuration.
- Sampling Rate：100Hz, enabling rapid sampling of input signals to promptly track signal changes.
- Operating Temperature Range：0°C to 60°C, adaptable to temperatures in most conventional industrial environments.
- Storage Temperature Range：-40°C to 85°C, ensuring module performance remains unaffected under different storage conditions.
- Humidity Range：5% to 95% relative humidity (non-condensing), allowing stable operation in high-humidity environments.
- Power Consumption：Typical operating current is 180mA @ 24VDC.
- Protection Level：Meets NEMA 4X / IP66 protection rating, effectively dustproof and waterproof to withstand harsh industrial environments.
- Dimensions：Approximately 95mm x 368mm x 133mm.
- Weight：Approximately 0.5kg.
- Oil & Gas：Monitors parameters such as pipeline pressure, flow rate, and oil tank liquid level to ensure safe and efficient oil/gas extraction, transportation, and storage.
- Chemical Industry：Precisely collects analog signals like temperature, pressure, and component concentration during chemical reactions, providing data for precise process control and optimization to safeguard production safety and product quality.
- Power Generation：Acquires various operating parameters of generator sets (e.g., temperature, vibration, voltage, current) to monitor power equipment status, detect potential faults in a timely manner, and ensure stable power supply.
- Manufacturing：In automated production lines, monitors analog signals such as motor speed, equipment vibration, and material position to realize automated process control and quality monitoring, improving production efficiency and product consistency.
- Intelligent Buildings：Applied in HVAC systems to collect analog signals (temperature, humidity, pressure), enabling intelligent regulation of the building environment to enhance energy efficiency and comfort.
