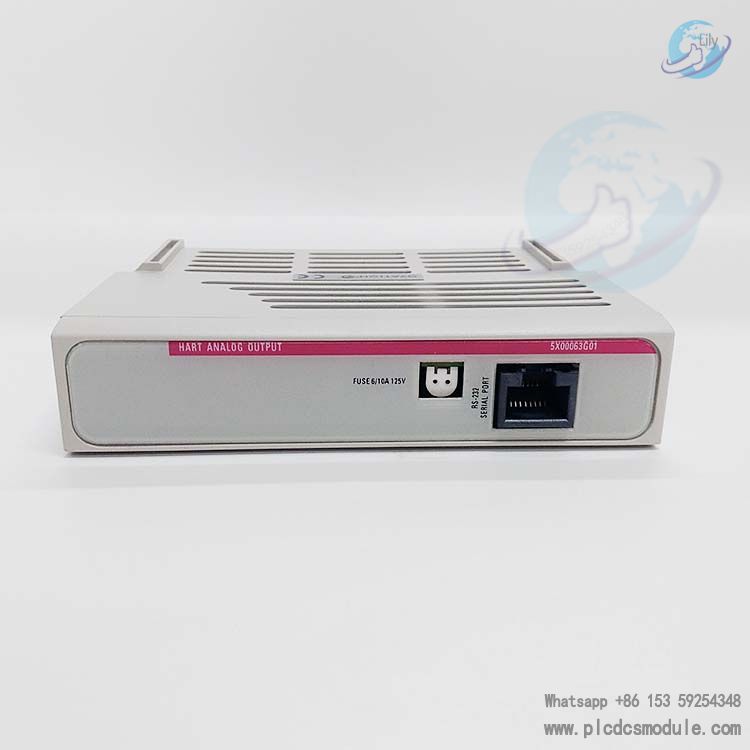

EMERSON OVATION 5X00063G01 HART 8-Channel Analog Output Module

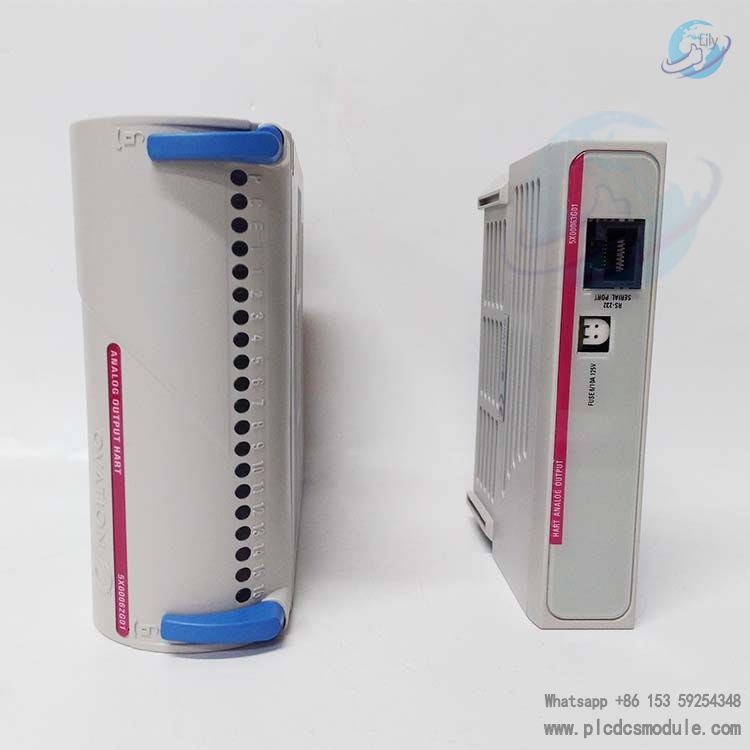

The 5X00063G01 is a supporting personality module for the HART Analog Output Module (5X00062G01 electronic module) in the Emerson Ovation distributed control system (DCS). It is primarily used to provide circuit protection, power interfaces, and signal conditioning for 8 channels of HART-compatible intelligent field devices, supporting the integrated control of analog signals and digital communication.

Data Sheet:

Ovation I O Reference Manual.pdf

Ovation HART 8-Channel.pdf

Core Functions

• Passive Circuit Support: Provides passive signal conditioning circuits for 8-channel 4-20mA analog output channels to ensure the stability of low-frequency shift-keyed sine wave signals (HART protocol) superimposed on analog signals.

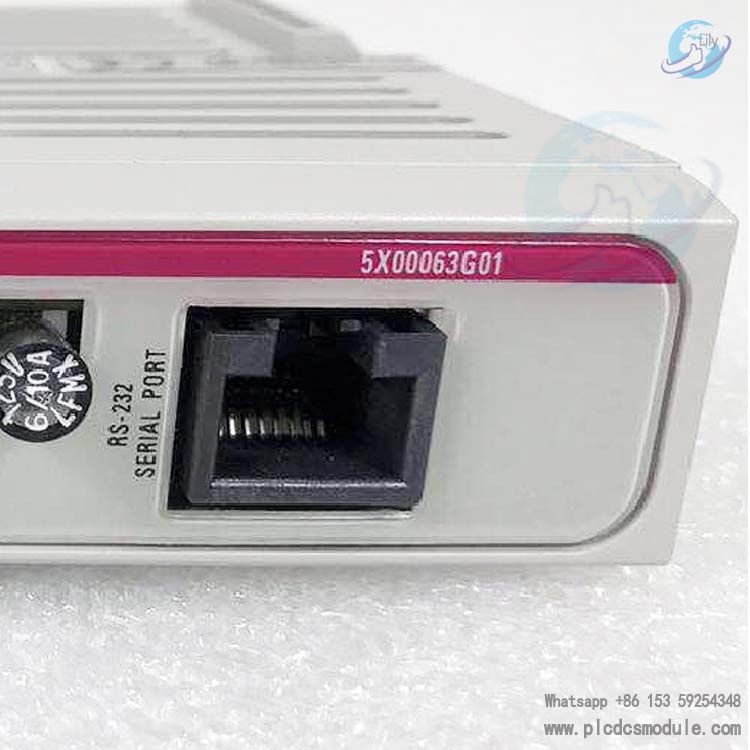

• Overcurrent Protection: Each channel is equipped with a user-serviceable fuse (0.6A/125V micro-fuse) to independently protect the field-side auxiliary power supply against overcurrent or short-circuit faults.
• Power Interface: Connects to an external 24VDC auxiliary power supply (typical power consumption: 6W; maximum: 7.2W), supplying power to two-wire or four-wire field devices.
• Signal Isolation: Achieves 1000VDC/RMS electrical isolation between the field side and logic circuits via the electronic module, enhancing anti-interference capability (no isolation between channels, sharing a common ground).

Electrical Specifications

• Mounting Method: Installed with the 5X00062G01 electronic module in an Ovation standard base unit, compatible with DIN rail mounting in industrial control cabinets.

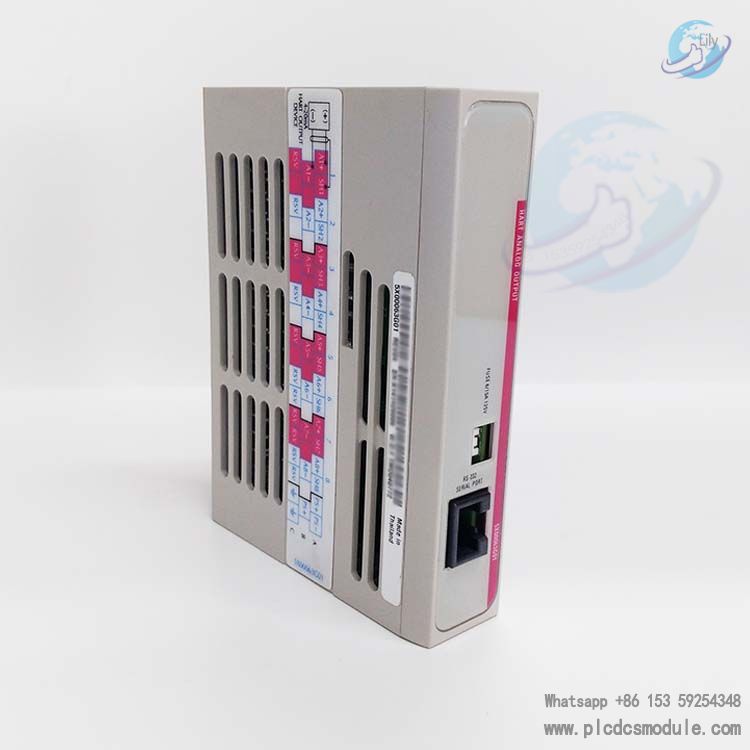

• Terminal Definitions:
• A1+~A8+: Positive terminals for analog signal output (connected to field devices).
• PS+/-: 24VDC auxiliary power input.
• SH1~SH8: Shielded grounding terminals (single-point grounding required for CE versions; direct connection allowed for non-CE versions).

Signal Processing and Communication

• HART Protocol Integration: Uses the electronic module’s 16MHz microcontroller and 14-bit D/A converter to superimpose HART digital signals on 4-20mA analog signals, supporting digital information acquisition with a 2-second update cycle.
• Dual-Channel Redundancy: Enables device parameter configuration and diagnostics via Emerson AMS Suite™ Device Manager, with the electronic module handling signal processing and the personality module providing hardware protection.

Diagnostics and Maintenance

1. Status Monitoring

LED Indicators (dependent on the electronic module):

P (Green): Main power normal (24VDC main power supplied by the electronic module).

C (Green): HART communication active (status of digital signal interaction).

I (Red): Internal error (e.g., blown fuse, open loop fault, triggered by the Pass/Fail bit in the electronic module's register 0xC).

Register Diagnostics:

Channel faults are reported via the electronic module’s Address 12 (C Hex) register, indicating issues such as Open Loop, Overcurrent, or Blown Fuse.

2. Maintenance Features

Hot-Swap Support: Not explicitly mentioned in the documentation, but Ovation standard modules generally support online replacement (verify with the official manual).

Fuse Replacement:

Faulty channel fuses can be directly replaced without tools, and fault status is cleared via electronic module reset after replacement.

Supports module-level maintenance without disassembling the entire base unit.

Typical Applications

Industry Sectors: Power generation, petrochemical, chemical, and water treatment processes, suitable for process control scenarios requiring HART communication.
